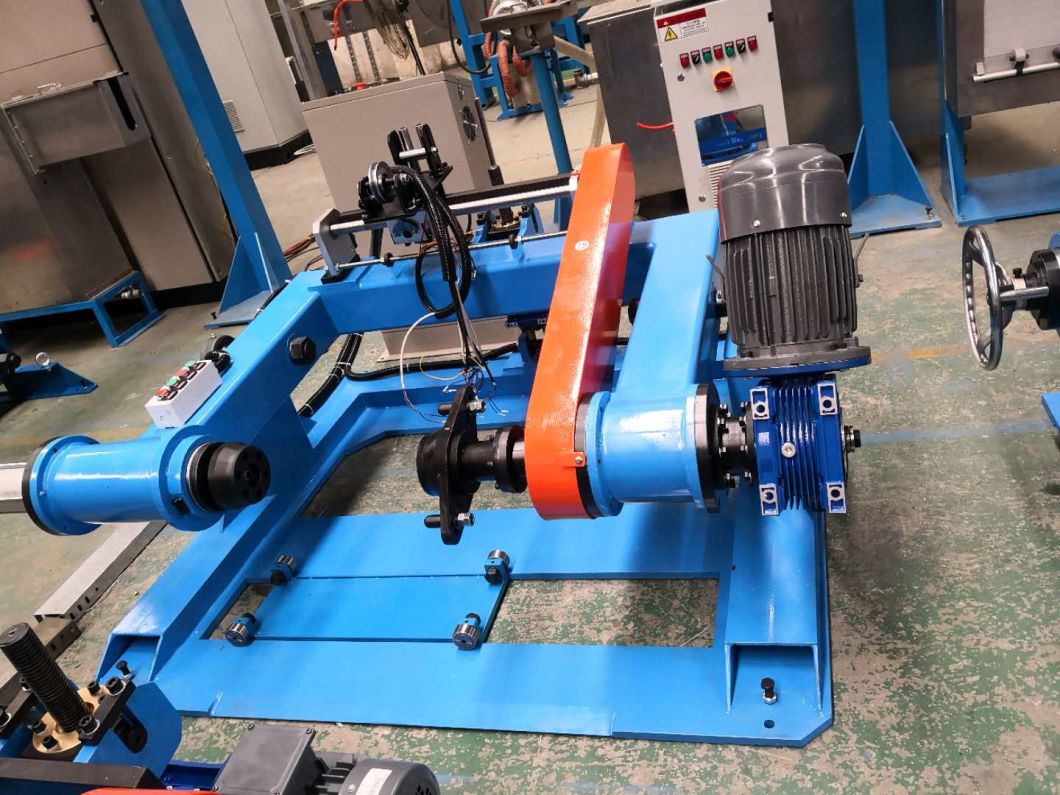

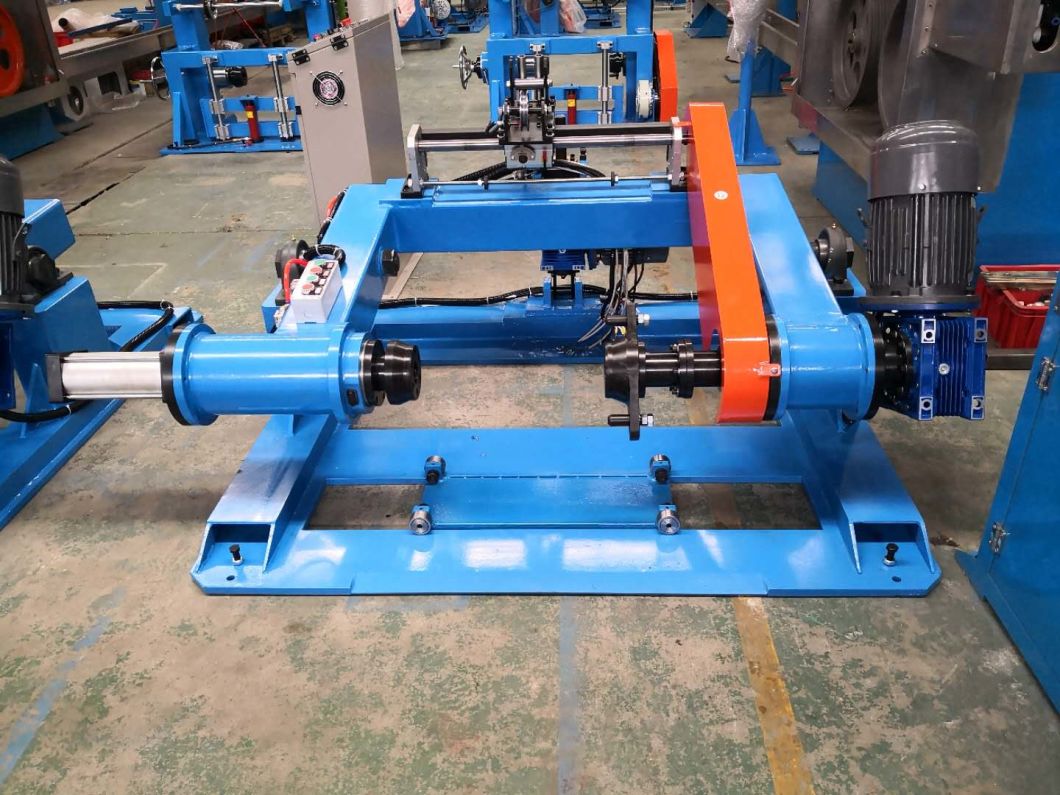

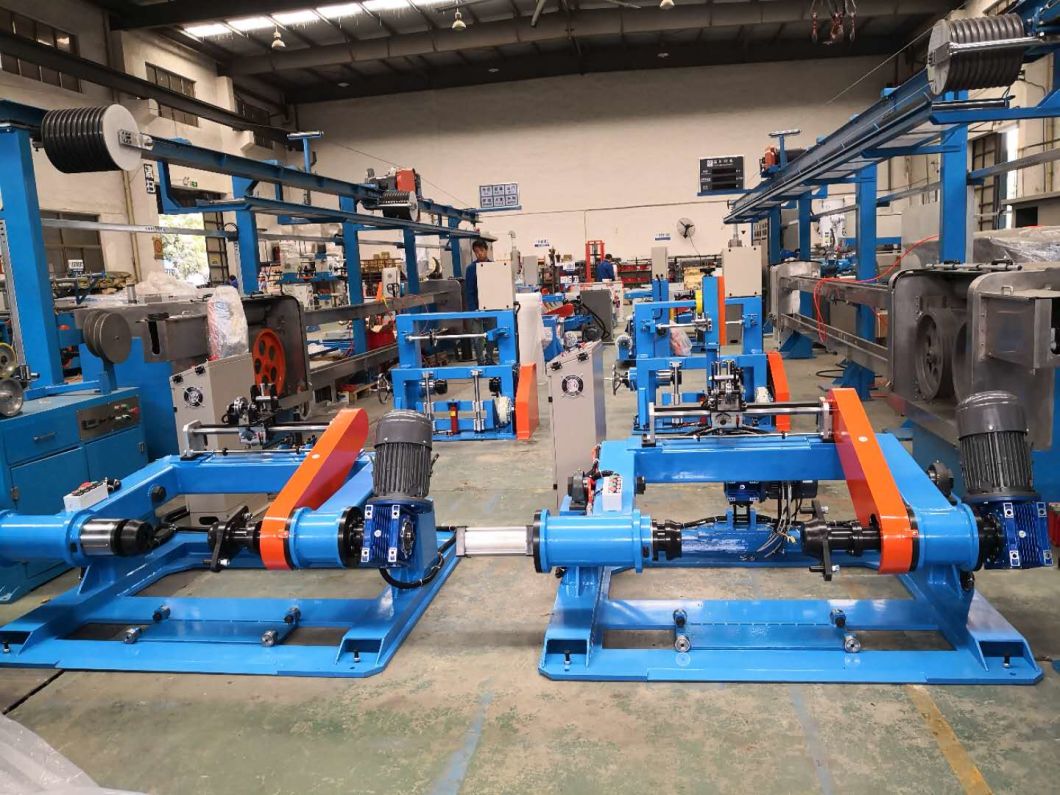

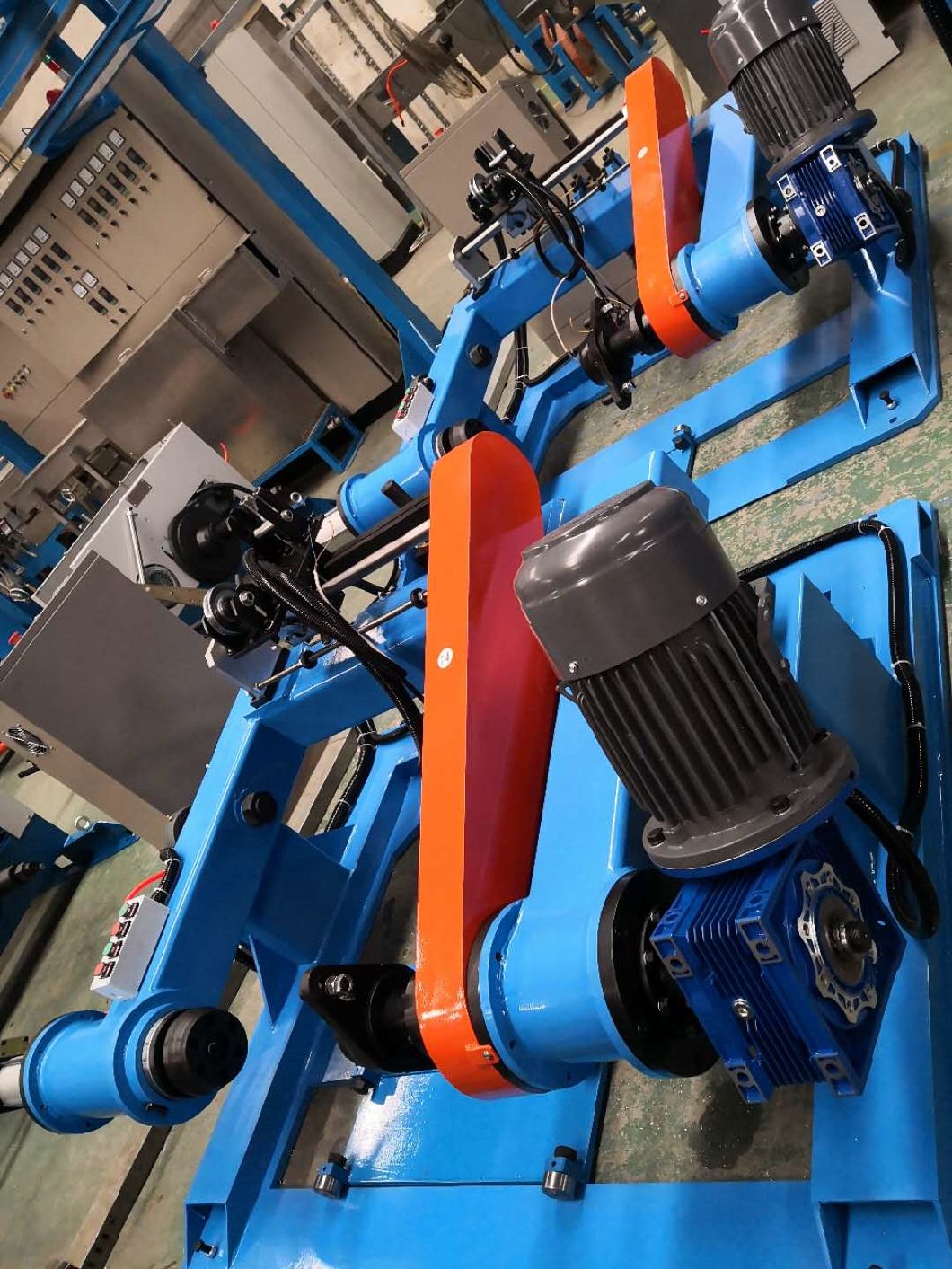

Cable Electrical Copper Wire Take up Pay off Winding Twist Twister Twisting Extrusion Machine


Availability:



Inquire Add to Basket

Driven Type:
Electric
Condition:
New
Certification:
ISO
Warranty:
12 Months
Automatic Grade:
Automatic
Mould Life:
>1,000,000 Shots

Product Description

One.FC-800active pay off take up machine parameters

Fit for bobbin:dia800mm-630mm

Fit for copper wire:φ0.40mm-φ1.30mm

2.Tension control:wire accumulator guidewheels upper and down(by displacement sensor)reback signal to converter to control motor rotate speed.Linkage with main machine.Keep the pay off tension even and stable.cylinder control tension

3.Bobbin loading:hydraulic lifting

4. Main motor:2.2KW AC motor(2.2KW-6P frequency SFC)+2.2KW inverter(Innovance)

And speed reduction box control.

5.Bearing:Japan NSK

6.Protection:when wire is break it will automatically stop the machine

7.Linear speed:200m/min

Cable Machine Wire Machine Cable Electrical Copper Wire Take up Pay off Winding Twist Twister Twisting Extrusion Machine
