Conductor Copper Wire0.05-2.52mm Bunching Buncher Winding Making Coiling Extrusion Extruder Stranding Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Shaftless

  • Motor Drive

  • 630*127*475

  • Sky Blue or Apple Green

  • Magnetic Powder Break

  • Screw-Threaded Coupling in Hand



Conductor Copper Wire0.05-2.52mm Bunching Buncher Winding Making Coiling Extrusion Extruder Stranding Machine

Conductor Copper Wire0.05-2.52mm Bunching Buncher Winding Making Coiling Extrusion Extruder Stranding Machine
Conductor Copper Wire0.05-2.52mm Bunching Buncher Winding Making Coiling Extrusion Extruder Stranding Machine
Conductor Copper Wire0.05-2.52mm Bunching Buncher Winding Making Coiling Extrusion Extruder Stranding Machine
Conductor Copper Wire0.05-2.52mm Bunching Buncher Winding Making Coiling Extrusion Extruder Stranding Machine
Conductor Copper Wire0.05-2.52mm Bunching Buncher Winding Making Coiling Extrusion Extruder Stranding Machine

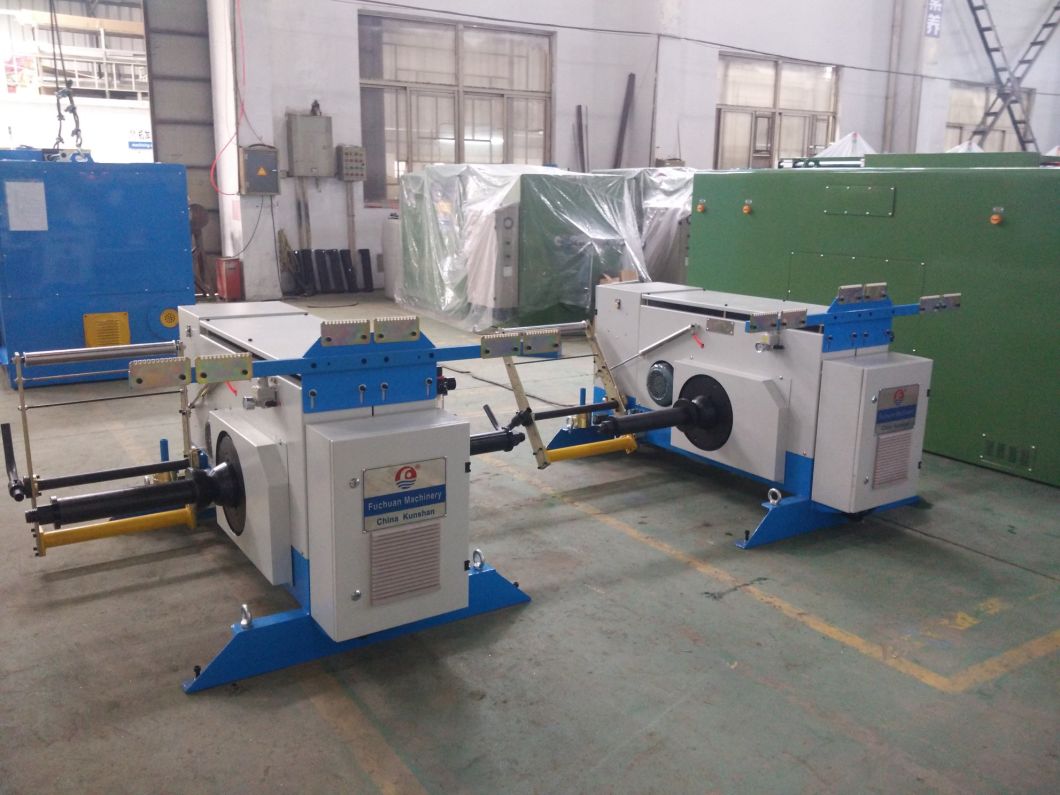

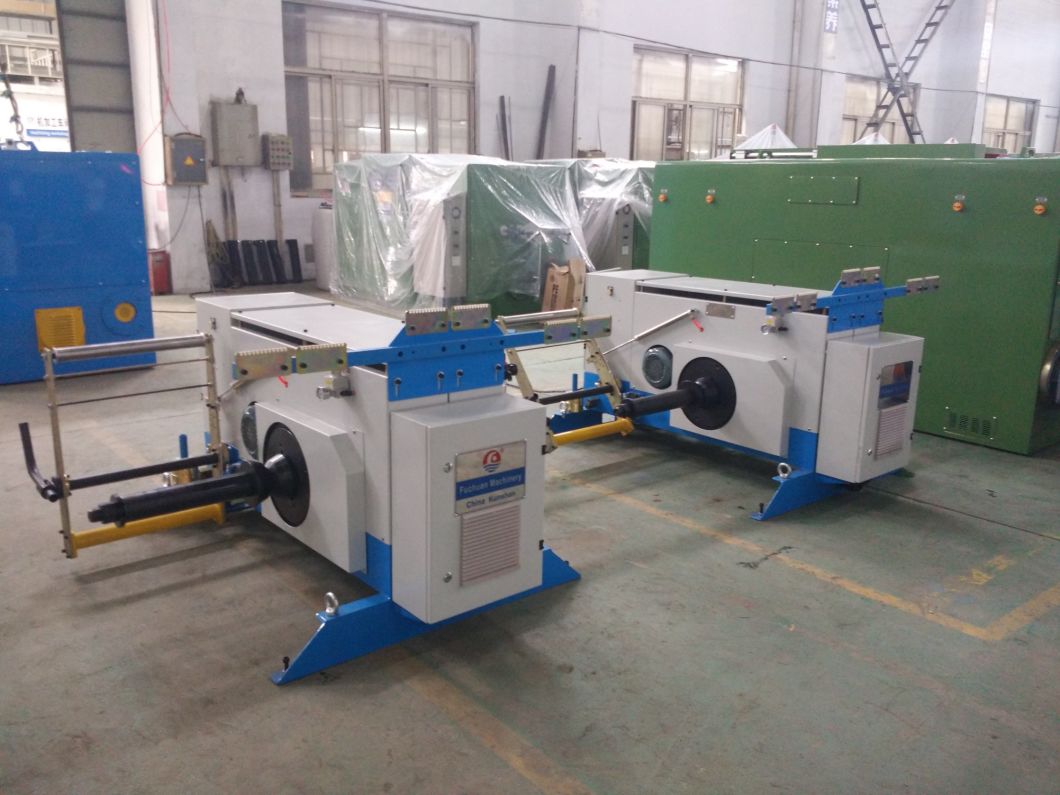

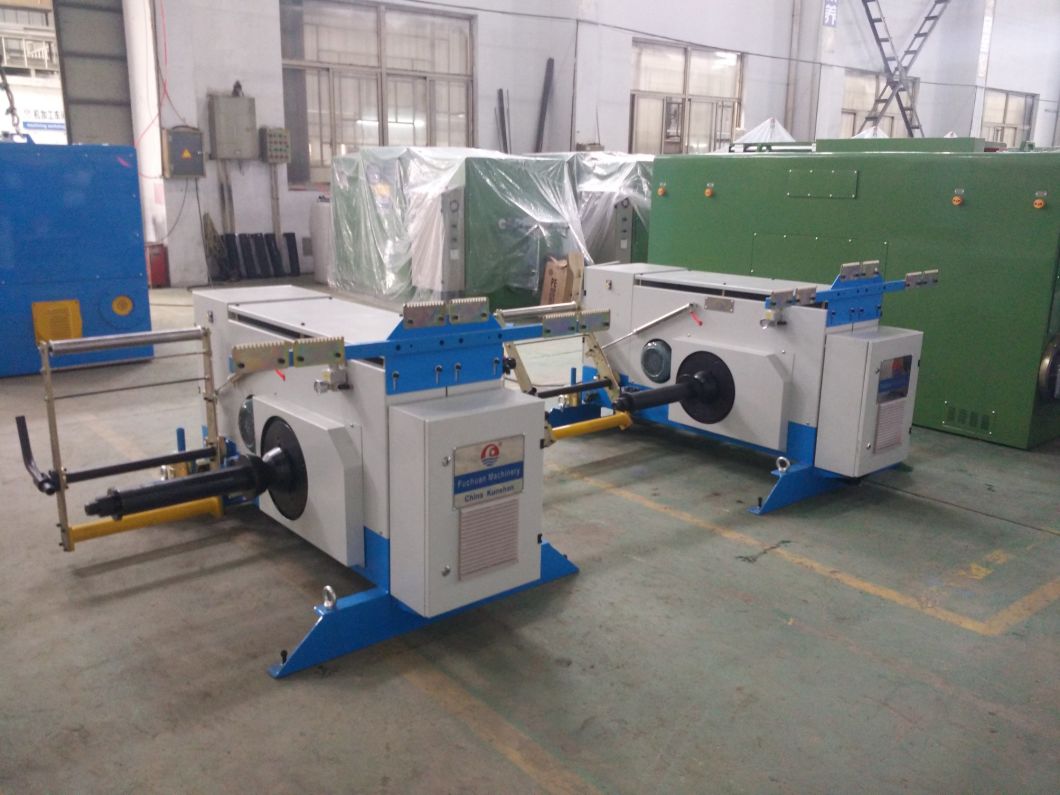

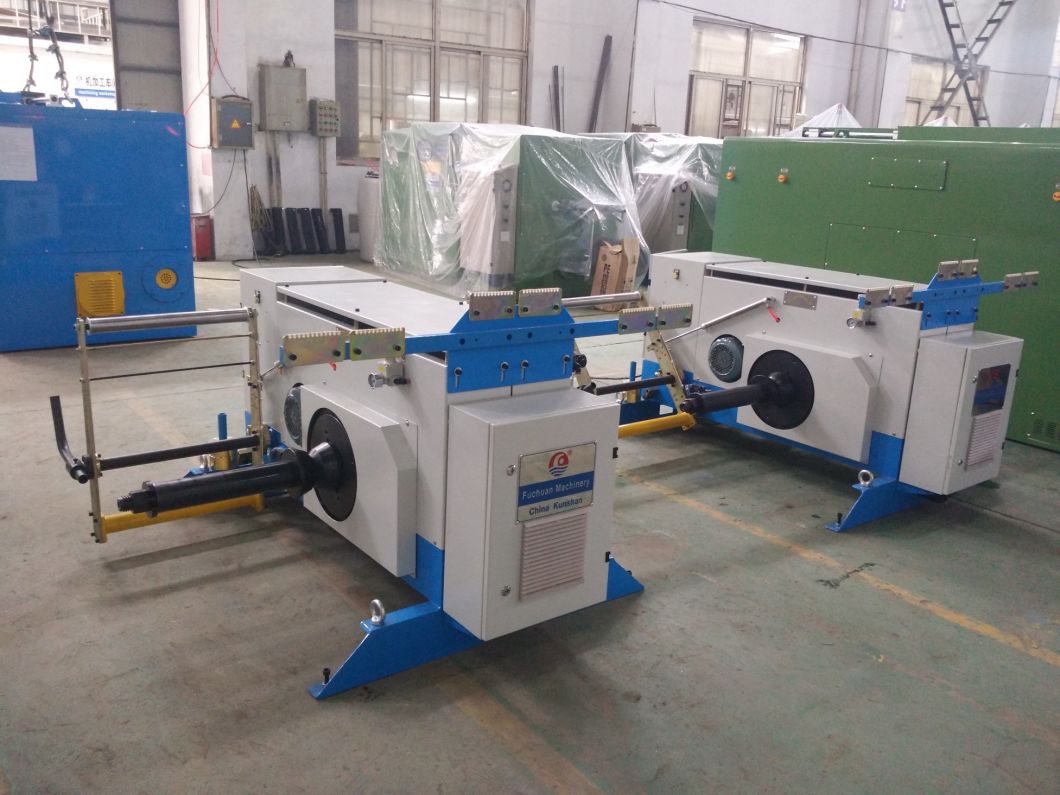

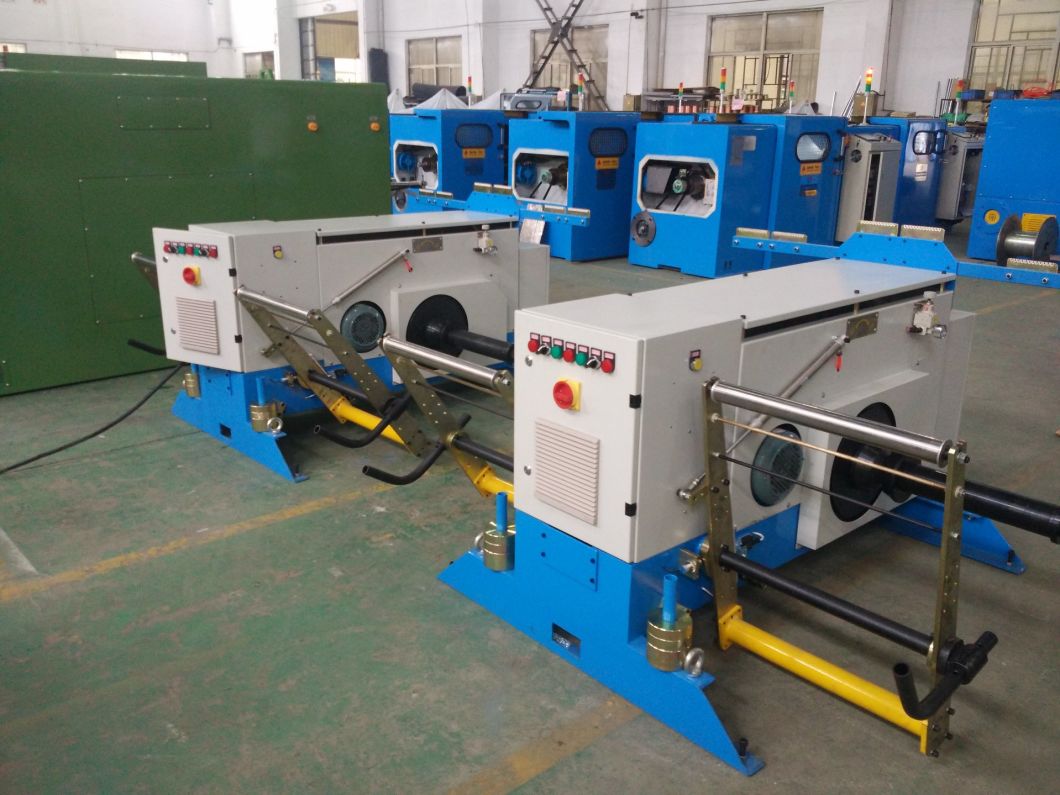

Merits:It is constant tension,non-twist wire single bobbin pay off machine. Applied to single wire and
multiple drawing wires pay off.Match up with the high speed bunching machine,easy to operate,save more floor area.

The technical parameter pay off machine:
The specification of pay off wire: Core wire in φ 0.08-φ 0.5mm
Pay off dia: Steel bobbin in size of φ 630*φ 125*475/800
Bobbin Locked Style: Shaftless; Screw-threaded coupling in hand
Up and down bobbin: Manual pump+ the lifting platform driven by the hydraulic cylinder
Tension control: Pneumatic tension
Pay off speed:It is feedback the signal to the inverter to control the rotating speed of motor
by displacement sensor
Control type: Synchronize with the main machine
Protection:machine is stopped when wire is broken
Bobbin fasten type:Pneumatic fasten
