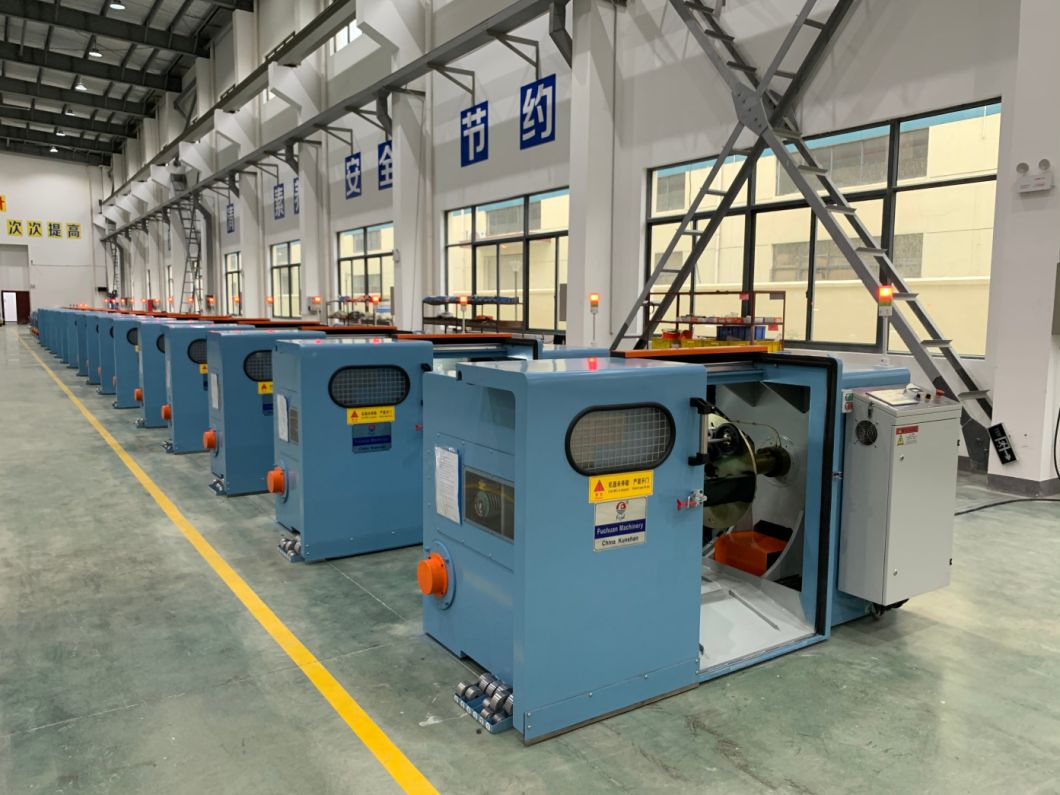

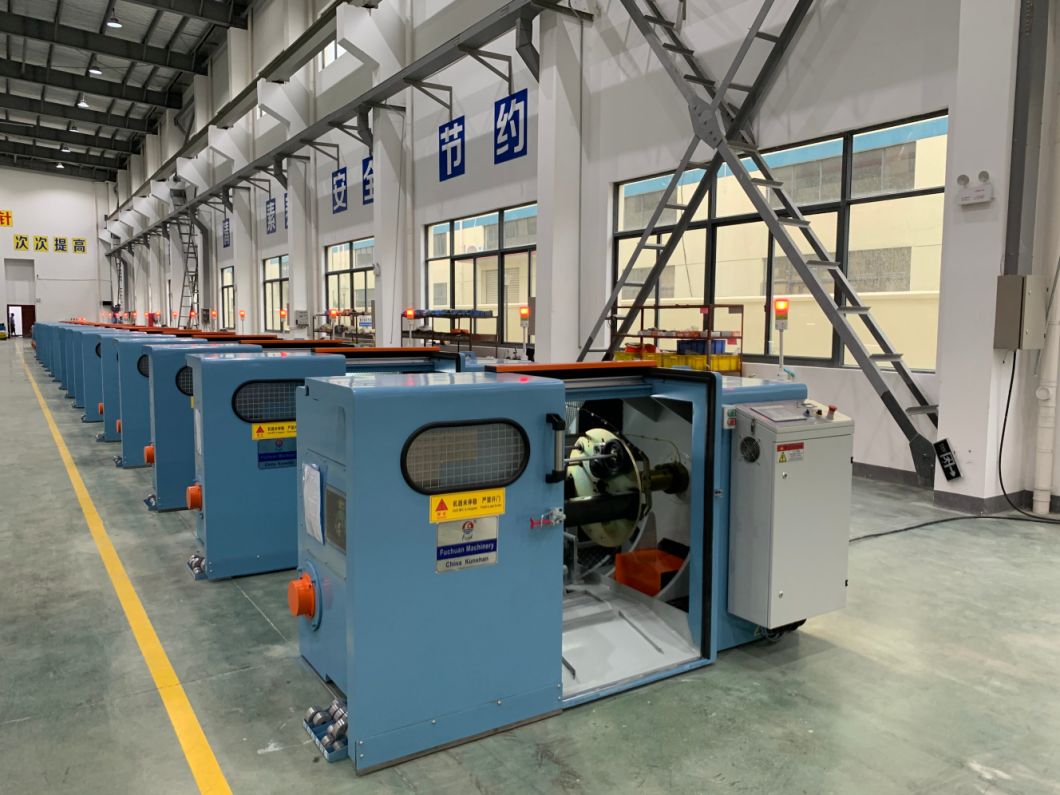

Fine Copper Wire and Electrical Cable Wire Winding Extrusion Double Twisting Bunching Stranding Machine
-
12months
-
Double Shaft
-
Passive Pay off
-
Copper Wire or Core Wire
-
Diameter400-500-630bobbin
-
Friction Plate Control
Main performance parameters of FC-650B automatic high speed bunching machine (replace of the capstan wheel to change the lay length).
- Usage: It is applied to the stranding of bare twisted wire, tinned, copper covered aluminum, lacquer wire and alloy wire. 1+6 may twist instead of bunching.
2.Diameter of single copper wire: φ0.16~φ0.70mm
3.Outer diameter of wire: φ0.84~φ3.2mm;
4.Cross section area: φ0.40~φ6mm2
5.Size of take up spool: φ630mm×430mm×φ125mm(according to client's drawings to make).
6. Maximum rotating speed: 2000RPM
7.Type of traverse: φ30mm rolling ring traverse, winding pitch and breadth are adjustable.
8. Standard lay length: 34 section 11.6~100mm (enclose list of standard lay length).
9. Main motor: 7.5KW AC motor +frequency converter
10. Weight of copper load: about 400kg
11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension.
14. Drive bearing: it is adopted imported Japan bearing.
15. Synchronization strap: it is adopted imported American product.
16. Spool from top to bottom: it is adopted manual pump hydraulic landing.
17. Way of spindle lubrication: butter lubrication.
18. Index of noise: about 80dB
19.Dimension: (length×breadth×height): 3300×1450×1650mm
20. Weight: 4500Kg
21. Coating: apple green (may according to customer's requirements).
22. Package: simple waterproof packing
23. Direction: this machine is on your left, when you are in the face of front door, and pay-off on your right (may according to customer's requirements to make).
24. Sealing of machinery door: seal of plastic.
25. Spindle housings sealing: mechanical block oil ring
