φ70+φ35 high speed extrusion machine(Touch screen operation)- It is mainly for PVC plastic material extrusion for electric wire and cable wire.
- Operation direction:right hand machine
- Main machine center height 1000mm;
- Inlet wire:φ0.6-φ3.2mm;flat wire also make;(according to mould);
- Finished wire:φ1.5-φ5.0mm;
- Production linear speed:350m/min
- Main machine color:main machine Ral5015 sky blue;electric cabinet: computer white;safe color:yellow.
- Machine composition

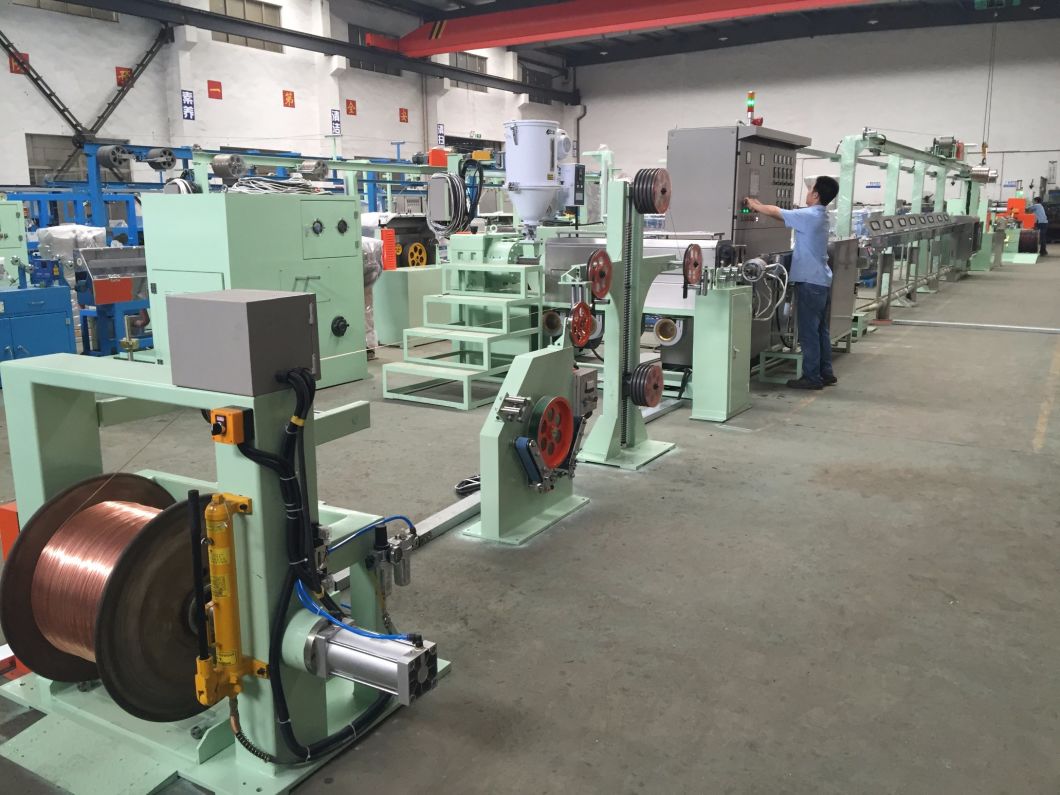

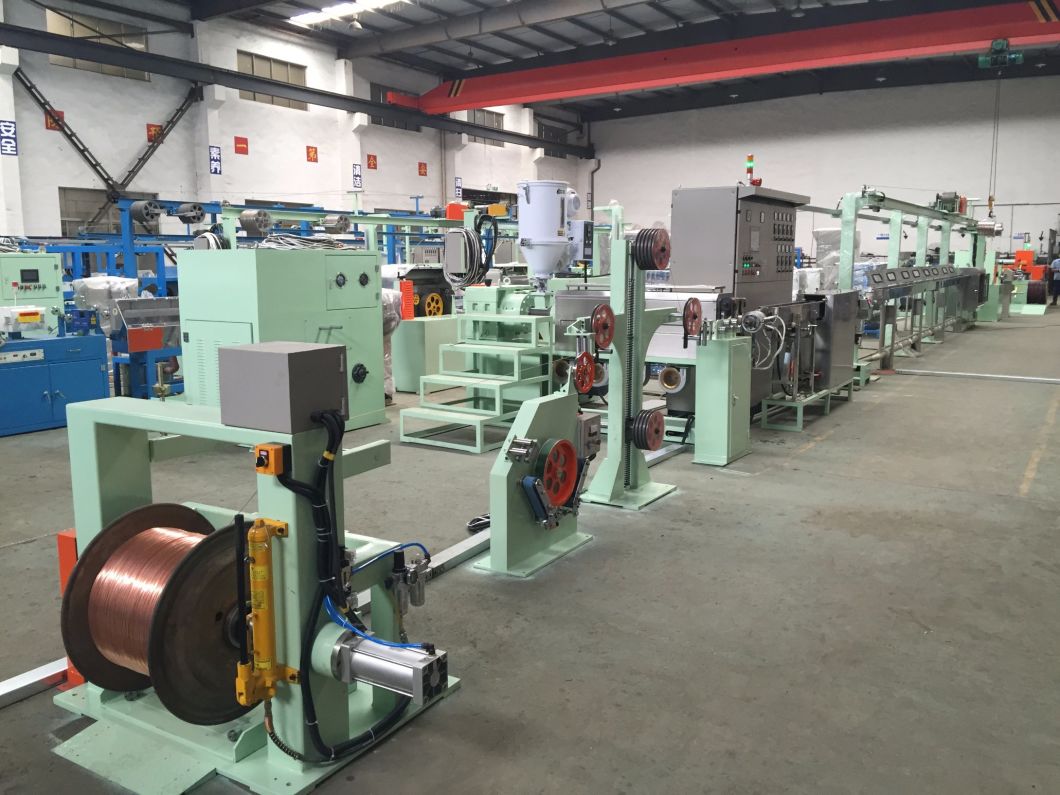

- High speed automobile wire,electrical wire,power cords and jacket sheathing extrude line
Equipment type 50+30 60+35 70+35 80+45 90+50 100 120 Pay off type 500-630active/barrel pay off 800-1250-2500active pay off Screw dia 50 60 70 80 90 100 120 L/D ratio 26:1 26:1 26:1 25:1 25:1 25:1 25:1 Glue output 60 90 160 240 280 450 650 Main power 15 22 37 45 55 75 132 Wire size 0.6-3.5 0.8-4 1.0-5.0 1.5-8 6.0-25 6.0-35 20-80 Cooling device Double layer U type Single layer U type Max accululator length 300 300 300 300 Hauling power 3.7 3.7 5.5 5.5 7.5 7.5 15 Linear speed 0-500 0-800 0-800 0-1000 0-200 0-200 0-80 Take up type 1246automatic coiler,500-800drum take up,cone disc precision take up,630semi-auto dual shaftless take ups 800-1250-2500take up
