High Speed Automobile Wire, Electrical Wire, Power Wire, Jacket, Sheathing Extruder Extrusion Machine
-
12months
-
PP or PE Extruder
-
PVC, PP, PE, Sr-PVC
-
Granulating Extruder
-
One Feed
-
Separate Type Extruder

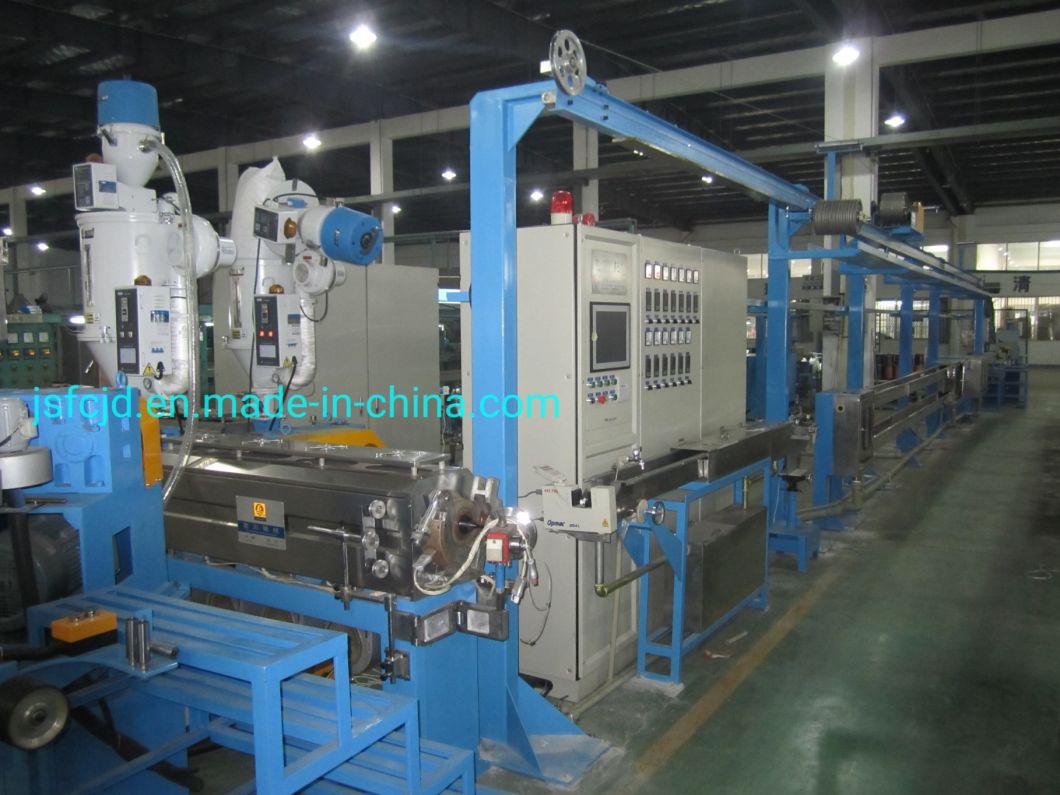

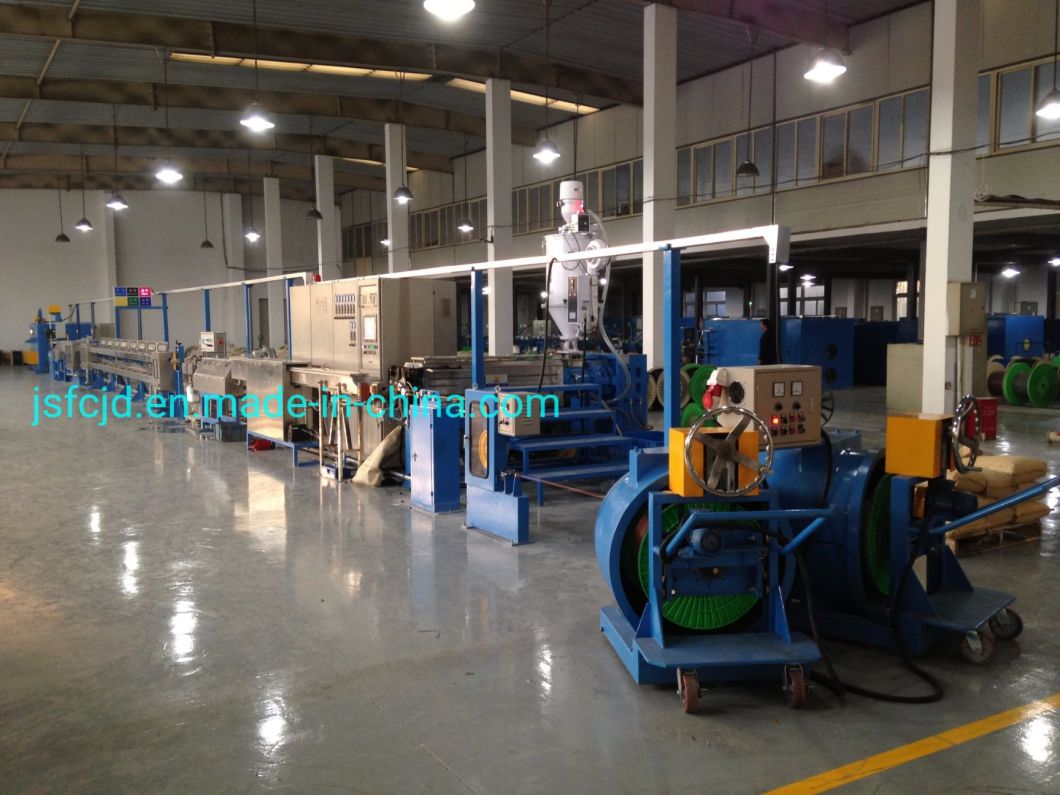

Φ90 high speed extrusion machine(Touch screen operation)- It is mainly for,XLPE,PVC ,PE extrusion for electric core wire and sheathed cable wire.
- Operation direction:right hand machine
- Main machine centre height 1000mm;
- Inlet conductor core wire:φ3.2-φ8.0mm;fit for core wire extrusion, Finished wire:φ4.0-φ12.0mm;
- Production linear speed:150m/min
- Main machine color:main machine sky blue; electric cabinet: computer white;safe color:yellow.
- Machine composition

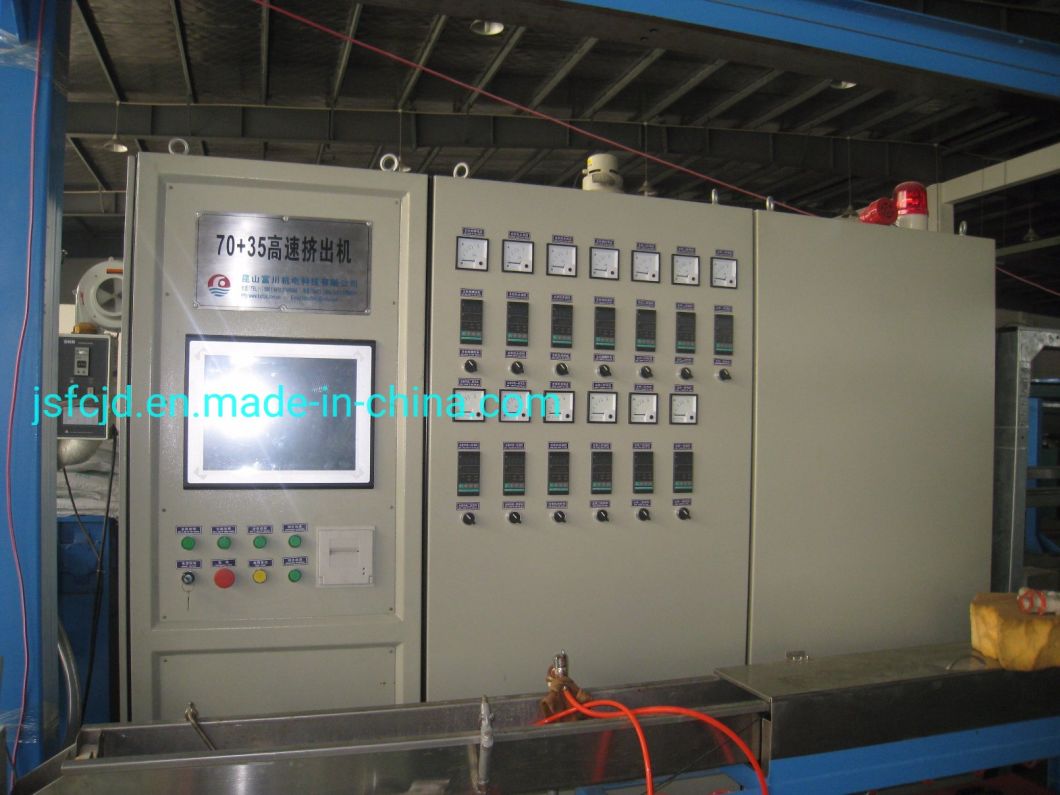

Remark:Japan Yaskawa converter;Siemens motor;Japan RKC temperature controller; Japan Omron relay and France. Siemens PLC Wein Lun touch screenNo Name Numbers Unit Note 1. 1000magnetic passive tension pay off machine 1 Pcs Fuchuan made 2 Wire straightening 1 Pcs Fuchuan made 3 ¢90 main machine 1 pcs Fuchuan Made(contain ZhouShan PVC screw one set) 4 X9 adjustable head 1 pcs ShangHai Xu Dong 5 100KG dryer hopper loader 1 set 6 Water blower 1 set 7 Suction machine 1 set Tai Wan Shin YI 8 1.8 meters movable cooling water tank 1 set Fuchuan made 9 Diameter measure device 1 set ShangHai On-line 10 High speed printer 1 pcs Fuchuan made 11 10meters single layer cooling water tank 1 set Fuchuan made 12. 800 hauling machine 1 set 13 12meters horizontal accumulator rack 1 set Fuchuan made 14 Spark tester 1 Pcs Tai Wan He Tai 15 159 meter counter 1 Pcs Fuchuan made 16 1250big shaft take up machine 1 pcs 17 Electric motive control cabinet and temperature control part. 1
set
Rita zhou
Senior sales
Kunshan fuchuan machinery
No18Leigongjing road,huaqiao development destrict.
Kunshan city,Jiangsu province China

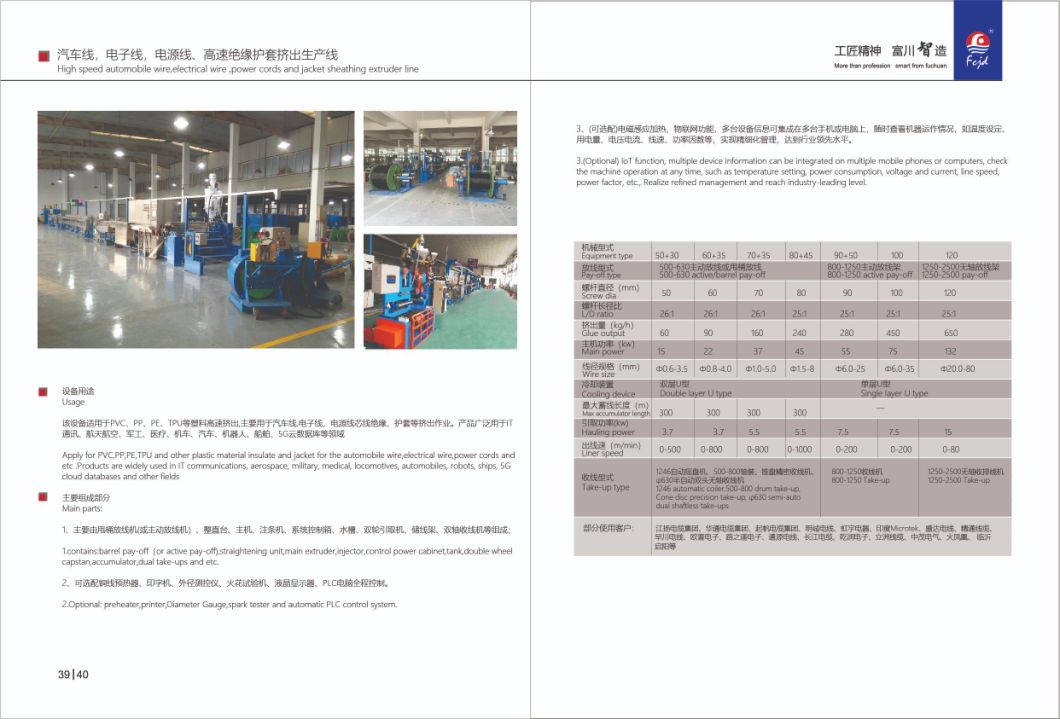

It is applied to extrude the PVC,PP,PE,SR-PVC and other plastic material for the automobile wire ,insulated jacketed.Model 50+35 60+35 70+35 80 Pay off type 500-630 active pay off or lut barrel pay off Screw Dia(mm) 50 60 70 80 Screw L/D ratio 25:1 25:1 25:1 25:1 Revolving speed of screw Max110rpm Max100rpm Max100rpm Max80rpm Extruder quantity(kg/h) 60 100 150 200 Main power(kw) 15 18.5 22 45 Wire diameter(mm) Φ0.6~4.0 Φ0.8~5.0 Φ1.0-6.0 Φ1.10 Cooling equipment Double layer U type Monolayer/Double layer U type Monolayer/Double layer U type Double layer Max accumulate lengh(m) 200 220 220 200 Capstan power(kw) 3.7 5.5 5.5 7.5 Wire speed(m/min) 0-600 0-800 0-800 700 Take-up type 1246 automatic coiling machine ,The plum blossom falls barrel machine , shaft type
Φ90 high speed extrusion machine(Touch screen operation)- It is mainly for,XLPE,PVC ,PE extrusion for electric core wire and sheathed cable wire.
- Operation direction:right hand machine
- Main machine centre height 1000mm;
- Inlet conductor core wire:φ3.2-φ8.0mm;fit for core wire extrusion, Finished wire:φ4.0-φ12.0mm;
- Production linear speed:150m/min
- Main machine color:main machine sky blue; electric cabinet: computer white;safe color:yellow.
- Machine composition
Remark:Japan Yaskawa converter;Siemens motor;Japan RKC temperature controller; Japan Omron relay and France. Siemens PLC Wein Lun touch screenNo Name Numbers Unit Note 1. 1000magnetic passive tension pay off machine 1 Pcs Fuchuan made 2 Wire straightening 1 Pcs Fuchuan made 3 ¢90 main machine 1 pcs Fuchuan Made(contain ZhouShan PVC screw one set) 4 X9 adjustable head 1 pcs ShangHai Xu Dong 5 100KG dryer hopper loader 1 set 6 Water blower 1 set 7 Suction machine 1 set Tai Wan Shin YI 8 1.8 meters movable cooling water tank 1 set Fuchuan made 9 Diameter measure device 1 set ShangHai On-line 10 High speed printer 1 pcs Fuchuan made 11 10meters single layer cooling water tank 1 set Fuchuan made 12. 800 hauling machine 1 set 13 12meters horizontal accumulator rack 1 set Fuchuan made 14 Spark tester 1 Pcs Tai Wan He Tai 15 159 meter counter 1 Pcs Fuchuan made 16 1250big shaft take up machine 1 pcs 17 Electric motive control cabinet and temperature control part. 1
set
Rita zhou
Senior sales
Kunshan fuchuan machinery
No18Leigongjing road,huaqiao development destrict.
Kunshan city,Jiangsu province China
It is applied to extrude the PVC,PP,PE,SR-PVC and other plastic material for the automobile wire ,insulated jacketed.Model 50+35 60+35 70+35 80 Pay off type 500-630 active pay off or lut barrel pay off Screw Dia(mm) 50 60 70 80 Screw L/D ratio 25:1 25:1 25:1 25:1 Revolving speed of screw Max110rpm Max100rpm Max100rpm Max80rpm Extruder quantity(kg/h) 60 100 150 200 Main power(kw) 15 18.5 22 45 Wire diameter(mm) Φ0.6~4.0 Φ0.8~5.0 Φ1.0-6.0 Φ1.10 Cooling equipment Double layer U type Monolayer/Double layer U type Monolayer/Double layer U type Double layer Max accumulate lengh(m) 200 220 220 200 Capstan power(kw) 3.7 5.5 5.5 7.5 Wire speed(m/min) 0-600 0-800 0-800 700 Take-up type 1246 automatic coiling machine ,The plum blossom falls barrel machine , shaft type
