Electrical Cable Core Wire Making Winding Extrude Extrusion Double Twist Twisting Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • 12months

  • PP or PE Extruder

  • PVC, PP, PE, Sr-PVC

  • Granulating Extruder

  • One Feed

  • Separate Type Extruder


Electrical Cable Core Wire Making Winding Extrude Extrusion Double Twist Twisting Machine
Electrical Cable Core Wire Making Winding Extrude Extrusion Double Twist Twisting Machine
Electrical Cable Core Wire Making Winding Extrude Extrusion Double Twist Twisting Machine
Electrical Cable Core Wire Making Winding Extrude Extrusion Double Twist Twisting Machine
Electrical Cable Core Wire Making Winding Extrude Extrusion Double Twist Twisting Machine
Electrical Cable Core Wire Making Winding Extrude Extrusion Double Twist Twisting Machine

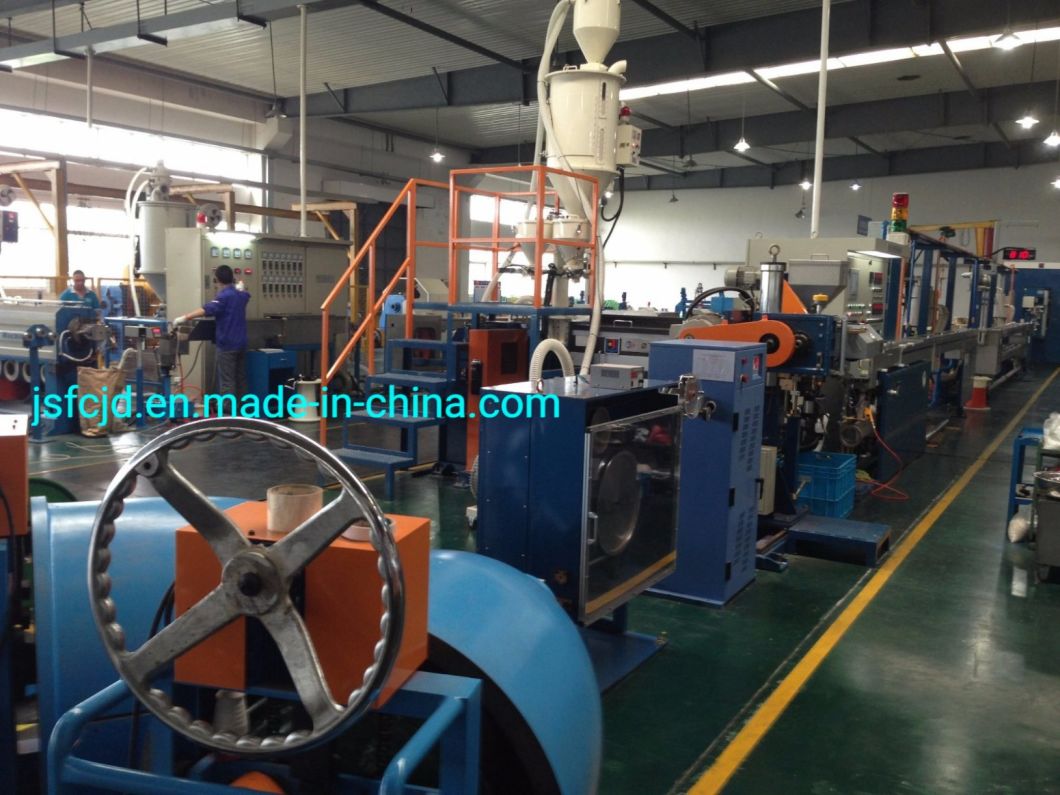

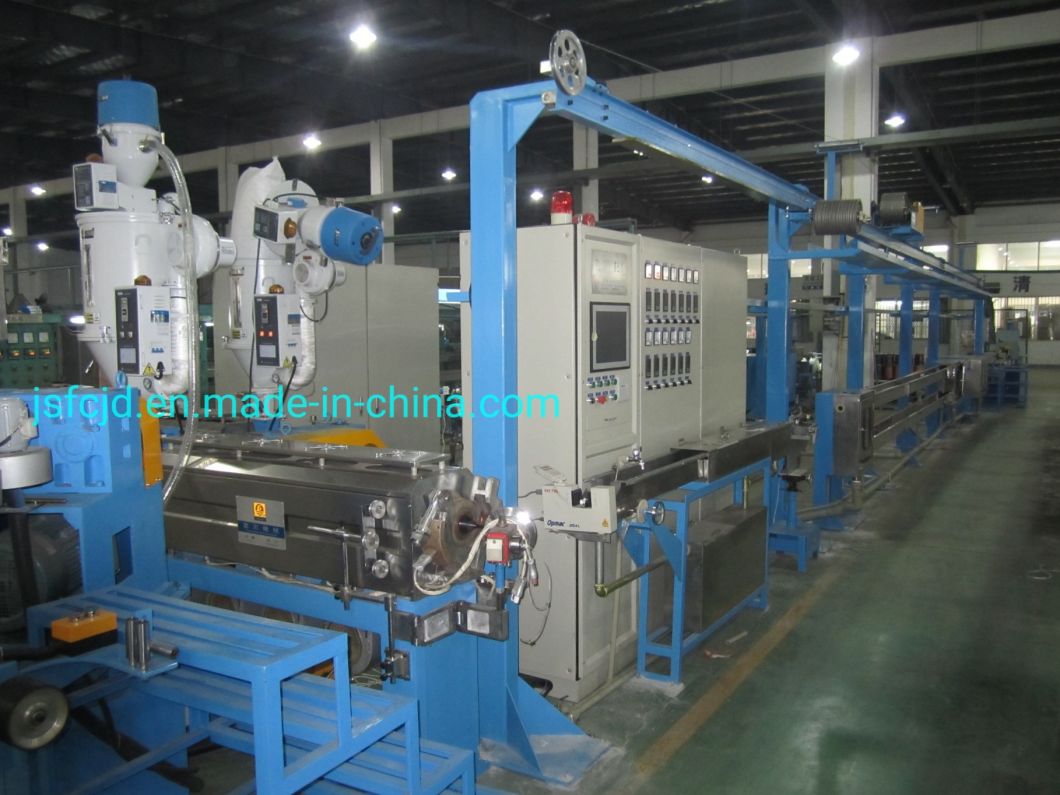

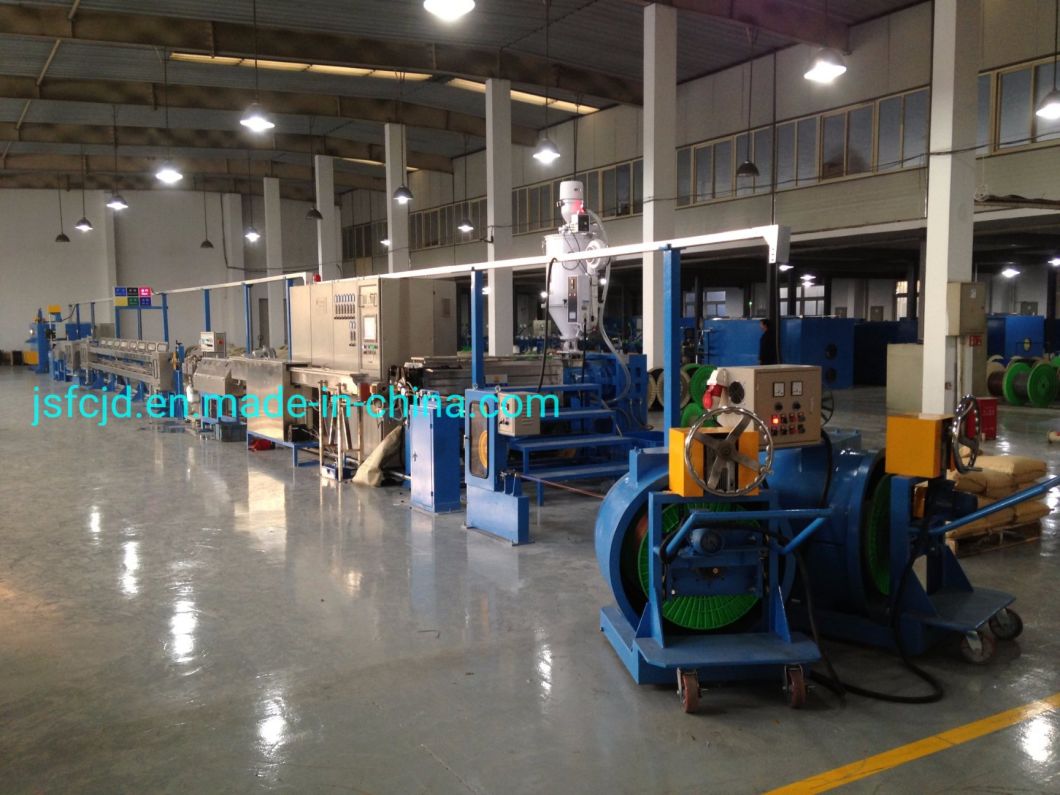

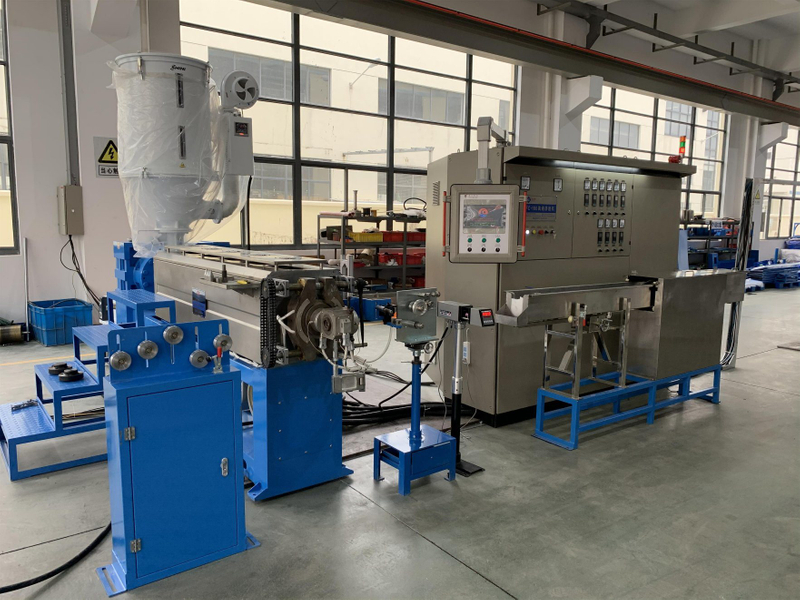

Φ90 high speed extrusion machine(Touch screen operation)
  1. It is mainly for,XLPE,PVC ,PE extrusion for electric core wire and sheathed cable wire.
  2. Operation direction:right hand machine
  3. Main machine centre height 1000mm;
  4. Inlet conductor core wire:φ3.28.0mm;fit for core wire extrusion, Finished wire:φ4.0-φ12.0mm;
  5. Production linear speed:150m/min
  6. Main machine color:main machine sky blue; electric cabinet: computer white;safe color:yellow.
  7. Machine composition
No Name Numbers Unit Note

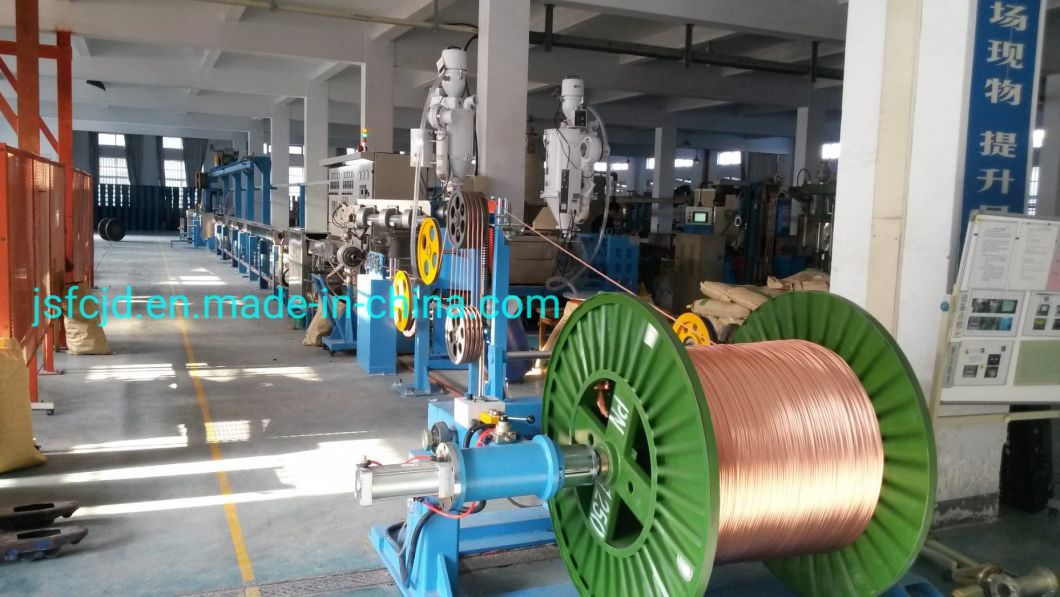

1. 1000magnetic passive tension pay off machine 1 Pcs Fuchuan made
2 Wire straightening 1 Pcs Fuchuan made
3 ¢90 main machine 1 pcs Fuchuan Made(contain ZhouShan PVC screw one set)
4 X9 adjustable head 1 pcs ShangHai Xu Dong
5 100KG dryer hopper loader 1 set
6 Water blower 1 set
7 Suction machine 1 set Tai Wan Shin YI
8 1.8 meters movable cooling water tank 1 set Fuchuan made
9 Diameter measure device 1 set ShangHai On-line
10 High speed printer 1 pcs Fuchuan made
11 10meters single layer cooling water tank 1 set Fuchuan made
12. 800 hauling machine 1 set
13 12meters horizontal accumulator rack 1 set Fuchuan made
14 Spark tester 1 Pcs Tai Wan He Tai
15 159 meter counter 1 Pcs Fuchuan made
16 1250big shaft take up machine 1 pcs

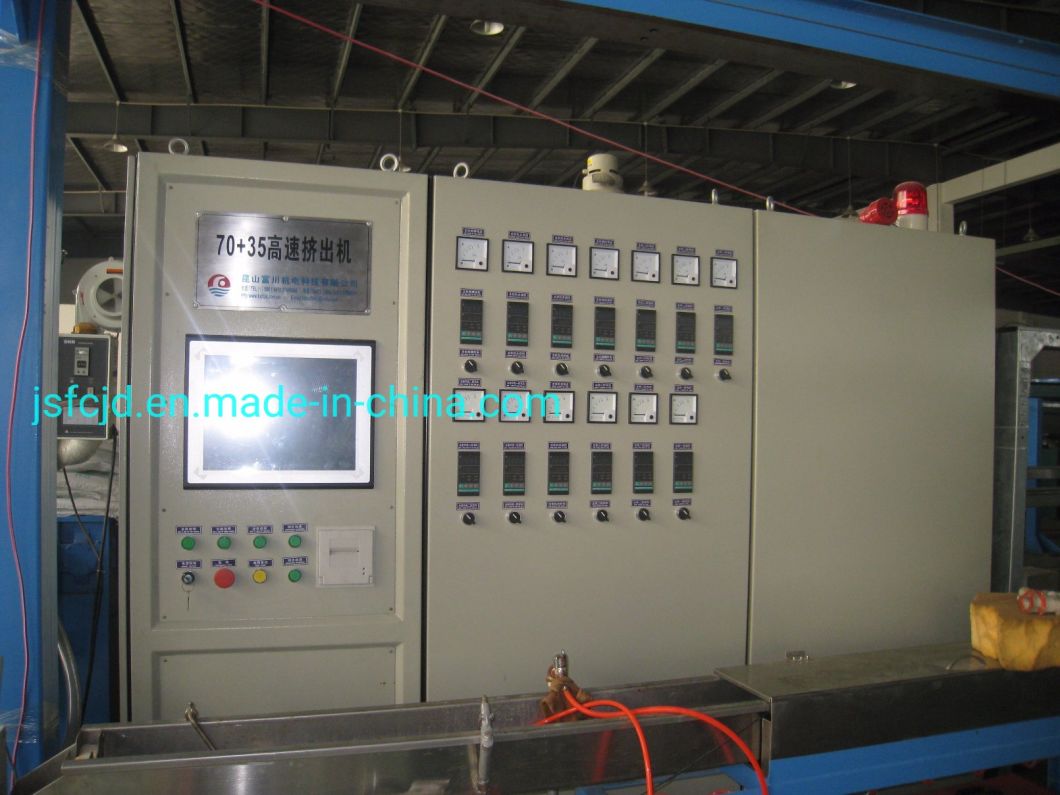

17 Electric motive control cabinet and temperature control part. 1
set
Remark:Japan Yaskawa converter;Siemens motor;Japan RKC temperature controller; Japan Omron relay and France Schneider. Siemens PLC Wein Lun touch screen

Rita zhou
Senior sales
Kunshan fuchuan machinery
No18Leigongjing road,huaqiao development destrict.
Kunshan city,Jiangsu province China






It is applied to extrude the PVC,PP,PE,SR-PVC and other plastic material for the automobile wire ,insulated jacketed.
Model 50+35 60+35 70+35 80
Pay off type 500-630 active pay off or lut barrel pay off
Screw Dia(mm) 50 60 70 80
Screw L/D ratio 25:1 25:1 25:1 25:1
Revolving speed of screw Max110rpm Max100rpm Max100rpm Max80rpm
Extruder quantity(kg/h) 60 100 150 200
Main power(kw) 15 18.5 22 45
Wire diameter(mm) Φ0.6~4.0 Φ0.8~5.0 Φ1.0-6.0 Φ1.10
Cooling equipment Double layer U type Monolayer/Double layer U type Monolayer/Double layer U type Double layer
Max accumulate lengh(m) 200 220 220 200
Capstan power(kw) 3.7 5.5 5.5 7.5
Wire speed(m/min) 0-600 0-800 0-800 700

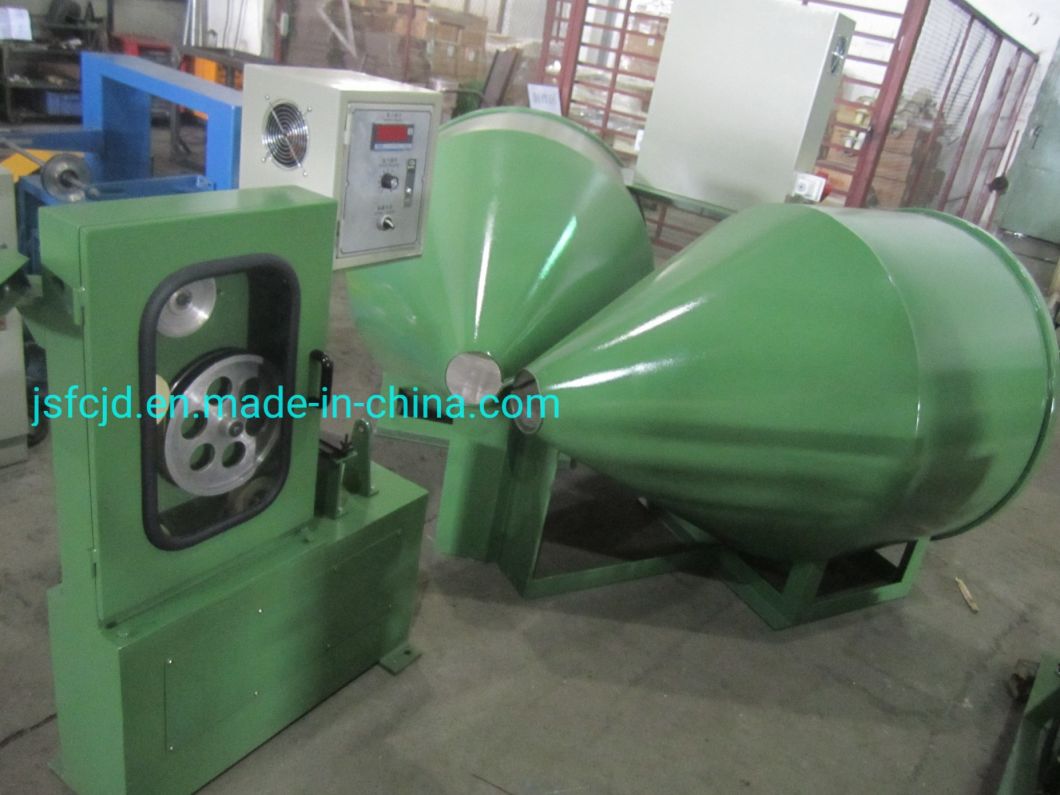

Take-up type 1246 automatic coiling machine ,The plum blossom falls barrel machine , shaft type
