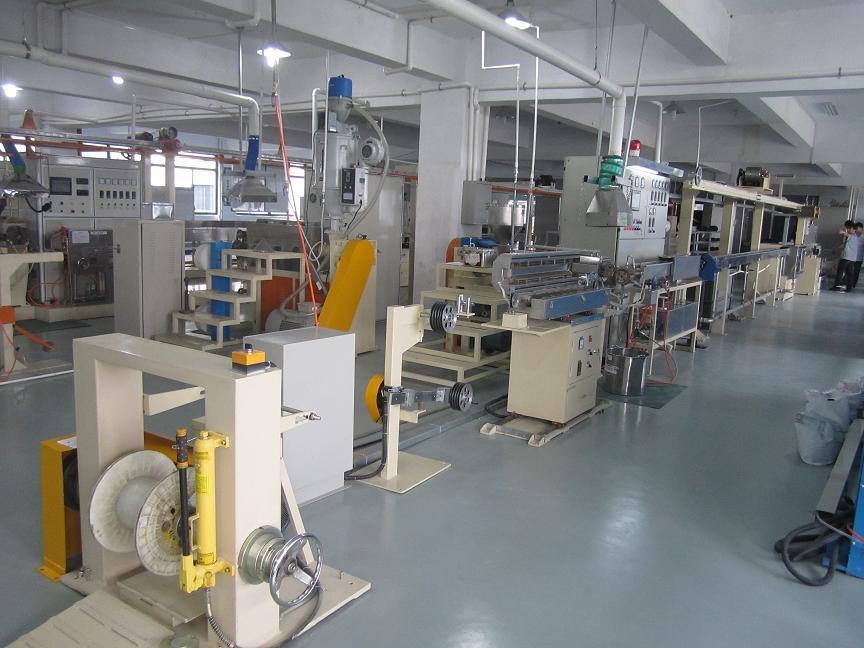

Electrical Cable Wire Winding Extrusion Making Stranding Bunching Twisting Machinery Machine
-
12months
-
Pipe Extruder
-
PVC, PP, PE, Sr-PVC
-
Profile Extrusion Molding Machine
-
Single-Screw
-
Automatic
Product Parameter:
1)Power:11kw AC motor
2)Reducer gear box:milling gear imported from Italy ZLYJ133-II,the specialized reducer gear box for extrusion
3)Screw:GH113,45MM,ratio:25:1
4)Screw drum:GH113
5)Screw speed:10-80r/min
6)Hot dip:220V voltage,3 phase screw drum,cast copper heater,each phase 2.5KW;1 phase clamp,cast copper heater,1000W.
7)Clamp type:flange bolt fix way
8)Cooling way:3 sets screw cooling high voltage centrifugal fan,60W power,the clamp cooling itself .
9)Total power:11+3*2.5+1+3*0.06=19.68KW
10)Dimension:L2000*W1300*H1500mm
11)Vacuum installation
12)Weight:800KG
13)Spare parts:1set clamp cast copper heater,2 bar hot dip
Please feel free to contact me if you have any questions.
