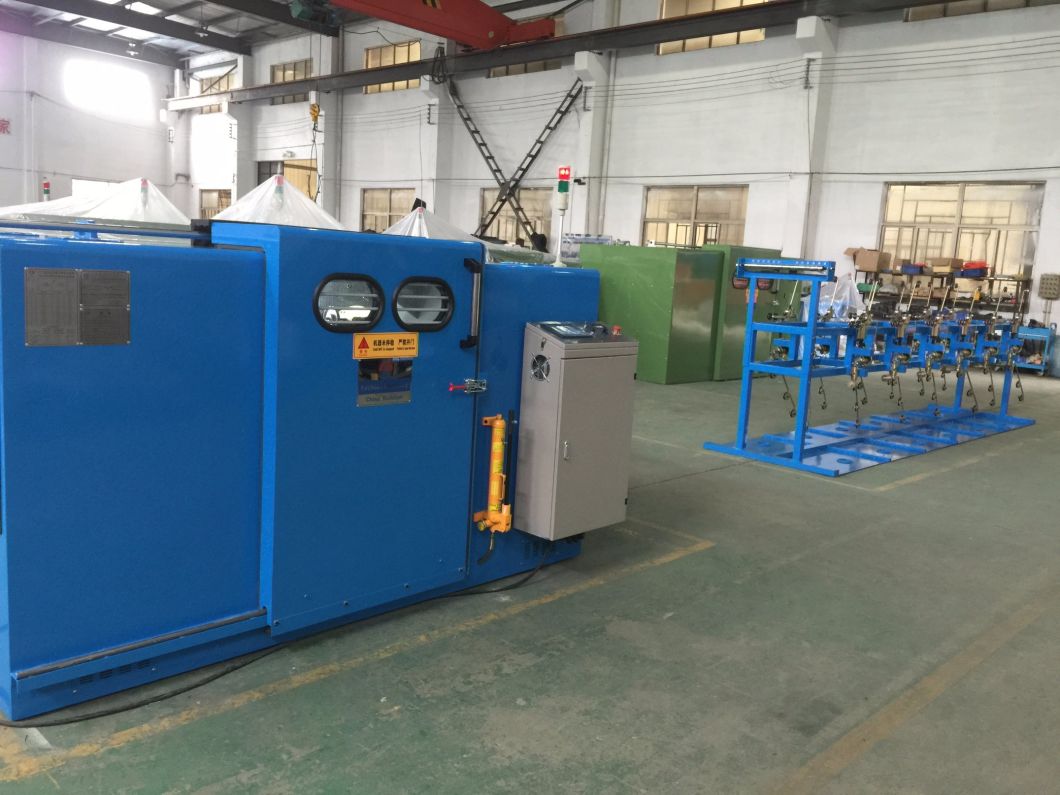

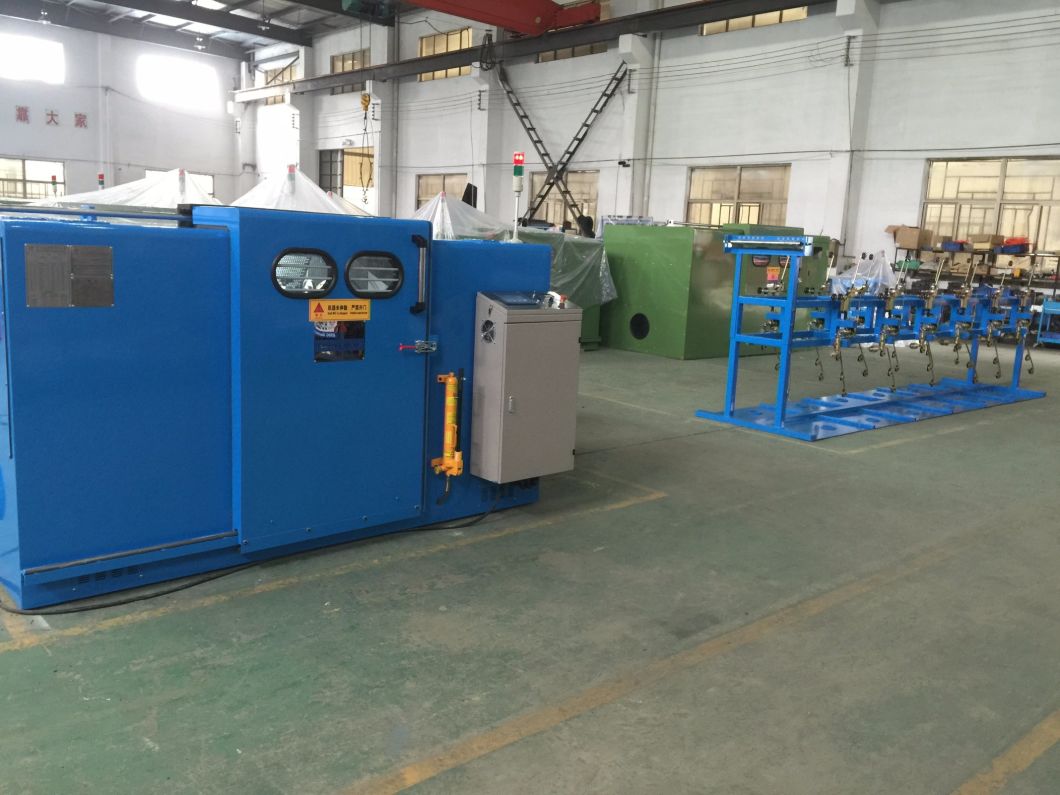

Electrical Copper Cable Unilay Wire 0.05-2.0mm Winding Bunching Buncher Stranding Double Twist Annealing Tinning Extruder Extrusion Making Drawing Machine
-
12months
-
Above 50kg
-

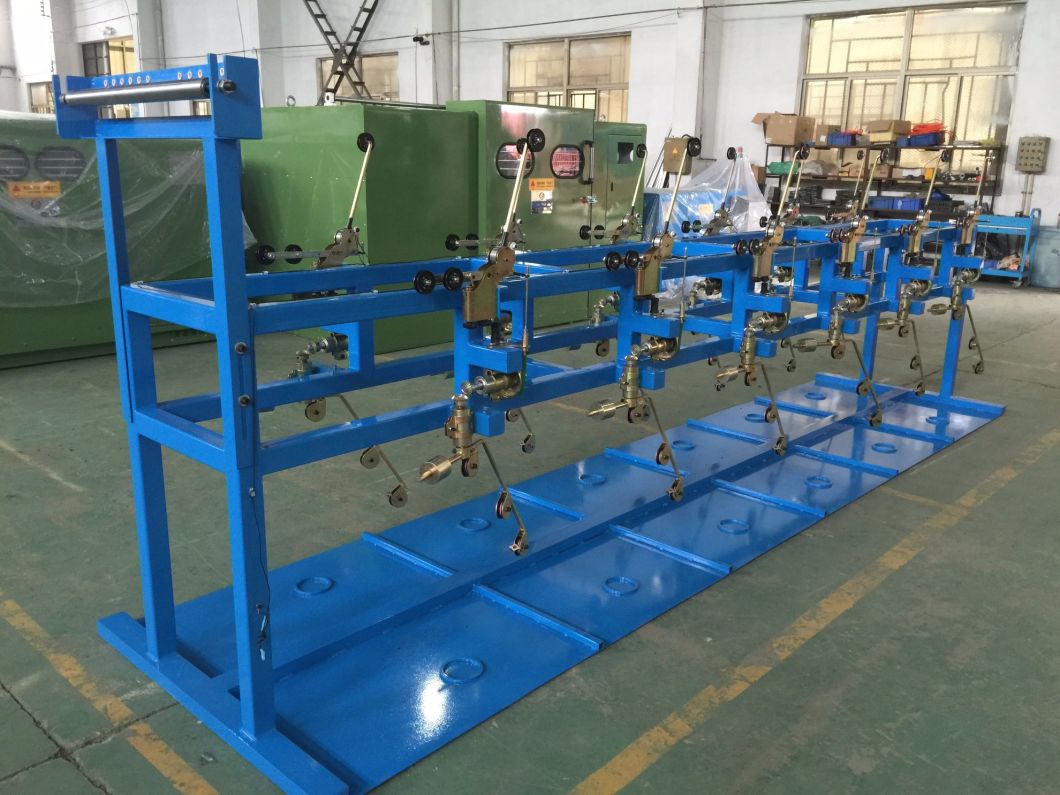

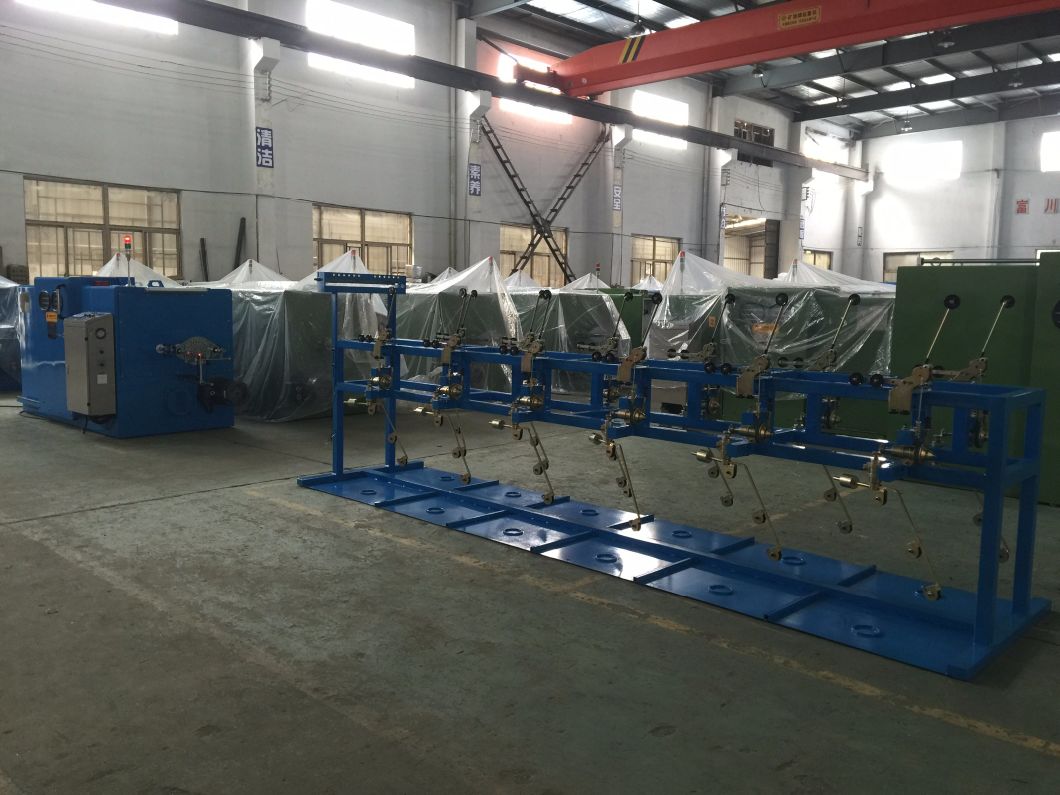

Passive Pay off
-
Sky Blue or Apple Green
-
Dia300/400/500
-
7heads or According Customer′s Requirement
1.Single Wire Dia: Φ0.30~Φ0.68mm
2.Size of Bobbine : Φ400/Φ500 steel plate
3.Heads: according to customer's demand
4.Tension Control: improved tension gun control, constant tension
5.Brake: automatic brake by friction plate when wire breakEquipment model FC-250B FC-300B FC-400B FC-450B Twisting usage Apply for the bunching of aerospace,medical instrument,cellphone,notebook
And ultra fine conductor(above seven pcs of alloy wires,tinned wires,silver jacketed wires and enamelled wires)Single wire dia(mm) 0.03-0.18 0.04-0.28 0.05-0.32 0.05-0.32 Stranding section area(mm2) 0.0049-0.3 0.0088-0.45 0.0137-1.0 0.0137-1.0 Pitch(mm) 0.8-10.8 1.6-21.6 3.1-33.3 3.1-33.3 Direction of lay:optional for right or left Take up bobbin 200-250 250-300 300-400 300-450 Max rotating speed 4000rpm(8000TPM) 3500rpm(7000TPM) 3000(6000TPM) Main motor power:3.7KW Inverter power:3.7KW Tension control:PLC+touchscreen +magnetic powder clutch,ensure the constant tension from empty to full bobbin Magnetic powder clutch 0.3kgf 0.6kgf Protection:automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived Brake mode Electromagnetic brake Traversing method:rolling wire with ring drive units,winding pitch and width are adjustable
