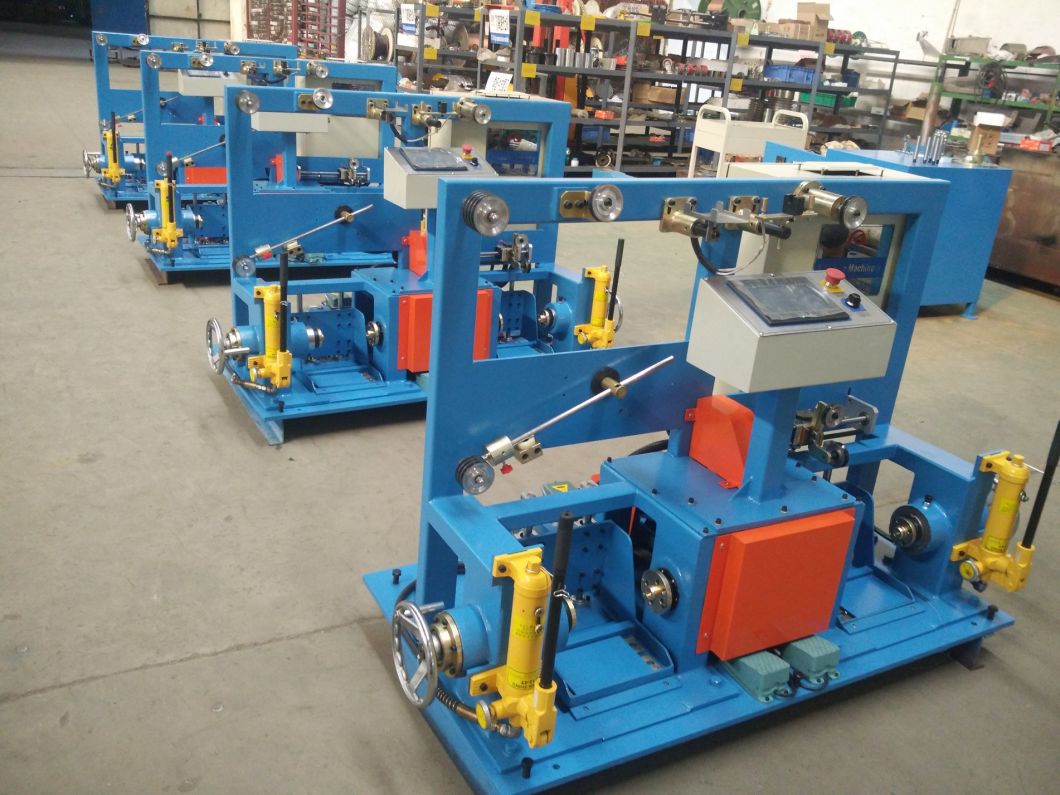

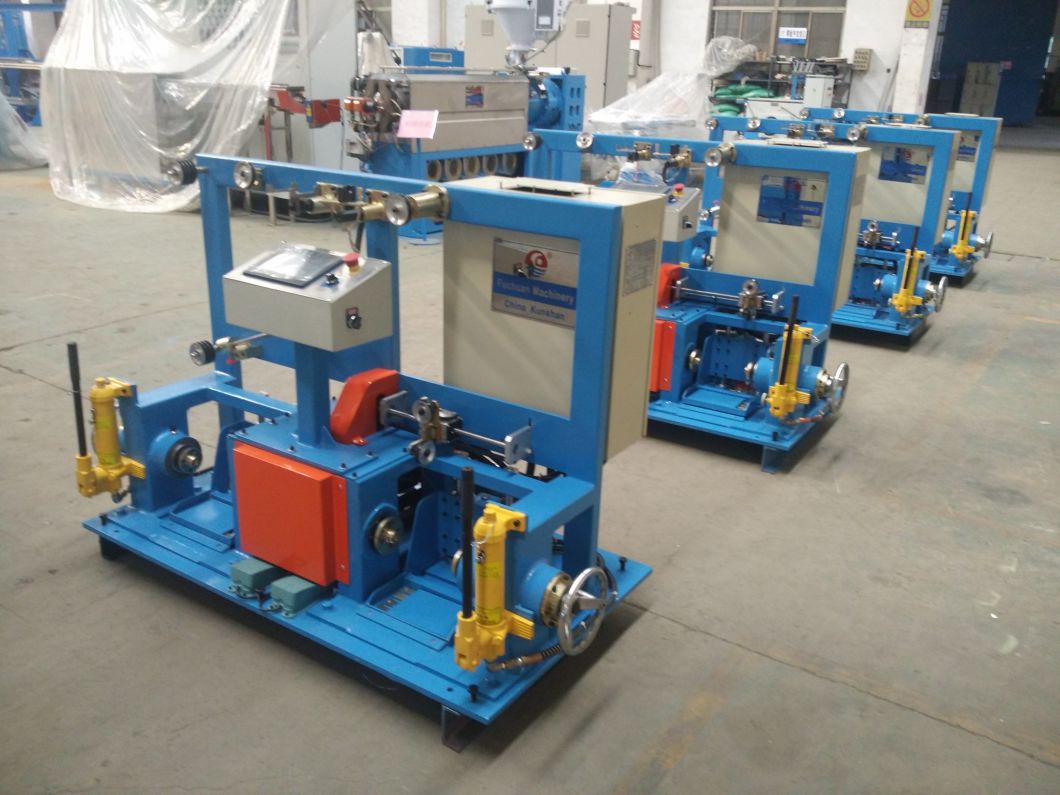

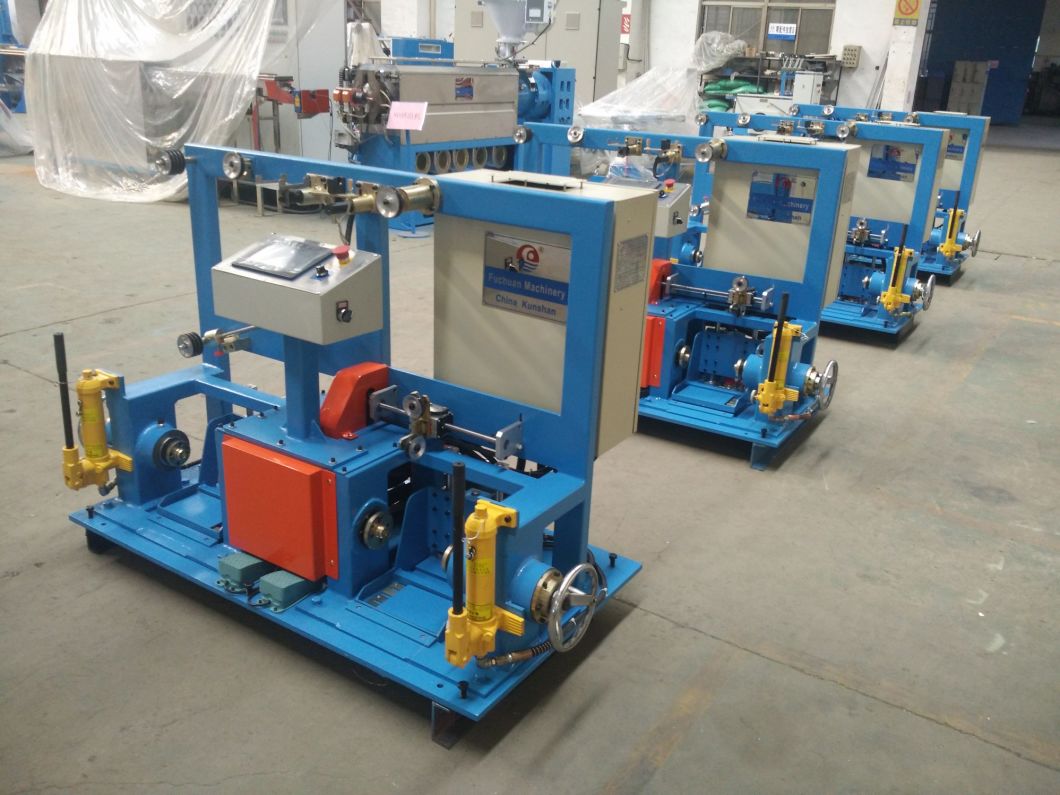

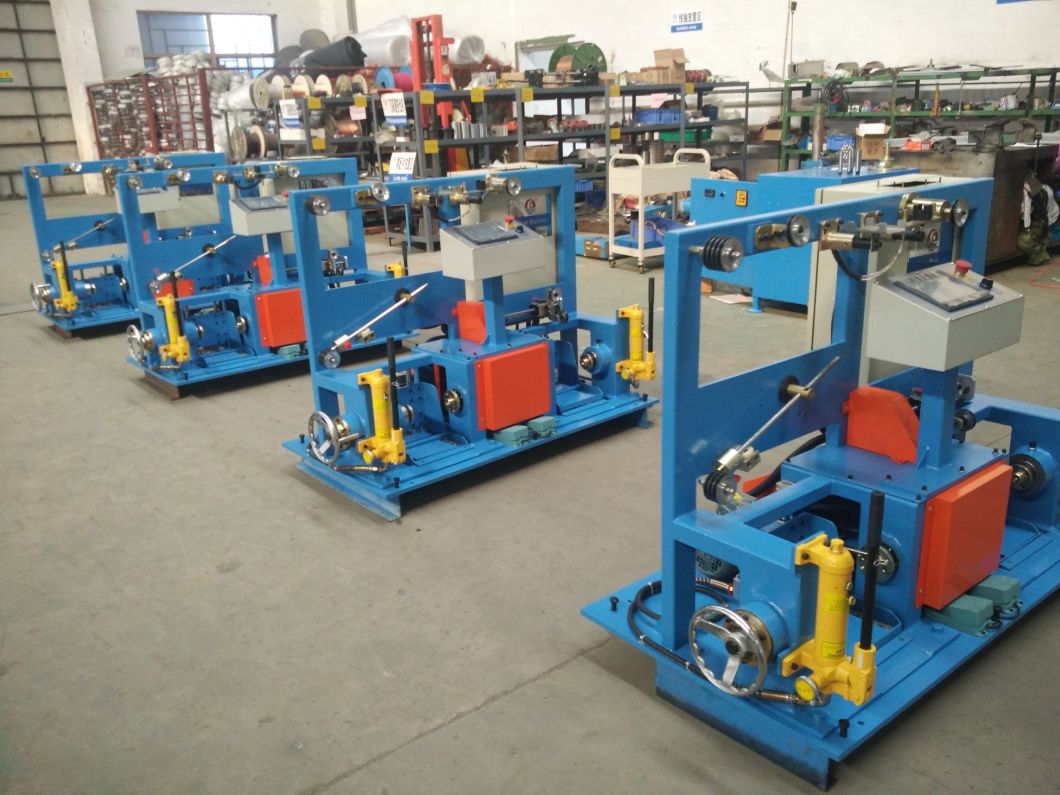

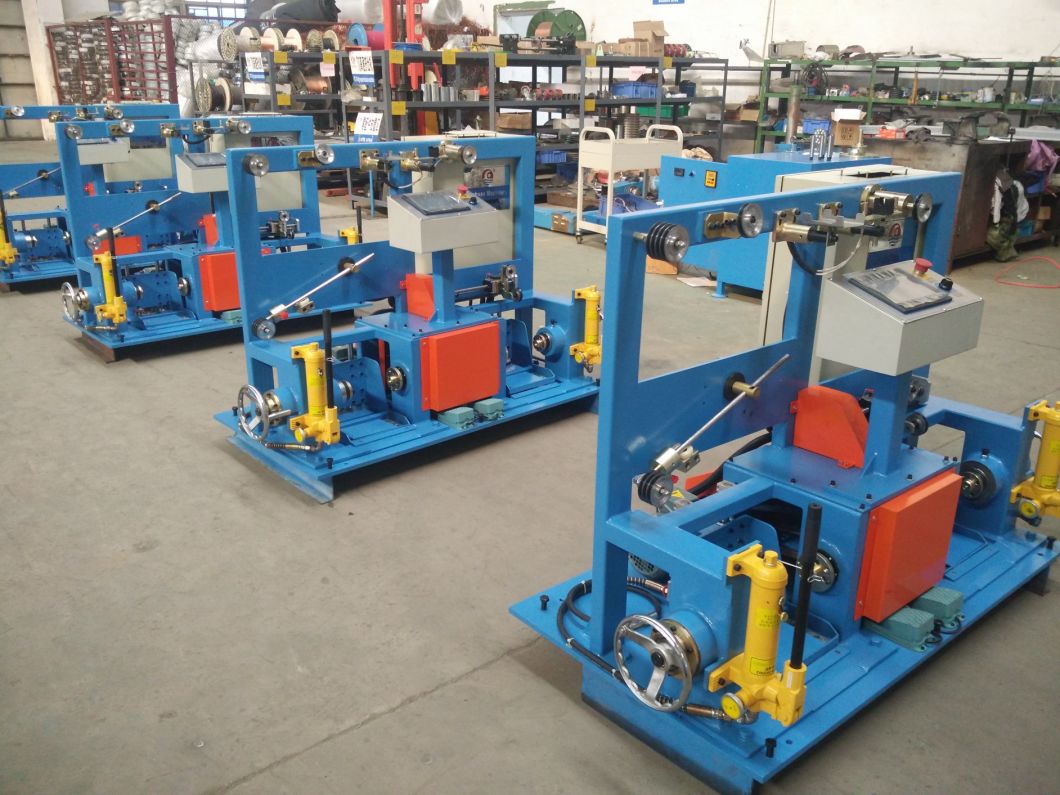

PLC Control 0.05-1.73mm Bare Copper Wire, Core Cable Wire Winding Bunchers Twisting Bunching Machine
-
12months
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
Series for normal wire high speed bunching machine
Equipment model FC-500B FC-650B FC-650B modified FC-800B Twisting usage Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires)double twisting for core wire Single wire dia(mm) 0.08-0.45 0.15-1.04 0.38-1.7 0.38-1.7 Stranding section area 0.05-2.5 0.35-6.0 1.0-16 Core wire dia 0.5-1.5 0.5-3.0 1.5-4.0 1.5-4.0 Twisted outer dia 1.0-3.0 1.6-6.0 3.0-8.0 pitch 6.3-52.3 11.6-100 20-160 23-160 Direction of lay:free option to S Z Take up size 400-500 500-630 630-800 Max speed 3000(6000TPM) 2000(4000TPM) 1600(3200TPM) power 5.5KW 7.5KW 11KW 15KW Tension control method:touchscreen+PLC+magnetic powder clutch,ensure constant tension from empty to full bobbin Magnetic powder 1.2kgf 5kgf 10kgf 10kgf protection Internal and outer wire cut off automatic brake(electromagnetic brake).automatic shut down when the meters reaches Traversing method Precious traverse or screw type polish wire traverse,winding pitch and width are adjustable
For more details, please feel free to contact me.
Series for normal wire high speed bunching machine
Equipment model FC-500B FC-650B FC-650B modified FC-800B Twisting usage Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires)double twisting for core wire Single wire dia(mm) 0.08-0.45 0.15-1.04 0.38-1.7 0.38-1.7 Stranding section area 0.05-2.5 0.35-6.0 1.0-16 Core wire dia 0.5-1.5 0.5-3.0 1.5-4.0 1.5-4.0 Twisted outer dia 1.0-3.0 1.6-6.0 3.0-8.0 pitch 6.3-52.3 11.6-100 20-160 23-160 Direction of lay:free option to S Z Take up size 400-500 500-630 630-800 Max speed 3000(6000TPM) 2000(4000TPM) 1600(3200TPM) power 5.5KW 7.5KW 11KW 15KW Tension control method:touchscreen+PLC+magnetic powder clutch,ensure constant tension from empty to full bobbin Magnetic powder 1.2kgf 5kgf 10kgf 10kgf protection Internal and outer wire cut off automatic brake(electromagnetic brake).automatic shut down when the meters reaches Traversing method Precious traverse or screw type polish wire traverse,winding pitch and width are adjustable
For more details, please feel free to contact me.
