0.05-2.52mm Electrical Cable Copper Wire Single Twist Buncher Twisting Bunching Stranding Extrusion Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
>1,000,000 Shots
Series for frame single twist (cable laying) machine

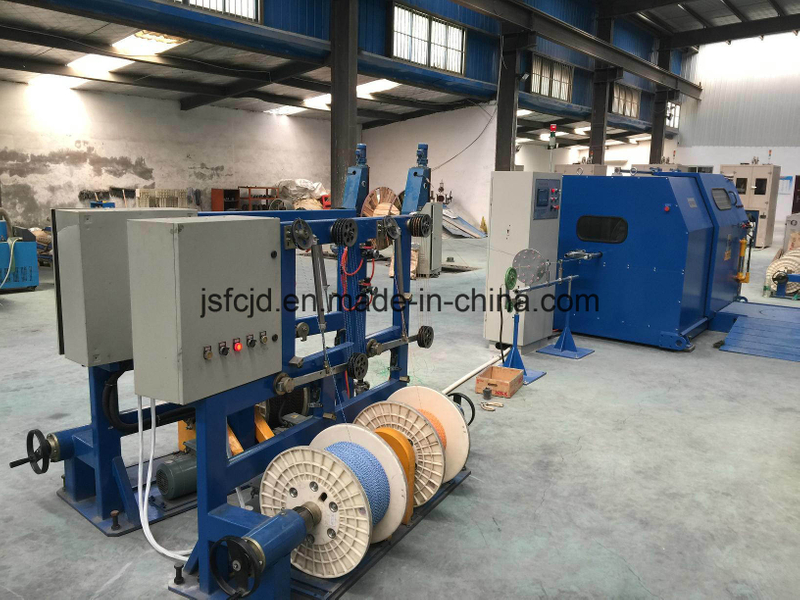

It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying)machine and electrical control cabinet.Equipment models FC-630 FC-800 FC-1000 FC-1250 Twisting usage It is applied to the twisting of PVC/PE core wire or copper wire, central bundling or side bundling. Applicable dia(mm) φ0.60-φ3.0 φ0.60-φ3.0 φ1.0-φ6.0 φ1.0-φ6.0 Max twist outer dia φ12 φ16 φ25 φ30 Pitch(mm) 10-150 30-200 50-300 50-400 Direction of lay Optional for right or left Take-up bobbin size φ630 φ800
φ1000
φ1250
Max rotating speed(rpm) 600 500 500 400 Traversing method Traverse is adopt crossbar-less reciprocating Take up tension Pneumatic tension automatic regulate Brake mode Disc brake Bundling mode Central bundling or side bundling Replace pitch mode Computer pitch or gear pitch
Series for frame single twist (cable laying) machine
It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying)machine and electrical control cabinet.Equipment models FC-630 FC-800 FC-1000 FC-1250 Twisting usage It is applied to the twisting of PVC/PE core wire or copper wire, central bundling or side bundling. Applicable dia(mm) φ0.60-φ3.0 φ0.60-φ3.0 φ1.0-φ6.0 φ1.0-φ6.0 Max twist outer dia φ12 φ16 φ25 φ30 Pitch(mm) 10-150 30-200 50-300 50-400 Direction of lay Optional for right or left Take-up bobbin size φ630 φ800
φ1000
φ1250
Max rotating speed(rpm) 600 500 500 400 Traversing method Traverse is adopt crossbar-less reciprocating Take up tension Pneumatic tension automatic regulate Brake mode Disc brake Bundling mode Central bundling or side bundling Replace pitch mode Computer pitch or gear pitch
