Home » Products » Cantilever Single Twist Machine » Cable Plastic Core Copper Wire Single Twist Winding Cutting Twist Twister Twisting Bunching Buncher Stranding Extrusion Extruder Coiler Coiling Machine

Cable Plastic Core Copper Wire Single Twist Winding Cutting Twist Twister Twisting Bunching Buncher Stranding Extrusion Extruder Coiler Coiling Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Electric

  • New

  • ISO, CE

  • 12 Months

  • Automatic

  • 300,000-1,000,000 Shots

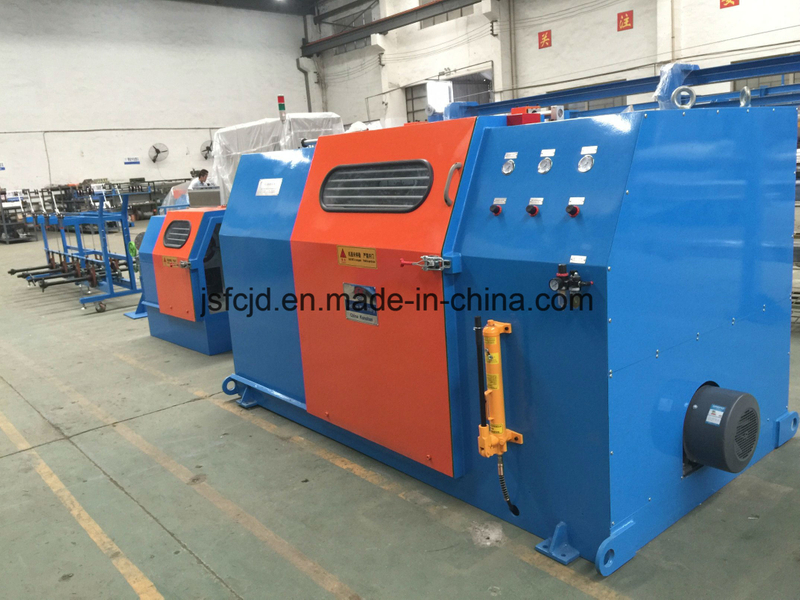

Series for frame single twist(cable laying)machine
It is mainly used in cable laying of computer wires,such as data cable and control cable.It may synchronize central coil tapping and side coil tapping.The entire machine is consists of pay off rack,central bundler,side pay off rack for the central coil tapping set,single twist(cable-laying)machine and electrical control cabinet.
Equipment model F C-630 FC-800 FC-1000 FC-1250
Usage It is applied to the twisting of PVC/PE core wire or copper wire,central bundling or side bundling
Applied for wire(mm) φ0.6-3.0 φ0.6-3.0 φ1.0-6.0 φ1.0-6.0
Max twist outer dia(mm) φ12 φ16 φ25 φ30
Pitch(mm) 10-150 30-200 50-300 50-400
Direction of lay Optional for right or left
Take up bobbin size Φ630 φ800 φ1000 φ1250
Max rotating speed(rpm) 600 500 500 400
Traverse type Traverse is adopt crossbar-less reciprocating
Take up tension Pneumatic tension automatic regulate
Brake type Disk brake
Bundling type Central bundling or side bundling
Replace pitch type Computer pitch or gear pitch

It is applied to the twisting of PVC/PE core wire or copper wire,central bundling or side bundling.
Cable Plastic Core Copper Wire Single Twist Winding Cutting Twist Twister Twisting Bunching Buncher Stranding Extrusion Extruder Coiler Coiling Machine
Cable Plastic Core Copper Wire Single Twist Winding Cutting Twist Twister Twisting Bunching Buncher Stranding Extrusion Extruder Coiler Coiling Machine
Cable Plastic Core Copper Wire Single Twist Winding Cutting Twist Twister Twisting Bunching Buncher Stranding Extrusion Extruder Coiler Coiling Machine
Cable Plastic Core Copper Wire Single Twist Winding Cutting Twist Twister Twisting Bunching Buncher Stranding Extrusion Extruder Coiler Coiling Machine


Cable Plastic Core Copper Wire Single Twist Winding Cutting Twist Twister Twisting Bunching Buncher Stranding Extrusion Extruder Coiler Coiling Machine

Cable Plastic Core Copper Wire Single Twist Winding Cutting Twist Twister Twisting Bunching Buncher Stranding Extrusion Extruder Coiler Coiling Machine
