1.0-5.0mm Core Wire, Cable Copper Wire Single Twister Twisting Bunching Making Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Electric

  • New

  • ISO, CE

  • 12 Months

  • Automatic

  • 300,000-1,000,000 Shots

Series for cantilever type single twist machine
It is mainly used in cable laying of computer wires,such as data cable and control cable.It may synchronize central coil tapping and side coil tapping.The entire machine is consists of pay off rack,central bundler,side pay off rack for the central coil tapping set,single twist(cable-laying)machine and electrical control cabinet.
Equipment model FC-630 FC-800 FC-1000 FC-1250
Twisting usage It is mainly used in cable laying of computer wires,such as data cable and control cable.It may synchronize central coil tapping and side coil tapping.The entire machine is consists of pay off rack,central bundler,side pay off rack for the central coil tapping set,single twist(cable-laying)machine and electrical control cabinet.
Single wire diaφ(mm) 0.6-3.0 1.0-4.0 1.0-5.0 1.0-6.0
Max twist outer dia(mm) 15 20 25 30
Pitch(mm) 20-200 30-100 20-160 23-147
Direction of lay Optional for right or left
Take up bobbin(mm) Dia630 Dia800 Dia1000 Dia1250
Max rotating speed 800rpm 800rpm 600rpm 500rpm
Traverse type According to bobbin rotate speed and reciprocating motion to stepless adjust
Take up tension Pneumatic tension automatic regulate
Brake mode Pneumatic booster brake
Bundling type Central bundling or side bundling
Replace pitch mode Computer pitch

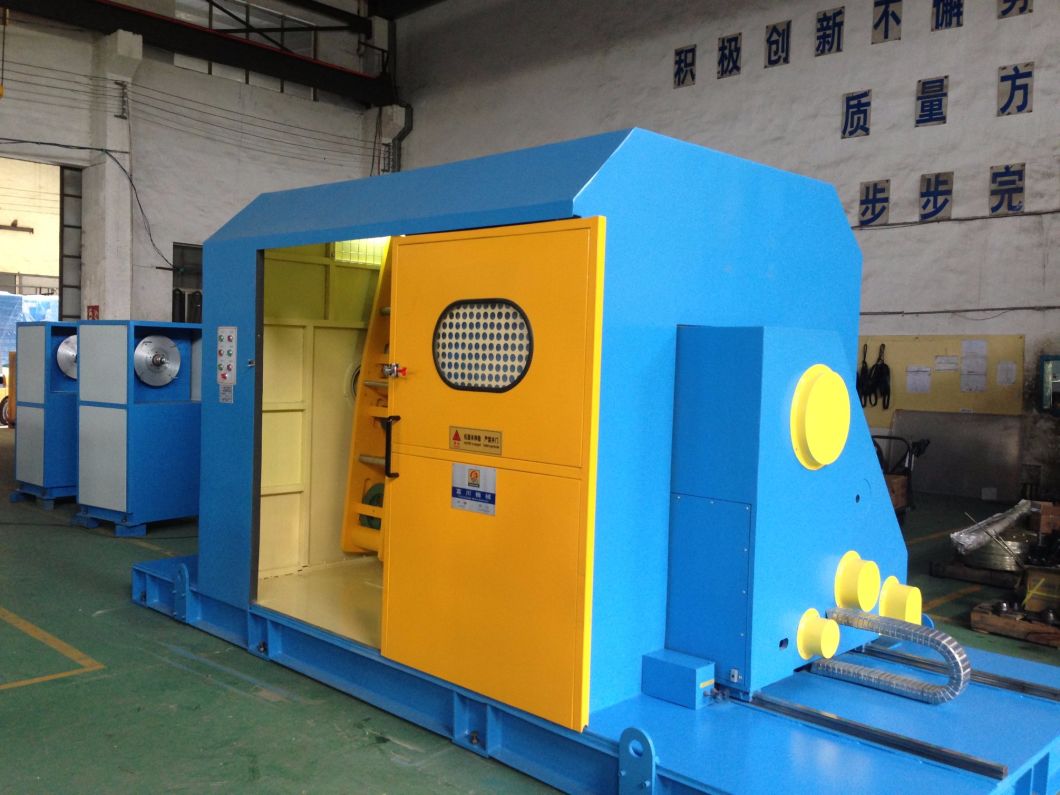

1.0-5.0mm Core Wire, Cable Copper Wire Single Twister Twisting Bunching Making Machine

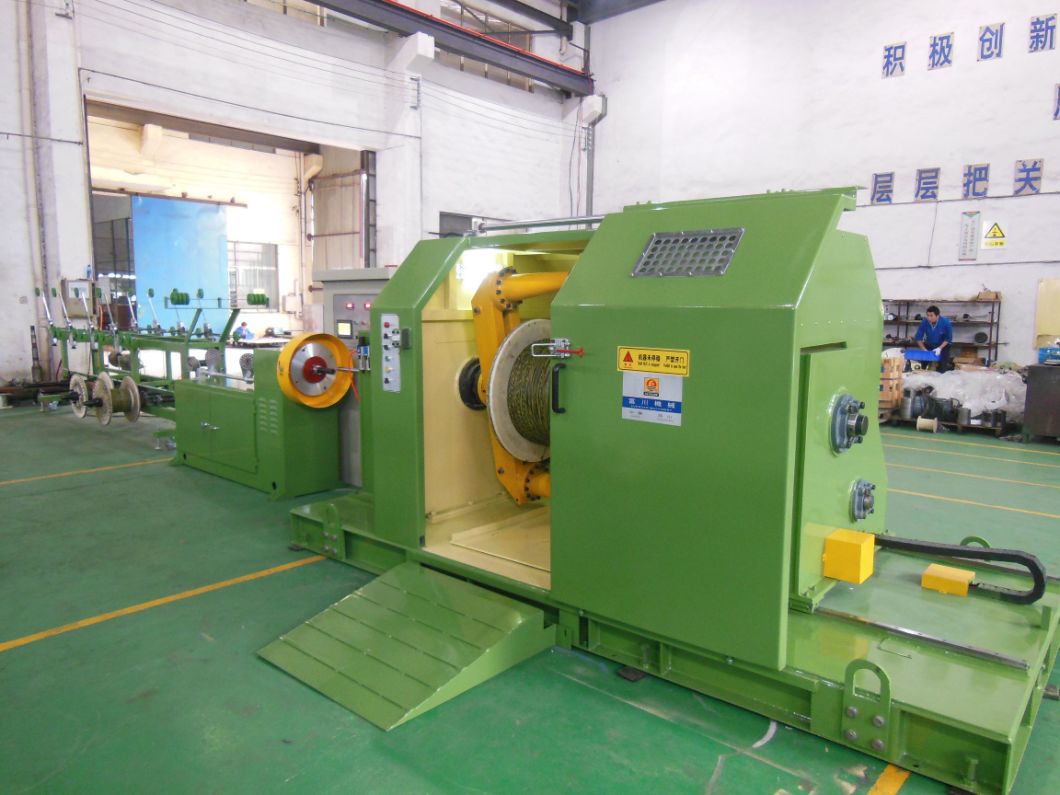

1.0-5.0mm Core Wire, Cable Copper Wire Single Twister Twisting Bunching Making Machine

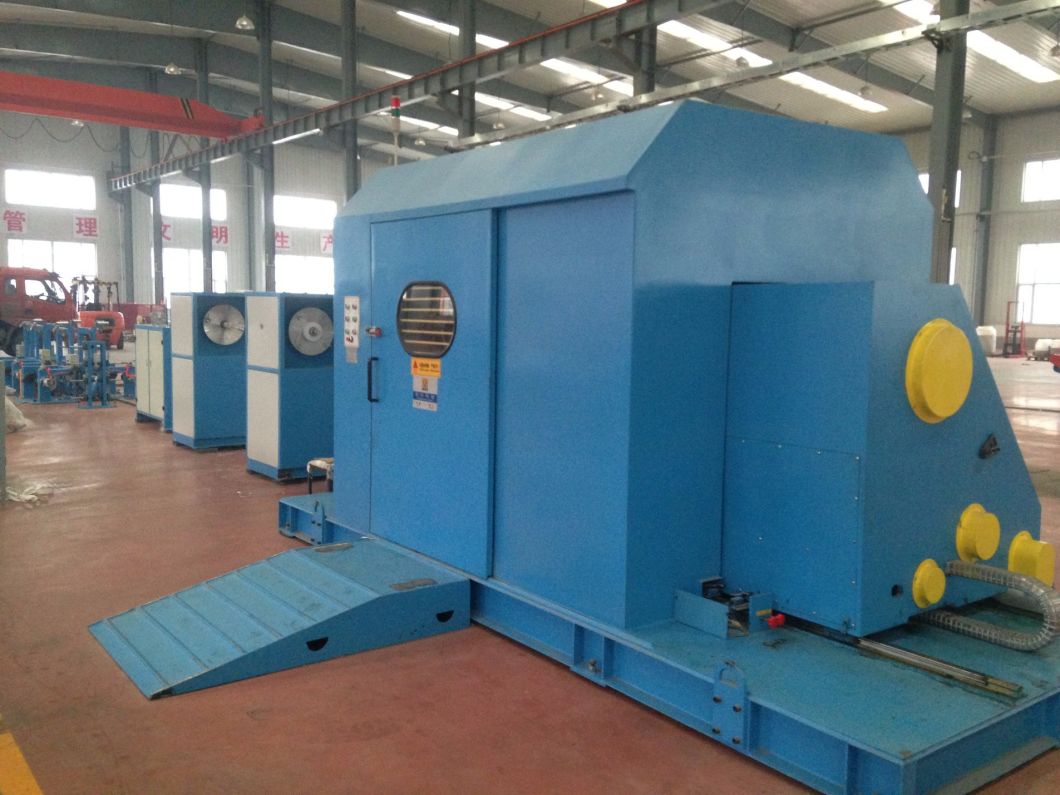

1.0-5.0mm Core Wire, Cable Copper Wire Single Twister Twisting Bunching Making Machine

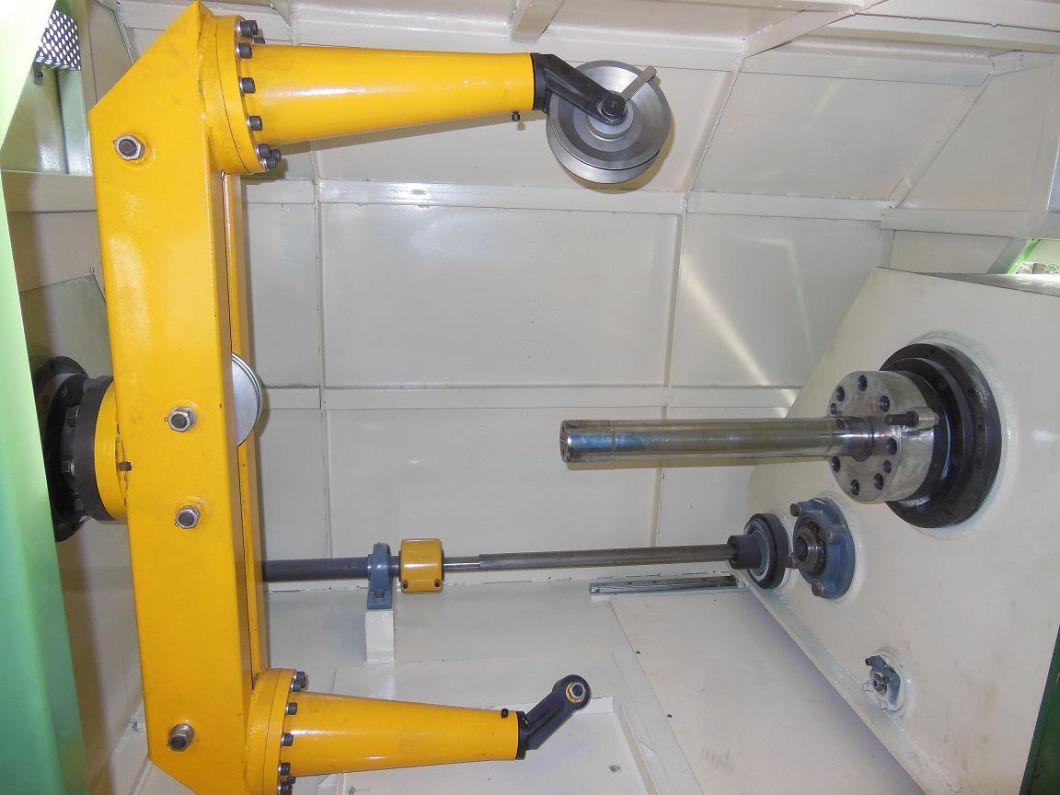

1.0-5.0mm Core Wire, Cable Copper Wire Single Twister Twisting Bunching Making Machine

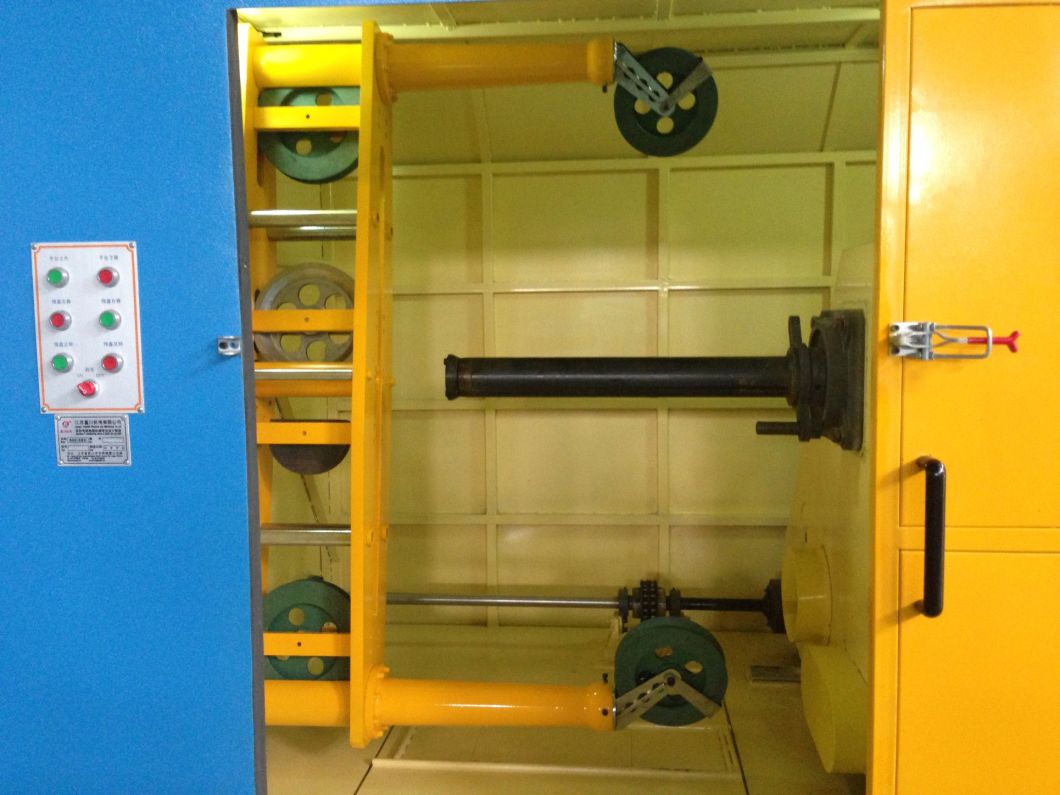

1.0-5.0mm Core Wire, Cable Copper Wire Single Twister Twisting Bunching Making Machine

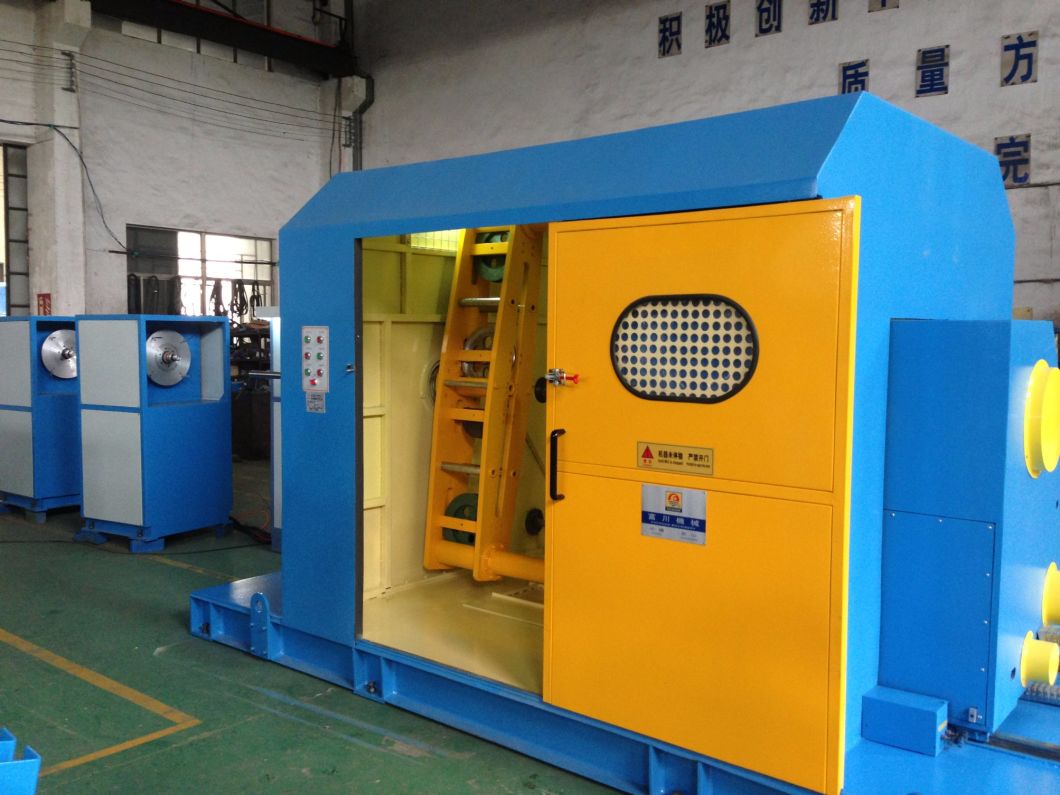

1.0-5.0mm Core Wire, Cable Copper Wire Single Twister Twisting Bunching Making Machine
