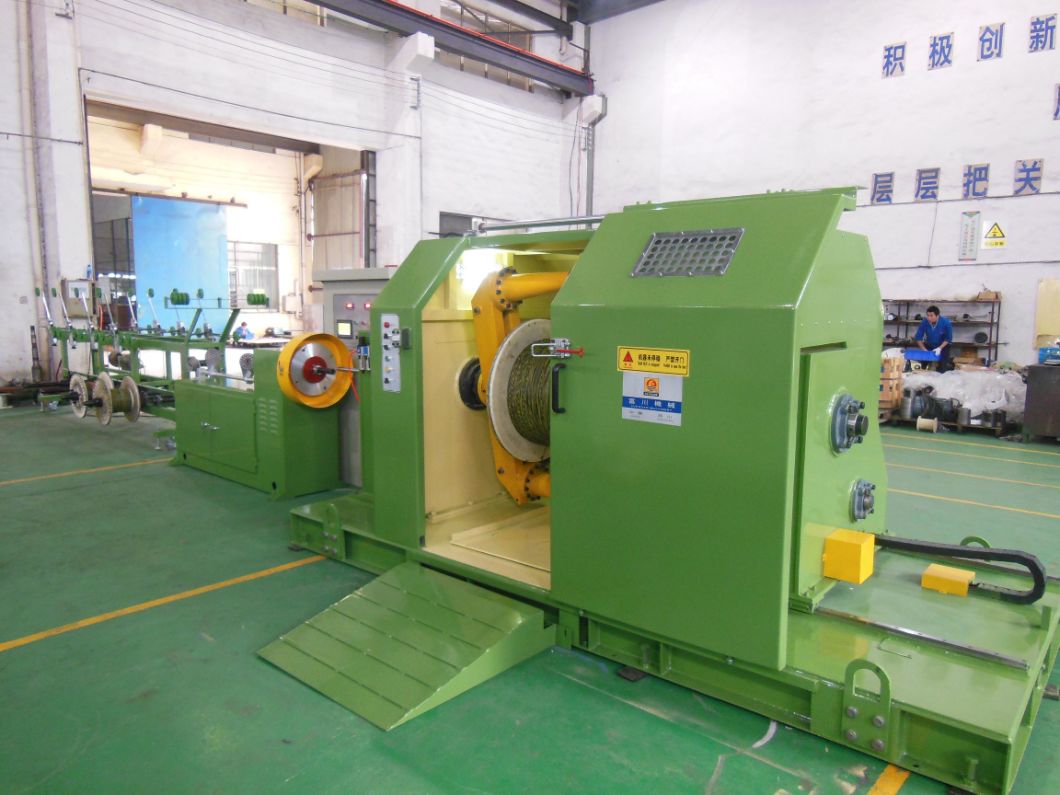

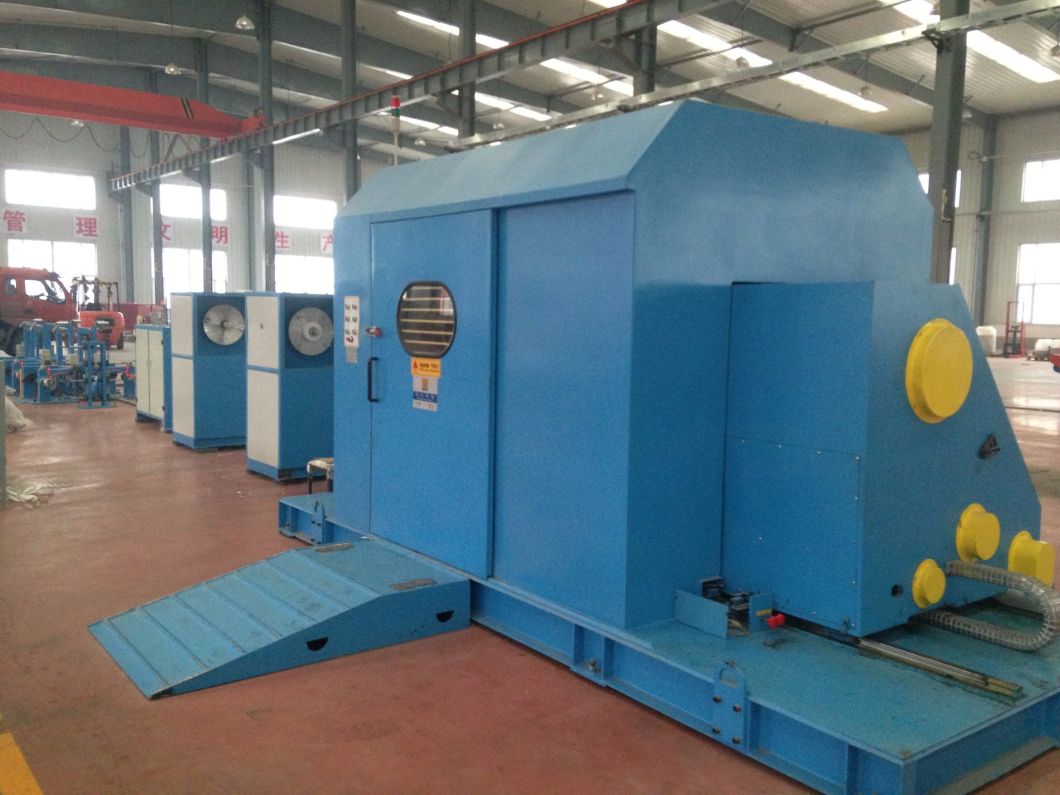

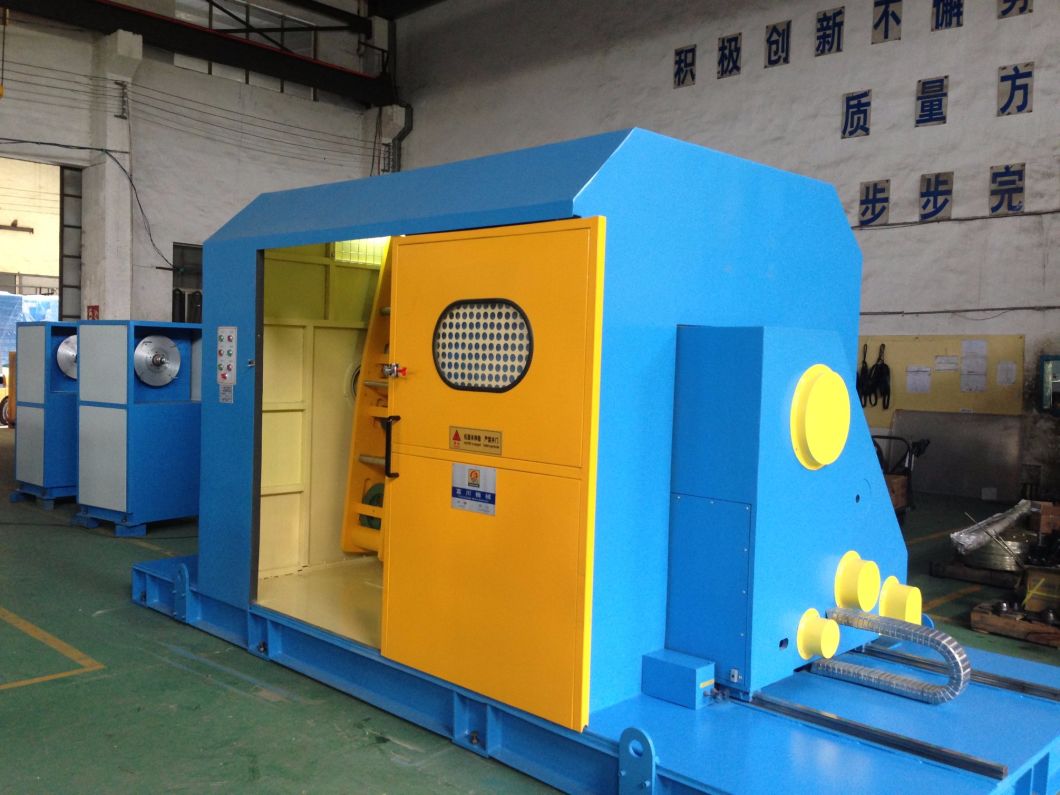

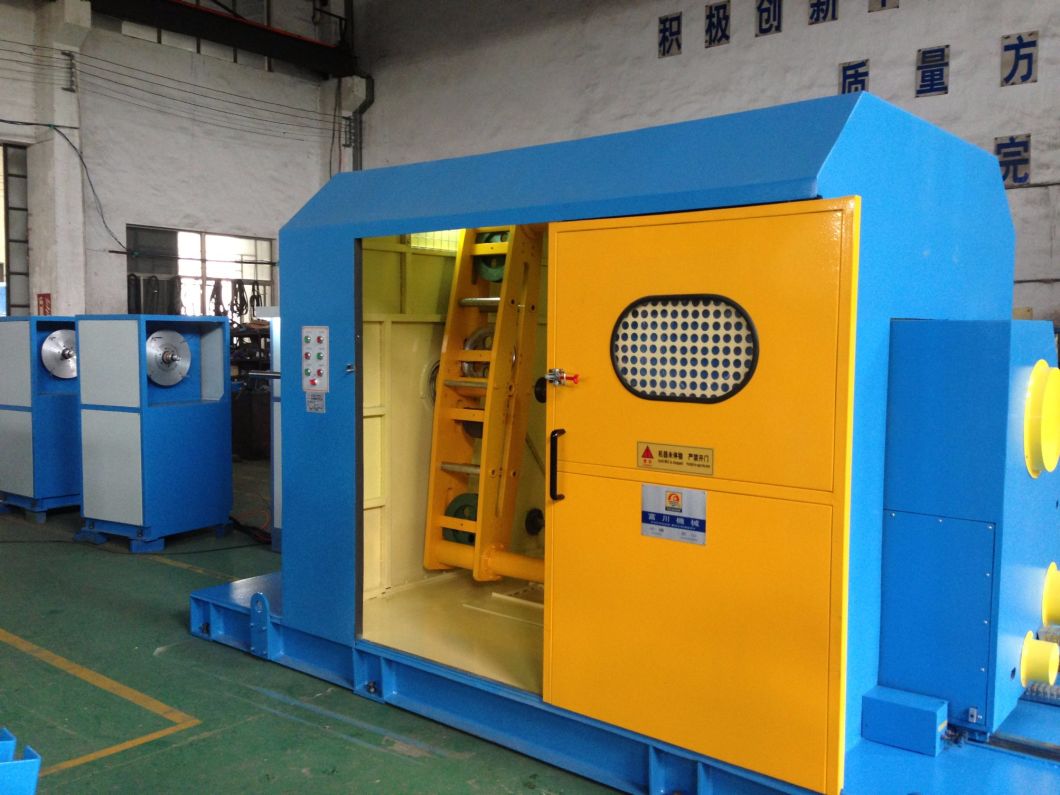

1.0-4.0mm Electrical Cable Wire Single Twister Twisting Bunching Machine Machinery

Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 12months

  • PVC/PE Core Wire or Copper Wire

  • Sky Blue

  • Central Bundling or Side Bundling

  • Computer Pitch or Gear Pitch

  • Pneumatic Tension Automatic Regulate

It is mainly used in cable laying of computer wires,such as data cable and control cable.It may synchronize central coil tapping and side coil tapping.The entire machine is consists of pay off rack,central bundler,side pay off rack for the central coil tapping set,single twist(cable-laying)machine and electrical control cabinet.

Equipment models:FC-1250

Applicable dia: dia1.0-6.0mm
Max twist outer:dia 30mm
Pitch:30-400
Direction of lay: optional for right or left
Take up bobbin size: dia1250mm
Rotating speed:500 rpm
Traverse type:according to bobbin ratate speed and reciprocating motion to stepless adjust
Take up tension: pneumatic tension automatic regulate
Brake mode:pneumatic booster brake
Bundling type:central bundling or side bundling
Replace pitch mode:computer pitch
