0.5-5.0mm Electrical Cable Conductor Copper Wire Bunchers Winding Double Twisting Stranding Bunching Making Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
300,000-1,000,000 Shots
Series for frame single twist(cable laying)machine

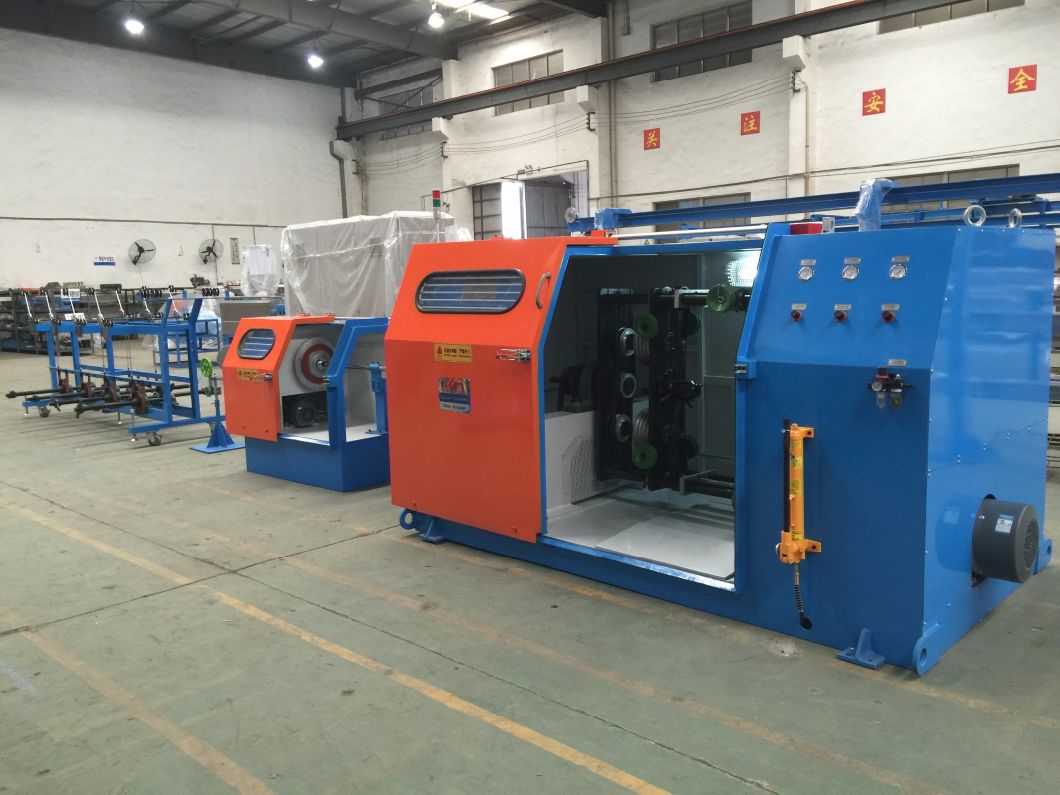

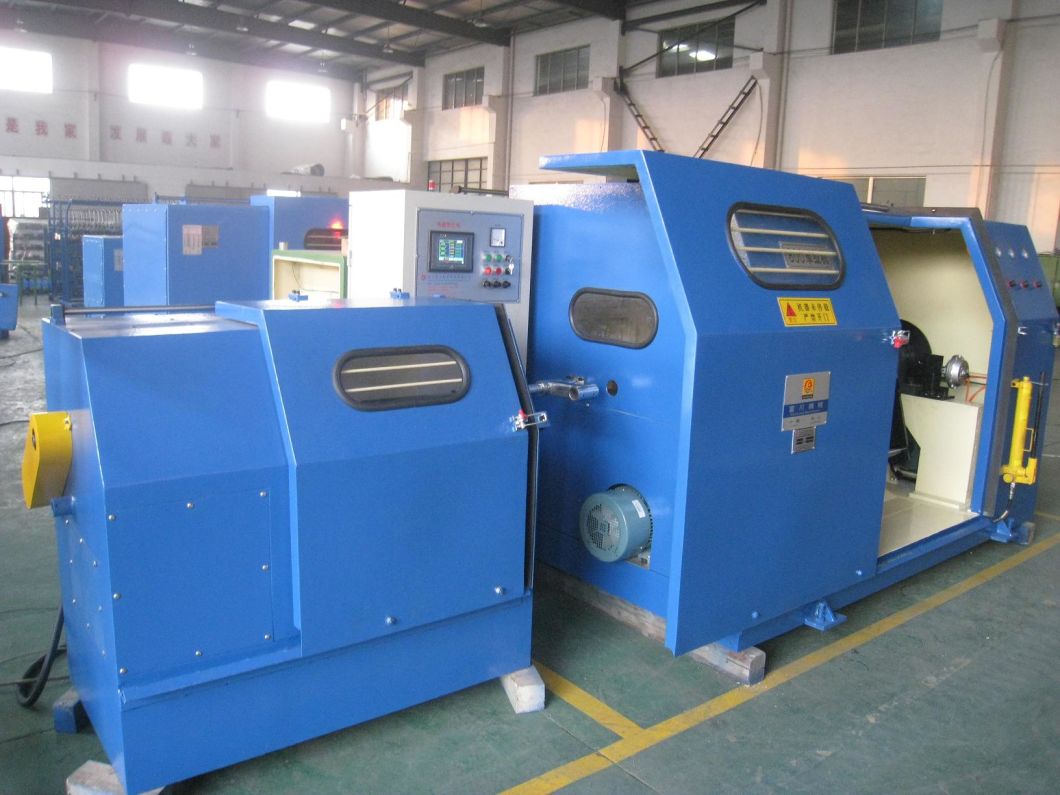

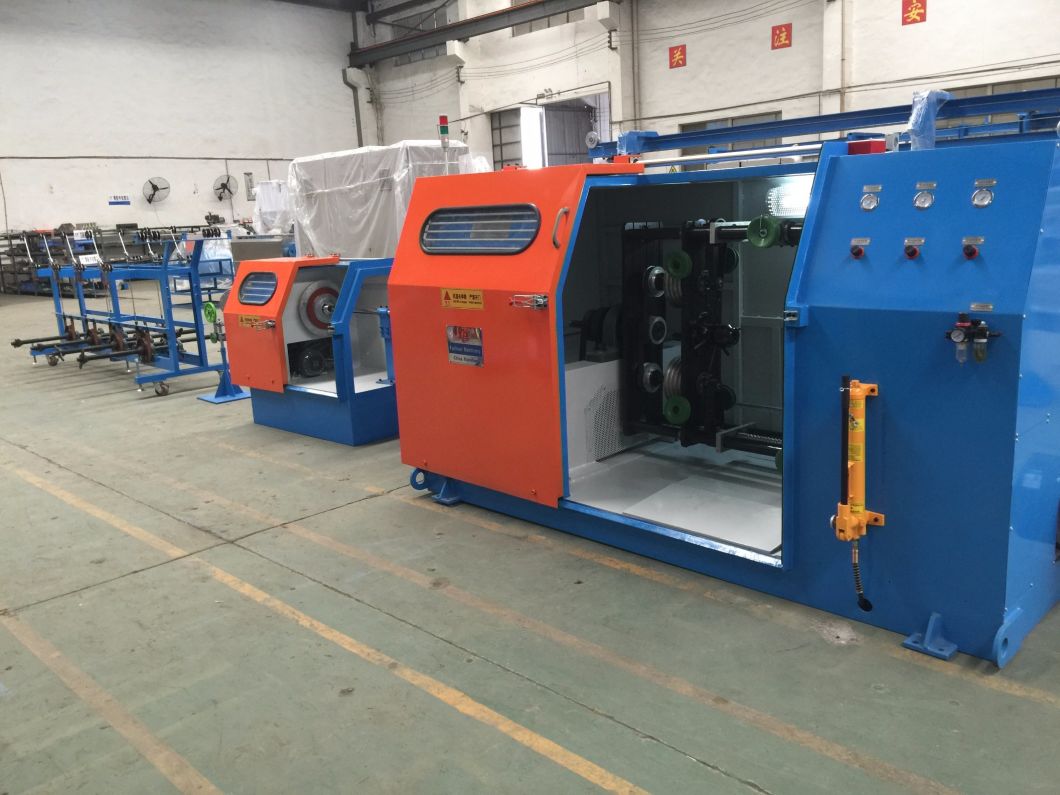

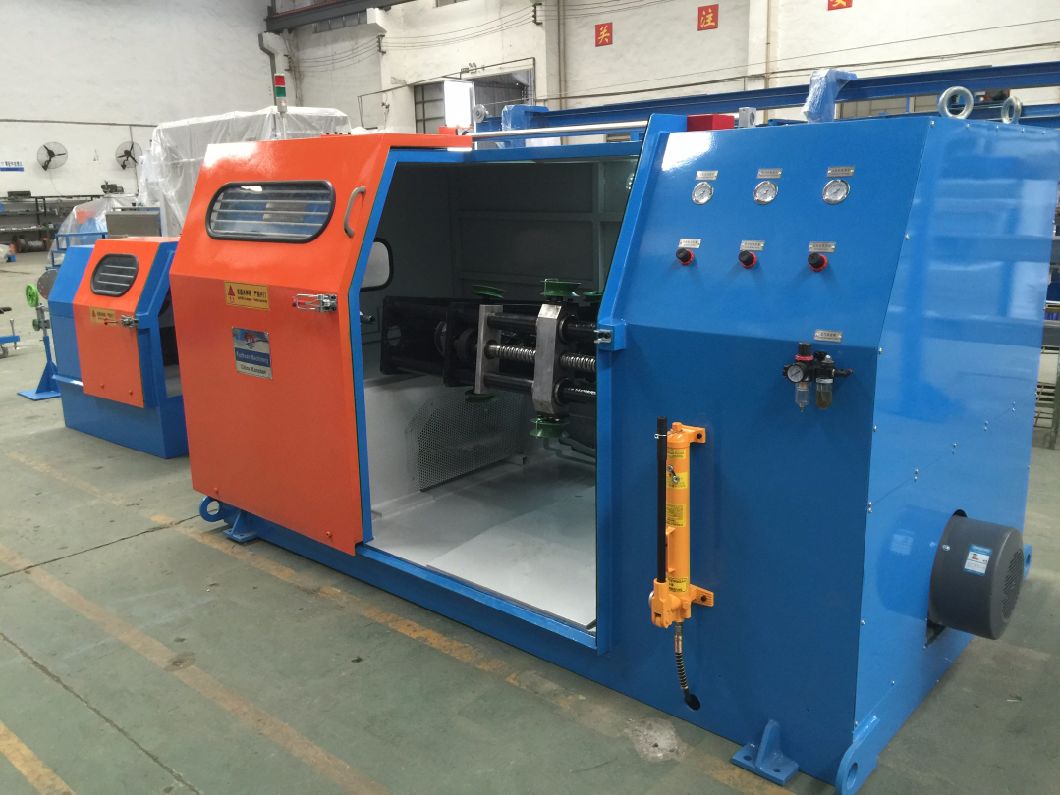

It is mainly used in cable laying of computer wires,such as data cable and control cable.It may synchronize central coil tapping and side coil tapping.The entire machine is consists of pay off rack,central bundler,side pay off rack for the central coil tapping set,single twist(cable-laying)machine and electrical control cabinet.
Equipment model F C-630 FC-800 FC-1000 FC-1250 Usage It is applied to the twisting of PVC/PE core wire or copper wire,central bundling or side bundling Applied for wire(mm) φ0.6-3.0 φ0.6-3.0 φ1.0-6.0 φ1.0-6.0 Max twist outer dia(mm) φ12 φ16 φ25 φ30 Pitch(mm) 10-150 30-200 50-300 50-400 Direction of lay Optional for right or left Take up bobbin size Φ630 φ800 φ1000 φ1250 Max rotating speed(rpm) 600 500 500 400 Traverse type Traverse is adopt crossbar-less reciprocating Take up tension Pneumatic tension automatic regulate Brake type Disk brake Bundling type Central bundling or side bundling Replace pitch type Computer pitch or gear pitch
It is applied to the twisting of PVC/PE core wire or copper wire,central bundling or side bundling.
Series for frame single twist(cable laying)machine
It is mainly used in cable laying of computer wires,such as data cable and control cable.It may synchronize central coil tapping and side coil tapping.The entire machine is consists of pay off rack,central bundler,side pay off rack for the central coil tapping set,single twist(cable-laying)machine and electrical control cabinet.
Equipment model F C-630 FC-800 FC-1000 FC-1250 Usage It is applied to the twisting of PVC/PE core wire or copper wire,central bundling or side bundling Applied for wire(mm) φ0.6-3.0 φ0.6-3.0 φ1.0-6.0 φ1.0-6.0 Max twist outer dia(mm) φ12 φ16 φ25 φ30 Pitch(mm) 10-150 30-200 50-300 50-400 Direction of lay Optional for right or left Take up bobbin size Φ630 φ800 φ1000 φ1250 Max rotating speed(rpm) 600 500 500 400 Traverse type Traverse is adopt crossbar-less reciprocating Take up tension Pneumatic tension automatic regulate Brake type Disk brake Bundling type Central bundling or side bundling Replace pitch type Computer pitch or gear pitch
It is applied to the twisting of PVC/PE core wire or copper wire,central bundling or side bundling.
