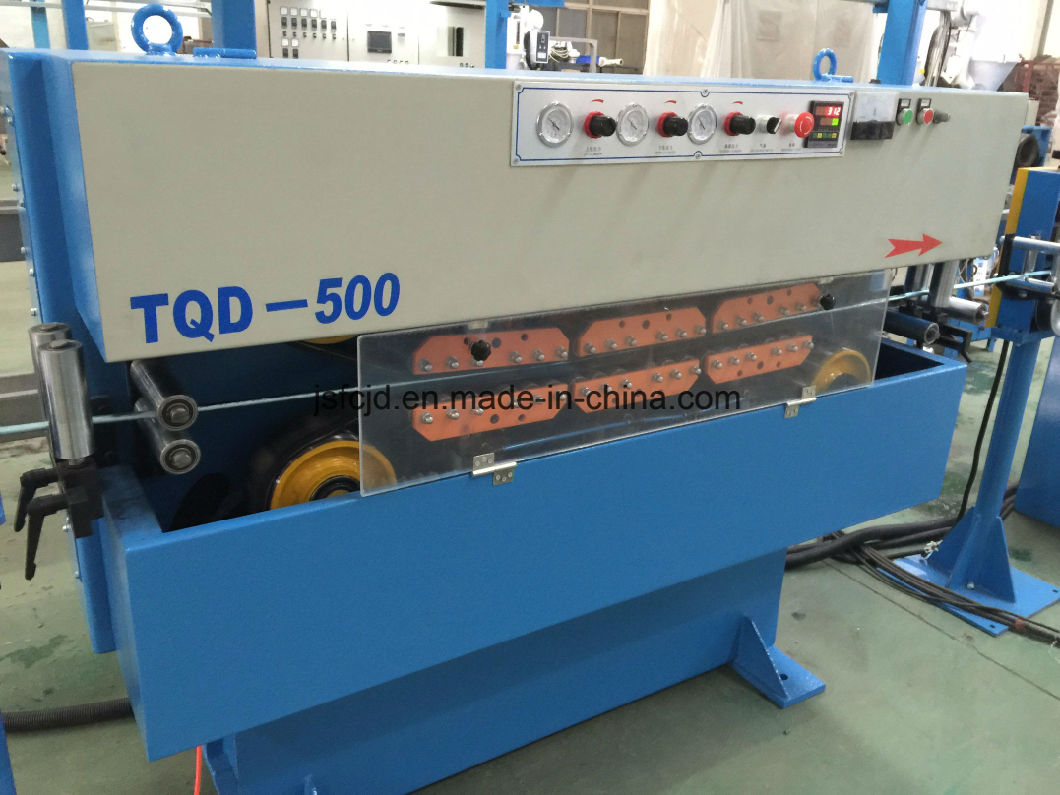

1.0-18.0mm Electrical Copper Cable Wire Winding Making Bunching Twisting Extruder Extrusion Buncher Drawing Machine
-
New
-
VDE, Ce, ISO
-
12 Months
-
High Precision
-
Automatic
-
Electric

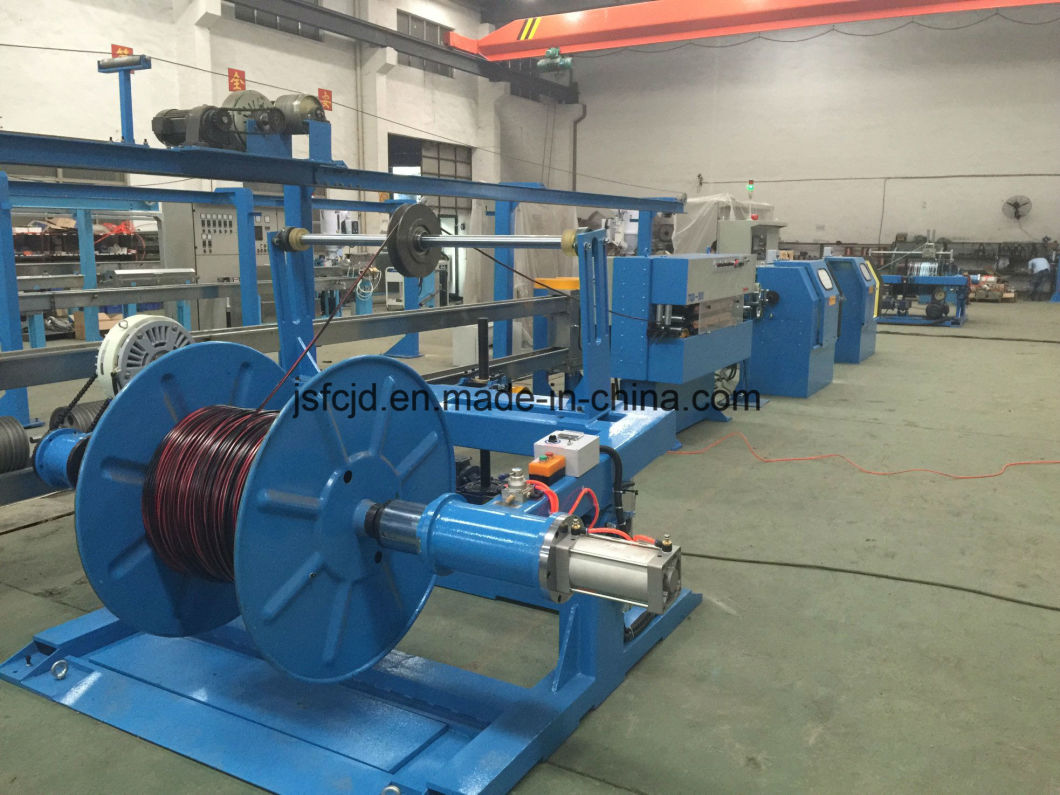

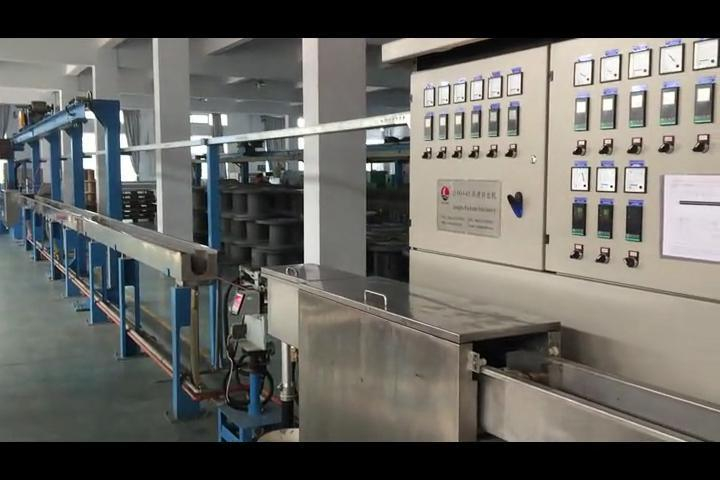

FC-90+40 High Speed Extrusion Line
Quick detail :
Usage: for PVC,low-smoking non-halogen and other material of wire insulation and sheathing line
Characteristics:- Wire and Cable Size :Inlet bunched conductor:φ6.0mm~φ28.0mm
2. Wire Speed: 80m/min3. Machine centre height: 1000mm4. Line direction:Right to Left or Left to Right-----confirmed by the buyer.5. Machine color:6. Machine Body: Sky Blue Control Box: Computer White (RAL7035) Safe color:Yellow(RAL1021)
Detail construction of machines :
Name unit Note 1.∮1600 Big Shaft Magnetic Pay-Off Machine Set Fuchuan 630mm-800mm-1000mm 2. 800KG Caterpillar Set Fuchuan made 3. Wire straightening device Set Fuchuan made 4.∮90mm main Extruder (pressure sensor included) Set Contain PVC. TPEscrew 1 piece-made in Zhejiang 5.low-smoking non halogen screw rod set 6.X9 adjustable pcs ShangHai 7. 200KG Hopper & Dryer set Made in Taiwan 8. Vacuum intake set Made in Taiwan 9. 2.5 meters movable water cooling tank set Fuchuan made for cooling 10.water blower set 11.jet-spraine machine set Cuostomer provide 12. 2050 Diameter measure device Set ShangHai on-line 13. Spark Tester Set ShangHai on-line 14. High Speed Printing machine Set Fuchuan made 15. 16 meters single layer cooling water tank Set Fuchuan made 16. 1250KG Caterpillar set Fuchuan made 17. 159 Meter Counter Set Fuchuan made 18.1600 Big Shaft Take-up Machine Fuchuan made 19. Driving control Fuchuan made
FC-90+40 High Speed Extrusion Line
Quick detail :
Usage: for PVC,low-smoking non-halogen and other material of wire insulation and sheathing line
Characteristics:- Wire and Cable Size :Inlet bunched conductor:φ6.0mm~φ28.0mm
2. Wire Speed: 80m/min3. Machine centre height: 1000mm4. Line direction:Right to Left or Left to Right-----confirmed by the buyer.5. Machine color:6. Machine Body: Sky Blue Control Box: Computer White (RAL7035) Safe color:Yellow(RAL1021)
Detail construction of machines :
Name unit Note 1.∮1600 Big Shaft Magnetic Pay-Off Machine Set Fuchuan 630mm-800mm-1000mm 2. 800KG Caterpillar Set Fuchuan made 3. Wire straightening device Set Fuchuan made 4.∮90mm main Extruder (pressure sensor included) Set Contain PVC. TPEscrew 1 piece-made in Zhejiang 5.low-smoking non halogen screw rod set 6.X9 adjustable pcs ShangHai 7. 200KG Hopper & Dryer set Made in Taiwan 8. Vacuum intake set Made in Taiwan 9. 2.5 meters movable water cooling tank set Fuchuan made for cooling 10.water blower set 11.jet-spraine machine set Cuostomer provide 12. 2050 Diameter measure device Set ShangHai on-line 13. Spark Tester Set ShangHai on-line 14. High Speed Printing machine Set Fuchuan made 15. 16 meters single layer cooling water tank Set Fuchuan made 16. 1250KG Caterpillar set Fuchuan made 17. 159 Meter Counter Set Fuchuan made 18.1600 Big Shaft Take-up Machine Fuchuan made 19. Driving control Fuchuan made
