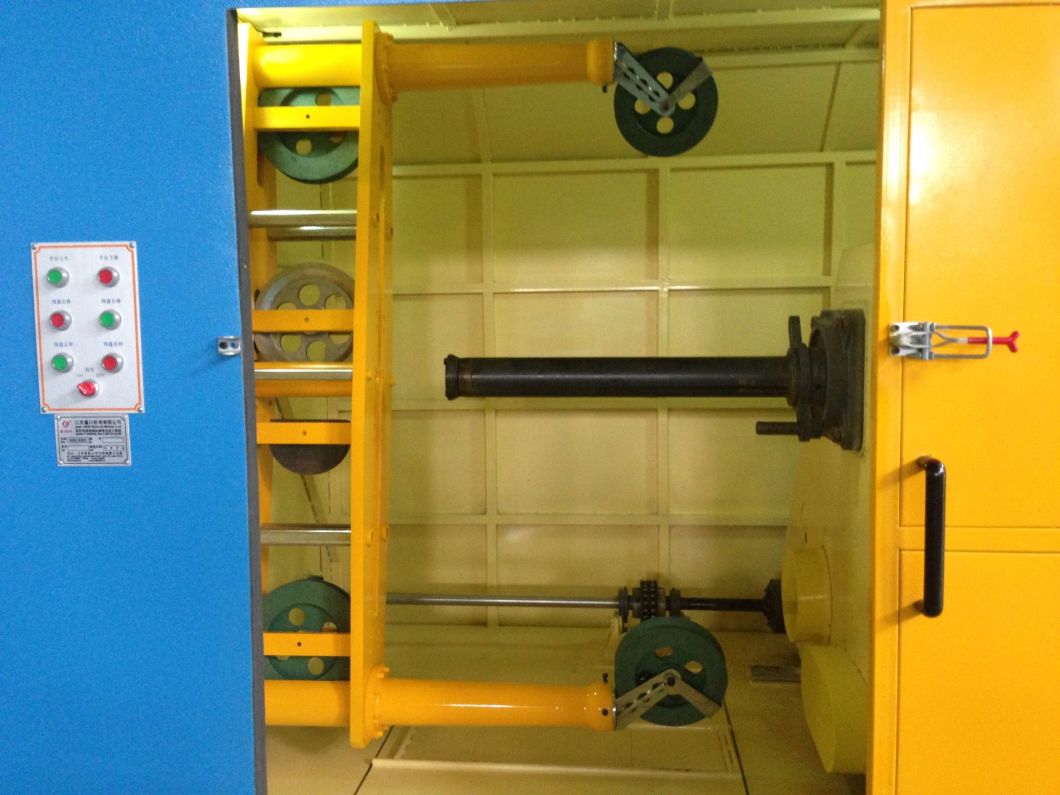

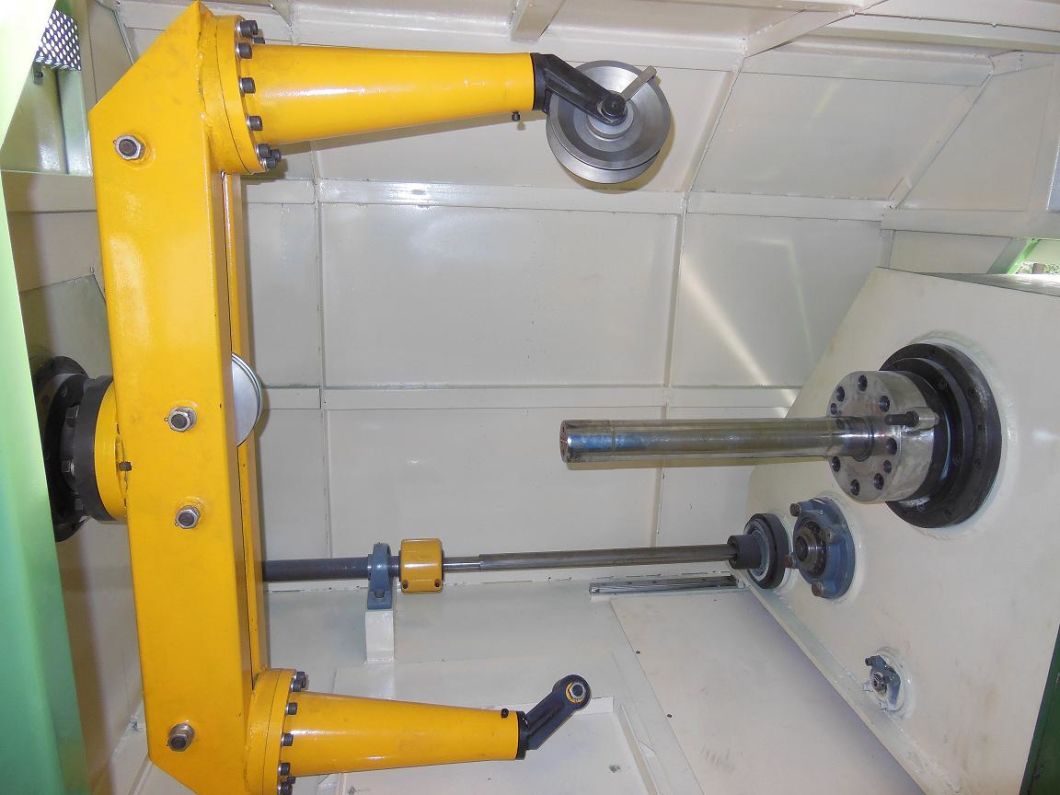

0.05-2.52mm Wire and Cable Making Cantilever Type Single Twister, Stranding, Bunching Buncher Machine

Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 12months

  • PVC/PE Core Wire or Copper Wire

  • Sky Blue

  • Central Bundling or Side Bundling

  • Computer Pitch or Gear Pitch

  • Pneumatic Tension Automatic Regulate

It is mainly used in cable laying of computer wires,such as data cable and control cable.It may synchronize central coil tapping and side coil tapping.The entire machine is consists of pay off rack,central bundler,side pay off rack for the central coil tapping set,single twist(cable-laying)machine and electrical control cabinet.

Equipment models:FC-800

Applicable dia: dia1.0-4.0mm
Max twist outer:dia 20mm
Pitch:30-300
Direction of lay: optional for right or left
Take up bobbin size: dia800mm
Rotating speed:800 rpm
Traverse type:according to bobbin ratate speed and reciprocating motion to stepless adjust
Take up tension: pneumatic tension automatic regulate
Brake mode:pneumatic booster brake
Bundling type:central bundling or side bundling
Replace pitch mode:computer pitch

0.05-2.52mm Wire and Cable Making Cantilever Type Single Twister, Stranding, Bunching Buncher Machine
0.05-2.52mm Wire and Cable Making Cantilever Type Single Twister, Stranding, Bunching Buncher Machine
0.05-2.52mm Wire and Cable Making Cantilever Type Single Twister, Stranding, Bunching Buncher Machine
0.05-2.52mm Wire and Cable Making Cantilever Type Single Twister, Stranding, Bunching Buncher Machine
0.05-2.52mm Wire and Cable Making Cantilever Type Single Twister, Stranding, Bunching Buncher Machine
0.05-2.52mm Wire and Cable Making Cantilever Type Single Twister, Stranding, Bunching Buncher Machine
