Bare Copper Wire Making Bunchers PLC Control 0.05-0.64mm Wire Single Twister Double Twisting Machine
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
Cantilever Structure
-

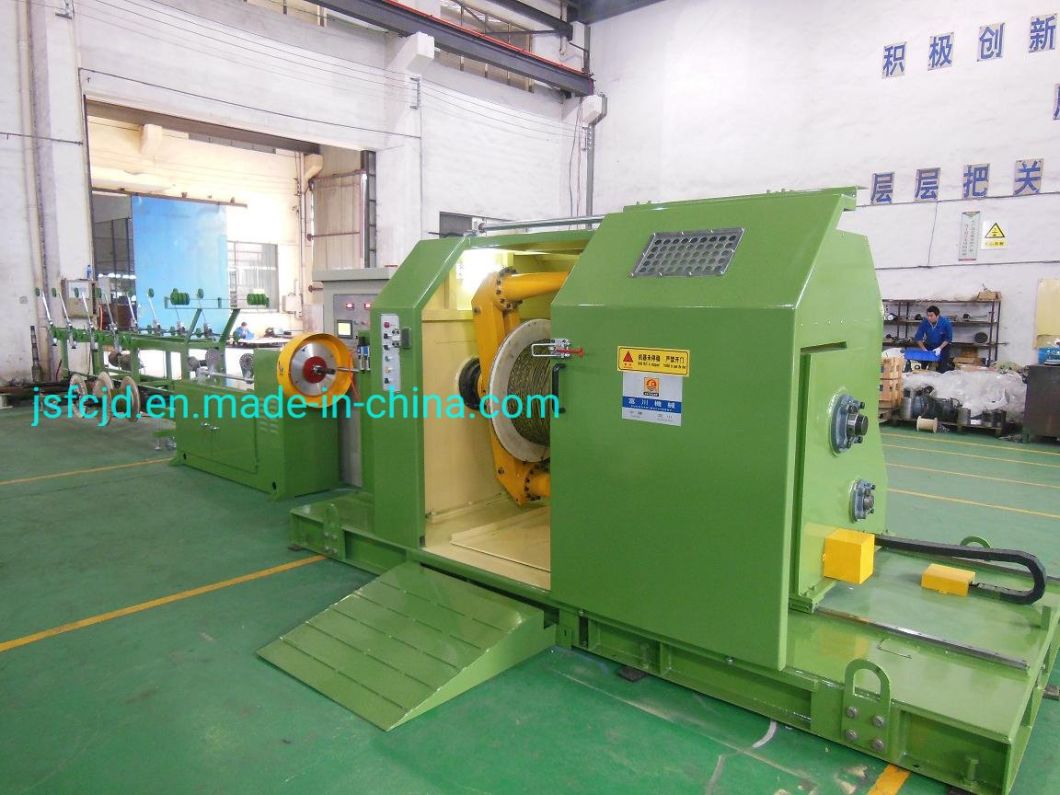

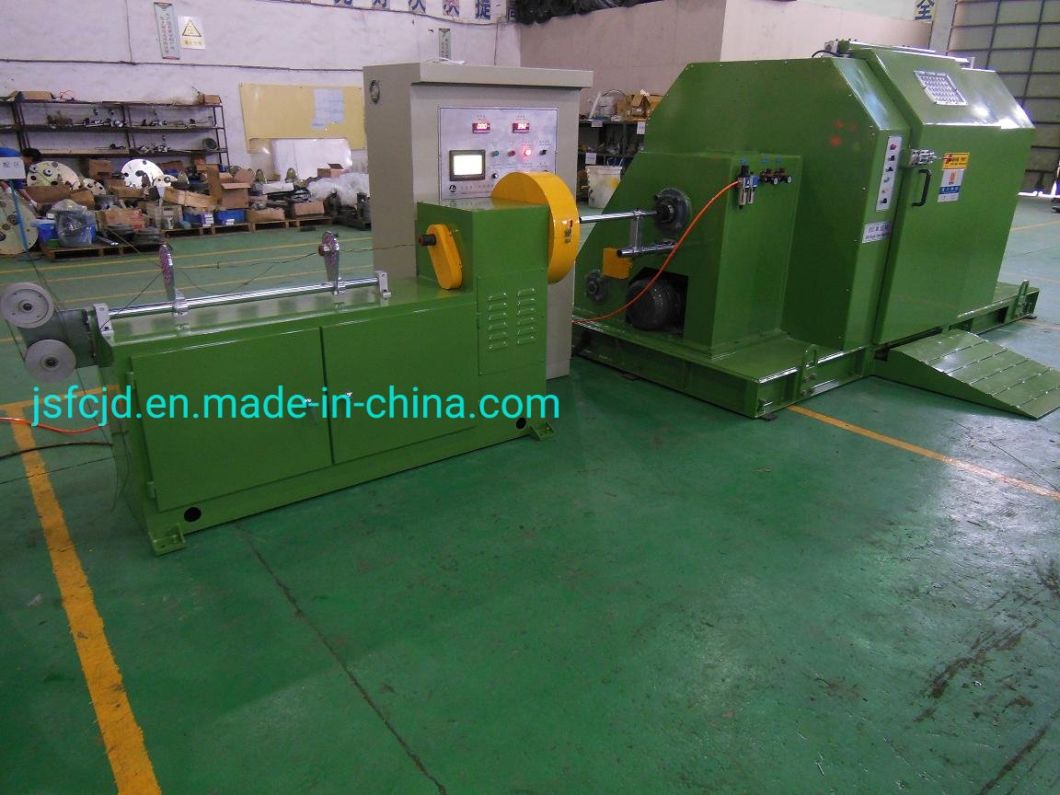

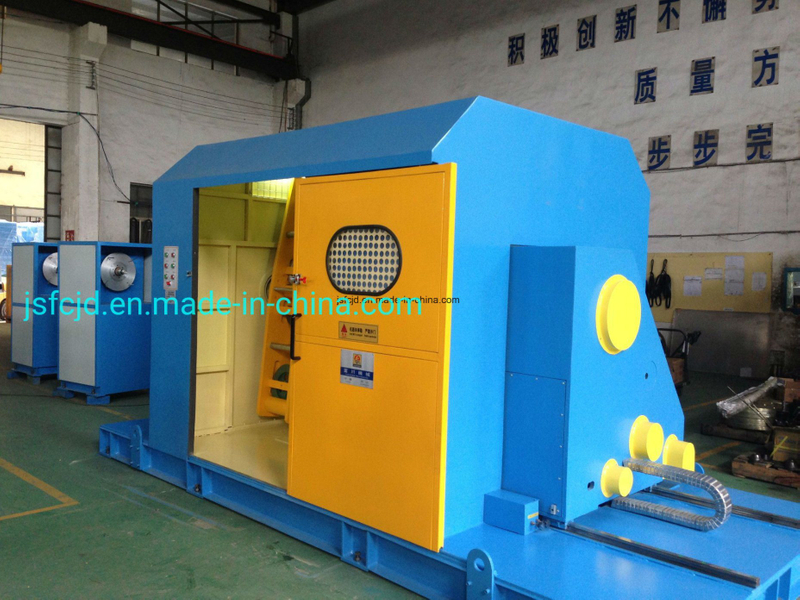

Cantilever Single Twist Machine
Series for cantilever type single twist(cable laying)machine
It is mainly used in cable laying of computers wires,such as date cable and control cable.It may synchronize central coil tapping and side coil tapping.The entire machine is consists of pay-off rack,central bundler,side pay-off rack for the central coil tapping set,single twist(cable-laying)machine and electrical control cabinet.

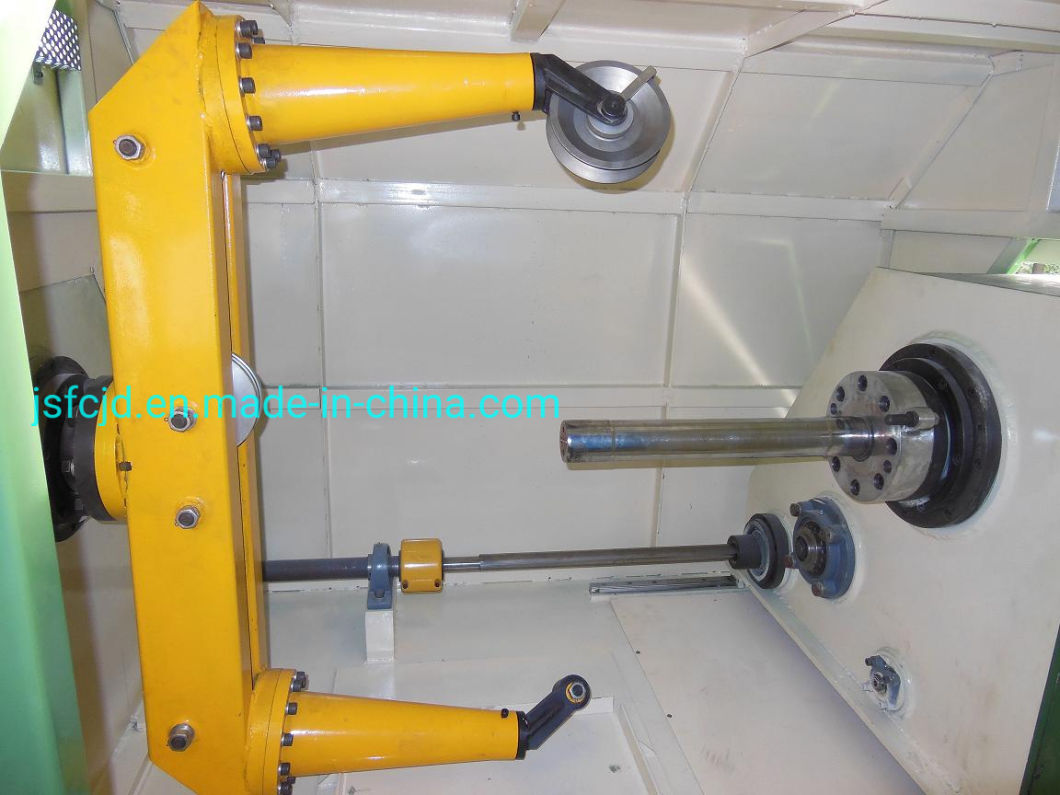

Series for Cantilever Single Twist(Cable-laying) Machine Merits:1.Cantilevel structure, small rotatory inertia,high and stable rotation, thus get the stable quality products 2.Take-up box reciprocate,lead to the bunching wire is arranged precisely in the take-up bobbin. 3.Comupter control the pitch,no capstan,no dynamic plate, assure the uniformity tension of cable, shorten the path lengh 4.Largen the diameter of veer wheel to decrease the wire bend degree, assure the quality of finished wire 5.Compared with the traditional cable-laying machine, avoid the rod cracked and other unsafe factors when machine is rotating in high speed. 6.It is convinient to load/unload the bobbin,small labour strength Model FC-XB630 FC-XB800 FC-XB1000 FC-XB1250 Usage It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping.The entire machine is consists of pay-off rack,central bundler,side pay-off rack for the central coil tapping set,single twist(cable-laying)machine and electrical control cabinet Applicable Dia(mm) φ0.6~φ3.0 φ1.0~φ4.0 φ1.0~φ5.0 φ1.0~φ6.0 Max Twist Outer Dia(mm) φ15 φ20 φ25 φ30 Pitch(mm) 20~200 30~300 30~350 30~400 Direction of Lay optional for right or left Take-up Bobbin Size(mm) φ630 φ800 φ1000 φ1250 Max Rotating Speed(rpm) 800 700 600 500 Traversing Method According to bobbin rotate speed and reciprocating motion to stepless adjust Take-up Tension Pneumatic tension automatic regulate Brake Mode Pneumatic booster brake Bundling Mode Central bundling or side bundling Replace Pitch Mode Computer pitch Series for cantilever type single twist(cable laying)machine
