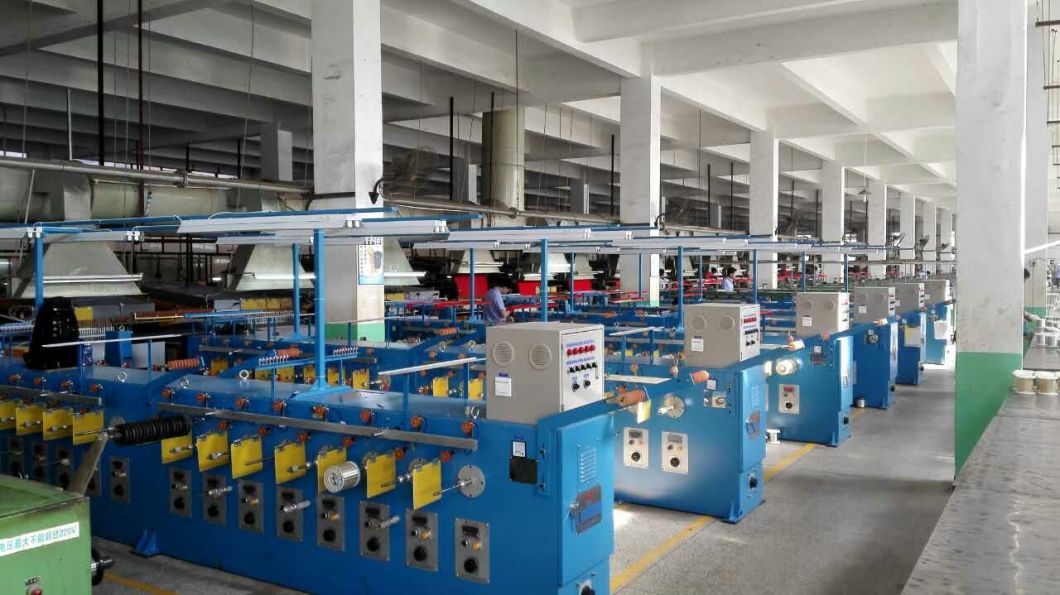

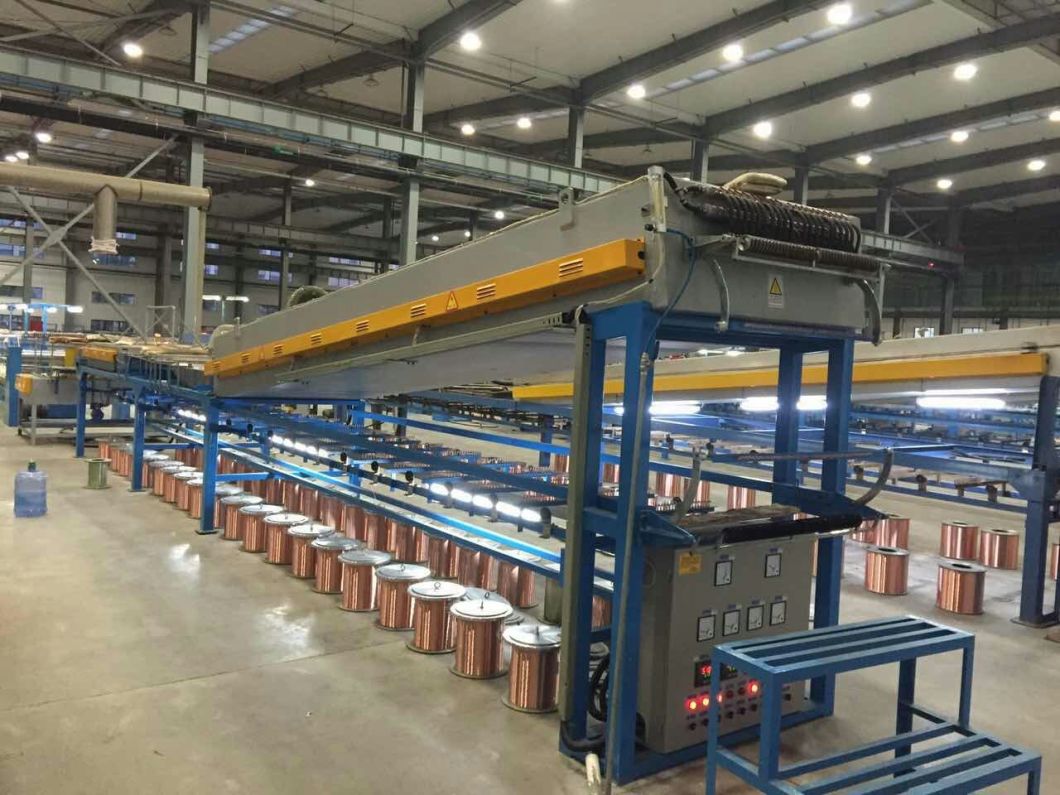

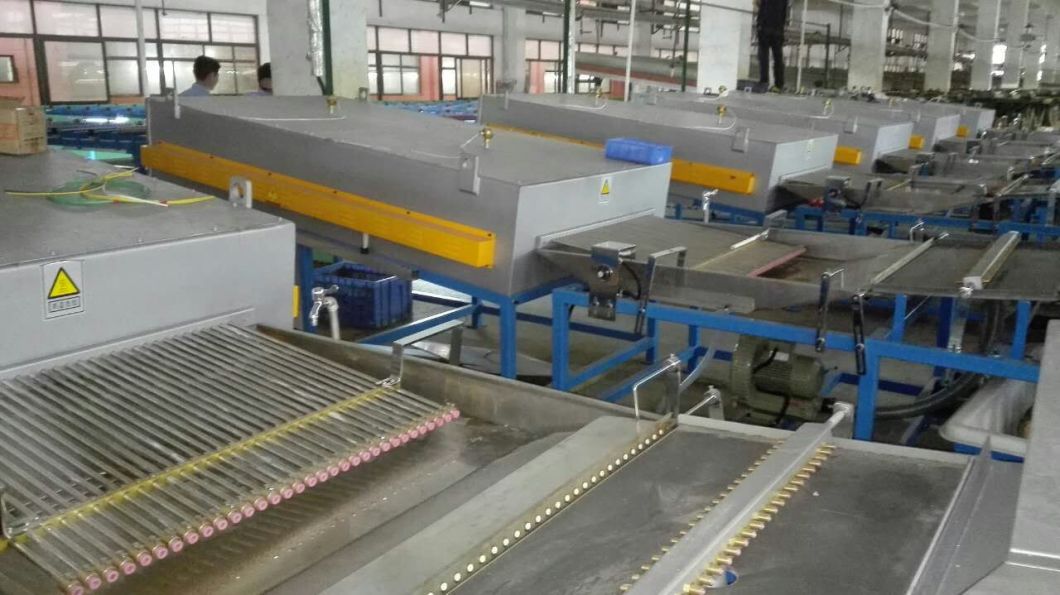

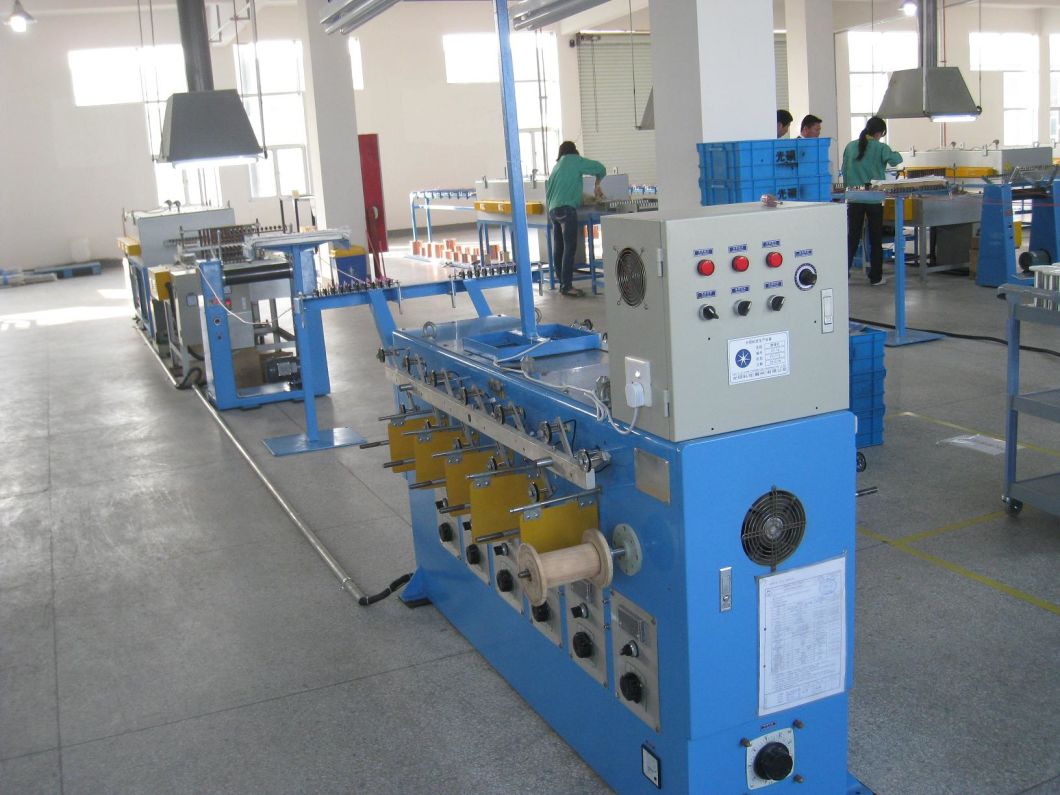

0.03-0.50mm Tiny Ultra Fine Alloy Copper Wire Annealing Tinning Making Bunchers Machine
-
12months
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
The technology of this machine is brought from Japan and put in production in JiangSu.
Merits: Easy to operate, good annealing heat preservation, save electricity, achieve industry-leading level
Equipment models: FC-T16
Twisting usage: It is applied to the annealing and tinning of ultra-fine round copper wire and alloy wire.
Equipment model FC-T16 FC-T24 FC-T32 FC-T40 Twisting usage It is mainly applied to the annealing and tinning of ultra-fine round copper wire and alloy wire Inlet wire diφ 0.08-0.32mm or 0.15-0.64mm Stranding section area 0.0014-0.035 0.0049-0.3 0.0137-0.45 0.0137-1.0 Max no of inlet wire 16 24 32 40 Linear speed Max:350m/min Pay off type Brush pay off Pay off bobbin type Dia300mm bobbin Annealing furnace length Five meters or six meters Annealing type Tube type annealing Annealing protection type Water seal protection+nitrogen or vapor protection Tinned type Hot dip Capstan control type Inverter+motor control Take up control Voltage adjusting controls torque motor take up Take up bobbin size Five inch,eight inch or five inch,eight inch,ten inch bobbin Traverse control type Stepless speed regulation motor+turbine gear box control toothrow traverse Dimension(mm) 14500L*1500W*2100H 18000L*1500W*2100H 20000L*1500W*2100H 24000L*2200W*2100H
The technology of this machine is brought from Japan and put in production in JiangSu.
Merits: Easy to operate, good annealing heat preservation, save electricity, achieve industry-leading level
Equipment models: FC-T16
Twisting usage: It is applied to the annealing and tinning of ultra-fine round copper wire and alloy wire.
Equipment model FC-T16 FC-T24 FC-T32 FC-T40 Twisting usage It is mainly applied to the annealing and tinning of ultra-fine round copper wire and alloy wire Inlet wire diφ 0.08-0.32mm or 0.15-0.64mm Stranding section area 0.0014-0.035 0.0049-0.3 0.0137-0.45 0.0137-1.0 Max no of inlet wire 16 24 32 40 Linear speed Max:350m/min Pay off type Brush pay off Pay off bobbin type Dia300mm bobbin Annealing furnace length Five meters or six meters Annealing type Tube type annealing Annealing protection type Water seal protection+nitrogen or vapor protection Tinned type Hot dip Capstan control type Inverter+motor control Take up control Voltage adjusting controls torque motor take up Take up bobbin size Five inch,eight inch or five inch,eight inch,ten inch bobbin Traverse control type Stepless speed regulation motor+turbine gear box control toothrow traverse Dimension(mm) 14500L*1500W*2100H 18000L*1500W*2100H 20000L*1500W*2100H 24000L*2200W*2100H
