0.03-0.64mm Copper Cable Wire Buncher Annealing Tinning twister Extrusion bunching Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • FC-T22

  • 0.03-1.6mm

  • 12months

  • Electric

  • New

  • ISO, CE

  • 12 Months

  • Automatic

The technology of this machine is brought from Japan and put in production in JiangSu.
Merits: Easy to operate, good annealing heat preservation, save electricity, achieve industry-leading level


Equipment models: FC-T16
Twisting usage: It is applied to the annealing and tinning of ultra-fine round copper wire and alloy wire.


Equipment model FC-T16 FC-T24 FC-T32 FC-T40
Twisting usage It is mainly applied to the annealing and tinning of ultra-fine round copper wire and alloy wire
Inlet wire diφ 0.08-0.32mm or 0.15-0.64mm
Stranding section area 0.0014-0.035 0.0049-0.3 0.0137-0.45 0.0137-1.0
Max no of inlet wire 16 24 32 40
Linear speed Max:350m/min
Pay off type Brush pay off
Pay off bobbin type Dia300mm bobbin
Annealing furnace length Five meters or six meters
Annealing type Tube type annealing
Annealing protection type Water seal protection+nitrogen or vapor protection
Tinned type Hot dip
Capstan control type Inverter+motor control
Take up control Voltage adjusting controls torque motor take up
Take up bobbin size Five inch,eight inch or five inch,eight inch,ten inch bobbin
Traverse control type Stepless speed regulation motor+turbine gear box control toothrow traverse
Dimension(mm) 14500L*1500W*2100H 18000L*1500W*2100H 20000L*1500W*2100H 24000L*2200W*2100H

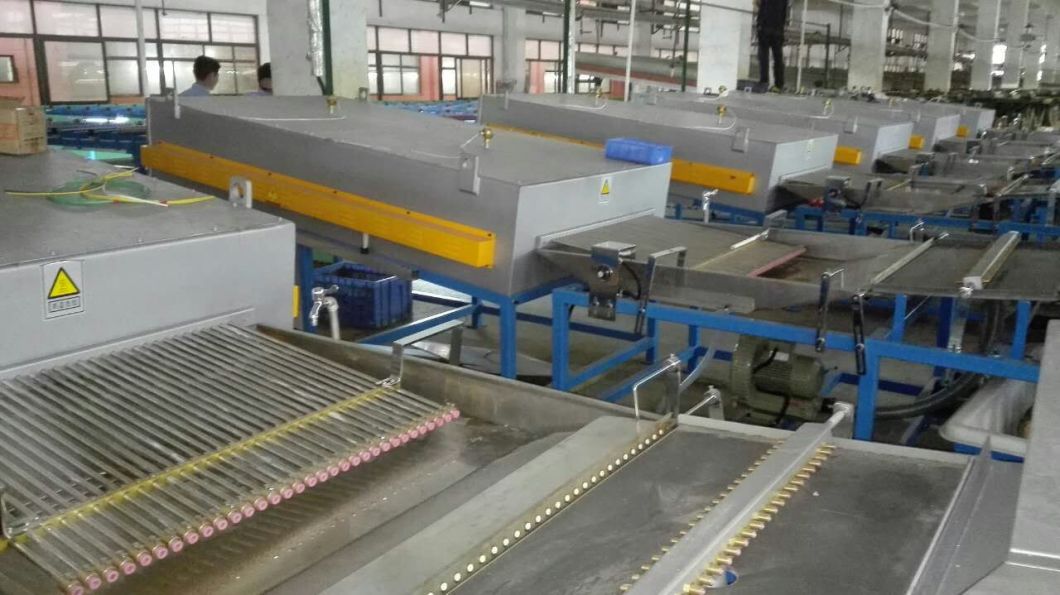

0.03-0.64mm Copper Conductor Wire Buncher Annealing Tinning Enamelling Extrusion Machine
0.03-0.64mm Copper Conductor Wire Buncher Annealing Tinning Enamelling Extrusion Machine
0.03-0.64mm Copper Conductor Wire Buncher Annealing Tinning Enamelling Extrusion Machine

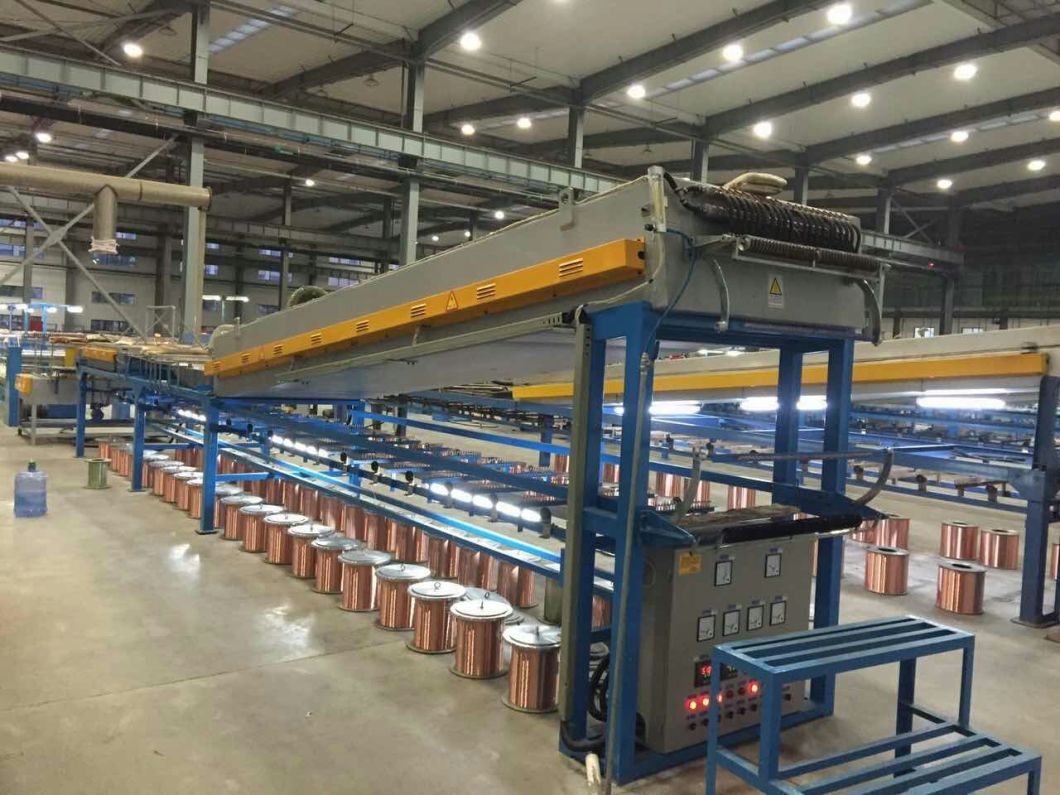

0.03-0.64mm Copper Conductor Wire Buncher Annealing Tinning Enamelling Extrusion Machine


0.03-0.64mm Copper Conductor Wire Buncher Annealing Tinning Enamelling Extrusion Machine

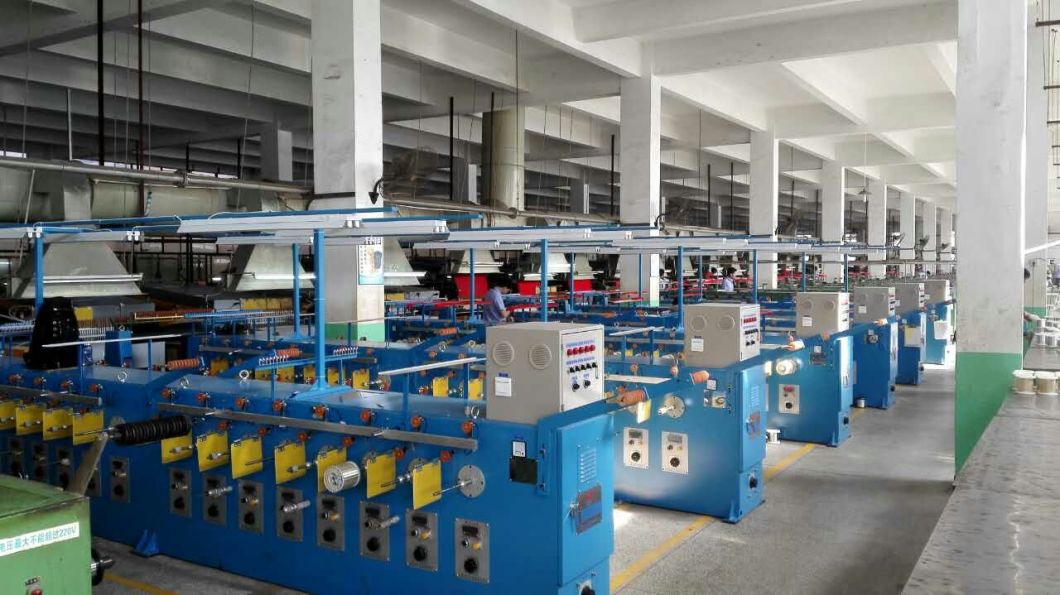

0.03-0.64mm Copper Conductor Wire Buncher Annealing Tinning Enamelling Extrusion Machine
