0.04-1.64mm Cable Copper Wire Enamelling Bunching Annealing Tinning Stranding Making Buncher Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Electric

  • New

  • ISO, CE

  • 12 Months

  • Annealing and Tinning Copper Wire and Alloy Wire

  • 0.05-0.127mm

The technology of this machine is brought from Japan and put in production in JiangSu.
Merits: Easy to operate, good annealing heat preservation, save electricity, achieve industry-leading level

Equipment models: FC-TX32
Twisting usage: It is applied to the annealing and tinning of ultra-fine round copper wire and alloy wire.

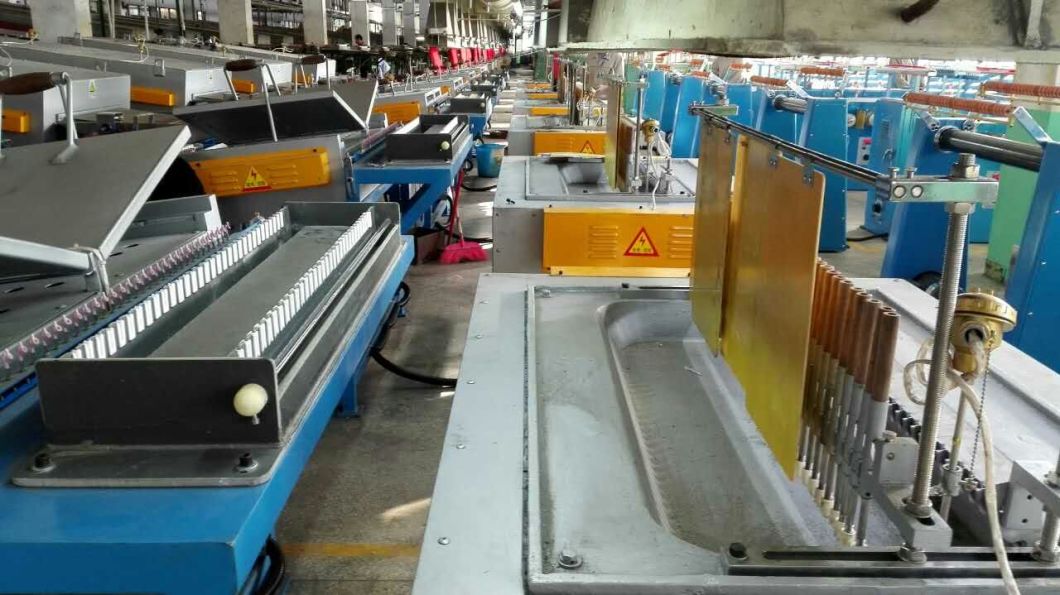

0.04-1.64mm Cable Copper Wire Enamelling Bunching Annealing Tinning Stranding Making Buncher Machine

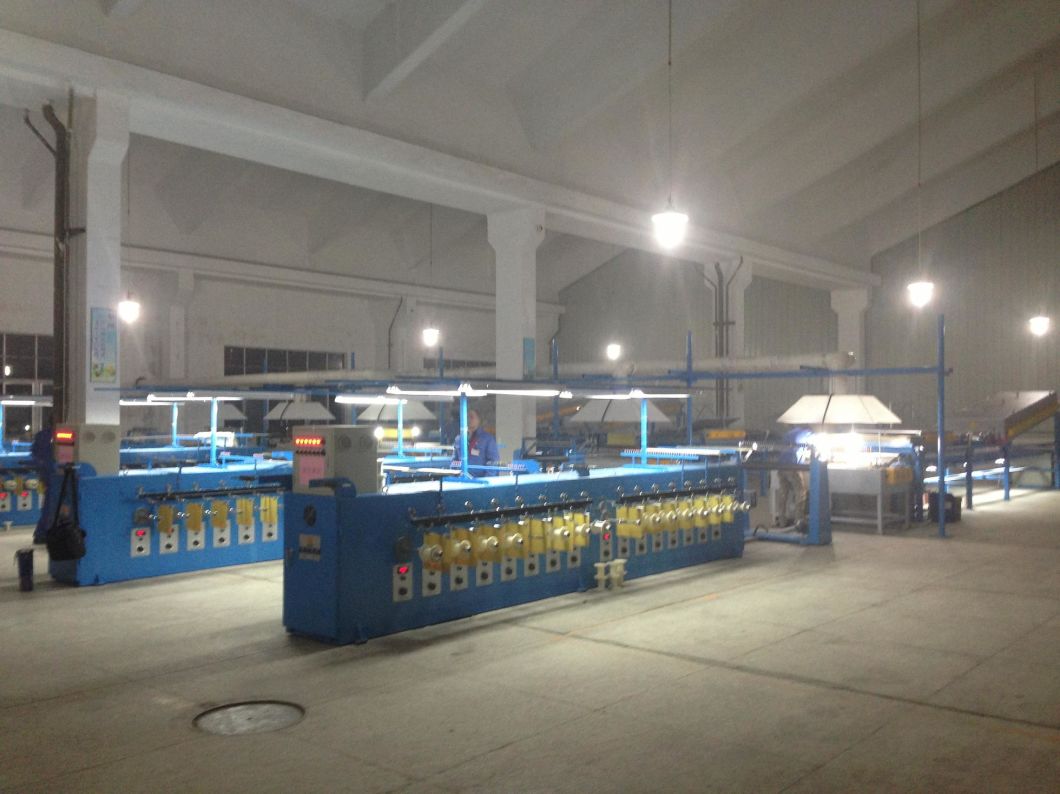

0.04-1.64mm Cable Copper Wire Enamelling Bunching Annealing Tinning Stranding Making Buncher Machine

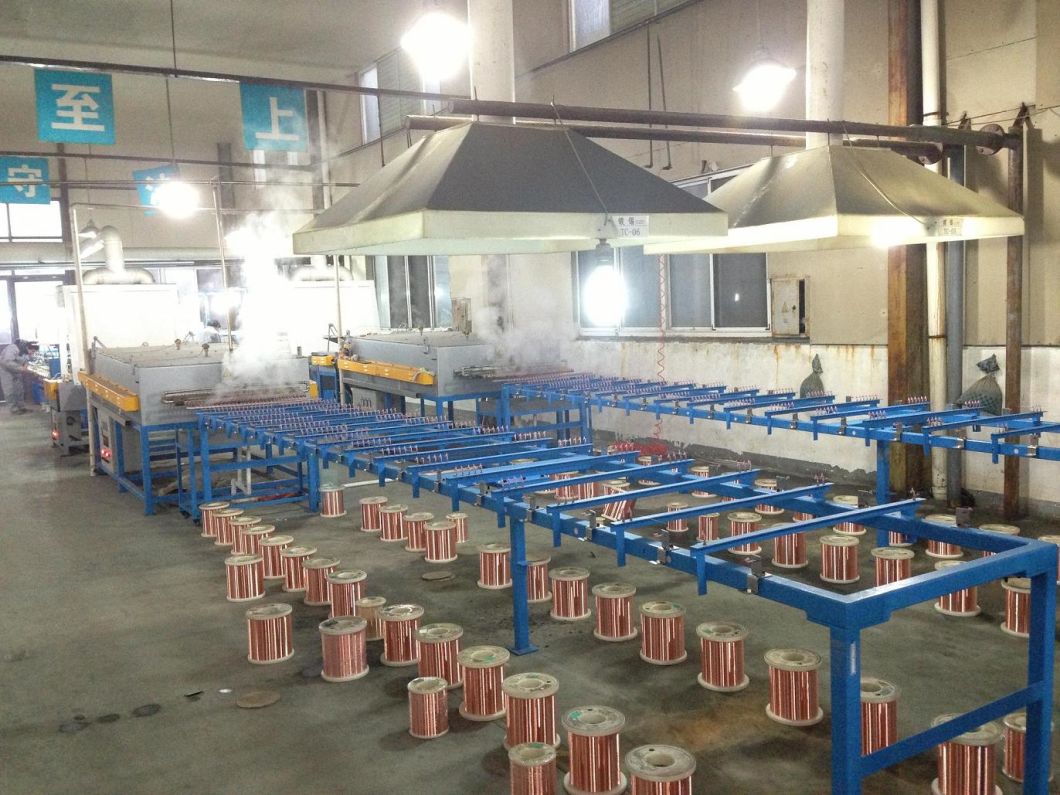

0.04-1.64mm Cable Copper Wire Enamelling Bunching Annealing Tinning Stranding Making Buncher Machine

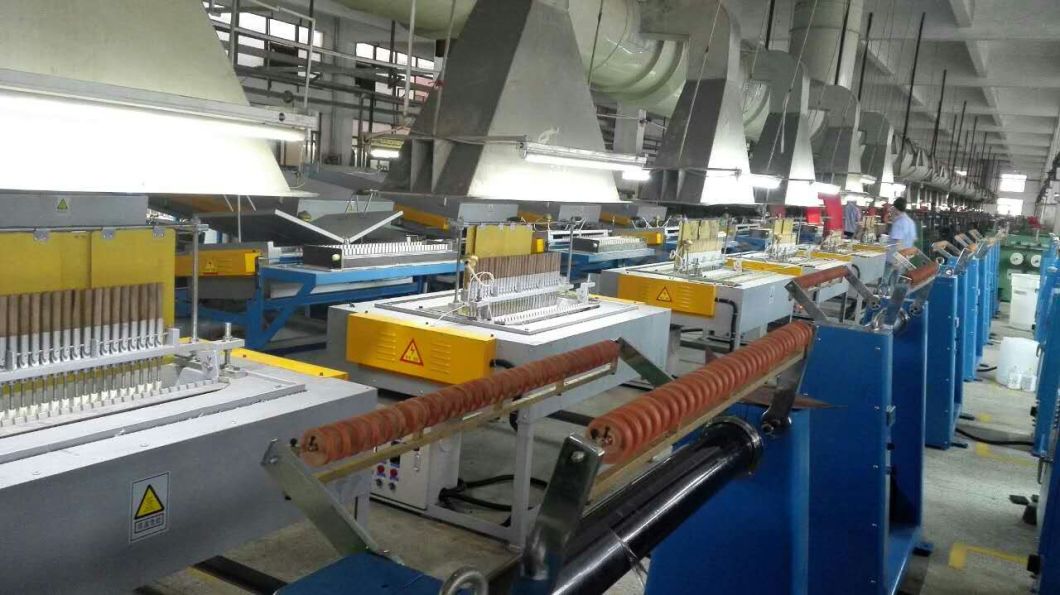

0.04-1.64mm Cable Copper Wire Enamelling Bunching Annealing Tinning Stranding Making Buncher Machine

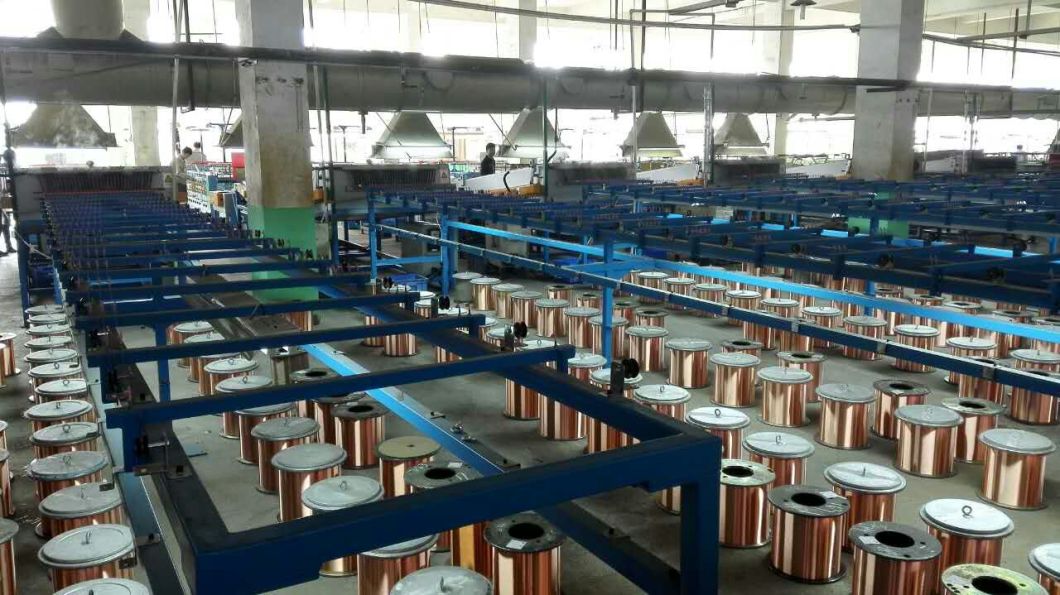

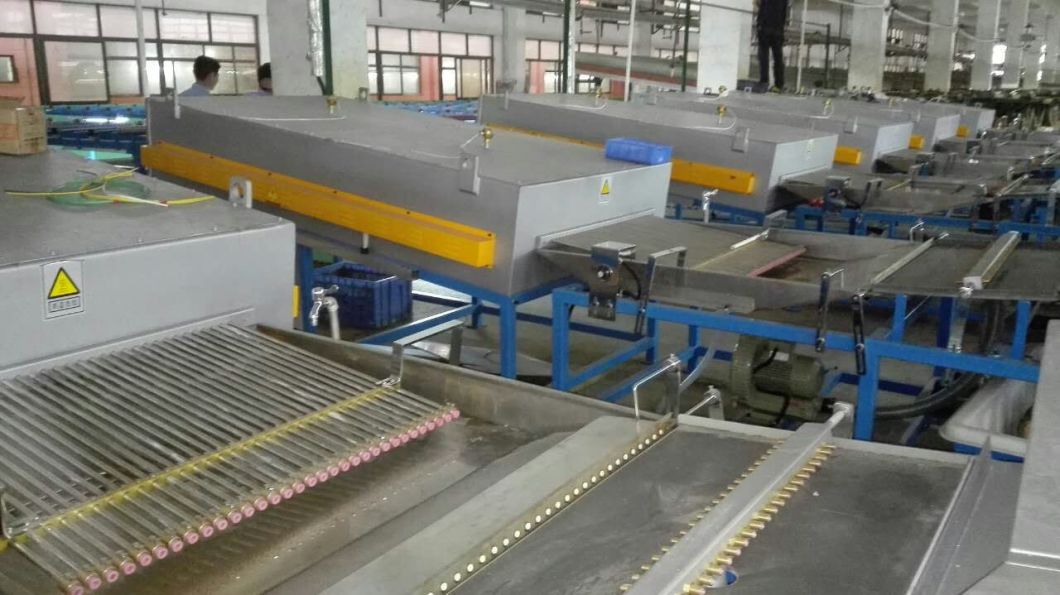

0.04-1.64mm Cable Copper Wire Enamelling Bunching Annealing Tinning Stranding Making Buncher Machine 0.04-1.64mm Cable Copper Wire Enamelling Bunching Annealing Tinning Stranding Making Buncher Machine
Model FC-TX12 FC-TX16 FC-TX24 FC-TX32 FC-TX40
Usage It is mainly applied to the annealing and tinning of ultra-fine round copper wire and alloy wire.
Inlet Wire Dia(mm) Φ0.016~Φ0.05 Φ0.03~Φ0.08 Φ0.04~Φ0.127 Φ0.05~Φ0.127 Φ0.05~Φ0.127
Max numbers of inlet wire 12 16 24 32 40
Linear speed Max : 300m/min
Pay off method Brush pay off
take up bobbin size 3 inch,5 inch bobbin 3 inch,5 inch,8 inch bobbin
Annealing furnace length 2m 2m 3m 3m 3m
Annealing method Tube annealing
Annealing protection method Nitrogen protection or Vapour protection(selected by customer)
Tinned method Hot Dip
Capstan control method Inverter+Motor Control or adopt stepless speed regulation motor(selected by customer)
Equipment total power 24KW 26KW 40KW 50KW 55KW
Meter counting method Inverter+Reducer motor control ball screw traversing,photoelectric induction reversing Inverter+reducer motor control toothrow traverse
Take up control Take up is voltage regulator control the moment motor
Traverse control method Stepless speed regulation motor+Turbine gear box control toothrow traverse
Installation size 13000L*1000W*1250H 15000L*1000W*1250H 20000L*1250W*1850H 24000L*1500W*1850H 24700L*2200W*2100H
