0.03-0.64mm Copper Alloy Wire Cable Core Twisting Stranding Bunching Twisting Winding Making Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • 12months

  • Electric

  • New

  • ISO, CE

  • 12 Months

  • Automatic

The technology of this machine is brought from Japan and put in production in JiangSu.
Merits: Easy to operate, good annealing heat insulation,save power,adopt nitrogen or steam protection,have individual meter counter for each take up bobbin, stop automatically achieve the preset meter. It may realize ultra-fine annealing tin and achieve industry leading level.

Equipment models: FC-T24-1

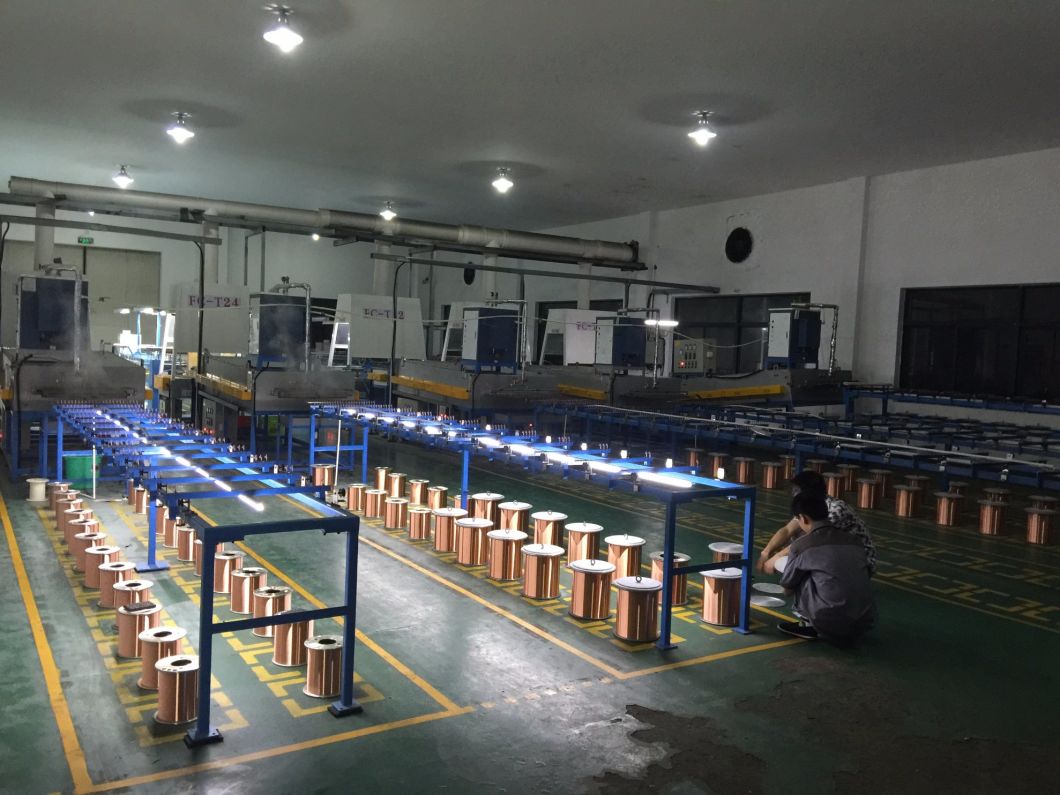

0.03-0.64mm Copper Alloy Wire Cable Core Twisting Stranding Bunching Twisting Winding Making Machine

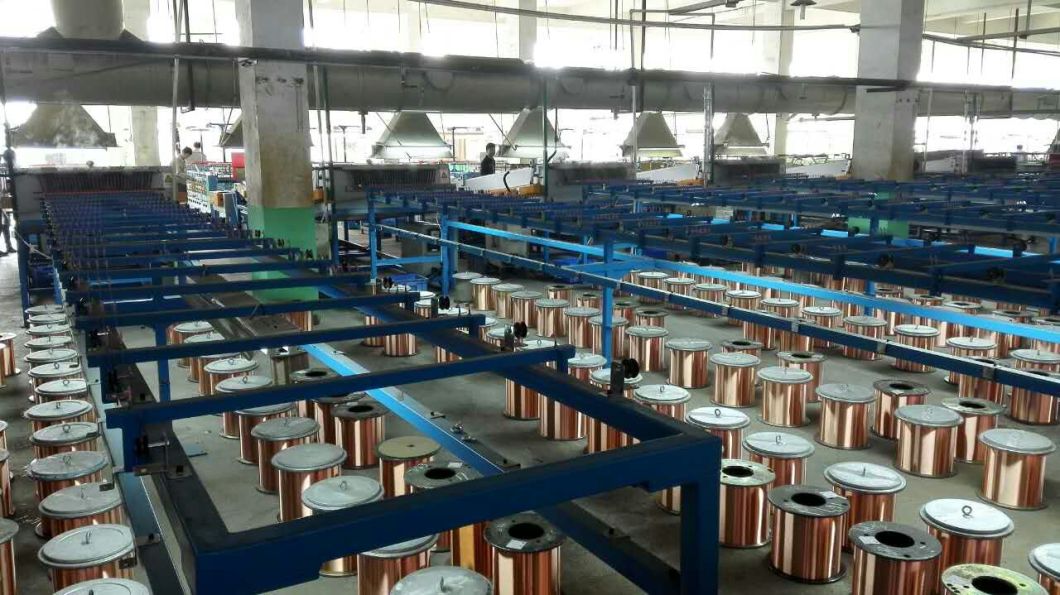

0.03-0.64mm Copper Alloy Wire Cable Core Twisting Stranding Bunching Twisting Winding Making Machine

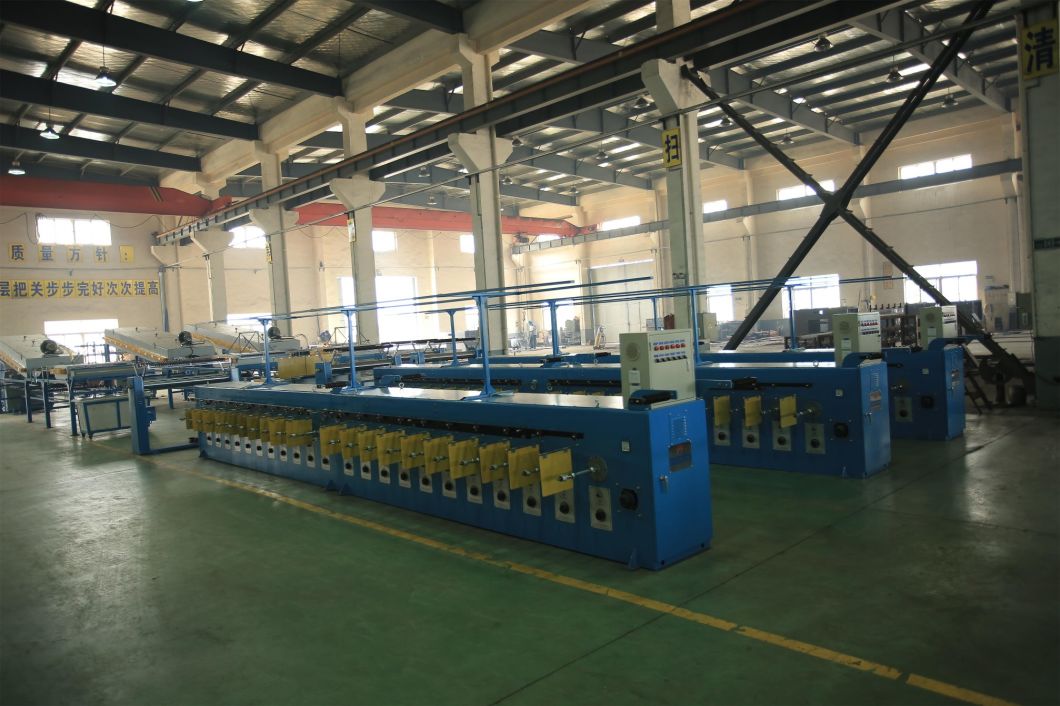

0.03-0.64mm Copper Alloy Wire Cable Core Twisting Stranding Bunching Twisting Winding Making Machine

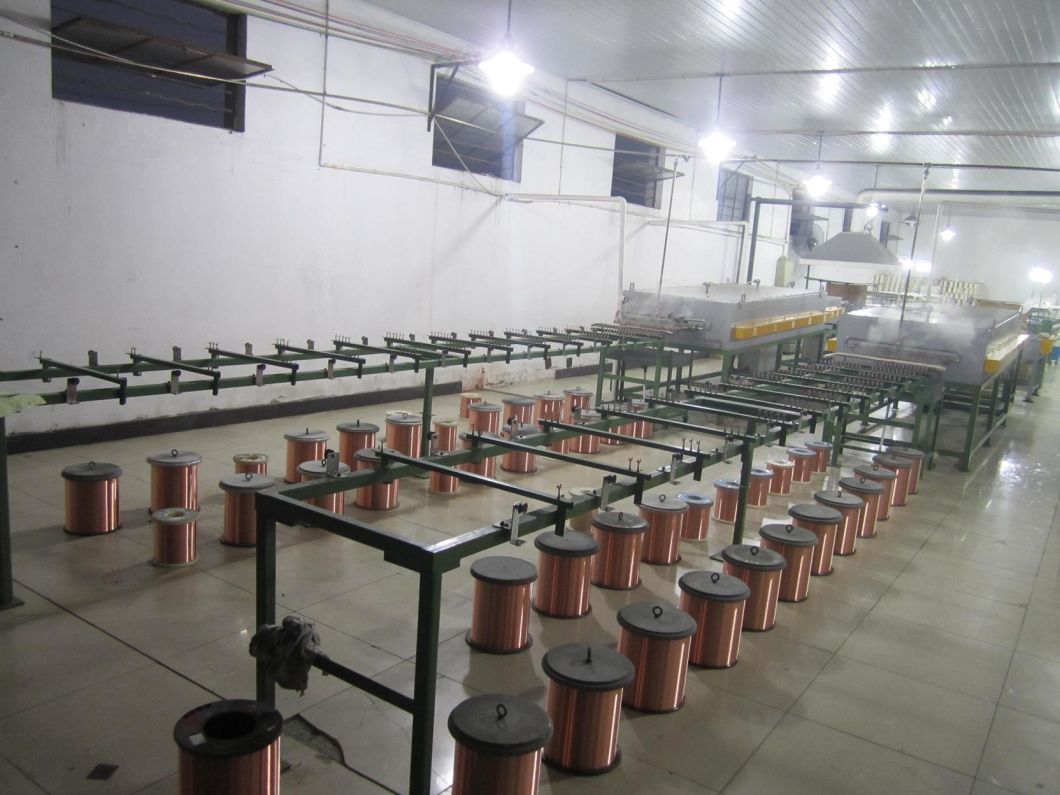

0.03-0.64mm Copper Alloy Wire Cable Core Twisting Stranding Bunching Twisting Winding Making Machine

Equipment model FC-T16 FC-T24 FC-T32 FC-T40
Twisting usage It is mainly applied to the annealing and tinning of ultra-fine round copper wire and alloy wire
Inlet wire diaφ 0.03-0.08mm 0.04-0.127mm 0.05-0.127mm 0.05-0.127mm
Max no of inlet wire 16 24 32 40
Annealing furnace length 2m 2.5m 3.0m 3.0m
Linear speed Max:300m/min
Pay off type Brush pay off
Meter counting method Single head independently meter counting,and the machine will stop when the preset length is arrived
Annealing type Tube type annealing
Annealing protection type nitrogen protection or vapor protection
Tinned method Hot dip
Capstan control method Inverter+motor control
Take up control Voltage adjusting controls torque motor take up
Take up bobbin size Three inch,Five inch,eight inch
Traverse control type Stepless speed regulation motor+turbine gear box control toothrow traverse
Total power for machine 26kw 40kw 50kw 55kw
Dimension(mm) 14000L*1000W*1250H 17000L*1250W*1850H 24000L*1500W*1850H 24700L*2200W*2100H

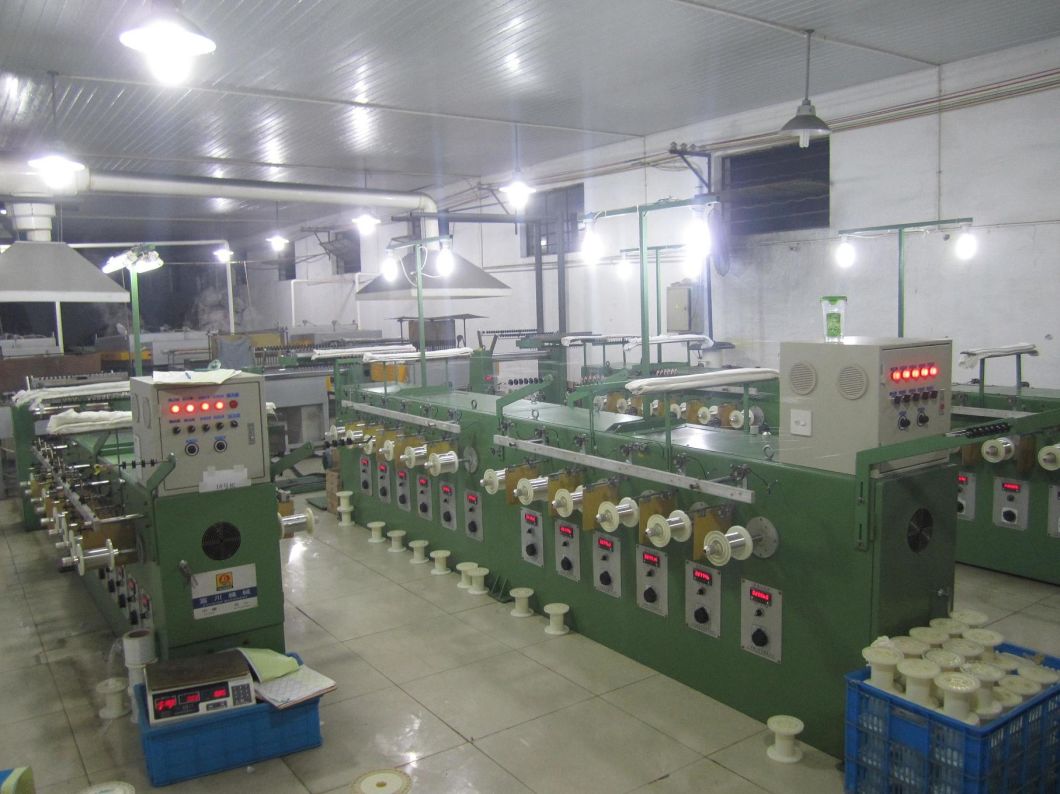

0.03-0.64mm Copper Alloy Wire Cable Core Twisting Stranding Bunching Twisting Winding Making Machine

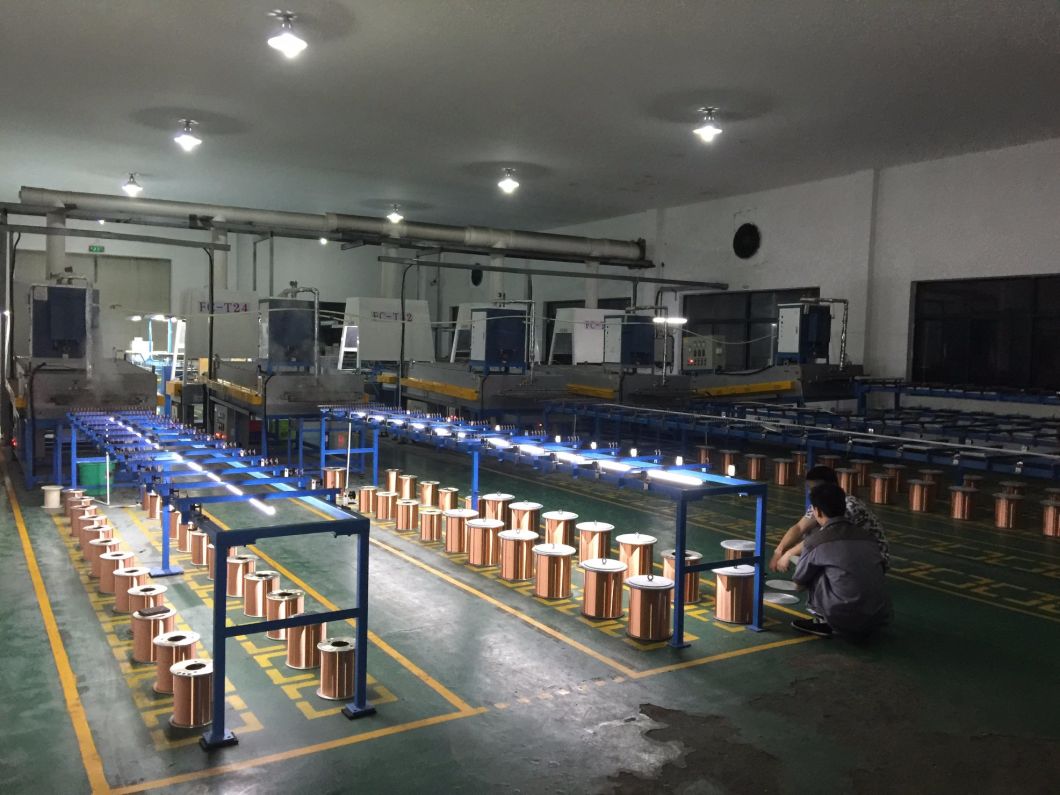

0.03-0.64mm Copper Alloy Wire Cable Core Twisting Stranding Bunching Twisting Winding Making Machine
