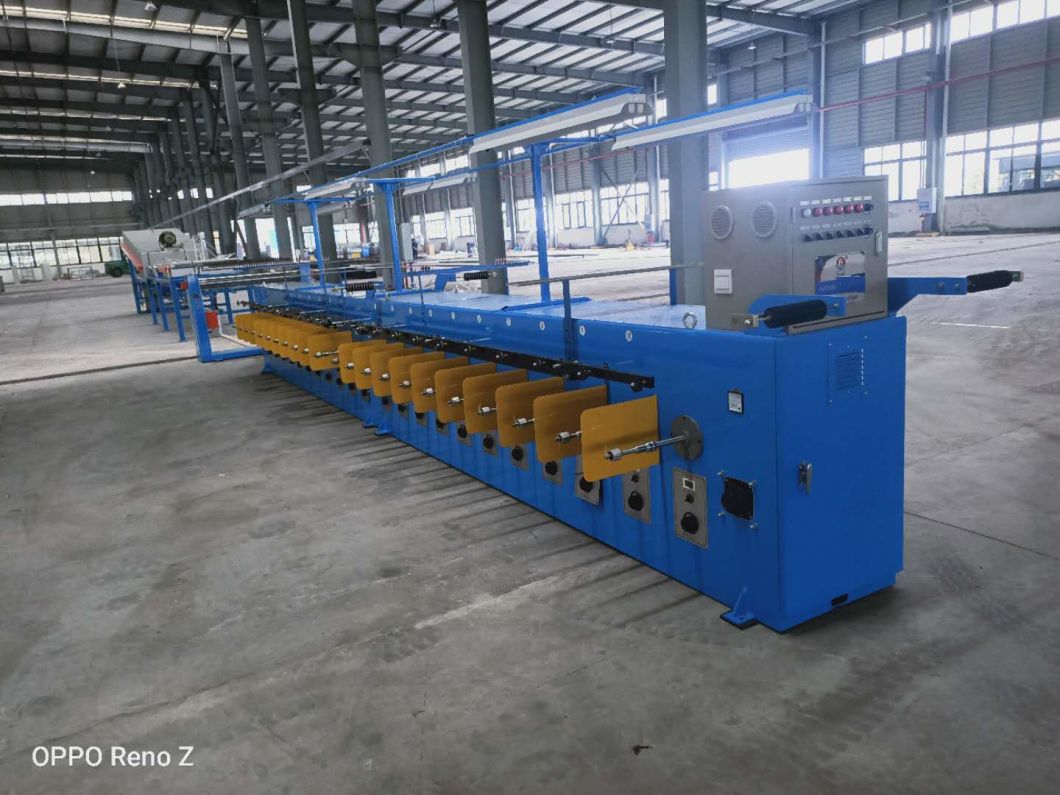

0.05-2.52mm Copper Alloy Steel Wire Annealing Tinning Stranding Buncher Extrusion Bunching Drawing Twisting Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
>1,000,000 Shots
The technology of this machine is brought from Japan and put in production in JiangSu.
Merits: Easy to operate, good annealing heat insulation,save power,adopt nitrogen or steam protection,have individual meter counter for each take up bobbin, stop automatically achieve the preset meter. It may realize ultra-fine annealing tin and achieve industry leading level.
Equipment models: FC-T4
FC-T4big wire tinning machine
A .One whole line components:- FC-630active pay off machine--4heads
- Flux tank--1set
- Tinning machine--1set
- Cooling water tank--1set
- Hauling machine--1set
- FC-630shaftless 4heads take up machine--1set
- Main parameters
- Mainly fit for soft copper wire tinning;
- Applied wire area:φ1.02-φ3.0mm;(annealed copper wire)
- Linear speed:max150m/min(according to wire,the linear speed maybe a little different)
- Fit for pay off bobbin:dia500-630mm
- Pay off type:active pay off;
- Manual lifting:imported hydraulic pump
- Bobbin locking type:pneumatic locking or loose bobbin type;
- Pay off motor: 2.2KW speed reduction motor-4sets
- Pay off converter:Innovance 2.2KW converters-4sets
- Pay off tension:swing type tension wire accumulator guidewheels upper and down(by displacement sensor)reback signal to converter to control motor speed,linkage with main take up,keep pay off tension even and stable.
- Wire accumulator wheels:Φ200Hard chromium plating on steel parts
- Flux tank:recycling dip type
- Heads of tinning:4heads
- Tinned type:horizontal hot dip(with heating tube heat)
- Tin furnace:casting tin furnace
- Tin furnace capacity:800kg
- Tin furnace heating power:22.5KW
- Hauling spiral barrel diameter:φ295mm
- Hauling motor:2.2KW speed reduction motor
- Hauling converter:Innovance 2.2KW
- Take up bobbin:φ630-φ500iron bobbin
- Take up motor:3.7KW speed reduction motor
- Take up converter:Innovance 3.7KW
- Traverse type:GP30 bearing type rod type(each head traverse separately).
- Bobbin lock type:shaftless pneumatic lock or loose
- Manual lifting:Imported hydraulic pump.
- Color:RAL5015 sky blue(or according to customer require)

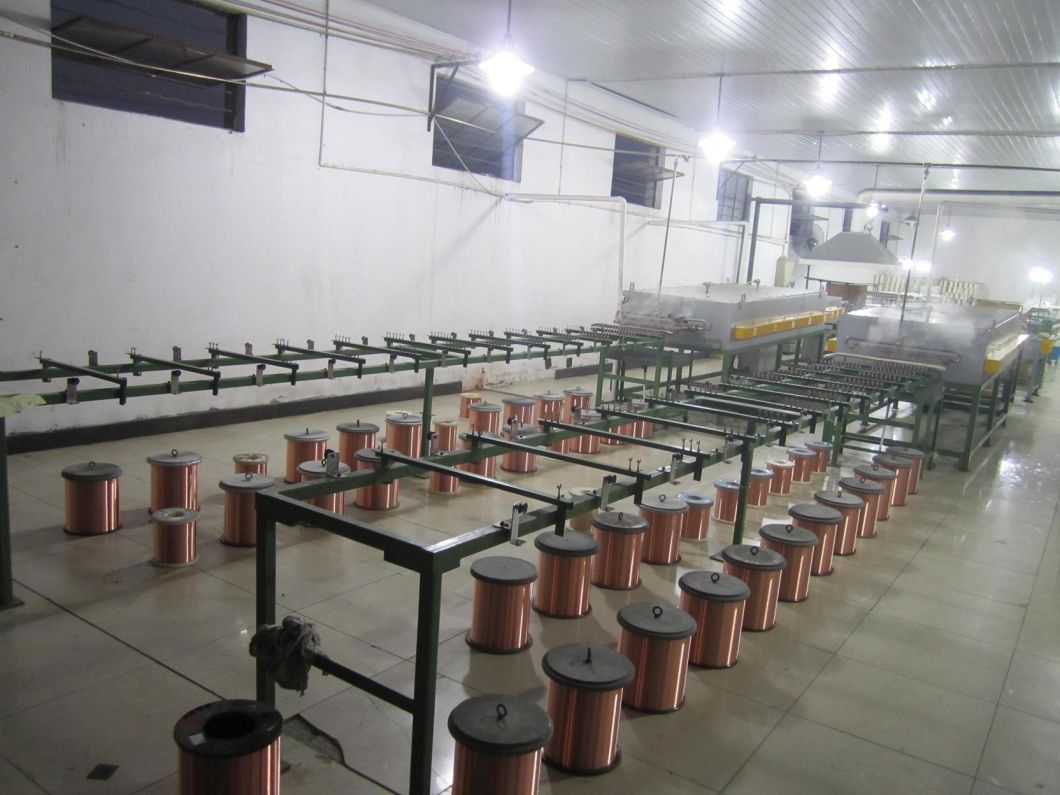

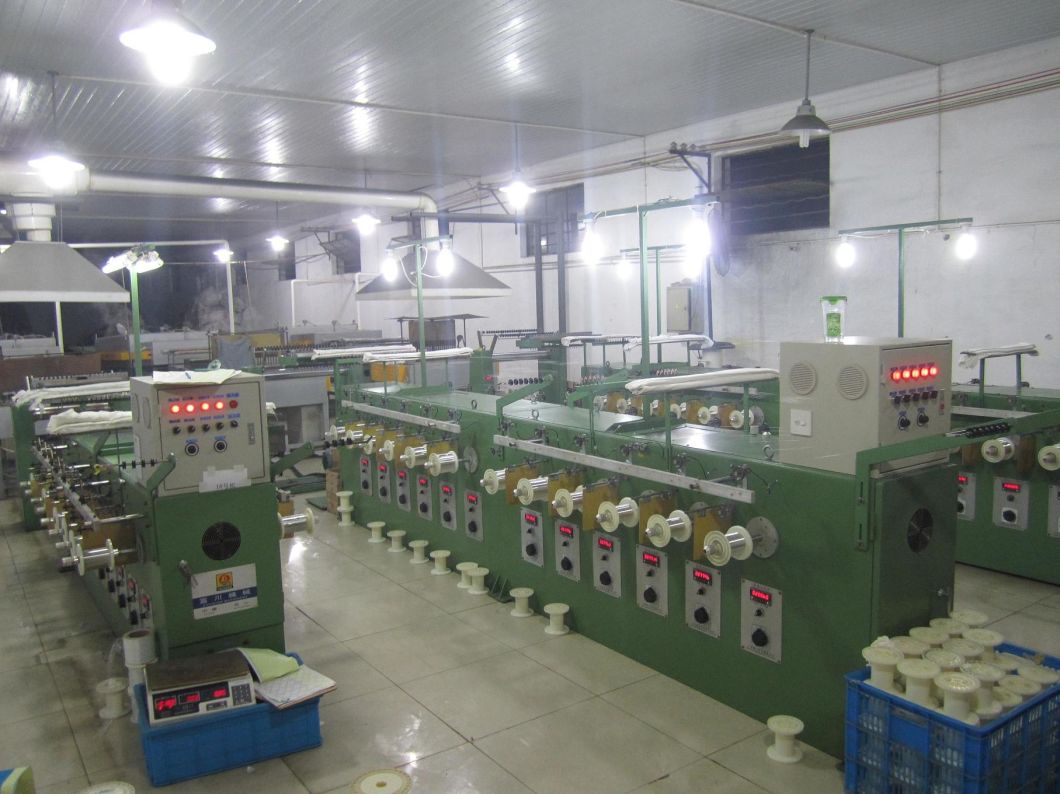

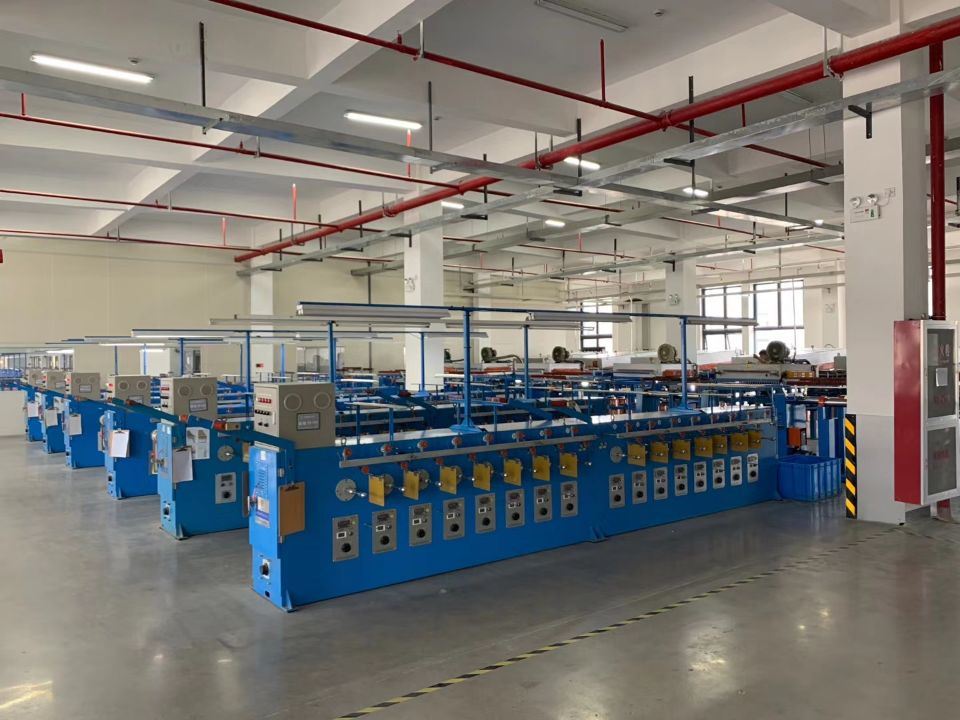

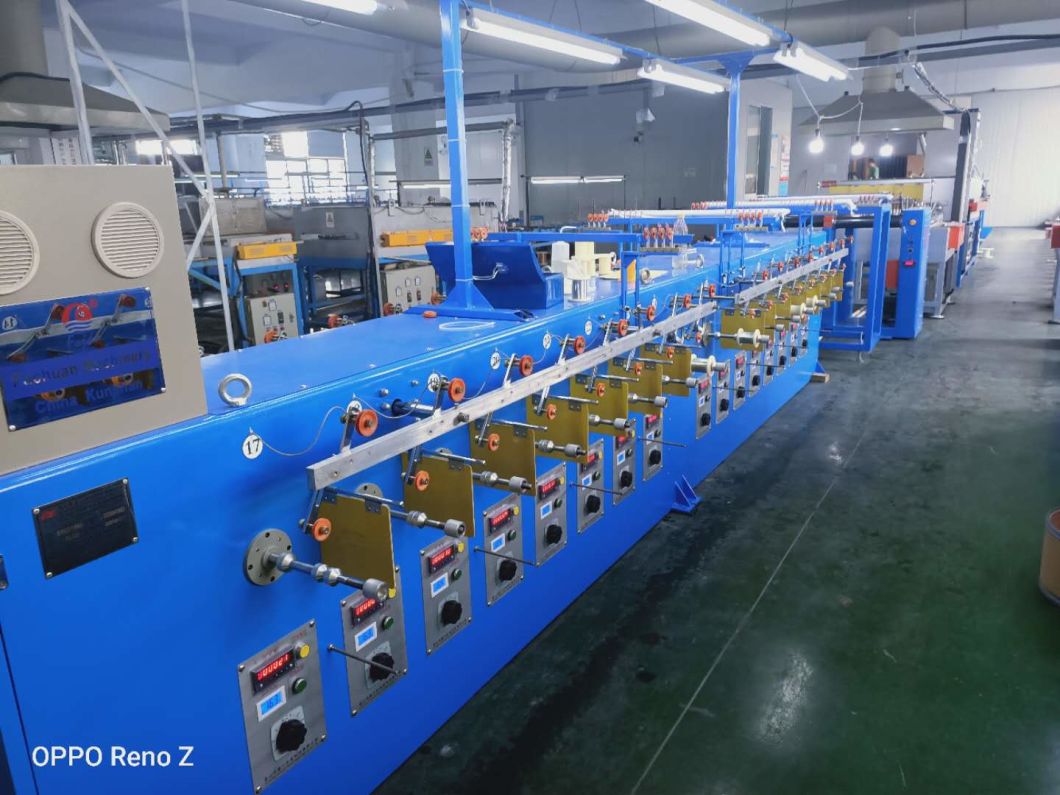

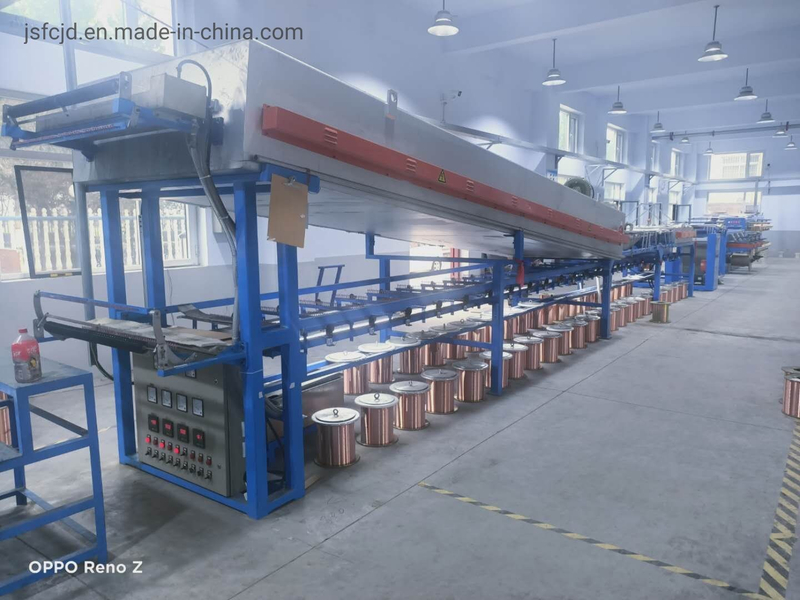

Equipment model FC-T16 FC-T24 FC-T32 FC-T40 Twisting usage It is mainly applied to the annealing and tinning of ultra-fine round copper wire and alloy wire Inlet wire diaφ 0.03-0.08mm 0.04-0.127mm 0.05-0.127mm 0.05-0.127mm Max no of inlet wire 16 24 32 40 Annealing furnace length 2m 2.5m 3.0m 3.0m Linear speed Max:300m/min Pay off type Brush pay off Meter counting method Single head independently meter counting,and the machine will stop when the preset length is arrived Annealing type Tube type annealing Annealing protection type nitrogen protection or vapor protection Tinned method Hot dip Capstan control method Inverter+motor control Take up control Voltage adjusting controls torque motor take up Take up bobbin size Three inch,Five inch,eight inch Traverse control type Stepless speed regulation motor+turbine gear box control toothrow traverse Total power for machine 26kw 40kw 50kw 55kw Dimension(mm) 14000L*1000W*1250H 17000L*1250W*1850H 24000L*1500W*1850H 24700L*2200W*2100H
