Ultra Fine Wire, Alloy Wire, Annealing Tinning High Quality Fuchuan China Best Machine Winding Machinery
-
12months
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic

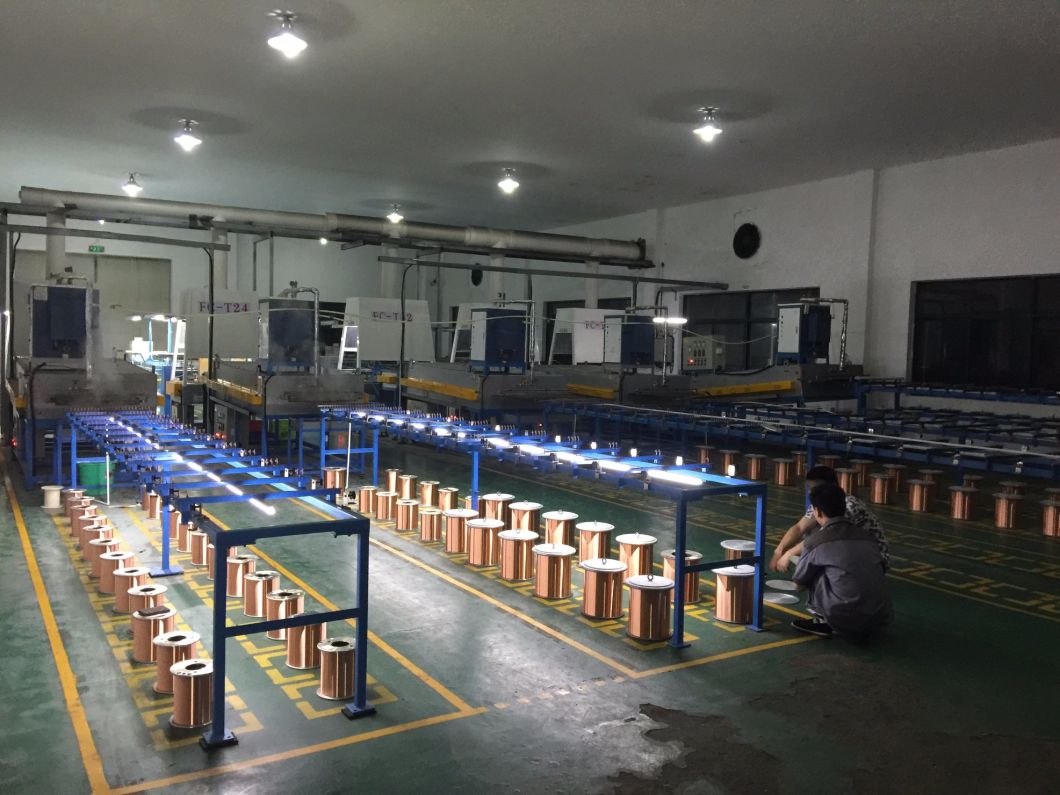

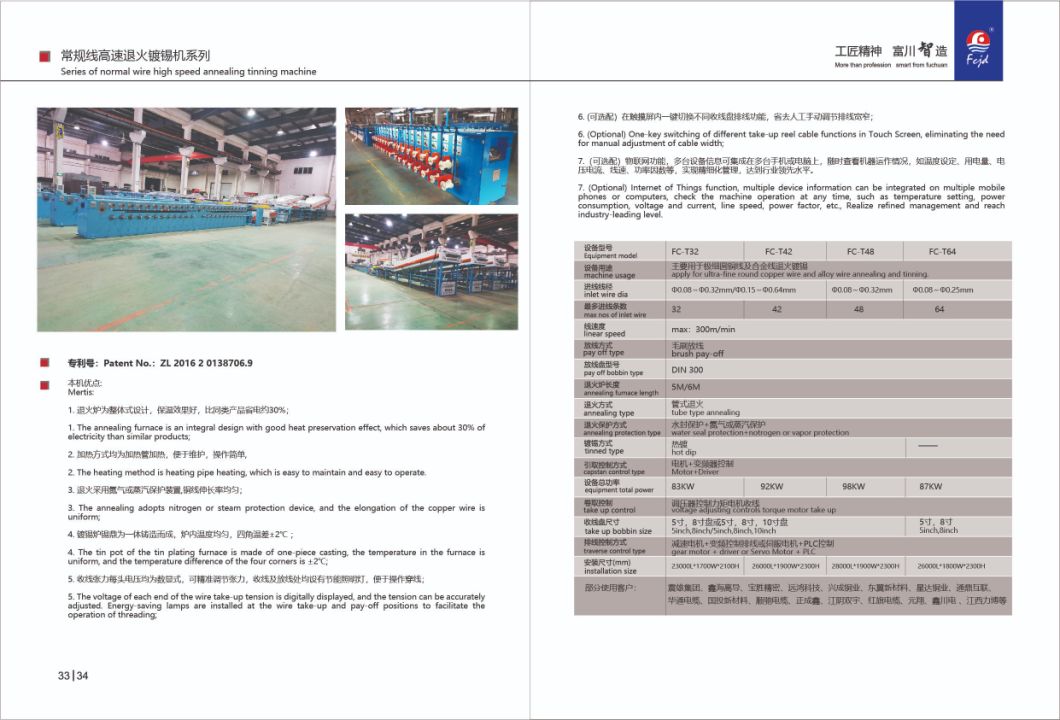

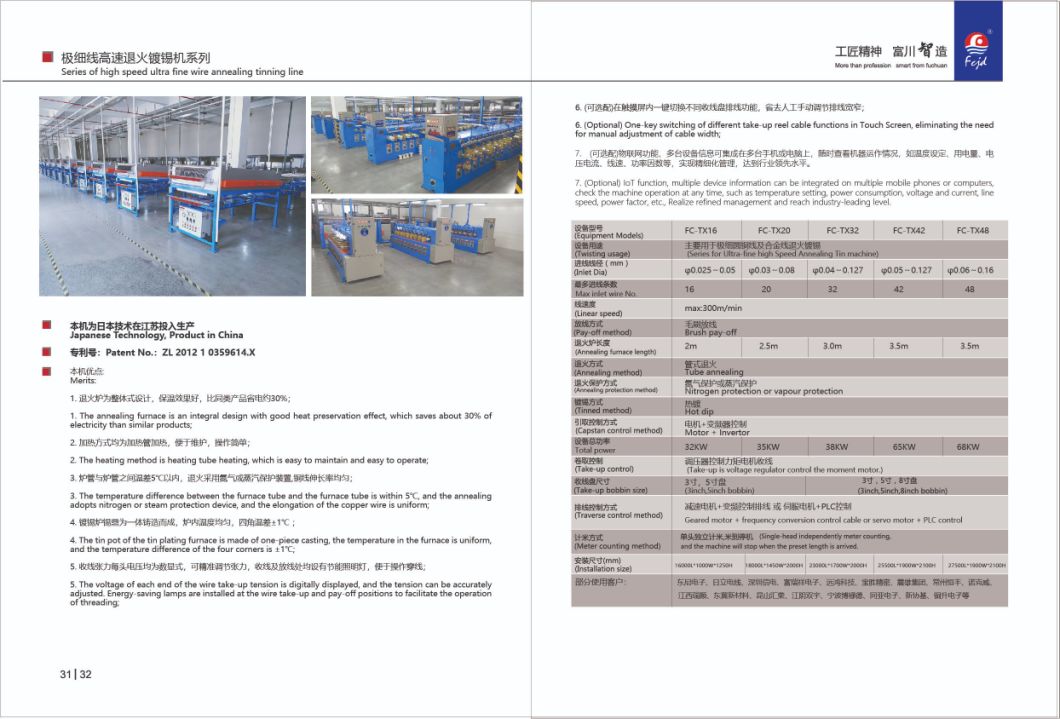

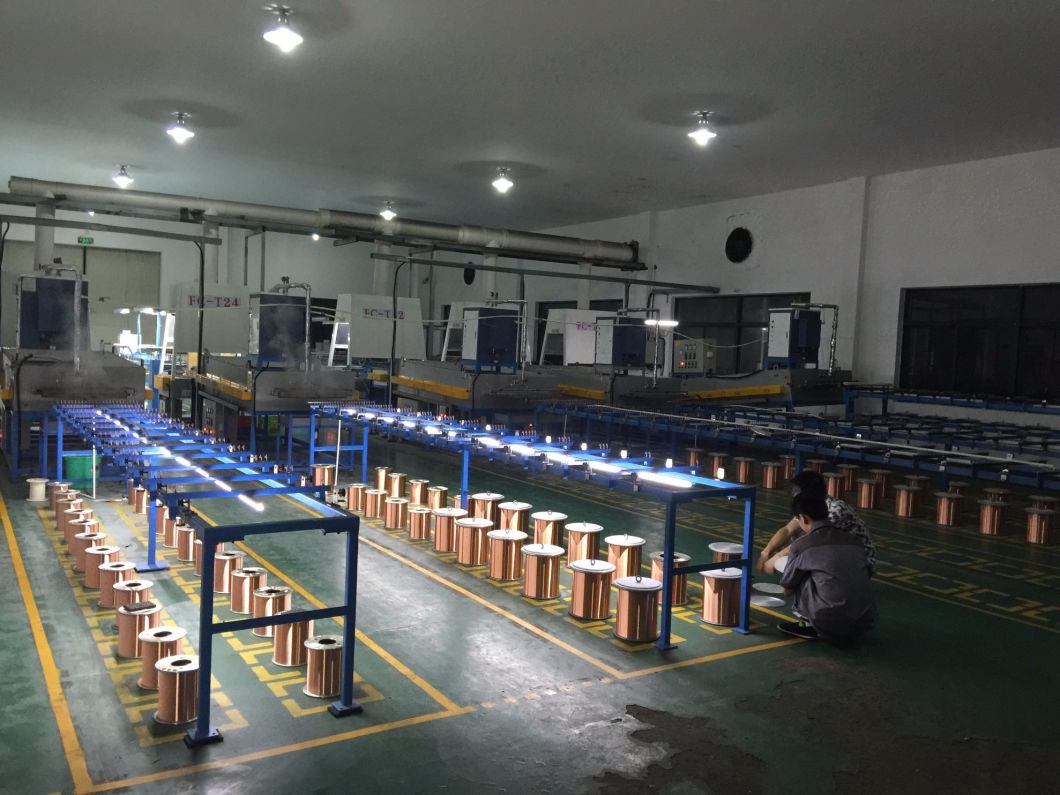

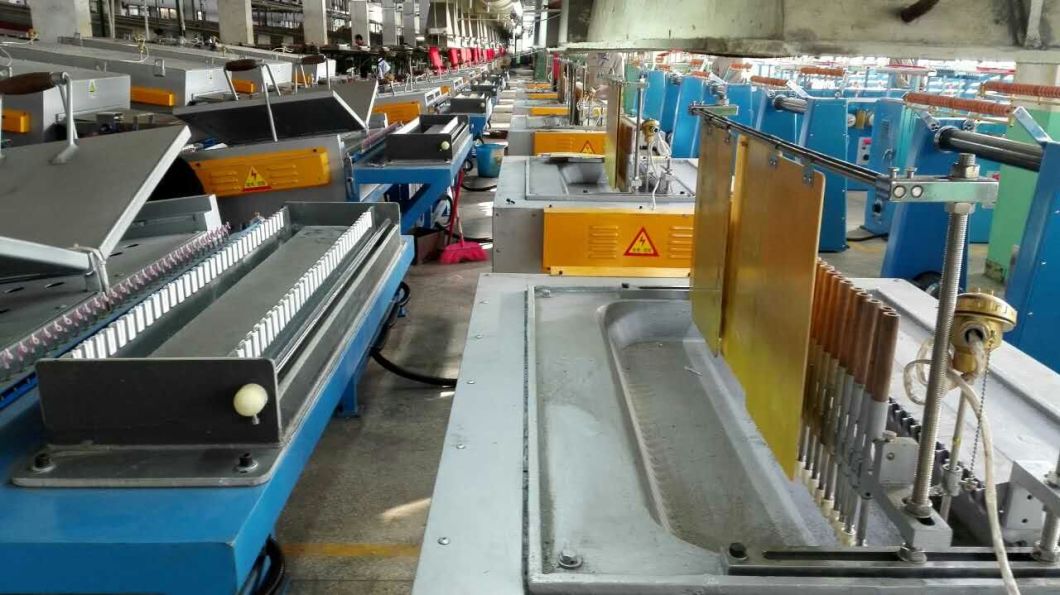

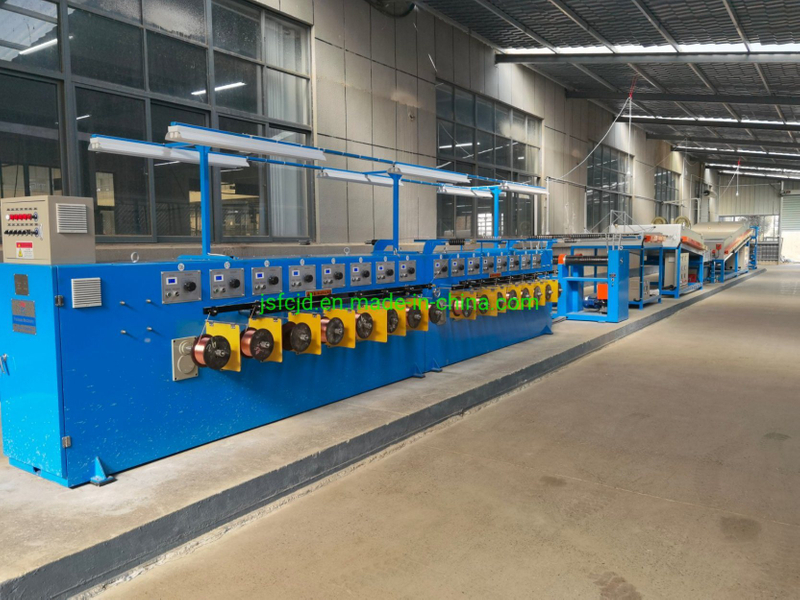

Series for high speed annealing tinning machine
1. Merits:
Easy to operate, good annealing heat insulation, save electricity, adopt nitrogen protection, it may realize ultra-fine annealing tin and achieve industry-leading level.
2. Technical Parameters:
Equipment model FC-T16 FC-T24 FC-T32 FC-T40 Twisting usage It is mainly applied to the annealing and tinning of ultra-fine round copper wire and alloy wire Inlet wire diφ 0.08-0.32mm or 0.15-0.64mm Stranding section area 0.0014-0.035 0.0049-0.3 0.0137-0.45 0.0137-1.0 Max no of inlet wire 16 24 32 40 Linear speed Max:350m/min Pay off type Brush pay off Pay off bobbin type Dia300mm bobbin Annealing furnace length Five meters or six meters Annealing type Tube type annealing Annealing protection type Water seal protection+nitrogen or vapor protection Tinned type Hot dip Capstan control type Inverter+motor control Take up control Voltage adjusting controls torque motor take up Take up bobbin size Five inch,eight inch or five inch,eight inch,ten inch bobbin Traverse control type Stepless speed regulation motor+turbine gear box control toothrow traverse Dimension(mm) 14500L*1500W*2100H 18000L*1500W*2100H 20000L*1500W*2100H 24000L*2200W*2100H
For more details, please contact me.
Series for high speed annealing tinning machine
1. Merits:
Easy to operate, good annealing heat insulation, save electricity, adopt nitrogen protection, it may realize ultra-fine annealing tin and achieve industry-leading level.
2. Technical Parameters:
Equipment model FC-T16 FC-T24 FC-T32 FC-T40 Twisting usage It is mainly applied to the annealing and tinning of ultra-fine round copper wire and alloy wire Inlet wire diφ 0.08-0.32mm or 0.15-0.64mm Stranding section area 0.0014-0.035 0.0049-0.3 0.0137-0.45 0.0137-1.0 Max no of inlet wire 16 24 32 40 Linear speed Max:350m/min Pay off type Brush pay off Pay off bobbin type Dia300mm bobbin Annealing furnace length Five meters or six meters Annealing type Tube type annealing Annealing protection type Water seal protection+nitrogen or vapor protection Tinned type Hot dip Capstan control type Inverter+motor control Take up control Voltage adjusting controls torque motor take up Take up bobbin size Five inch,eight inch or five inch,eight inch,ten inch bobbin Traverse control type Stepless speed regulation motor+turbine gear box control toothrow traverse Dimension(mm) 14500L*1500W*2100H 18000L*1500W*2100H 20000L*1500W*2100H 24000L*2200W*2100H
For more details, please contact me.
