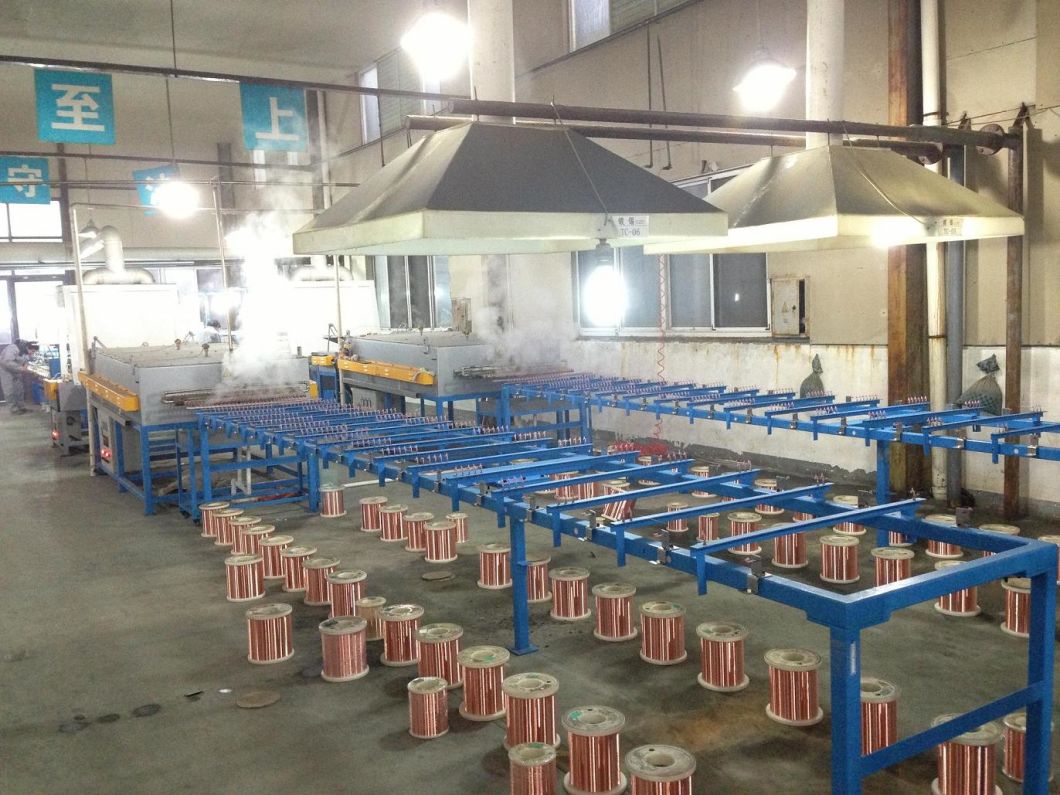

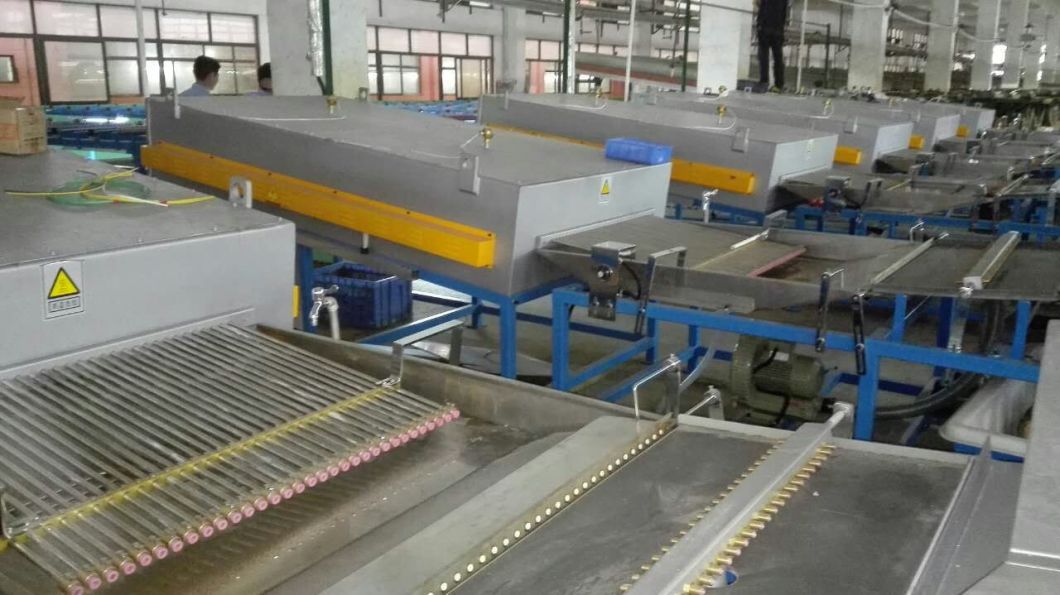

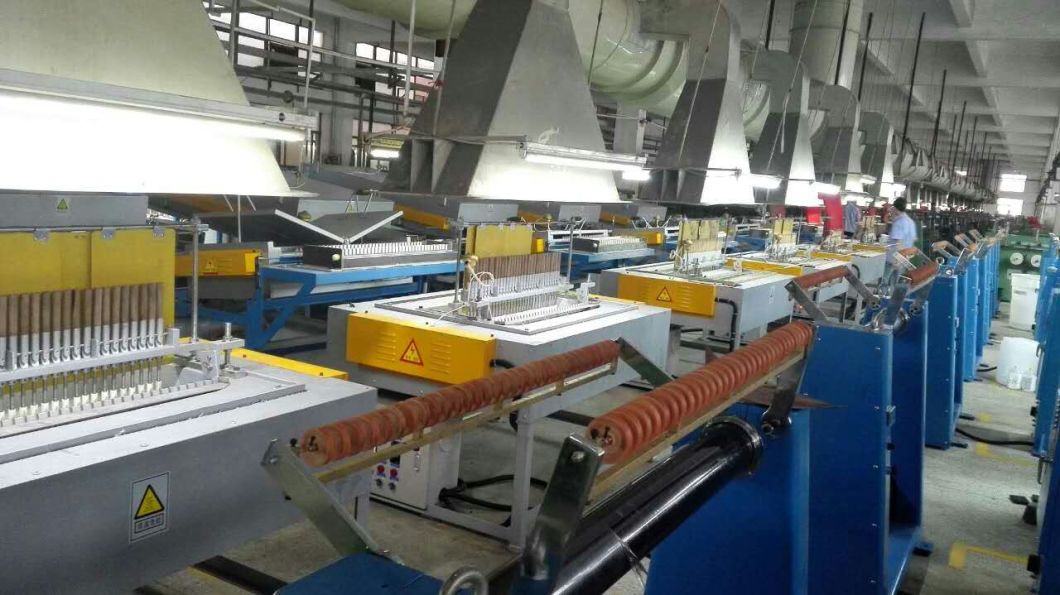

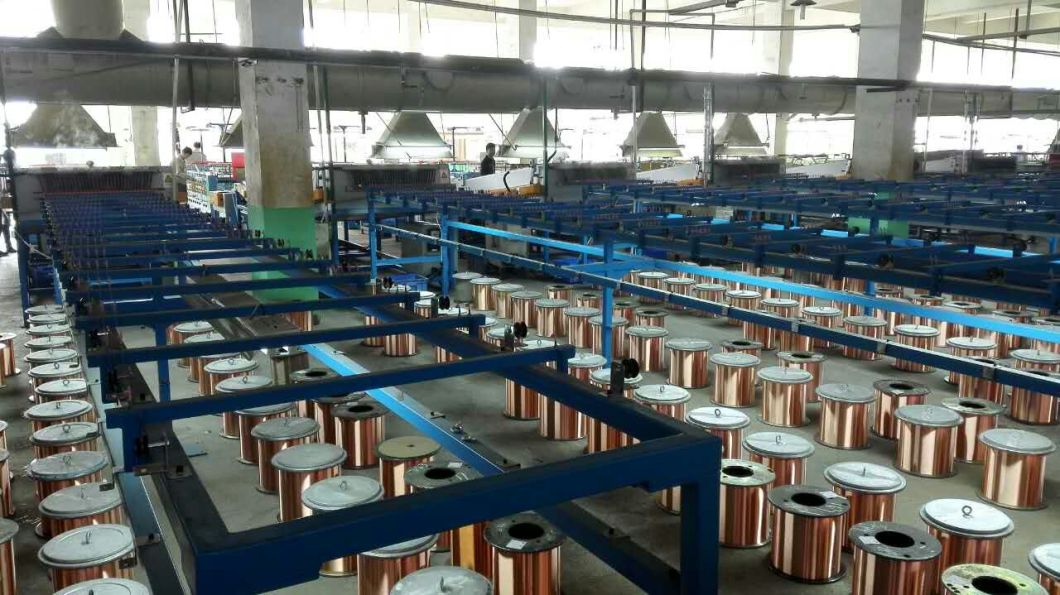

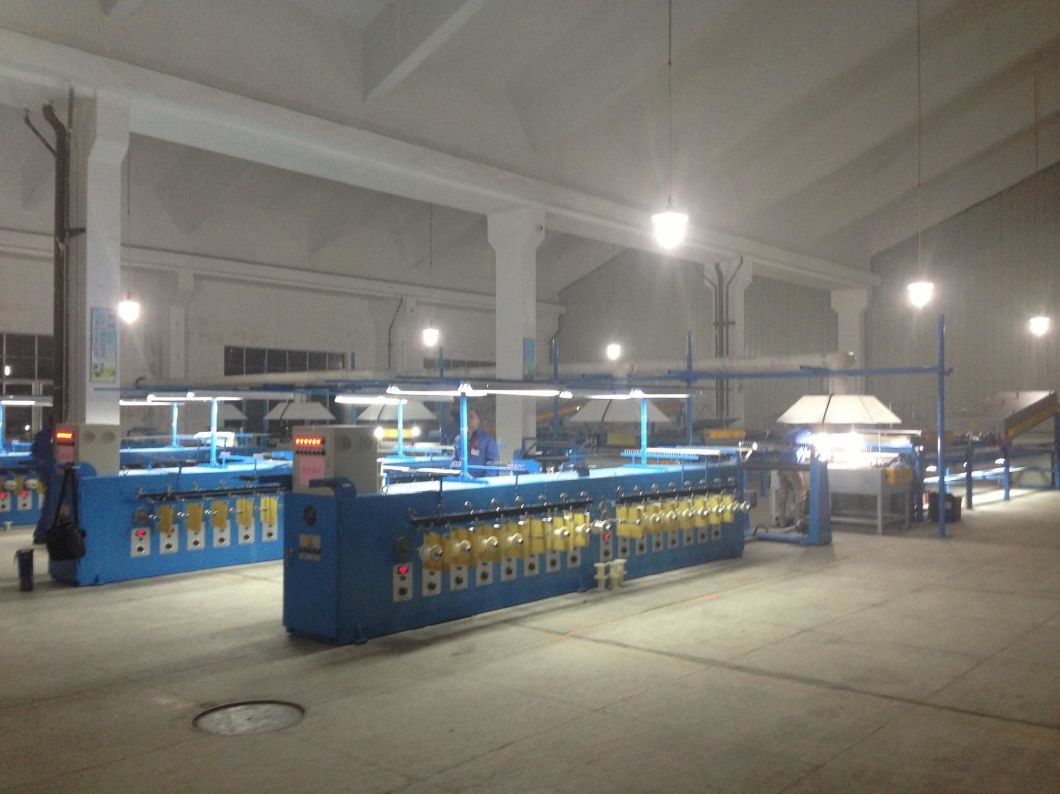

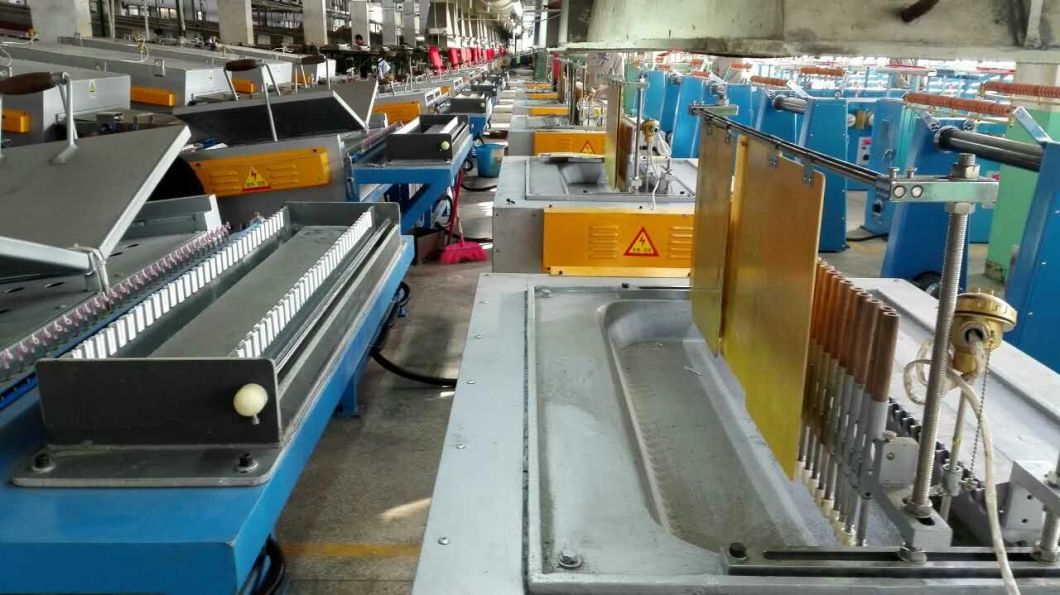

Copper Wire Electrical Cable Making Annealing Tinning Stranding Bunching Drawing Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Annealing and Tinning Copper Wire and Alloy Wire
-
0.05-0.127mm
The technology of this machine is brought from Japan and put in production in JiangSu.
Merits: Easy to operate, good annealing heat preservation, save electricity, achieve industry-leading level
Equipment models: FC-TX32
Twisting usage: It is applied to the annealing and tinning of ultra-fine round copper wire and alloy wire.
Model FC-TX12 FC-TX16 FC-TX24 FC-TX32 FC-TX40 Usage It is mainly applied to the annealing and tinning of ultra-fine round copper wire and alloy wire. Inlet Wire Dia(mm) Φ0.016~Φ0.05 Φ0.03~Φ0.08 Φ0.04~Φ0.127 Φ0.05~Φ0.127 Φ0.05~Φ0.127 Max numbers of inlet wire 12 16 24 32 40 Linear speed Max : 300m/min Pay off method Brush pay off take up bobbin size 3 inch,5 inch bobbin 3 inch,5 inch,8 inch bobbin Annealing furnace length 2m 2m 3m 3m 3m Annealing method Tube annealing Annealing protection method Nitrogen protection or Vapour protection(selected by customer) Tinned method Hot Dip Capstan control method Inverter+Motor Control or adopt stepless speed regulation motor(selected by customer) Equipment total power 24KW 26KW 40KW 50KW 55KW Meter counting method Inverter+Reducer motor control ball screw traversing,photoelectric induction reversing Inverter+reducer motor control toothrow traverse Take up control Take up is voltage regulator control the moment motor Traverse control method Stepless speed regulation motor+Turbine gear box control toothrow traverse Installation size 13000L*1000W*1250H 15000L*1000W*1250H 20000L*1250W*1850H 24000L*1500W*1850H 24700L*2200W*2100H The technology of this machine is brought from Japan and put in production in JiangSu.
Merits: Easy to operate, good annealing heat preservation, save electricity, achieve industry-leading level
Equipment models: FC-TX32
Twisting usage: It is applied to the annealing and tinning of ultra-fine round copper wire and alloy wire.
Model FC-TX12 FC-TX16 FC-TX24 FC-TX32 FC-TX40 Usage It is mainly applied to the annealing and tinning of ultra-fine round copper wire and alloy wire. Inlet Wire Dia(mm) Φ0.016~Φ0.05 Φ0.03~Φ0.08 Φ0.04~Φ0.127 Φ0.05~Φ0.127 Φ0.05~Φ0.127 Max numbers of inlet wire 12 16 24 32 40 Linear speed Max : 300m/min Pay off method Brush pay off take up bobbin size 3 inch,5 inch bobbin 3 inch,5 inch,8 inch bobbin Annealing furnace length 2m 2m 3m 3m 3m Annealing method Tube annealing Annealing protection method Nitrogen protection or Vapour protection(selected by customer) Tinned method Hot Dip Capstan control method Inverter+Motor Control or adopt stepless speed regulation motor(selected by customer) Equipment total power 24KW 26KW 40KW 50KW 55KW Meter counting method Inverter+Reducer motor control ball screw traversing,photoelectric induction reversing Inverter+reducer motor control toothrow traverse Take up control Take up is voltage regulator control the moment motor Traverse control method Stepless speed regulation motor+Turbine gear box control toothrow traverse Installation size 13000L*1000W*1250H 15000L*1000W*1250H 20000L*1250W*1850H 24000L*1500W*1850H 24700L*2200W*2100H
