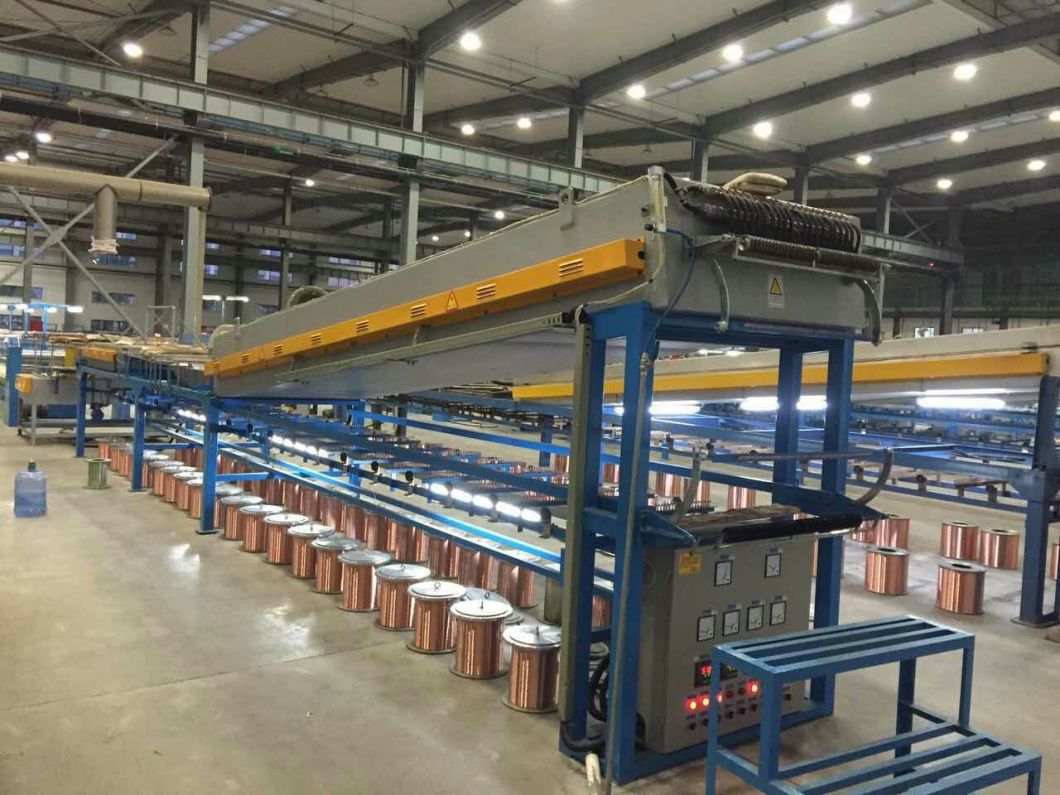

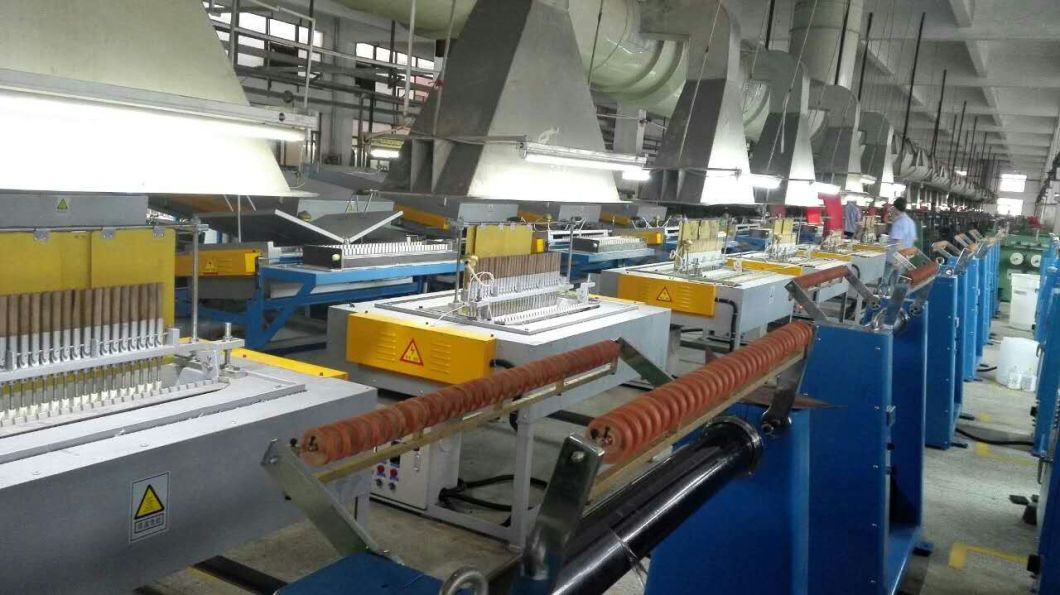

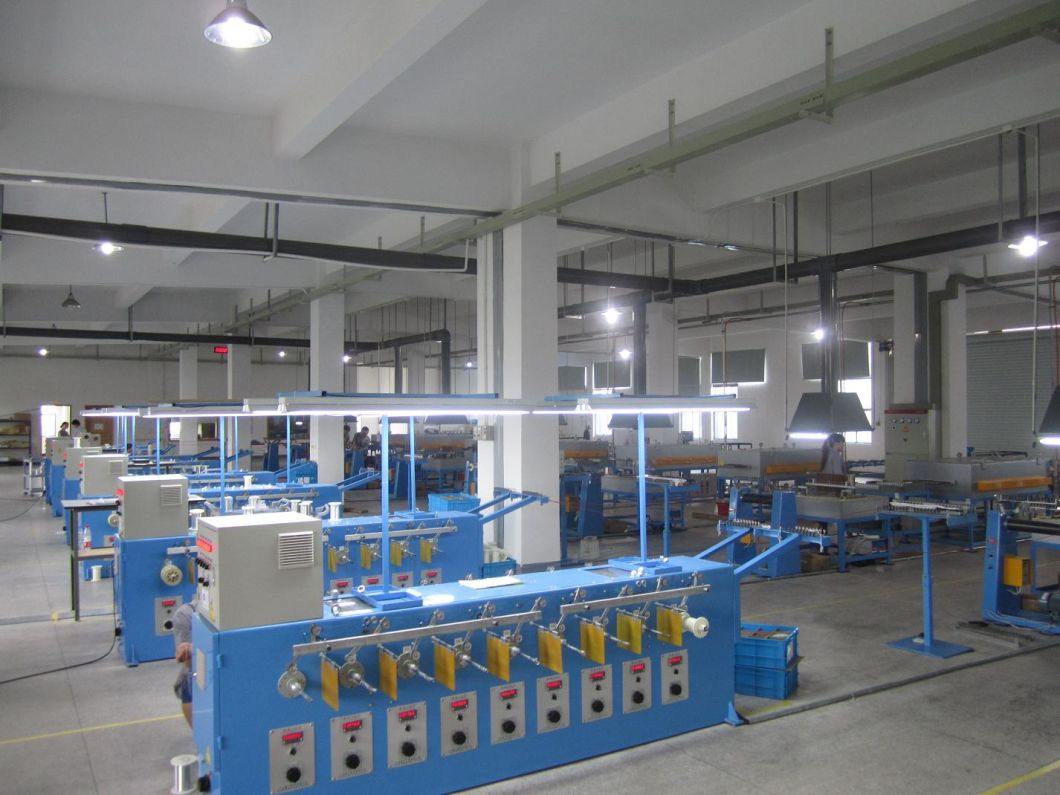

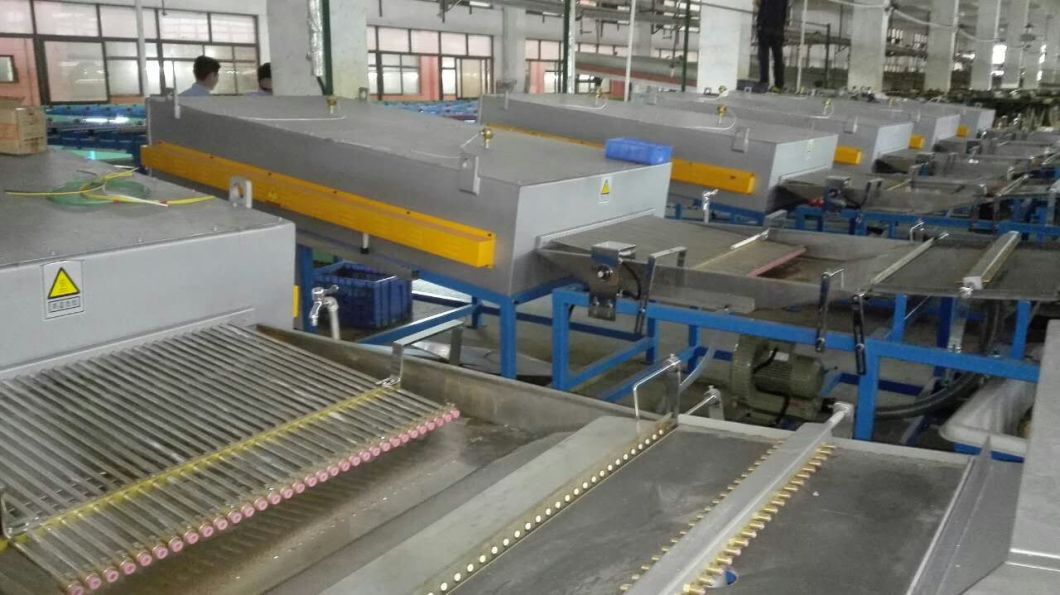

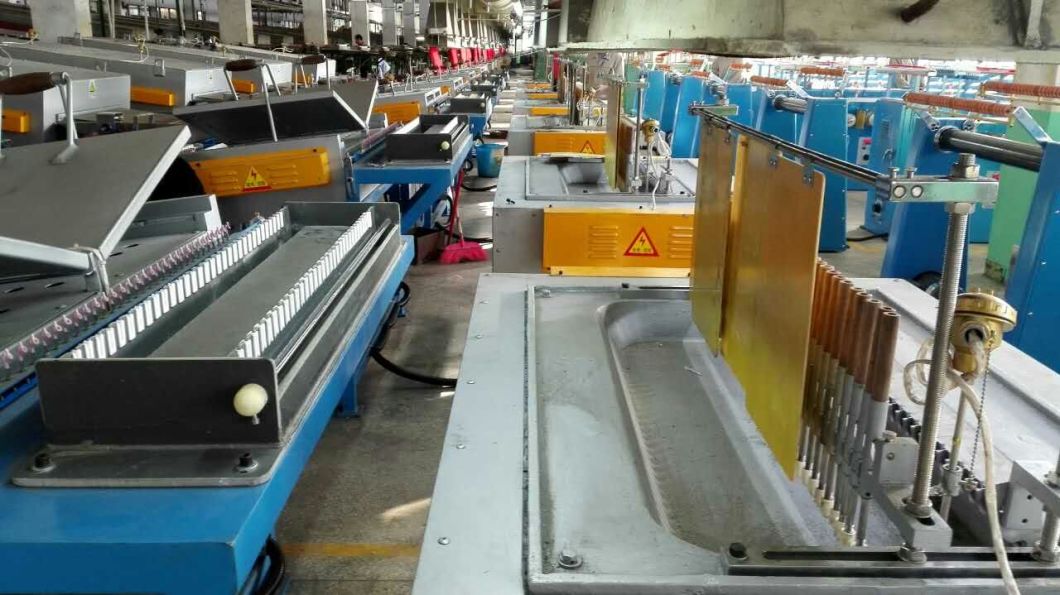

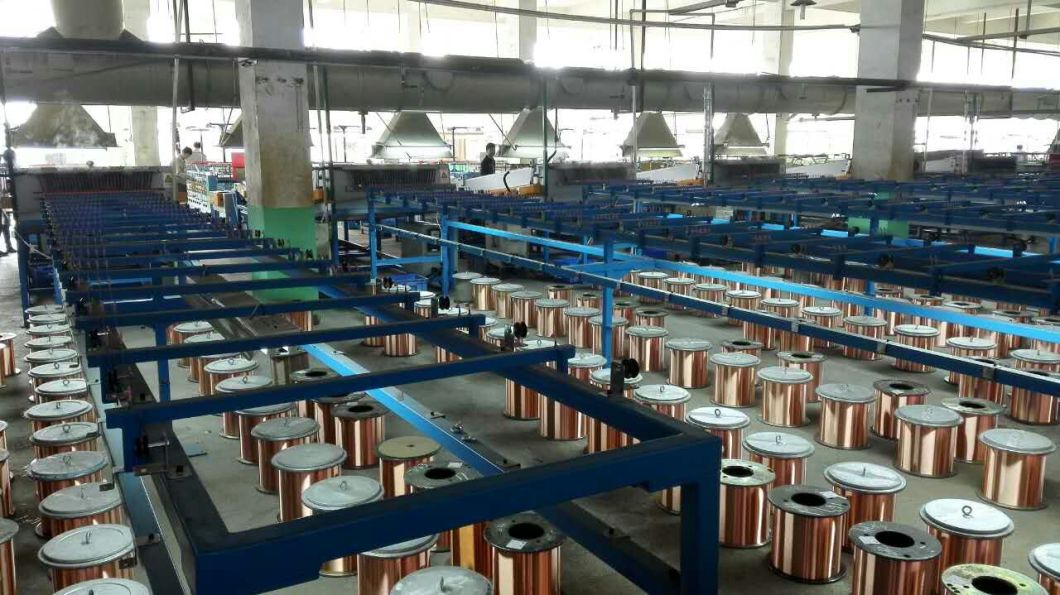

0.04-0.64mm Cable Copper CCA Alloy Wire Annealing Tinning Bunching Bunchers Making Machine
-
12months
-
Copper Wire and Alloy Wire Annealing Tinning
-
0.03-0.08
-
0.016-0.05mm
-
Nitrogen Protection or Vapour Protection
-
Hot DIP
The technology of this machine is brought from Japan and put in production in JiangSu.
Merits: Easy to operate, good annealing heat preservation, save electricity, achieve industry-leading level
Equipment models: FC-T16
Twisting usage: It is applied to the annealing and tinning of ultra-fine round copper wire and alloy wire.
Inlet wire dia(mm): φ0.08-φ0.25mm or φ0.15-φ0.64mm
Max numbers of inlet wire : 16pcs
Linear speed : max:300m/min
Pay off method : Brush pay off
Pay off bobbin model: φ300bobbin
Annealing furnace length: 3.5m or 6m
Annealing method: tube annealing
Annealing protection method: water seal protection
Tinned method: Hot dip
Capstan control method : Inverter+ Motor control or adopt stepless speed regulation motor
Equipment total power: 53KW
Take up control: Take up is voltage regulator control the moment motor
Take up bobbin size: 5 inch,8 inch bobbin or 5 inch. 8 inch,10 inch bobbin.
Traverse control method: stepless speed regulation motor + Turbine gear box control toothrow traverse
Dimension: 14500L*1500W*2100H
