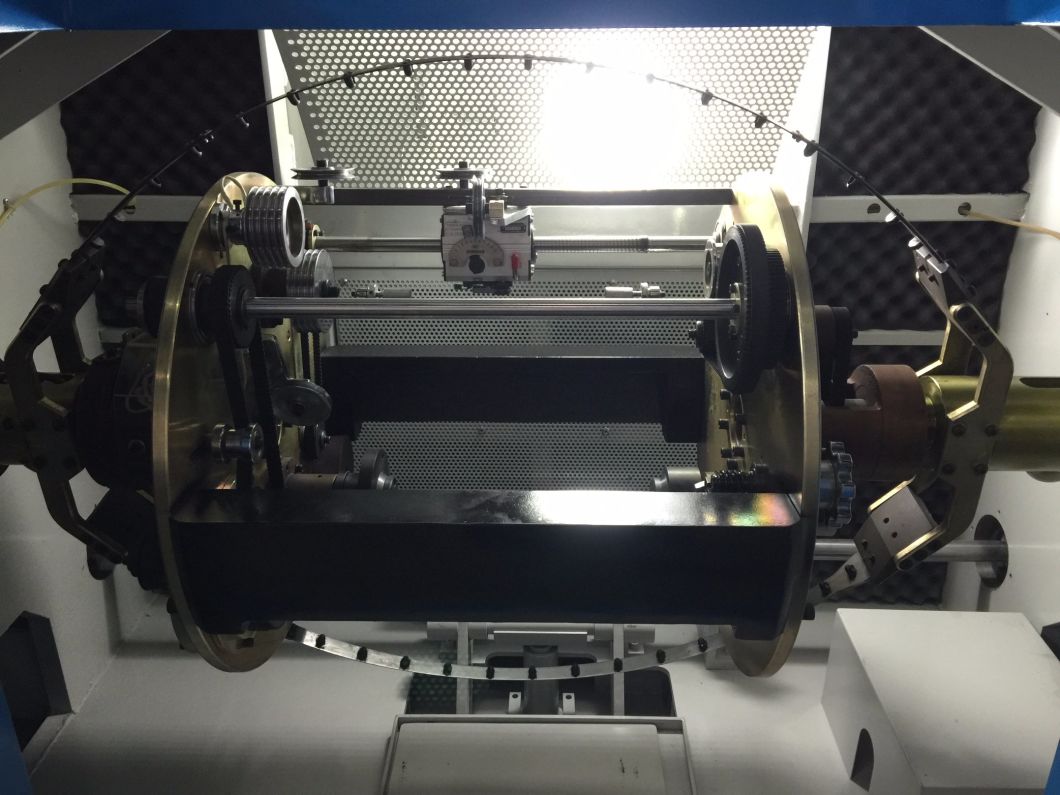

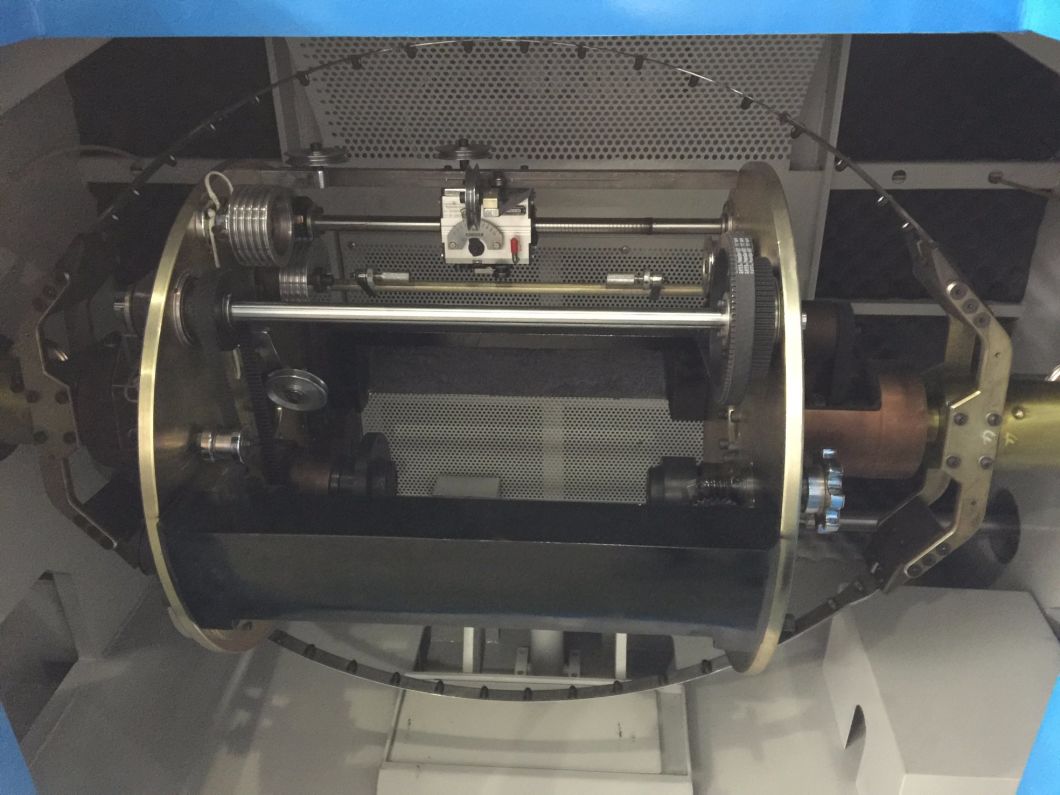

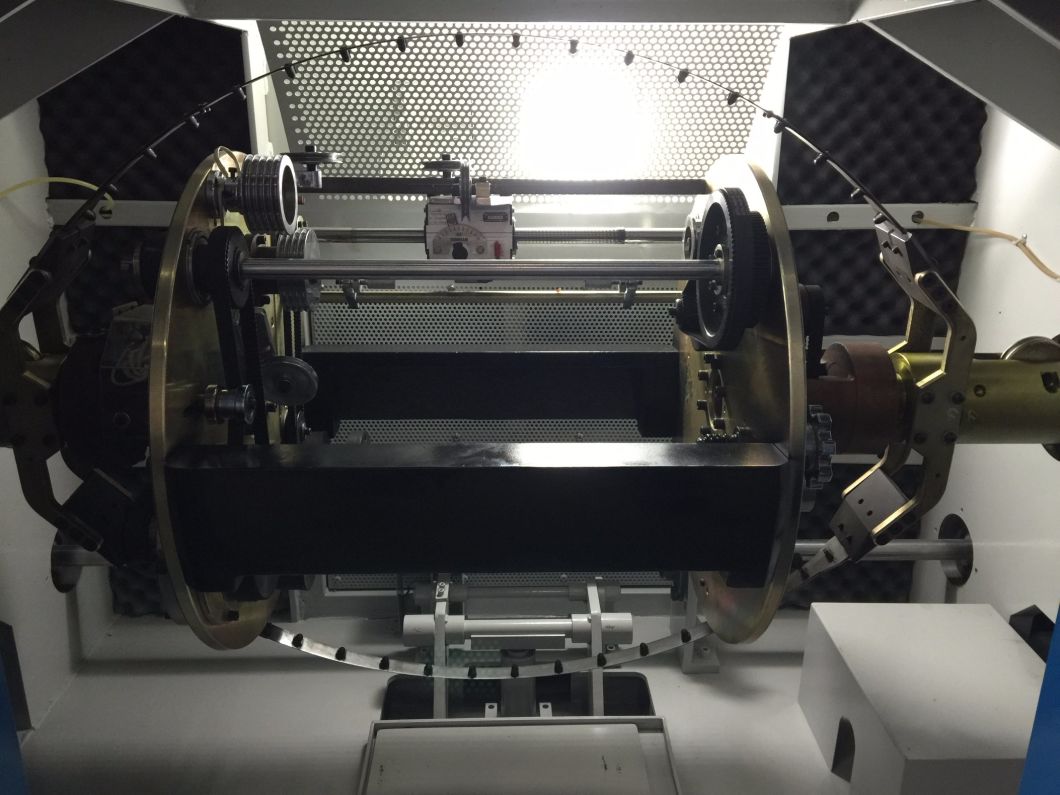

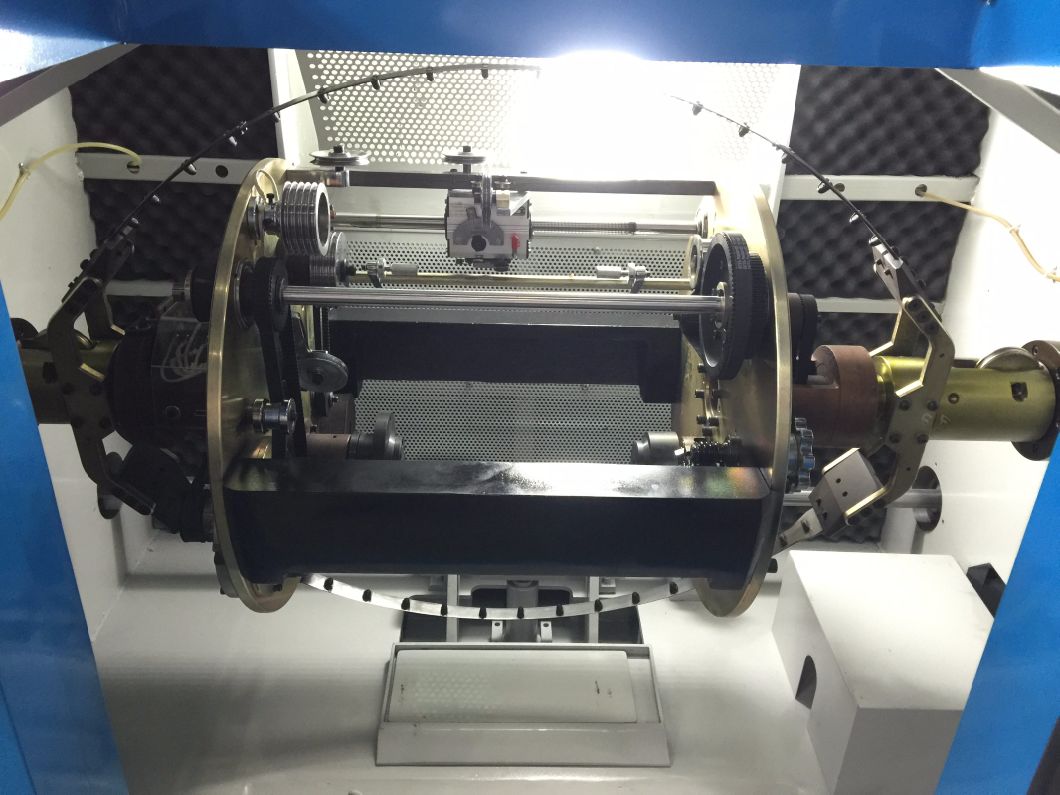

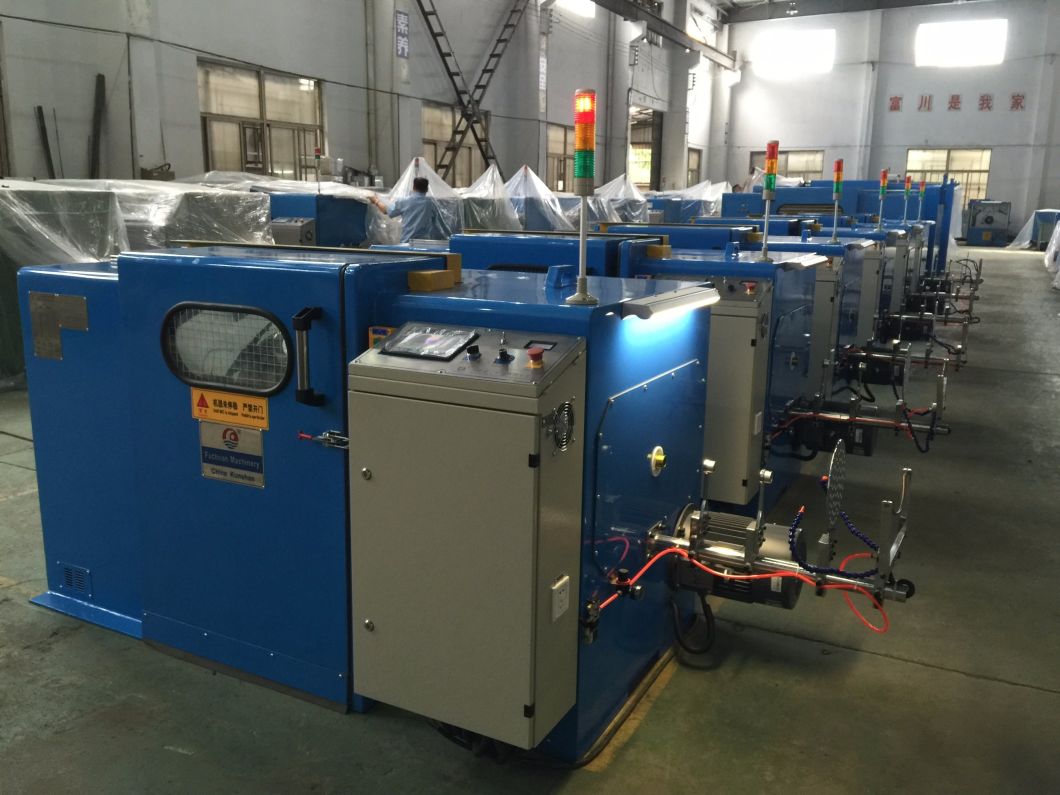

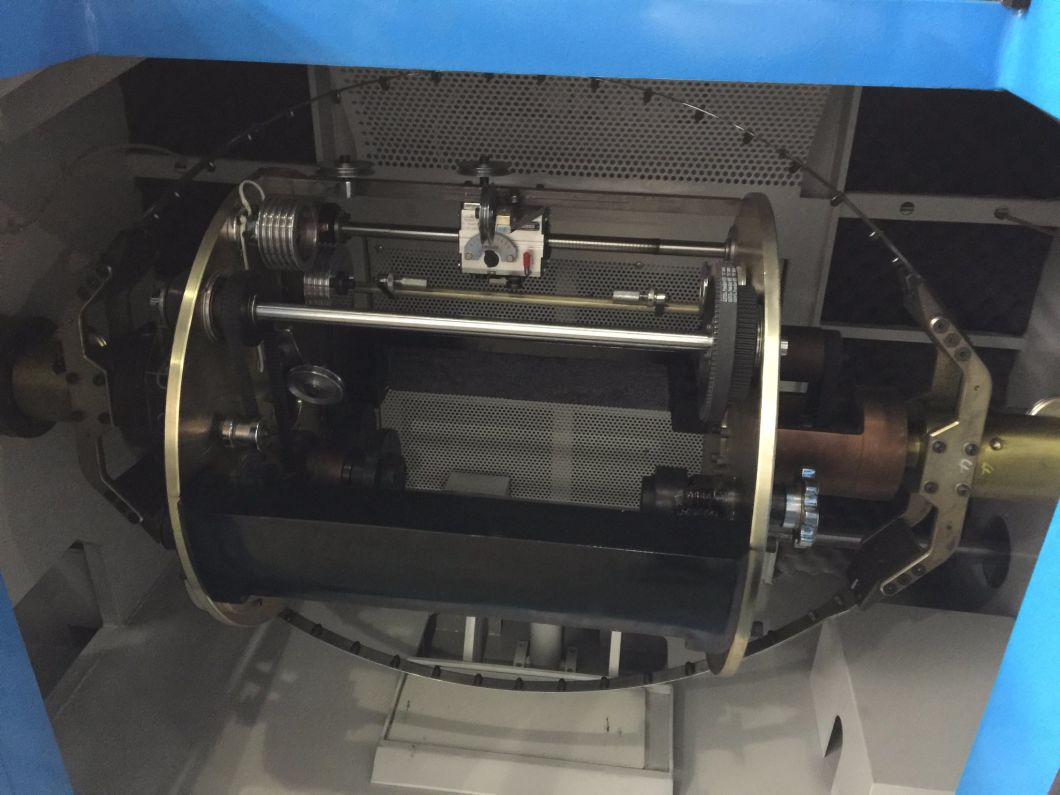

0.05-0.64mm Copper Wire Tinned Wire Twisting Bunching Making Cable Stranding Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
Core Wire
Japanese technology ,product in China
Characteristics:Newly developed,with high rotating speed,with constant tension from empty to full bobbin,with high quality products.This machine with pressure sensor(chosen),can check the tension on line,revert back and rectify the tension figure;can also add the web control system,can sums several sets of machines working information to one computer or mobile,then check the working condition of machines at any time,such as:rotating speed,twisting specification,output and so on,to realize the far distance check and maintenance,so reach the fine management,lower the production and maintenance fees.
Series for model C high speed bunching machine
Equipment model FC-500C FC-650C-1 FC-650C-2split type FC-650C-3(computer pitch) Twisting usage Apply for the automobile wire,power wire and so on(above seven pcs of bare copper wire,tinned wire,silver jacketed wires and enamelled wires) Single wire diaφ(mm) 0.08-0.45 0.12-0.52 0.12-0.52 0.12-0.52 Stranding section area 0.05-1.5 0.3-2.5 0.3-2.5 0.3-4.0 Pitch(mm) 6.3-52.3 11.6-67 11.6-67 10-70 Direction of lay Optional for right or left Take up bobbin(mm) Dia500 Dia630 Dia630 Dia630 Max rotating speed 3000rpm(6000TPM) 2300rpm(4600TPM) 2600rpm(5200TPM) 2600rpm(5200TPM) Main motor power 5.5kw 11kw 11kw 15kw Inverter power 5.5kw 11kw 11kw 15kw Tension control method Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin Protection 1.wire inside and outside is broken,automatically brake/stop
2.The preset length is arrivedBrake mode Electromagnetic brake Main bearing lubrication type Grease lubrication,automatic refueling device,programmed automatic timing refueling time,without manual adding oil,avoid operator did not add regularly cause damage to the spindle bearings. Pressure sensor On line check the take up tension then revert back and rectify the tension figure Internet control Can sums up the information of machine to one computer or mobile,check the working condition at any time,such as:rotating speed,twist specification,output and so on.To realize the far distance monitor and maintenance,aims to high precision management,lower the production and maintenance cost. Operation mode Touchscreen operation Dimension(mm) 2680L*1250W*1500H 3300L*1550W*1900H 3600L*2000W*2100H 3600L*2000W*2000H
