1.0-2.52mm Cable Copper Wire Conductor Making Twisting Bunching Stranding Extrusion Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • FC-630/800/1000/1250

  • FC-630/800/1000/1250

  • 12months

  • PVC/PE Core Wire or Copper Wire

  • Sky Blue

  • 1.0-3.0mm

  • Dia 0.6-3.0

  • Disc Brake


1.0-2.52mm Cable Copper Wire Conductor Making Twisting Bunching Stranding Extrusion Machine

1.0-2.52mm Cable Copper Wire Conductor Making Twisting Bunching Stranding Extrusion Machine
1.0-2.52mm Cable Copper Wire Conductor Making Twisting Bunching Stranding Extrusion Machine
1.0-2.52mm Cable Copper Wire Conductor Making Twisting Bunching Stranding Extrusion Machine
1.0-2.52mm Cable Copper Wire Conductor Making Twisting Bunching Stranding Extrusion Machine


Usage:It is applied to the twisting of PVC/PE core wire or copper wire,central bundling or side bundling.

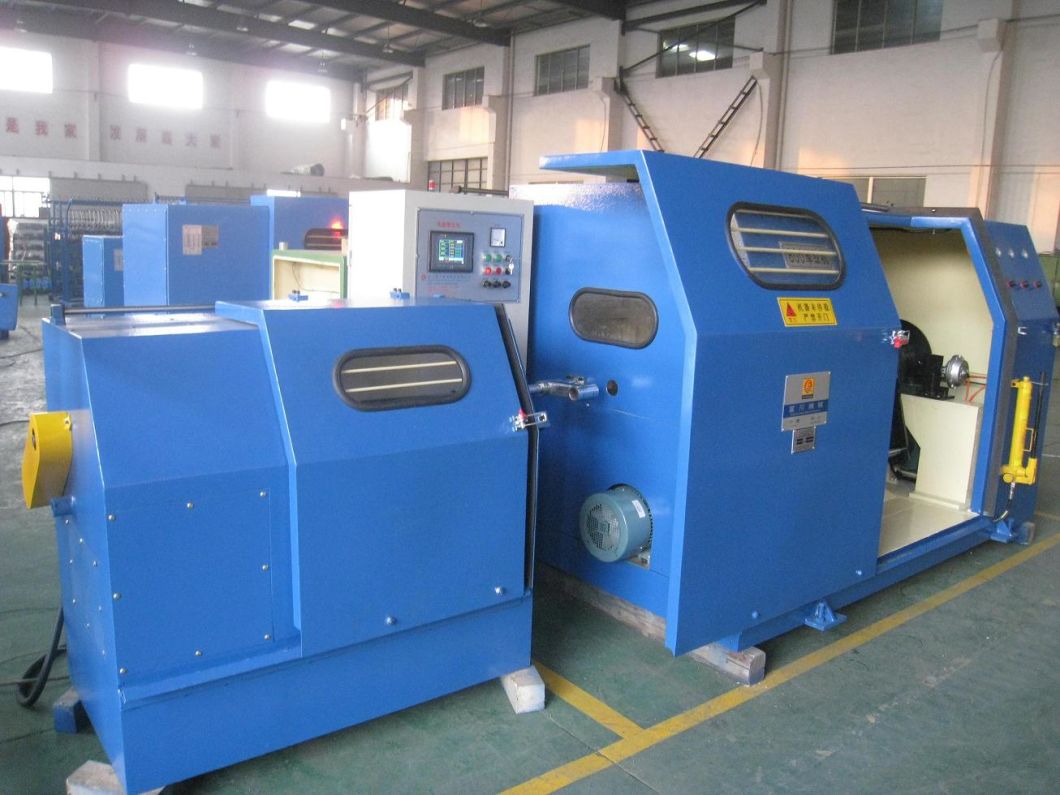

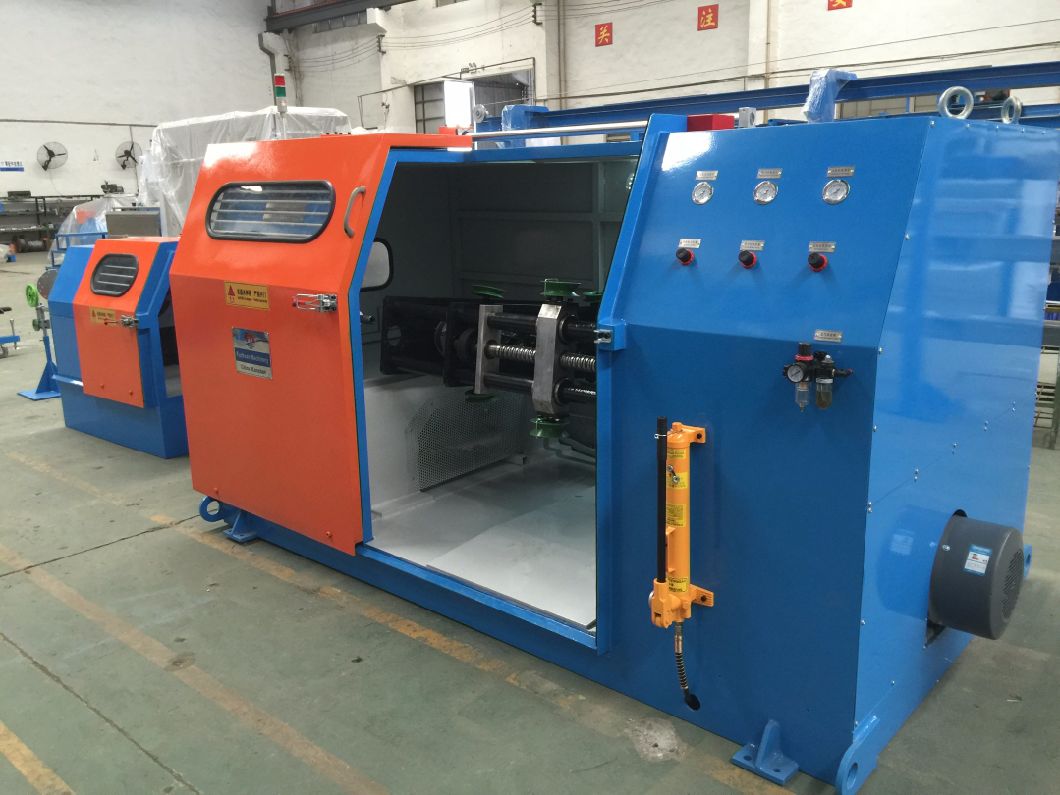

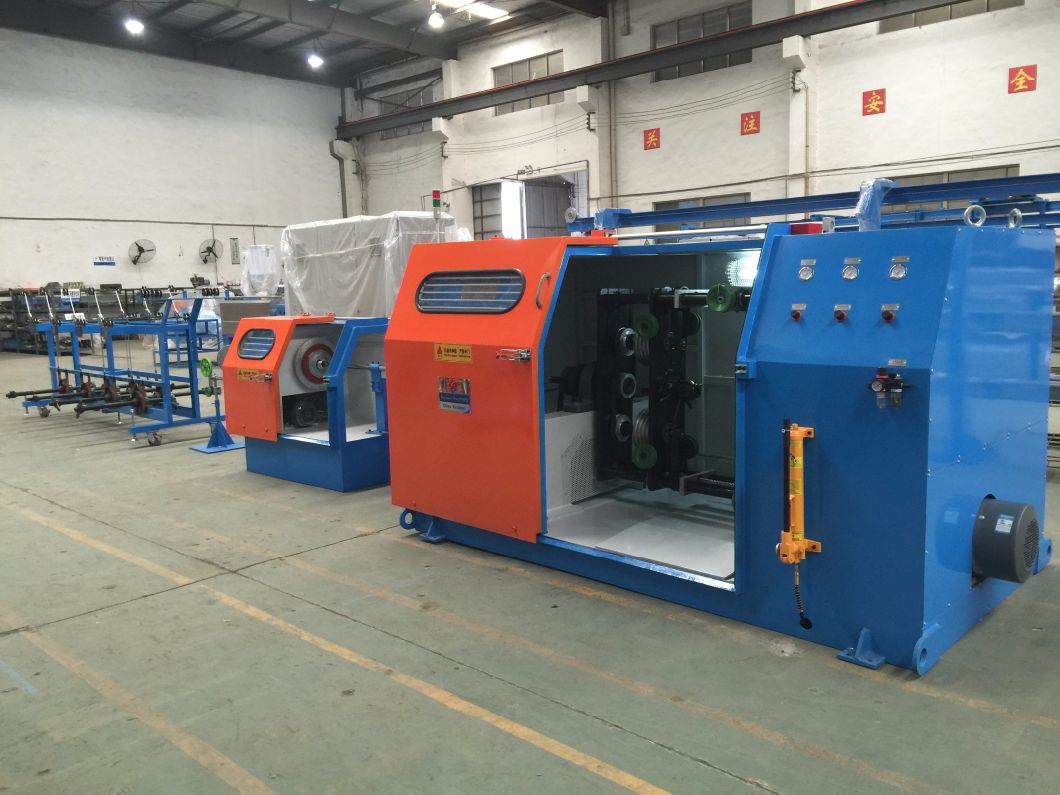

Series for cantilever type single twist (cable laying) machine

Equipment model FC-630 FC-800 FC-1000 FC-1250

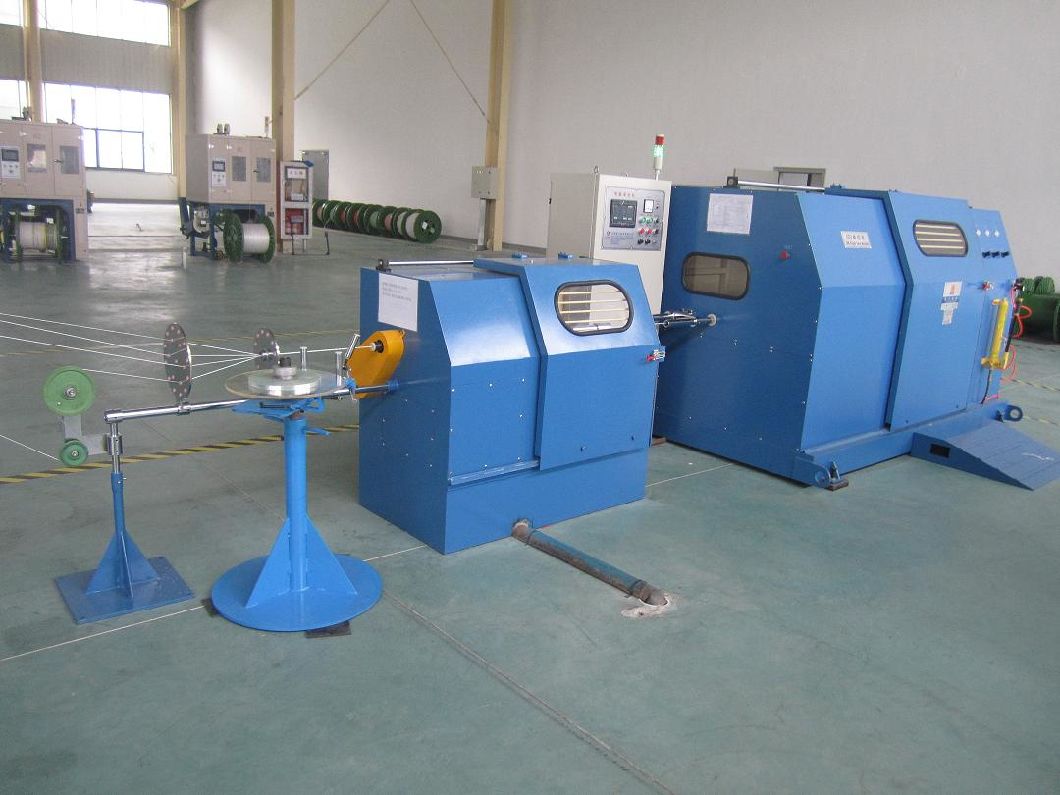

Usage It is mainly used in cable laying of computer wires,such as data cable and control cable.It may synchronize central coil tapping and side coil taping and compress conductor stranding.The entire machine is consists of pay off rack,central bundler,side pay off rack for the central coil tapping set,single twist(cable laying)machine and electrical control cabinet.
Applicable dia(mm) 0.6-3.0 1.5-4.0 1.5-5.0 2.0-6.0
Max twist outer dia(mm) 10 12 20 25
Pitch(mm) 40-200 45-260 50-300 50-350
Direction of lay Free option to S Z
Take up size 630 800 1000 1250
Rotating speed 800 600 500 450

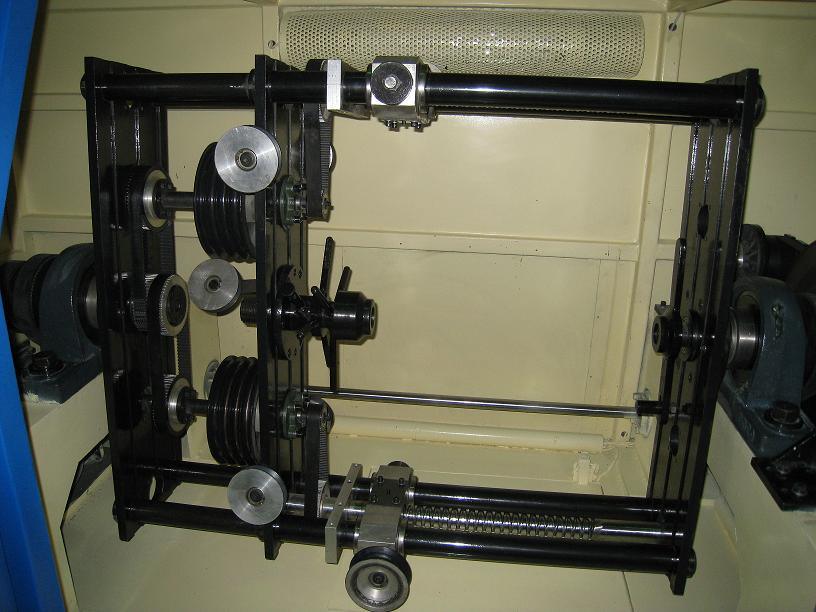

Traverse type According to bobbin rotate speed and reciprocating motion to stepless adjust
Take up tension Pneumatic tension automatic regulate
Brake mode Pneumatic booster brake
Bundling type Central bundling or side bundling
Replace pitch mode Computer pitch
