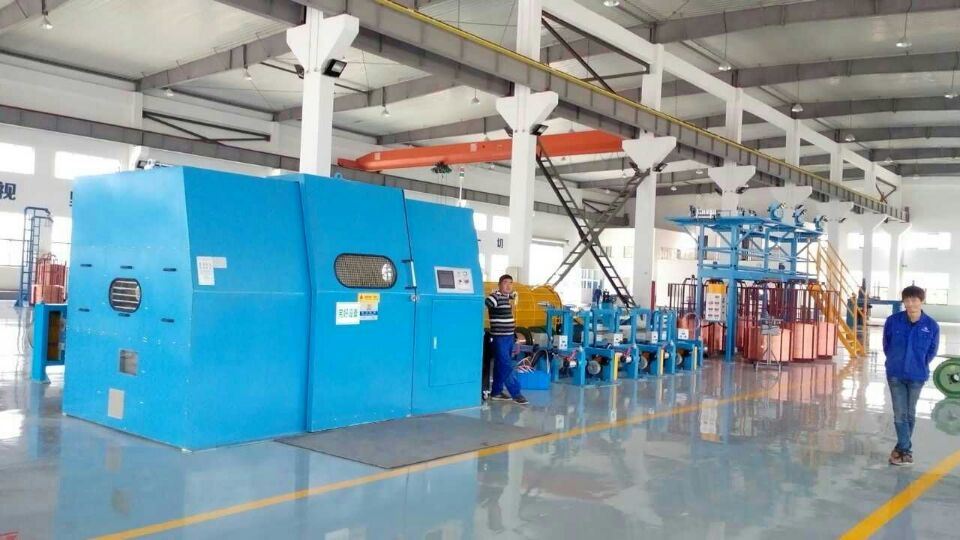

High Speed Wire and Cable 0.05-2.52mm Making Bunching Twisting Stranding Buncher Machine
-
FC-800B
-
Computer Control
-
12months
-
According Customer′s Requirement
-
4500L*2600W*2500H(mm)
-
FC
-
380V-440V
-
China
Fuchuan ® Series for model B Large Wire High Speed Bunching Machine and Double Twist Bunching Machine
Japan Technology, product in China
Characteristics:
New arrival, instead of the traditional 400 tube bunching machine with high productivity(4.5times than the machine, especially for 1+6 conductors twisting), save energy, smaller size, lower noise etc.Equipment models FC-1000B FC-1250B FC-1600B Twisting usage Apply for twisting of seven pcs or above, such as 1) bare copper wires, 2) tinned wires, 3)silver jacketed wires ,4)enameled wires, 5)double twisting for core wires. Single wire dia(mm) 0.30-1.7 0.5-2.14 0.5-2.52 Stranding section area (mm²) 6.0~25.0
6.0~35.0
16.0~95.0
Core wire single wire dia(mm) 2.0~5.0 3.0~6.0 3.0-10 Core wire stranding outer dia(mm) 4.0~10.0 6.0~15.0 8.0~20.0 Pitch(mm) 35-200(12 classes) 50-250(12 classes) 80-350(12 classes) Direction of lay Free for right or left Take up bobbin
Outer dia*bore*outer width1000*80*750 1250*80*950 1600*80*1180 Max rotating speed 1000rpm(2000twist) 800rpm(1600twist) 600rpm(1200twist) Main motor power 18.5KW 22KW 30KW Inverter power 18.5KW 22KW 30KW Tension control Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin Magnetic powder clutch 20kgf 20kgf 40kgf Protection automatically brake/stop 1)wire inside and outside is broken
2)the preset length is arrivedBrake mode Electromagnetic brake Traversing method Rolling wire with ring drive units, winding pitch and breadth are adjustable Operation mode Touch screen operation Dimension L*W*H(mm) 4000*2200*2100 4500*2600*2500 5000*3000*3000
