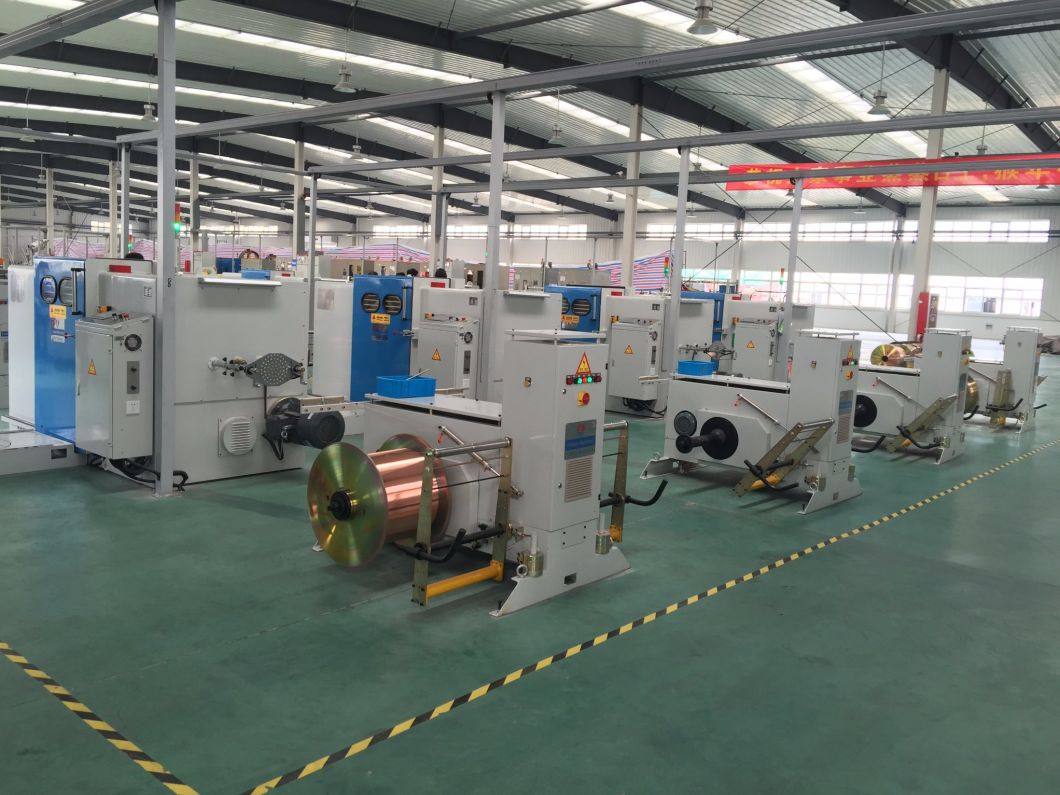

Copper Cable wire 0.05-2.52mm Making Bunching Winding Stranding Twisting buncher Machine
-
12months
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic

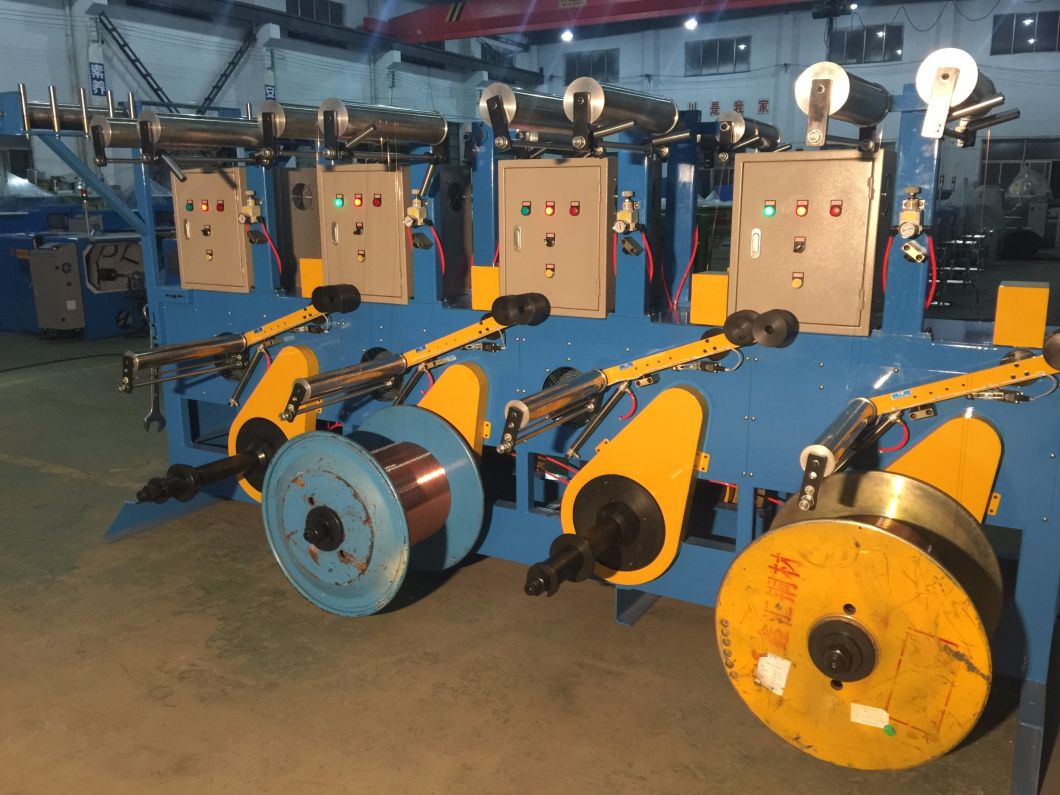

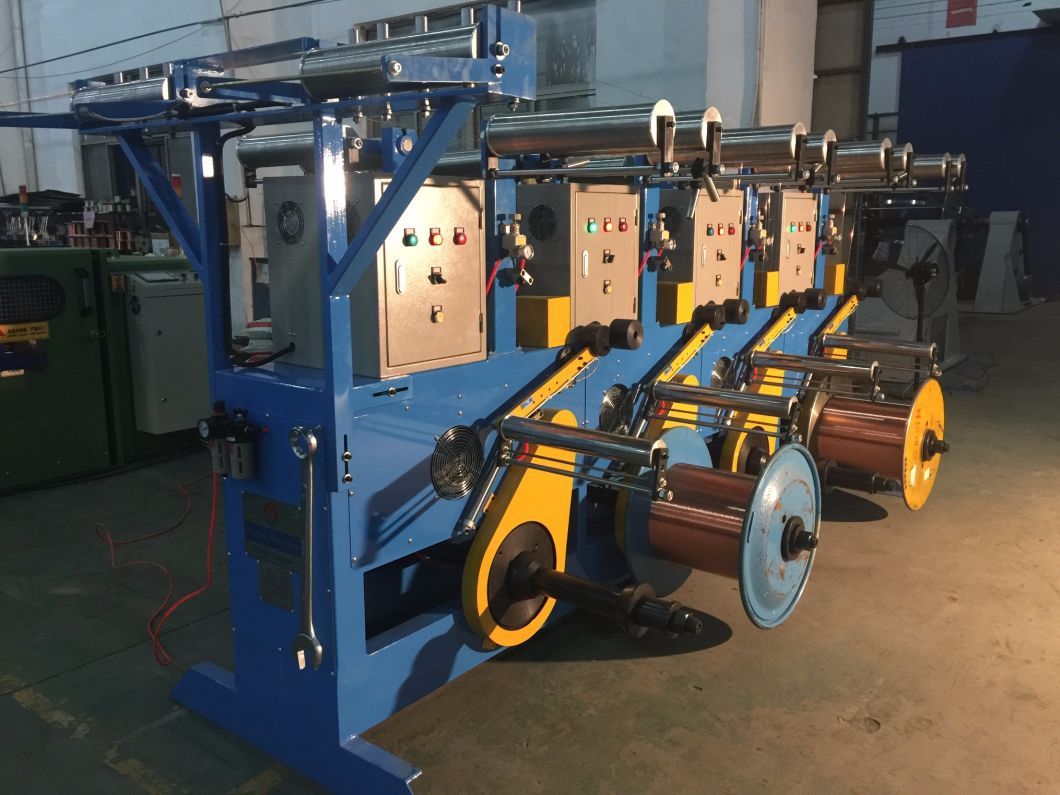

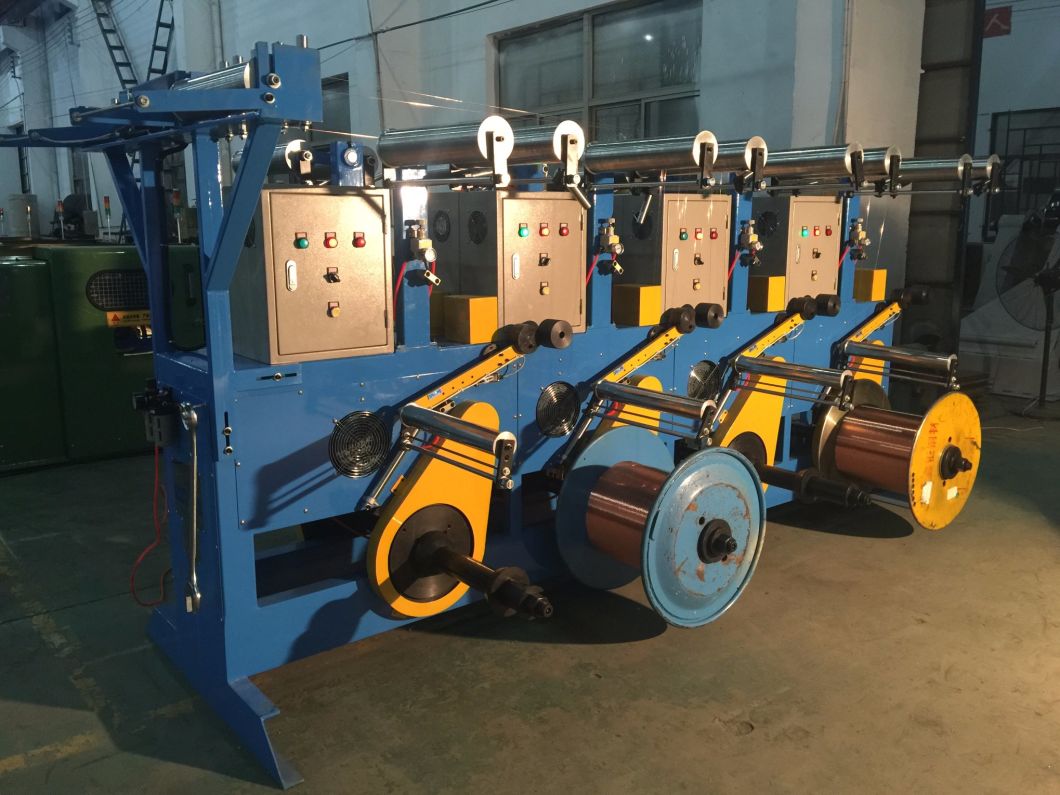

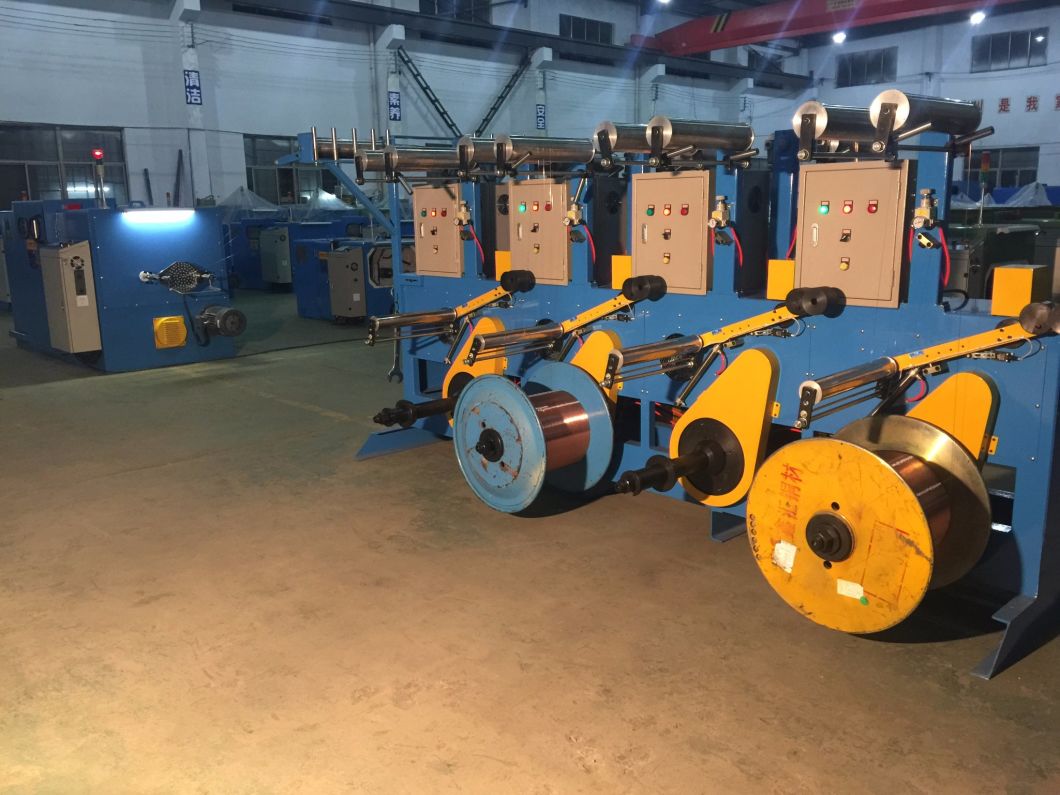

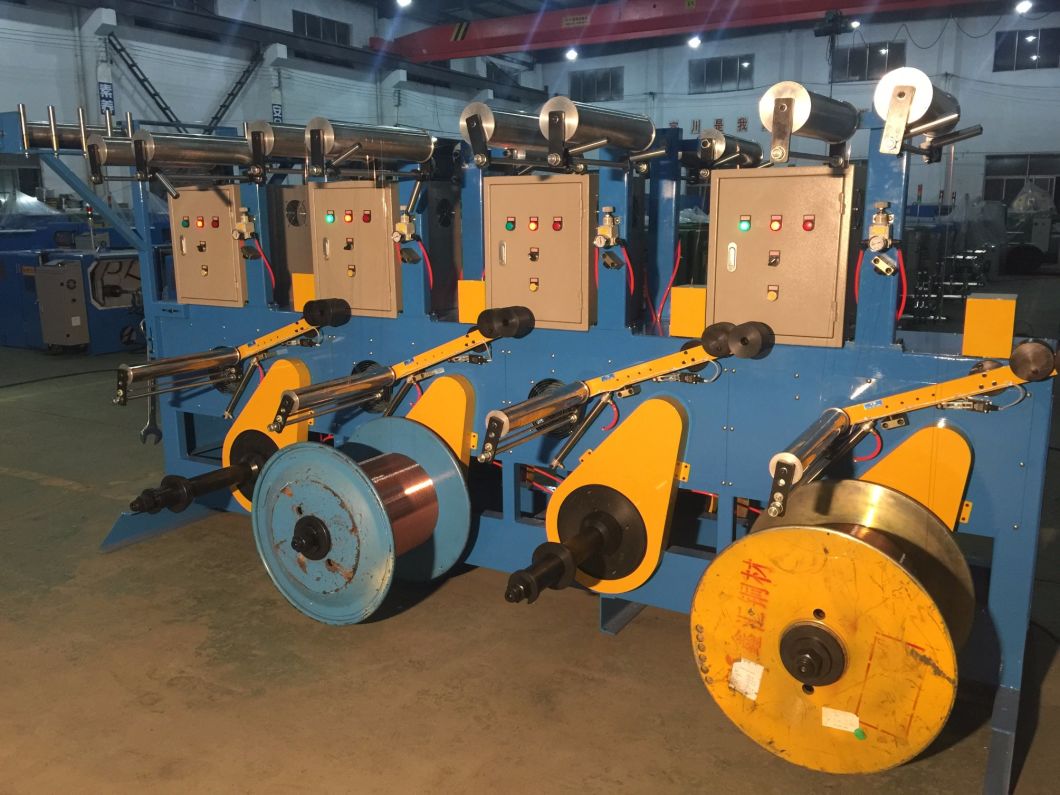

FC-630 Double Shaft Multiple Drawing Bobbins Active Pay-off
Machine performance parameters:
The pay-off stand is constant tension, no reverse the pay-off double disk, can be used for single pay-off equipment pay-off, also can be used for drawing wire harness, and two dish line not interfere with each other, independent, pay-off, easy to operate, can efficiently save covers an area of space.
1. Put/size range: φ 0.08-0.5 mm;
2. The biggest MAX200m/min, the linear;
3. The pay-off plate size: Outside diameter φ 630 * hole φ 125 * 475 * in the wide width of 400 mm;
4. Tension adjustment: In the swinging rod are installed on cylinder, but through the governing valve adjusting cylinder pressure to change the pay-off tension, also can use a heavy hammer adjust tension;
5. The driver: The wire disc by belt brake 1.5 KW three-phase frequency conversion motor driven by special synchronous belt; The inverter control the motor.
6. Brake: Motor internal disc springs pads action, brakes motor;
7. Adjustable speed: By the sensor signal transmission swinging rod to control the speed of frequency converter, pay-off and host (such as stranding machine) to keep the same;
8. The wire disc loading and unloading: Use the hydraulic forklifts (by advertisers) manual handling the wire disc;
9. Painting: Apple green(or paint according to the customers' require)

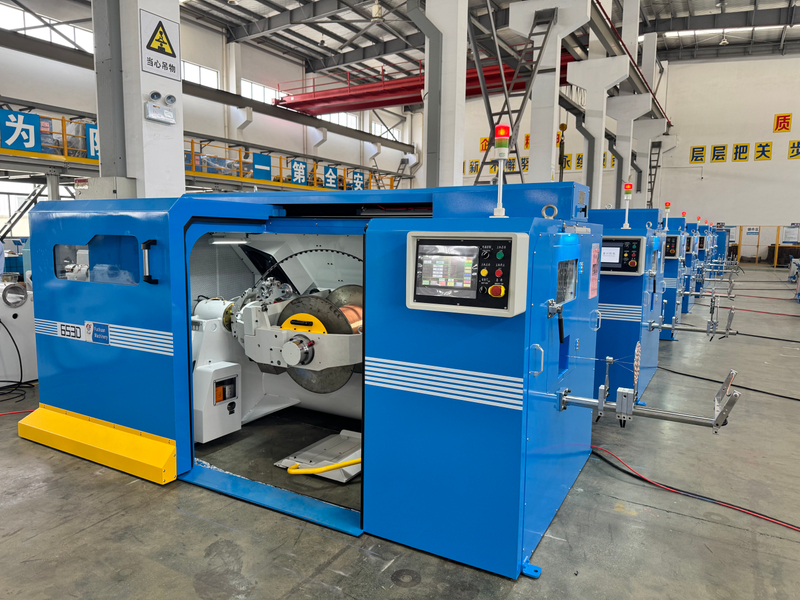

10. Weight: 600 kgEquipment model FC-500B FC-650B FC-650B modified FC-800B Twisting usage Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires)double twisting for core wire Single wire dia(mm) 0.08-0.45 0.15-1.04 0.38-1.7 0.38-1.7 Stranding section area 0.05-2.5 0.35-6.0 1.0-16 Core wire dia 0.5-1.5 0.5-3.0 1.5-4.0 1.5-4.0 Twisted outer dia 1.0-3.0 1.6-6.0 3.0-8.0 pitch 6.3-52.3 11.6-100 20-160 23-160 Direction of lay:free option to S Z Take up size 400-500 500-630 630-800 Max speed 3000(6000TPM) 2000(4000TPM) 1600(3200TPM) power 5.5KW 7.5KW 11KW 15KW Tension control method:touchscreen+PLC+magnetic powder clutch,ensure constant tension from empty to full bobbin Magnetic powder 1.2kgf 5kgf 10kgf 10kgf protection Internal and outer wire cut off automatic brake(electromagnetic brake).automatic shut down when the meters reaches Traversing method Precious traverse or screw type polish wire traverse,winding pitch and width are adjustable
