1. Characters:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, the machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch, easy to operate.

2. Usage:
It is applied to the twisting of above 7 pcs of bare copper wires, tinned wires, silver jacketed wires and enamelled wires and double twisting for core wires.

3. Parameters:
Equipment model FC-500B FC-650B FC-650B-2 FC-800B
Twisting usage Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enameled wires),double twisting for core wires.
Single wire diaφ(mm) 0.08-0.45 0.15-1.04 0.37-1.7 0.37-1.7
Stranding section area 0.05-2.5 0.35-6.0 1.0-16 1.0-16
Core wire single wire diaφ(mm) 0.5-1.5 0.5-3.0 1.0-4.0 1.0-4.0
Core wire stranding outer dia(mm) 1.0-3.0 1.0-6.0 2.0-8.0 2.0-8.0
Pitch(mm) 6.3-52.3 11.6-100 20-160 23-147
Direction of lay Optional for right or left
Take up bobbin(mm) Dia500 Dia630 Dia630 Dia800
Max rotating speed 3000rpm(6000TPM) 2000rpm(4000TPM) 1600rpm(3200TPM) 1600rpm(3200TPM)
Main motor power 5.5kw 7.5kw 11kw 15kw
Inverter power 5.5kw 7.5kw 11kw 15kw
Tension control method Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin
Magnetic powder clutch 1.2kgf 5kgf 10kgf 10kgf
Protection 1.wire inside and outside is broken,automatically brake/stop
2.The preset length is arrived
Brake mode Electromagnetic brake
Traversing method Rolling wire with ring drive units,winding pitch and breadth are adjustable
Operation mode Touchscreen operation
Dimension(mm) 2680L*1250W*1500H 3300L*1550W*1800H 3400L*1600W*1800H 4600L*2000W*2000H

Quick Details:
Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
Characteristics:

1.1 High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire.

1.2. Use shaft to calculate meters, less than 0.01% error for a certain wire&cable.

1.3. With FC-100 active back-twist pay-off machine to achieve bunching instead of twisting.

1.4. Especially for twisting small cross-section area.

1.5. Use synchronous belt drive,

1.6. Change guide wheel to change lay distance, easy to operate.

cable machinery manufacturers

SpecifIcations:

Equipment Models FC-200B-6 FC-250B FC-300B FC-400B
Twisting Usage Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
Single Wire Dia(mm) 0.016~0.08 0.03~0.18 0.05~0.28 0.05~0.32
Stranding Section Area(mm²) 0.0014~0.035 0.0049~0.3 0.0137~0.45 0.0137~1.0
Pitch(mm) 0.8~4.0(14 classes) 0.8~10.8(24classes) 1.6~21.6(24classes) 3.1~33.3(24classes)
Direction of Lay Free to right or left

Take-up Bobbin(mm)

Outer dia*bore*outer width

200*31*135 300*30*185

250*30*185

300*30*185

300*30*185

400*56*300

Max Rotating Speed(rpm) 5000rpm(10000tpm) 4000rpm(8000tpm) 3500rpm(7000tpm) 3500rpm(7000tpm)
Main Motor Power 2.2KW 3.7KW 3.7KW 3.7KW
Inverter Power 2.2KW 3.7KW 3.7KW 3.7KW
Tension Control Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic Powder Clutch 0.05kgf 0.3kgf 0.6kgf 0.6kgf
Protection

automatically brake/stop 1)wire inside and outside is broken

2)the preset length is arrived

Brake Mode Electromagnetic brake
Traversing Method Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation Mode Touch Screen Operation
Dimension L*W*H 2000*960*1100 2300*1100*1330 2300*1100*1330 2850*1150*1350


Model FC-1000B large wire high speed bunching machine and double twist bunching machine

1.1 Japanese Technology, product in China

1.2 Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.

Characteristics:

2.1 Latest developed machine.

2.2 This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),

2.3 low power, small floor place ,low noise and other merits.

Specification:

Equipment models

FC-1000B

Twisting usage

Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.

Single wire dia(mm)

φ0.30-φ1.7

Stranding section area(mm²)

6.0-35.0

Core wire single wire dia

φ2.0-φ5.0

Core wire stranding outer dia

φ4.0-φ10

Pitch(mm)

35-200(12zones)

Direction of lay

Optional for right or left

Take up bobbin Outer dia*bore*outer width

φ1000*φ80*750

Max rotating speed

1000(2000twist)

Main motor power

18.5KW

Inverter power

18.5KW

Tension control method

Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

20kgf

Protection

Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units, winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

4000L*2200W*2100H

Model FC-1600B large wire high speed bunching machine and double twist bunching machine

The technology of this machine is brought from Japan and put in production in JiangSu

Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.

Equipment models

FC-1600B

Twisting usage

It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.

Single wire dia(mm)

φ0.50-φ2.52

Stranding section area(mm²)

16.0-95

Core wire single wire dia

φ3.0-φ10.0

Core wire stranding outer dia

φ8.0-φ20.0

Pitch(mm)

80-350(12zones)

Direction of lay

Optional for right or left

Take up bobbin Outer dia*bore*outer width

φ1600*φ80*1180

Max rotating speed

600(1200twist)

Main motor power

30KW

Inverter power

30KW

Tension control method

Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

40kgf

Protection

Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units, winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

5000L*3000w*3000H

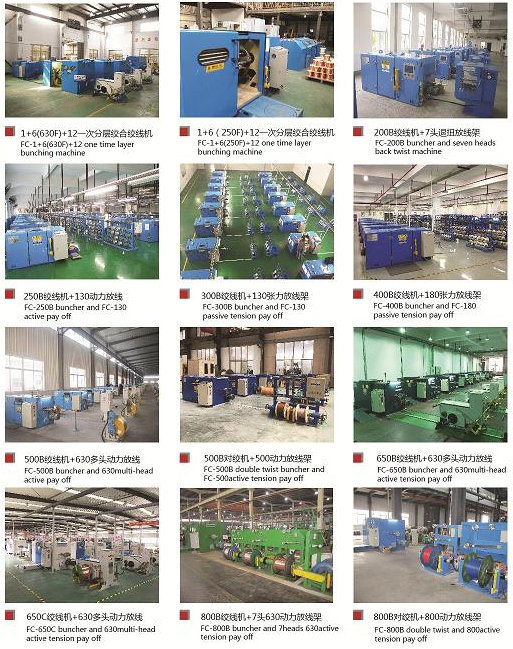

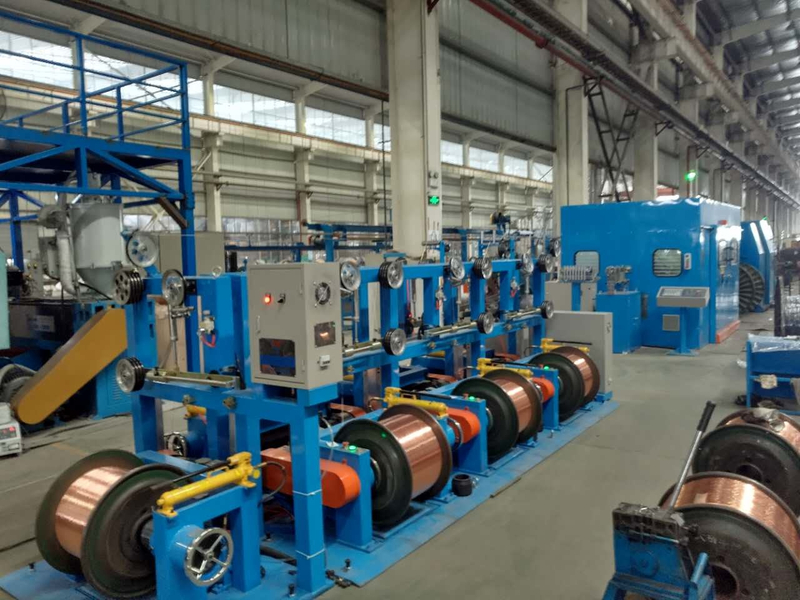

4. Machine Show
Bare Copper Wire1-25sqmm Double Twisting Machine PLC Pitch Auto Oil China Fuchuan Machine Winding Bunching Machine

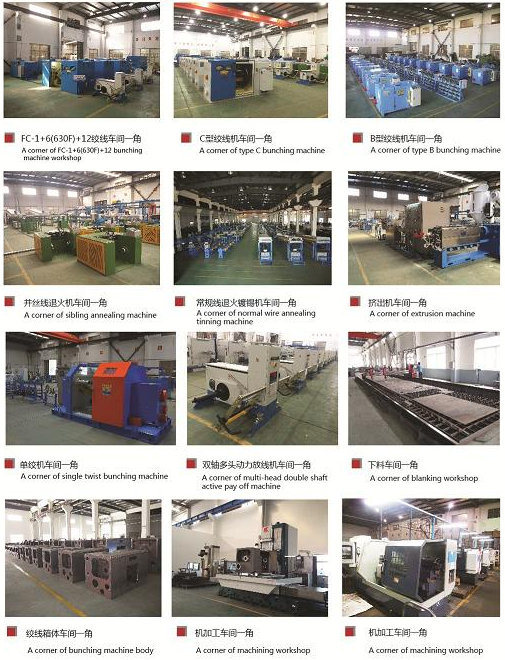

5. Cornor of Workshop
