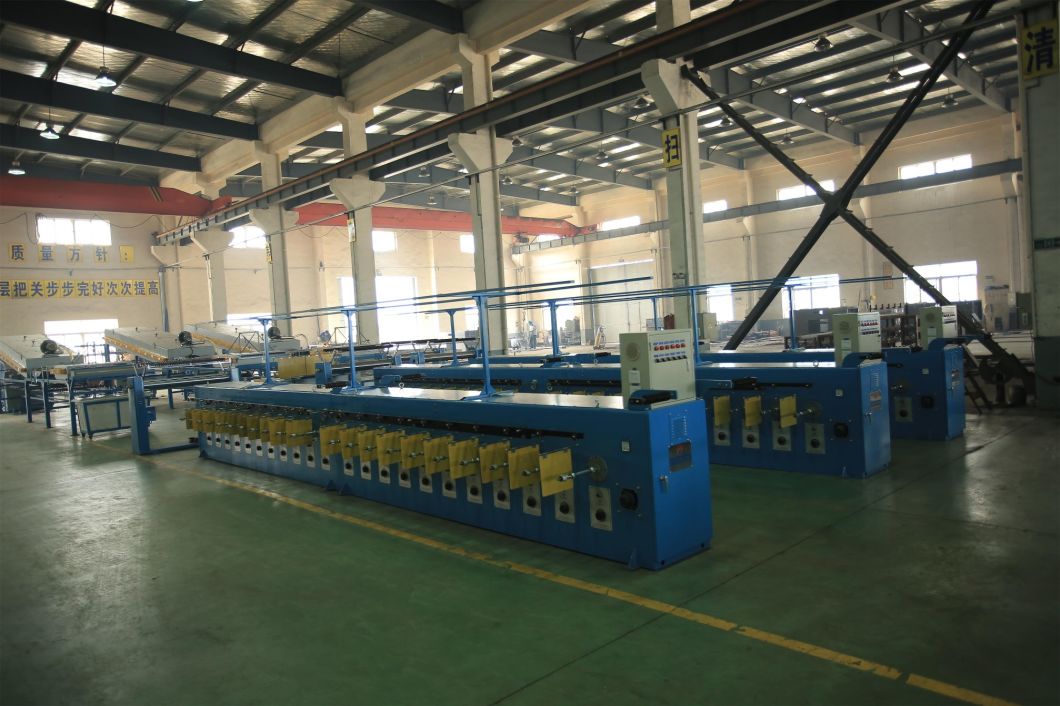

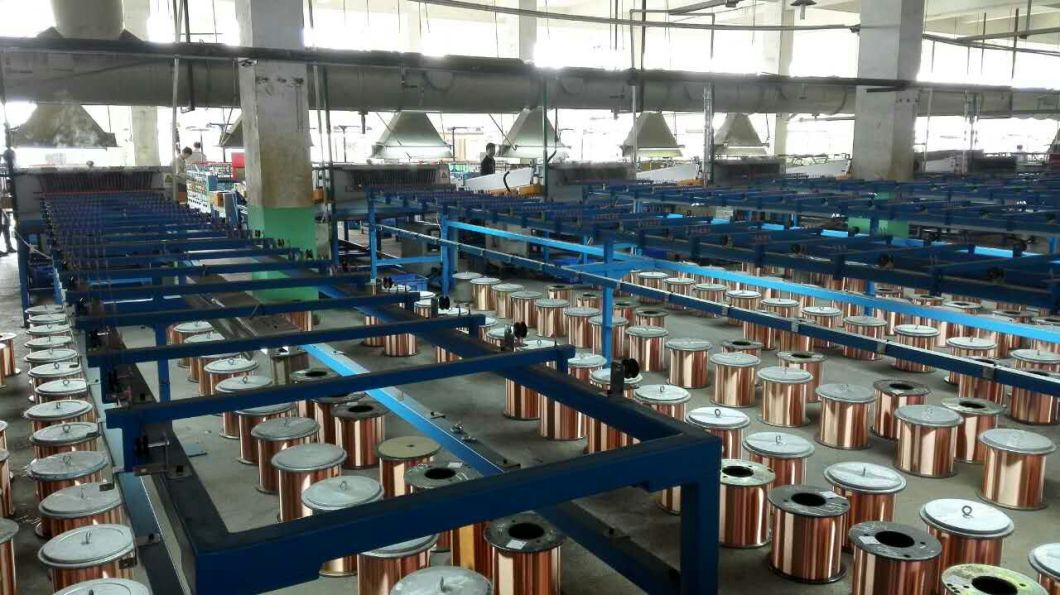

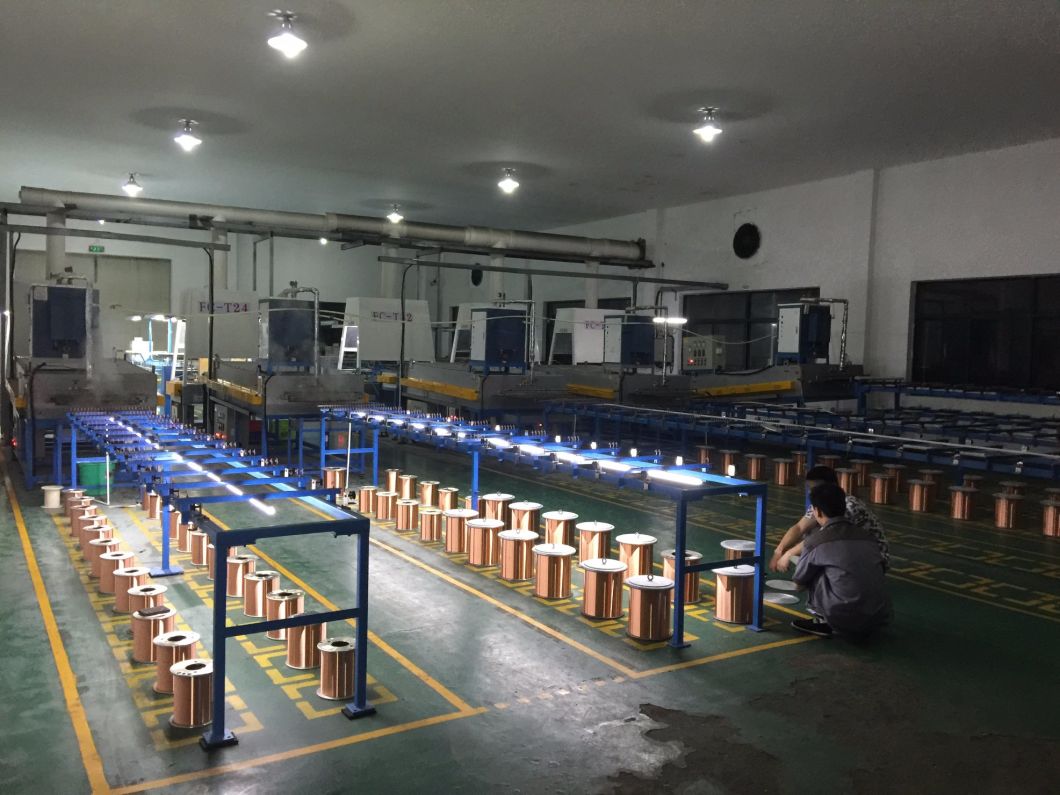

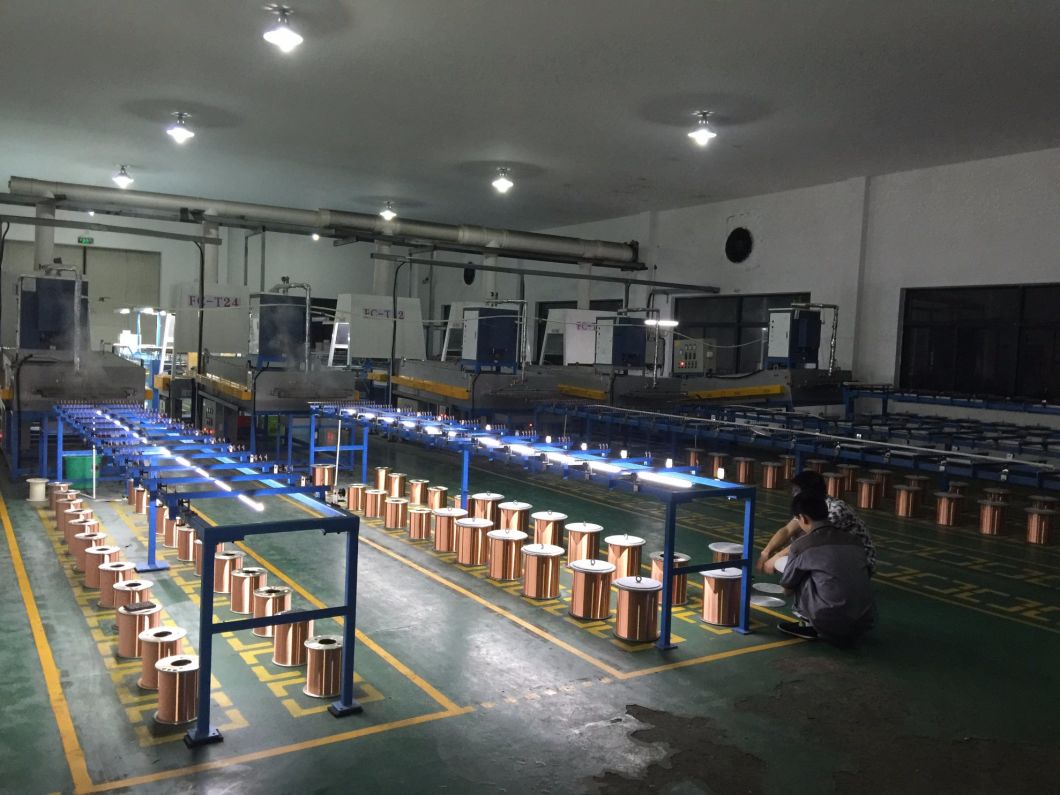

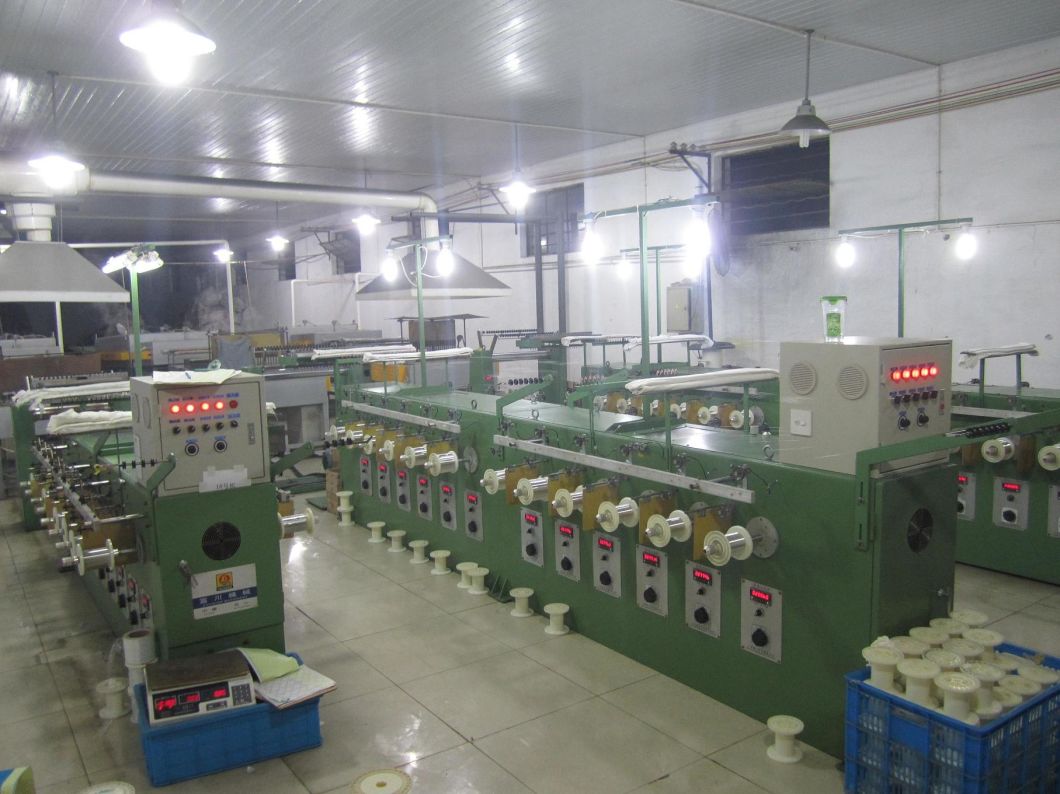

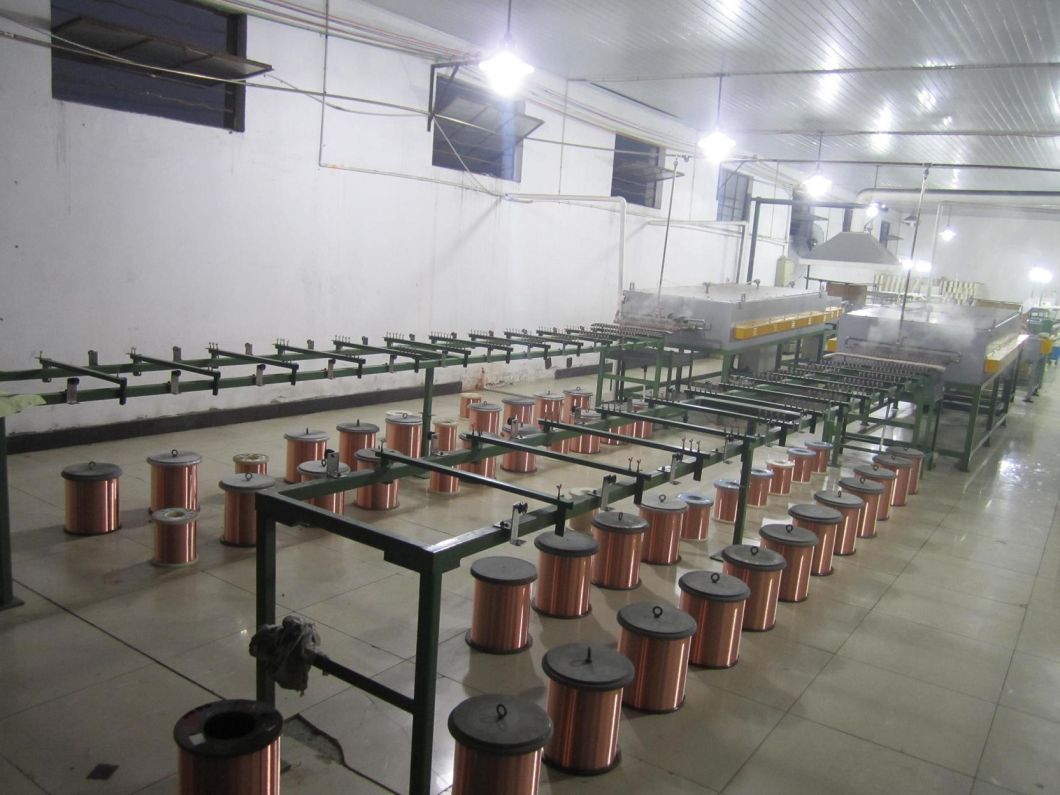

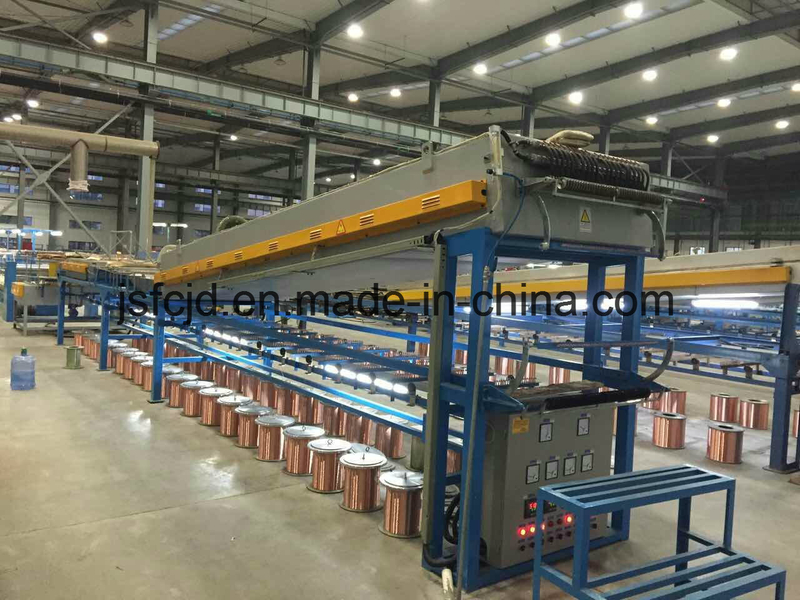

0.03-0.64mm Cable Copper Wire Annealing Tin Annealer Winding Extruder Bunchers Coiling Machinery Making Machine
-
12months
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
The technology of this machine is brought from Japan and put in production in JiangSu.
Merits: Easy to operate, good annealing heat insulation,save power,adopt nitrogen or steam protection,have individual meter counter for each take up bobbin, stop automatically achieve the preset meter. It may realize ultra-fine annealing tin and achieve industry leading level.
Equipment model FC-T32 FC-T42 FC-T48 FC-T64 Machine usage Apply for ultra-fine round copper wire and alloy wire annealing and tinning Inlet wire dia(mm) 0.08-0.32/0.15-0.64mm 0.08-0.32 0.08-0.25 Max nos of inlet wire 32 42 48 64 Linear speed Max:300m/min Pay off type Brush pay off Pay off bobbin type DIN300 Annealing furnace length 5M/6M Annealing type Tube type annealing Annealing protection type Water seal protection+nitrogen or vapor protection Tinned type Hot dip Capstan control type Motor +driver Equipment total power 83 92 98 87 Take up control Voltage adjusting controls torque motor take up Take up bobbin size 5inch,8inch/ 5inch,8inch,10inch 5inch.8inch Traverse control type Gear motor+driver or Servo Motor +PLC
The technology of this machine is brought from Japan and put in production in JiangSu.
Merits: Easy to operate, good annealing heat insulation,save power,adopt nitrogen or steam protection,have individual meter counter for each take up bobbin, stop automatically achieve the preset meter. It may realize ultra-fine annealing tin and achieve industry leading level.
Equipment model FC-T32 FC-T42 FC-T48 FC-T64 Machine usage Apply for ultra-fine round copper wire and alloy wire annealing and tinning Inlet wire dia(mm) 0.08-0.32/0.15-0.64mm 0.08-0.32 0.08-0.25 Max nos of inlet wire 32 42 48 64 Linear speed Max:300m/min Pay off type Brush pay off Pay off bobbin type DIN300 Annealing furnace length 5M/6M Annealing type Tube type annealing Annealing protection type Water seal protection+nitrogen or vapor protection Tinned type Hot dip Capstan control type Motor +driver Equipment total power 83 92 98 87 Take up control Voltage adjusting controls torque motor take up Take up bobbin size 5inch,8inch/ 5inch,8inch,10inch 5inch.8inch Traverse control type Gear motor+driver or Servo Motor +PLC
