0.03-0.64mm Electrical Cable Wire Twist Winding Coiling Extrusion Drawing Bunching Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
300,000-1,000,000 Shots

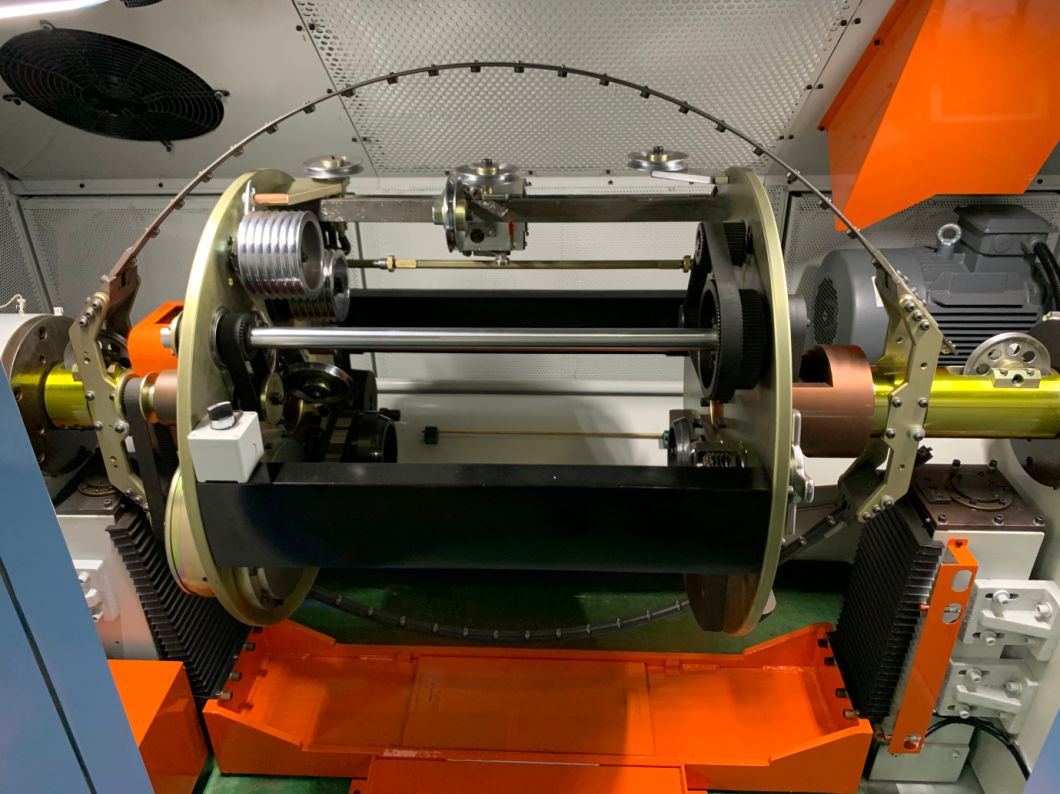

Main performance parameters of FC-1000B high speed double twist bunching machine
1. Usage:It is applied to double twisting of bare copper wire,tinned wire,CCA wire,alloy wire,silver jacketed wire and core wires.
2. Outer diameter of single core wire:
core wire area:φ2.0~φ5.0mm(2core,3core,4core,5core wire);
or copper wireφ0.85-φ2.14mm;
3. Outer diameter of stranded core wires:φ4.0~φ10mm
4. Conductor twisted sq mm:2.0-25sq mm
4. Take-up Bobbin Size: PN1000
5. Maximum rotating speed for Bow: normal speed: 800rpm(1600twist)
6.Type of traverse: φ50mm rolling ring traverse, winding pitch and breadth are adjustable.
7.Pitch range(mm): 35~154mm(According to the requirement of customer)
8. Main motor: 18.5KW AC motor +frequency converter
9. Weight of copper load: about 1600kg
10. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
11. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
12. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension, constant tension.
13. Drive bearing: it is adopted imported Japan bearing.
14. Synchronization strap: it is adopted imported American product.
15. Spool from top to bottom: it is adopted electric hydraulic lifting.
16. Way of spindle lubrication: butter lubrication.
17. Index of noise: Below 82dB
18.Dimension: (mm): 4200L×2500W×2300H
19. Weight: 6000Kg
20. Coating:Ral5015 Sky blue (may according to customer's requirements).
21. Package: simple waterproof packing
