0.03-2.52mm Annealing Tinning Copper Wire Twister Twisting Buncher Bunching Extrusion Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
0.03~0.08mm
-
Annealing and Tinning of Ultra-Fine Round Copper

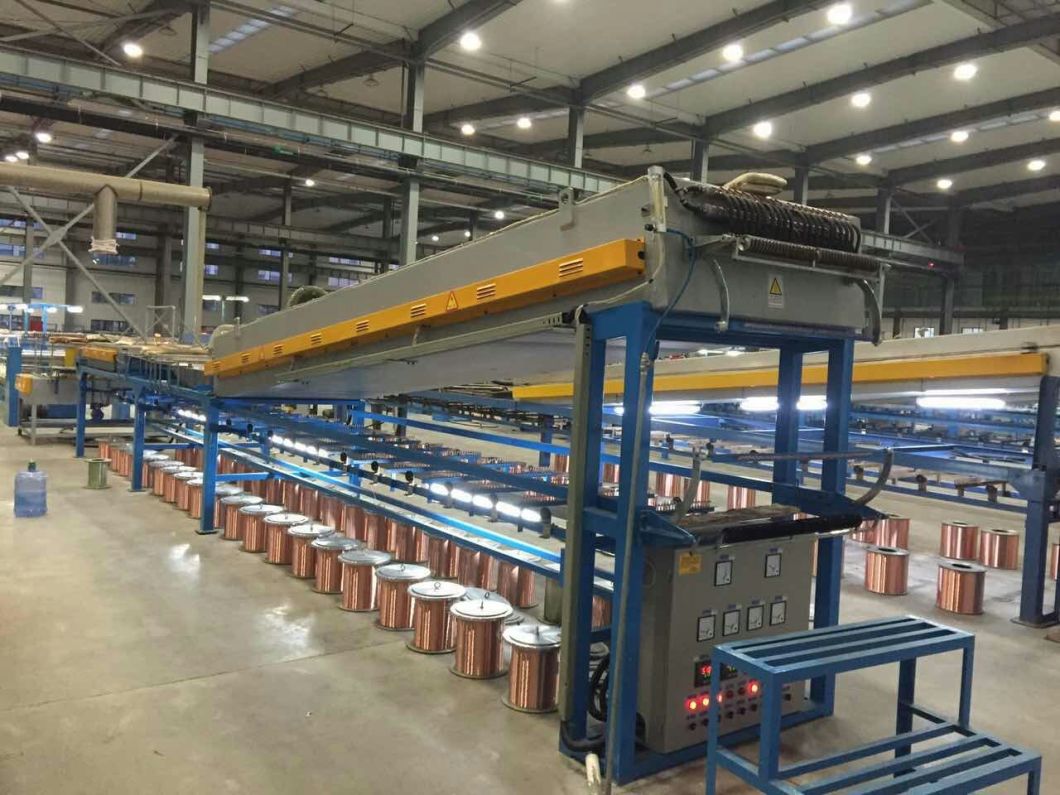

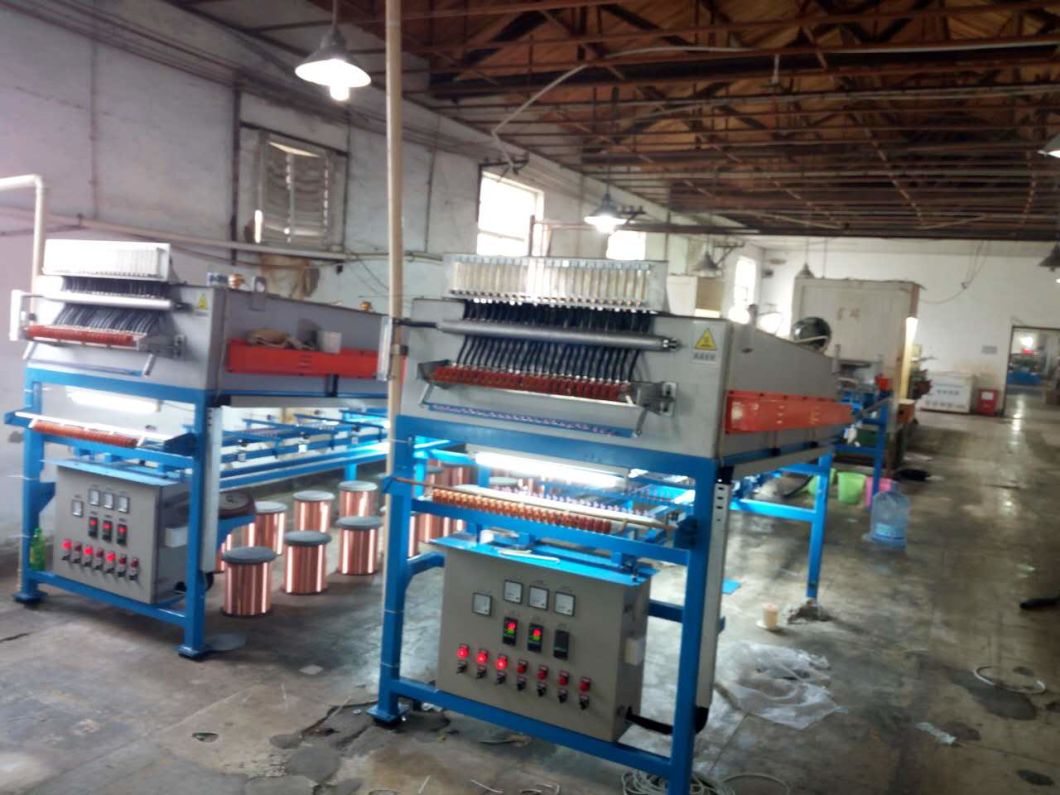

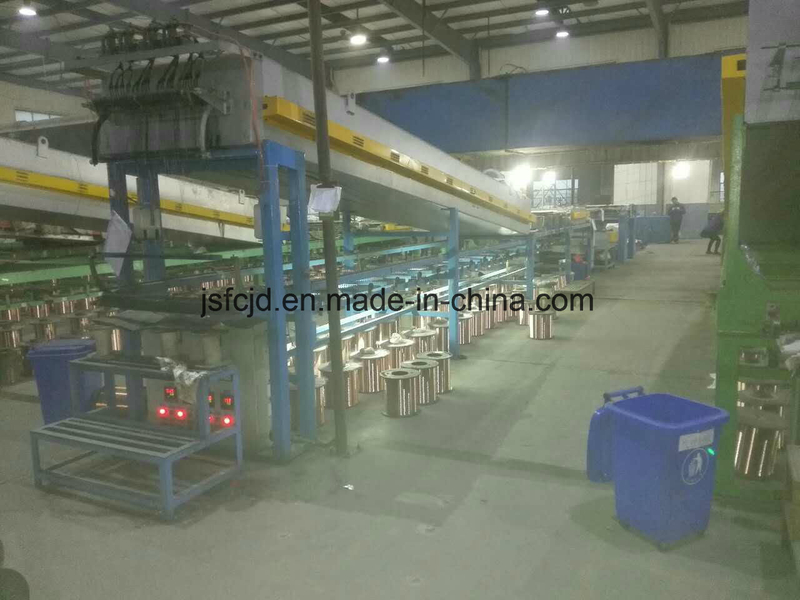

Copper wire alloy wire annealing tinning machine
1. Merits:
Easy to operate, good annealing heat insulation, save electricity, adopt nitrogen protection, it may realize ultra-fine annealing tin and achieve industry-leading level.
Equipment model FC-TX16 FC-TX24 FC-TX32 FC-TX40 Twisting usage It is mainly applied to the annealing and tinning of ultra-fine round copper wire and alloy wire Inlet wire diaφ 0.03-0.08mm 0.04-0.127mm 0.05-0.127mm 0.05-0.127mm Max no of inlet wire 16 24 32 40 Annealing furnace length 2m 2.5m 3.0m 3.0m Linear speed Max:300m/min Pay off type Brush pay off Meter counting method Single head independently meter counting,and the machine will stop when the preset length is arrived Annealing type Tube type annealing Annealing protection type nitrogen protection or vapor protection Tinned method Hot dip Capstan control method Inverter+motor control Take up control Voltage adjusting controls torque motor take up Take up bobbin size Three inch,Five inch,eight inch Traverse control type Stepless speed regulation motor+turbine gear box control toothrow traverse Total power for machine 26kw 40kw 50kw 55kw Dimension(mm) 14000L*1000W*1250H 17000L*1250W*1850H 24000L*1500W*1850H 24700L*2200W*2100H
