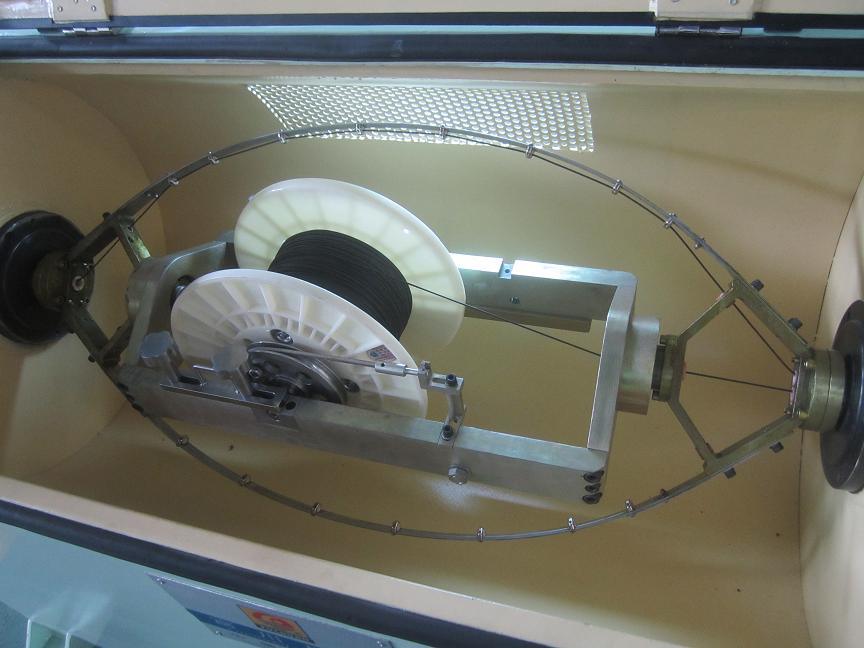

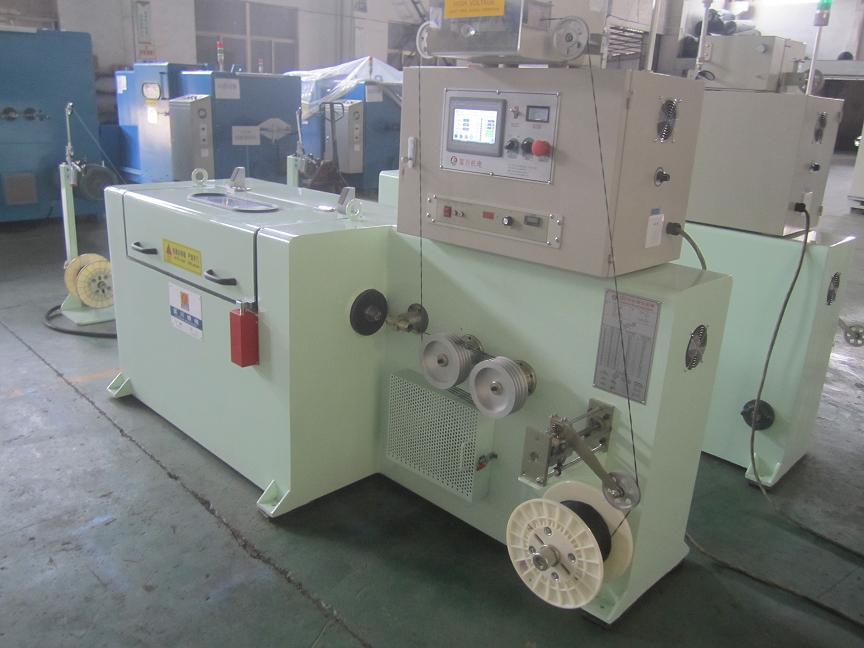

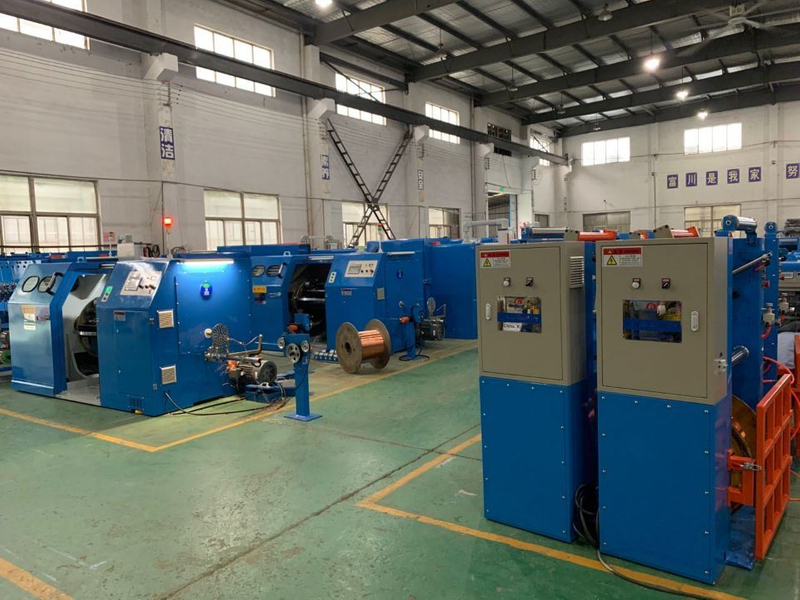

0.04-2.52mm Electric Copper Cable Wire Double Twist Bunching Winding Twisting Twister Extruder Extrusion Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
300,000-1,000,000 Shots
Torsion free cable laying machine
1. Merits:
With high rotation speed, with the main shaft counts the meters, the same machine twist the types of the same line, and the tolerance is only 0.0001%. With constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up FC-100 active back-twist pay-off machine. And meet requirements of customer to twist wire of small crossection area. The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate.
2. Apllication:
It is applied to the twisting two core wires
3. Tech. Parameter:
Series for Non-twist Double Twisting Machine Merits: It is applied to high frequency date cable, LAN cable (CAT6 cable). Non twist after double twisting, make the insulated core wire interlace uniformly, avoid the nonuniform twist force,thus make the finished wire with the uniform ,precision pitch. this machine is developed for the high speed data wire & cable(contain the USB2.0, USB3.0, CATE-6E, HDMI and other wire) ,combined the functions and merits of non-twist stranding machine and high speed wrapping machine. the 2 machine can operate separatly and simultaneously. Device structure: Active pay off, Non-twist stranding machine, High frequency spark tester ,Wrapping machine, Take-up and other parts. Model FC-300E FC-400E FC-500E FC-630E Usage It is applied to produce the high frequency date cable, LAN cable(CAT6 cable), USB2.0, USB3.0,CATE-6E, CATE-7E,HDMI and other high speed date cable. Core Wire Single Wire Dia(mm) Φ0.5~1.5 Φ0.5~2.0 Φ1.0~4.0 Φ2.0~5.0 Core Wire Stranding Outer Dia(mm) Φ1.0~3.0 Φ1.0~4.0 Φ2.0~8.0 Φ4.0~10
Pitch(mm)5~50 10~90 15~120 20~160 Direction of Lay optional for right or left Pay Off Bobbin Size Φ300*Φ30*160 Φ400*Φ56*300 Φ500*Φ56*300 Φ630*Φ56*475 Outer Pay Off Type Active pay off Inner Pay Off Type Magnetic tension pay off Take-up Bobbin(mm) Φ300*Φ30*160 Φ500*Φ56*375 Φ630*Φ56*475 Φ800*Φ80*600 Max Rotating Speed(rpm) 2500 2500 2000 1500 Pay Off Motor Power 0.75KW 1.5KW 1.5KW 2.2KW Main Motor Power 3.7KW 5.5KW 5.5KW 7.5KW Tension Control Method touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin. Inner Magnetic Powder Clutch 0.6kgf 1.2kgf 2.5kgf 5kgf Magnetic Powder Clutch 2.5kgf 5kgf 5kgf 10kgf Brake Mode Electromagnetic Brake Traversing Method Rolling ring drive units, winding pitch and breadth are adjustable. Operation Mode Touch Screen Operation
Torsion free cable laying machine
1. Merits:
With high rotation speed, with the main shaft counts the meters, the same machine twist the types of the same line, and the tolerance is only 0.0001%. With constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up FC-100 active back-twist pay-off machine. And meet requirements of customer to twist wire of small crossection area. The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate.
2. Apllication:
It is applied to the twisting two core wires
3. Tech. Parameter:
Series for Non-twist Double Twisting Machine Merits: It is applied to high frequency date cable, LAN cable (CAT6 cable). Non twist after double twisting, make the insulated core wire interlace uniformly, avoid the nonuniform twist force,thus make the finished wire with the uniform ,precision pitch. this machine is developed for the high speed data wire & cable(contain the USB2.0, USB3.0, CATE-6E, HDMI and other wire) ,combined the functions and merits of non-twist stranding machine and high speed wrapping machine. the 2 machine can operate separatly and simultaneously. Device structure: Active pay off, Non-twist stranding machine, High frequency spark tester ,Wrapping machine, Take-up and other parts. Model FC-300E FC-400E FC-500E FC-630E Usage It is applied to produce the high frequency date cable, LAN cable(CAT6 cable), USB2.0, USB3.0,CATE-6E, CATE-7E,HDMI and other high speed date cable. Core Wire Single Wire Dia(mm) Φ0.5~1.5 Φ0.5~2.0 Φ1.0~4.0 Φ2.0~5.0 Core Wire Stranding Outer Dia(mm) Φ1.0~3.0 Φ1.0~4.0 Φ2.0~8.0 Φ4.0~10
Pitch(mm)5~50 10~90 15~120 20~160 Direction of Lay optional for right or left Pay Off Bobbin Size Φ300*Φ30*160 Φ400*Φ56*300 Φ500*Φ56*300 Φ630*Φ56*475 Outer Pay Off Type Active pay off Inner Pay Off Type Magnetic tension pay off Take-up Bobbin(mm) Φ300*Φ30*160 Φ500*Φ56*375 Φ630*Φ56*475 Φ800*Φ80*600 Max Rotating Speed(rpm) 2500 2500 2000 1500 Pay Off Motor Power 0.75KW 1.5KW 1.5KW 2.2KW Main Motor Power 3.7KW 5.5KW 5.5KW 7.5KW Tension Control Method touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin. Inner Magnetic Powder Clutch 0.6kgf 1.2kgf 2.5kgf 5kgf Magnetic Powder Clutch 2.5kgf 5kgf 5kgf 10kgf Brake Mode Electromagnetic Brake Traversing Method Rolling ring drive units, winding pitch and breadth are adjustable. Operation Mode Touch Screen Operation
