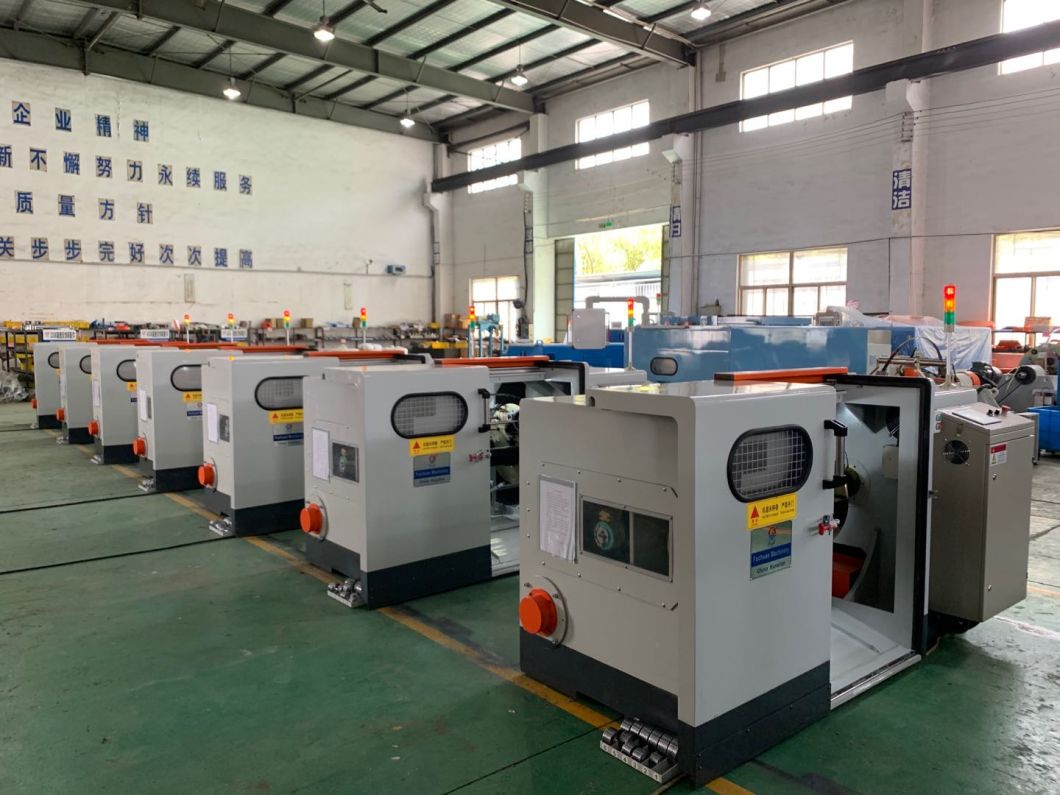

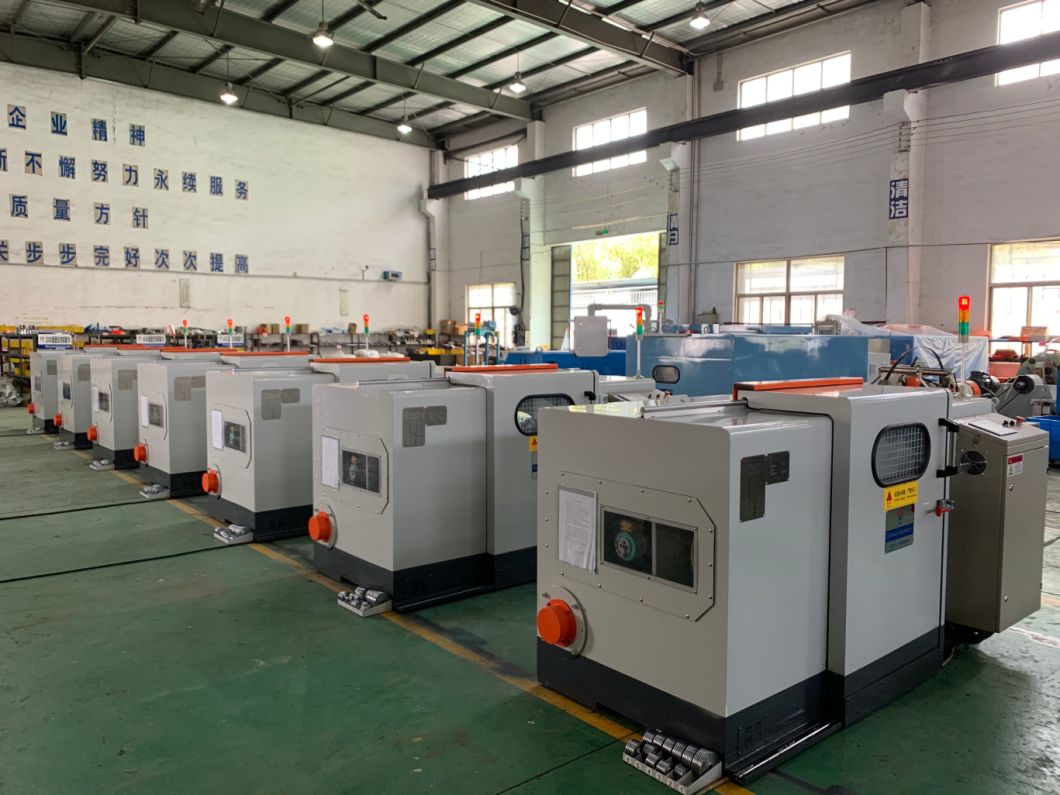

0.05-0.64mm Annealed Copper Conductor CCA Wire Bunchers Winding Twisting Bunching Machine
-
Electric
-
New
-
ISO, CE, ISO2001
-
12 Months
-
Automatic
-
>1,000,000 Shots
Main performance parameters of FC-500C automatic high speed bunching machine (replace of the capstan wheel to change the lay length).- Usage:It is applied to the stranding of bare copper wire, tinned wire, copper covered aluminum wire, lacquer wire and alloy wire and so on. 1+6 may twist instead of bunching.
Equipment model FC-500C FC-650C-1 FC-650C-2 FC-650C-3(PLC pitch) FC-800C Twisting usage Apply for automatic wire,electrical wire,power wire and so on(above seven pcs of bare copper wire,tinned wire,silver jacketed wires and enamelled wires) Single wire dia(mm) 0.08-0.45 0.15-0.52 0.12-0.52 0.12-0.52 0.2-1.04 Stranding section area 0.05-1.5 0.5-6 0.3-2.5 0.3-2.5 1-6 Pitch(mm) 4-34.5 11.6-100 11.6-67 20-68 13.8-100 Direction of lay Optional for right or left Take up size 400-500 500-630 630-800 Max rotating speed 3000(6000TPM) 2300(4600TPM) 2600(5200TPM) 1800(3600TPM) Main motor power 5.5KW 11KW 15KW Tension control method Touchscreen+PLC+magnetic powder clutch,ensure the constant tension from empty to full bobbin Hysteresis clutch+pressure sensor closed loop control,constant tension from empty to full Servo motor take up Touchscreen+PLC+magnetic powder clutch,ensure the constant tension from empty to full bobbin protection Internal and external wire cut off automatic brake(electromagnetic brake),automatic shut down when the meters reaches Traverse method Precious traverse or screw type polish wire traverse,winding pitch and width are adjustable Main bearing lubrication:automatic lubrication
