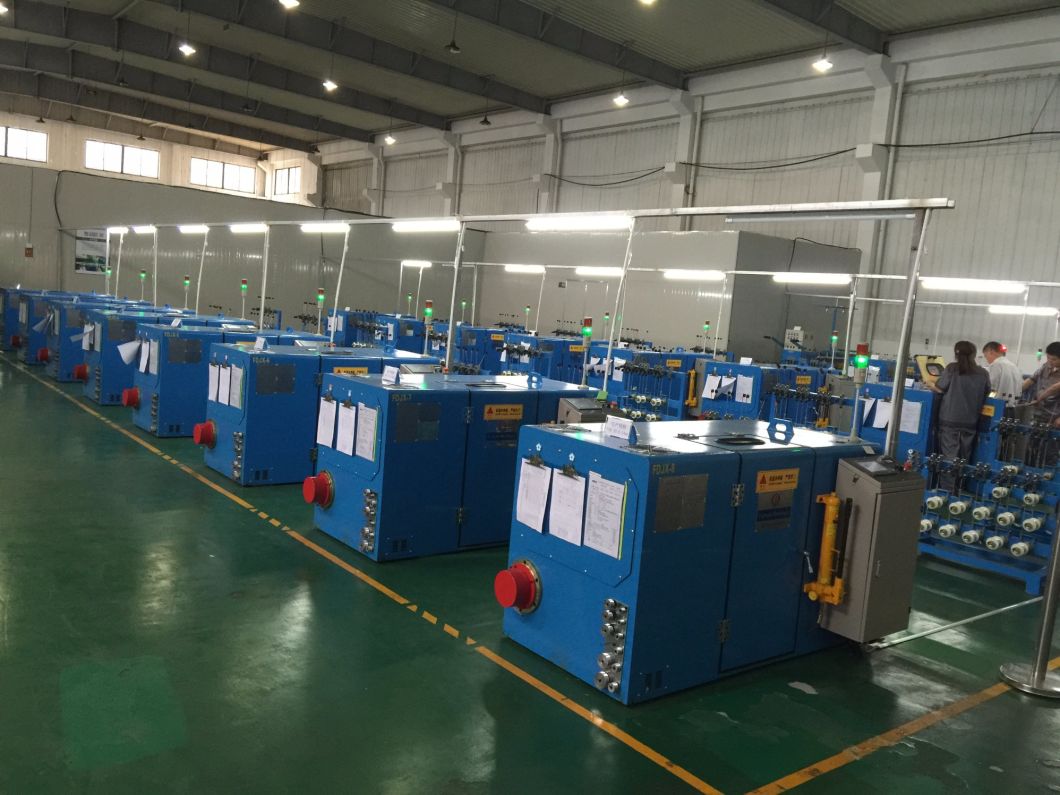

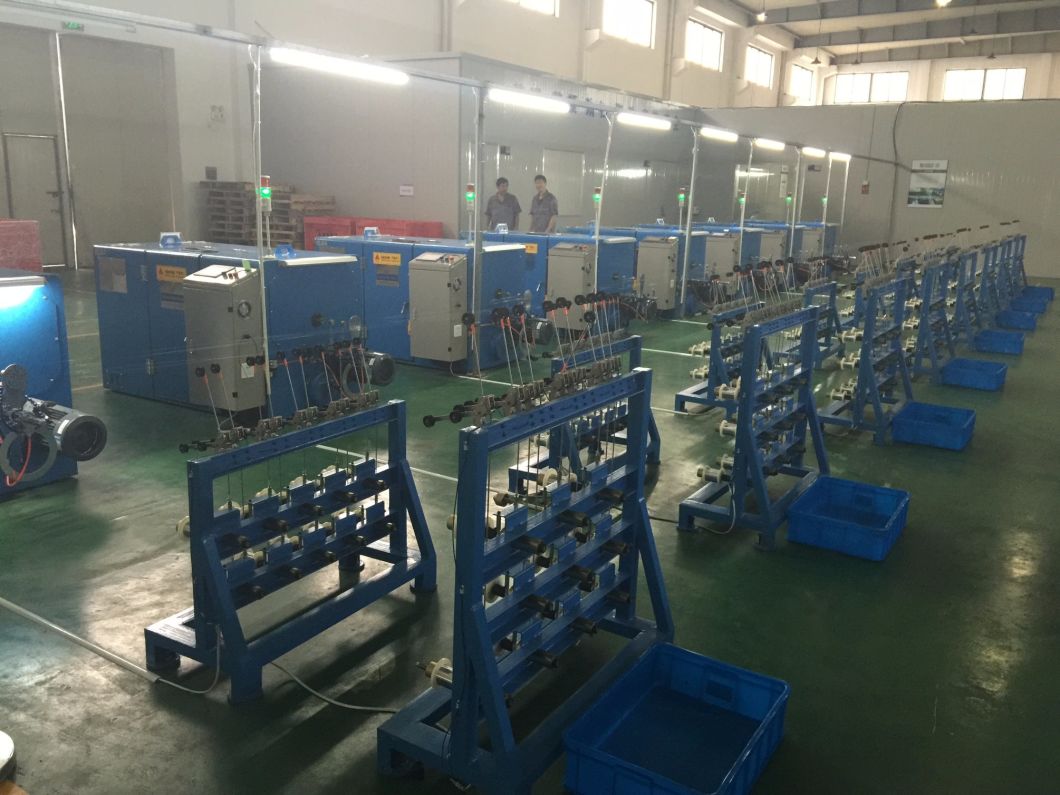

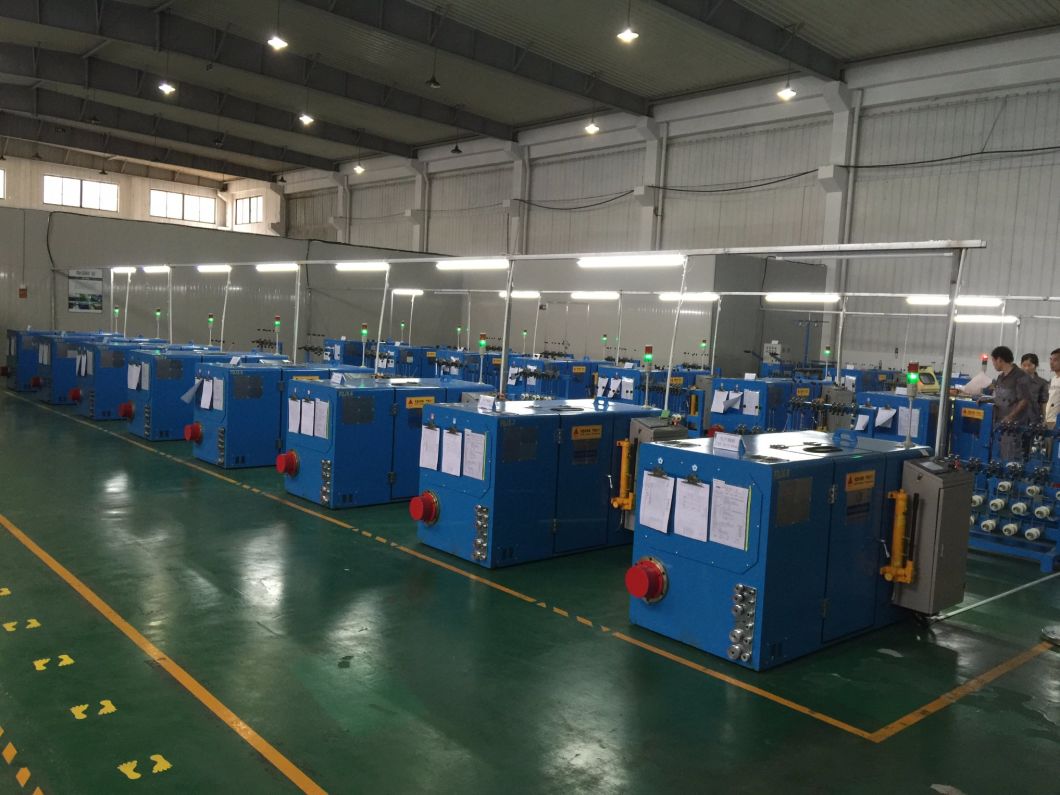

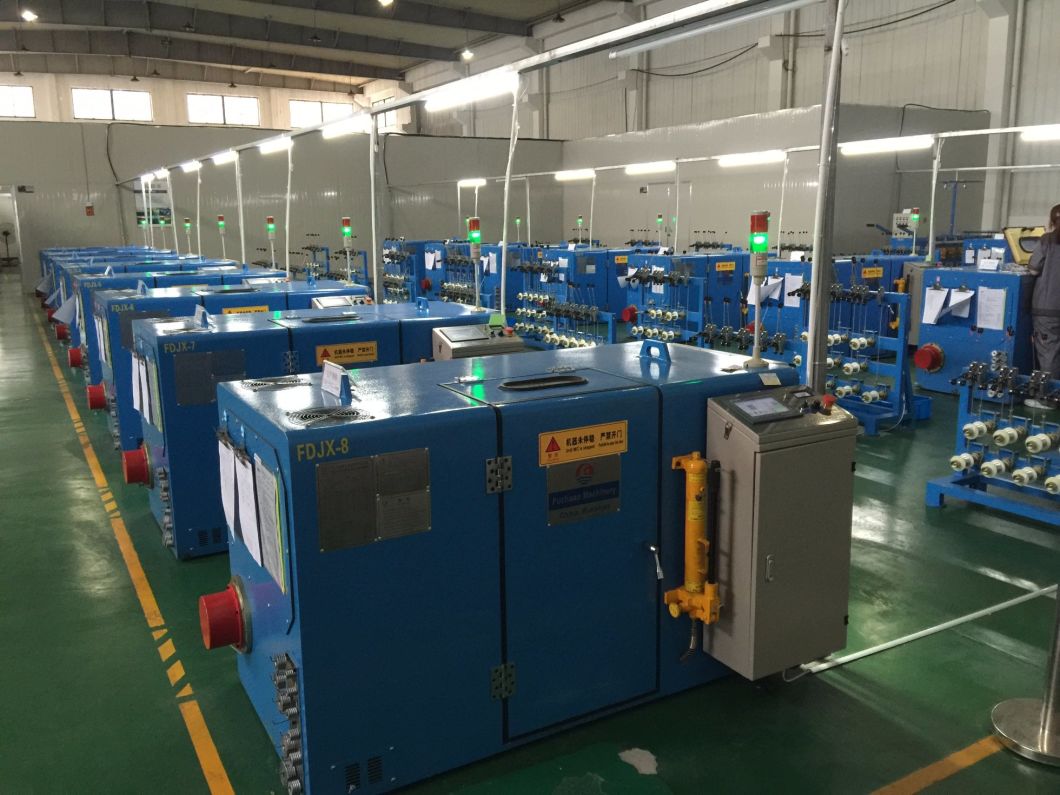

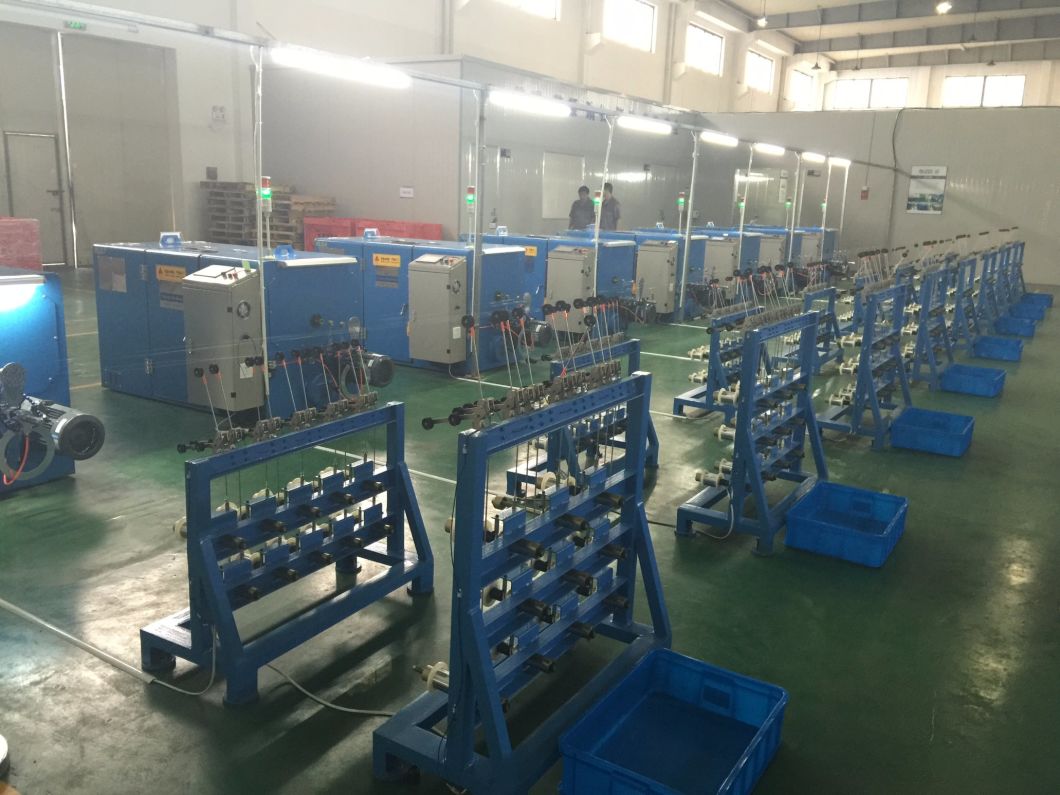

0.05-0.64mm Copper Cable Wire Unilay Twisting Machinery Bunching Stranding Winding Wire Making Machine

1. Merits:
With high rotation speed, with the main shaft counts the meters, the same machine twist the types of the same line, and the tolerance is only 0.0001%. With constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up FC-100 active back-twist pay-off machine. And meet requirements of customer to twist wire of small crossection area. The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate.
2. Apllication:
It is applied to the bunching of aerospace, medical equipment, cellphone and ultra conductor(above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wires).

3. Tech. Parameter:
Single Wire Dia: φ 0.05~φ 0.28mm
Stranding Section Area: 0.0137~0.45mm2
Pitch: 1.6-17.1(24 phase)
Direction of Lay: Optional for right or left
Take-up Bobbin: φ 300*φ 30*160
Max Rotating Speed: 3000(6000twist)
Main Motor Power: 3.7KW
Inverter Power: 3.7KW
Tension Control Method: Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin.
Magnetic Powder Clutch: 0.6kgf
Protection: Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake Mode: Electromagnetic Brake
Traversing Method: Rolling ring drive units, winding pitch and breadth are adjustable.
Operation Mode: Touch Screen Operation
Dimension: 2500L*1120W*1430H

For more details, please contact me.
