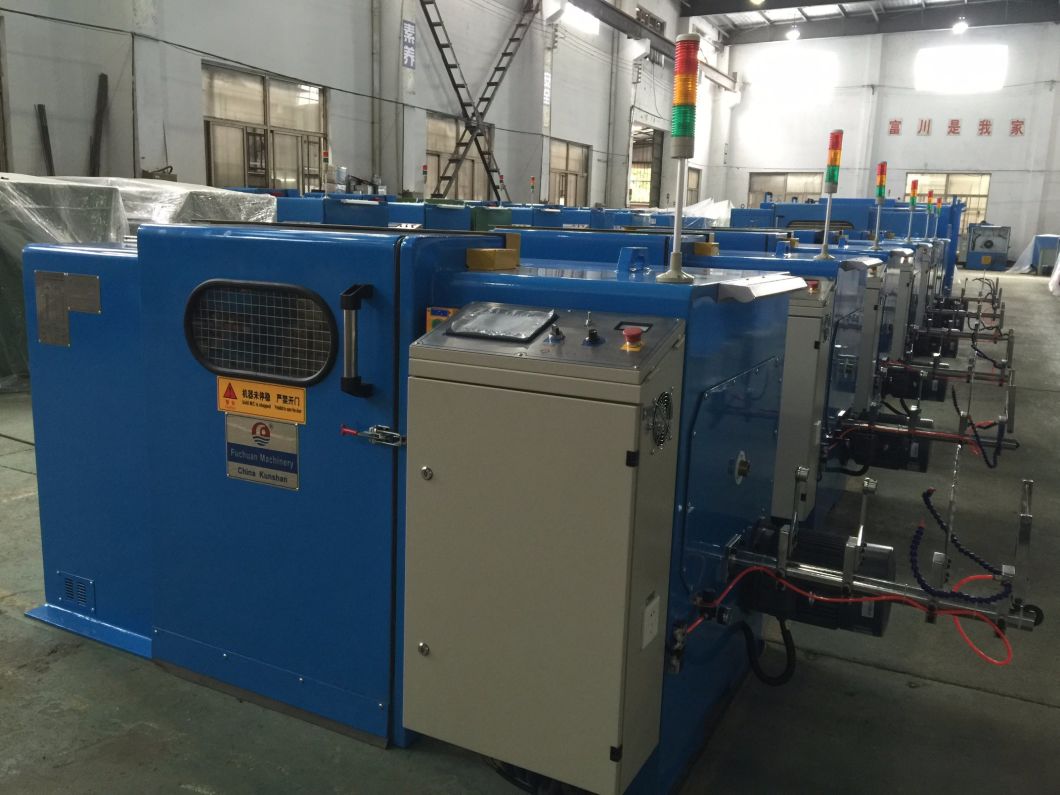

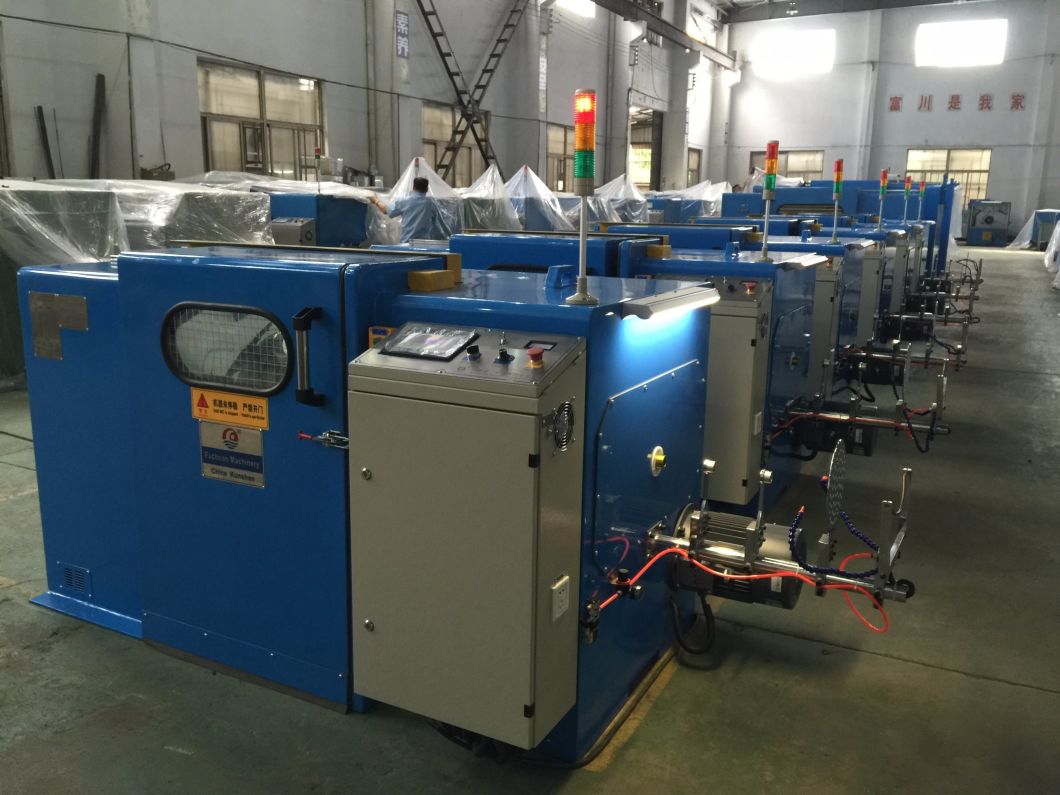

0.05-0.64mm Copper Wire Annealed Tinned Wire Twisting Bunching Stranding Extrusion Machine
-
Electric
-
New
-
12 Months
-
Automatic
-
>1,000,000 Shots
-
Aerospace, Medical Equipment, Cellphone and Ultra
Japanese technology,product in China
Characteristics:Newly developed,with high rotating speed,with constant tension from empty to full bobbin,
with high quality products.This machine with pressure sensor,can check the tension on line,revert back
and rectify the tension figure;can also add the web control system,can sums several sets of machines
working information to one computer or mobile,then check the working condition of machines at any time,
such as :rotating speed,twisting specification,output and so on. to realize the far distance check and maintenance,so reach the fine management,lower the production and maintenance fees.
Equipment model:FC-650B
Twisting usage: Apply for automobile wire,electrical wire,power wire and so on(above seven pcs of bare copper wire,tinned wire,silver jacketed wires and enamelled wires)
Single wire diameter: dia0.16-1.04mm
Stranding section area: 0.40-6 sq mm
Pitch: 11.6-100
Take up bobbin size: dia630*56*475mm
Max rotating speed: 2000RPM(4000TPM)
Main motor power:7.5kw
Tension control method: touchscreen+PLC+magnetic powder clutch,ensure the constant tension from empty to full bobbin.
Japanese technology,product in China
Characteristics:Newly developed,with high rotating speed,with constant tension from empty to full bobbin,
with high quality products.This machine with pressure sensor,can check the tension on line,revert back
and rectify the tension figure;can also add the web control system,can sums several sets of machines
working information to one computer or mobile,then check the working condition of machines at any time,
such as :rotating speed,twisting specification,output and so on. to realize the far distance check and maintenance,so reach the fine management,lower the production and maintenance fees.
Equipment model:FC-650B
Twisting usage: Apply for automobile wire,electrical wire,power wire and so on(above seven pcs of bare copper wire,tinned wire,silver jacketed wires and enamelled wires)
Single wire diameter: dia0.16-1.04mm
Stranding section area: 0.40-6 sq mm
Pitch: 11.6-100
Take up bobbin size: dia630*56*475mm
Max rotating speed: 2000RPM(4000TPM)
Main motor power:7.5kw
Tension control method: touchscreen+PLC+magnetic powder clutch,ensure the constant tension from empty to full bobbin.
