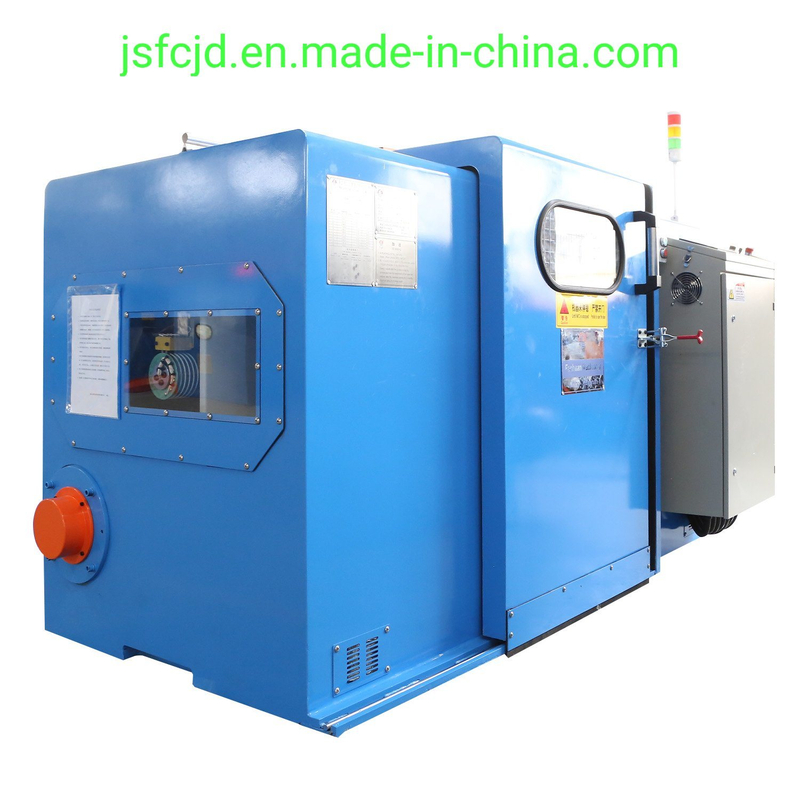

0.05-2.14mm Copper Cable Conductor Wire Bunchers Stranding Bunching Twisting Making Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
<300,000 Shots
Japanese technology,production in China
Series for model B Ultra-fine high speed bunching machine
1. Characteristics:
With high rotation speed, with the main shaft counts the meters, the same machine twist the types of the same line, and the tolerance is only 0.0001%. With constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up FC-100 active back-twist pay-off machine. And meet requirements of customer to twist wire of small crossection area. The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate.
2. Application:
It is applied to the bunching of aerospace, medical equipment, cellphone and ultra conductor(above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wires).
3. Tech. Parameter:
Equipment model FC-200B FC-250B FC-300B FC-400B Twisting usage Apply for the twisting of above seven pcs of aerospace,medical instrument,cellphone,notebook PC and ultra fine conductor,alloy wire,tinned wires,silver jacketed wires and enameled wires),double twisting for core wires. Single wire diaφ(mm) 0.016-0.08 0.03-0.18 0.05-0.28 0.05-0.32 Stranding section area 0.0014-0.035 0.0049-0.3 0.0137-0.45 0.0137-1.0 Pitch(mm) 0.8-4.0 0.8-10.8 1.6-21.6 3.1-33.3 Direction of lay Optional for right or left Take up bobbin(mm) Dia200 Dia250 Dia300-250 Dia400 Max rotating speed 5000rpm(10000TPM) 4000rpm(8000TPM) 3500rpm(7000TPM) 3500rpm(7000TPM) Main motor power 2.2kw 3.7kw 3.7kw 3.7kw Inverter power 2.2kw 3.7kw 3.7kw 3.7kw Tension control method Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin Magnetic powder clutch 0.05kgf 0.3kgf 0.6kgf 0.6kgf Protection 1.wire inside and outside is broken,automatically brake/stop
2.The preset length is arrivedBrake mode Electromagnetic brake Traversing method Rolling wire with ring drive units,winding pitch and breadth are adjustable Operation mode Touchscreen operation Dimension(mm) 2000L*960W*1100H 2300L*1100W*1330H 2300L*1100W*1330H 2850L*1150W*1350H
For more details, please contact me.
