B type high speed twisting machine and double twist machine1. Characters:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, the machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch, easy to operate.
2. Usage:
It is applied to the twisting of above 7 pcs of bare copper wires, tinned wires, silver jacketed wires and enamelled wires and double twisting for core wires.
3. Parameters:Equipment model FC-500B FC-650B FC-650B-2 FC-800B Twisting usage Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enameled wires),double twisting for core wires. Single wire diaφ(mm) 0.08-0.45 0.15-1.04 0.37-1.7 0.37-1.7 Stranding section area 0.05-2.5 0.35-6.0 1.0-16 1.0-16 Core wire single wire diaφ(mm) 0.5-1.5 0.5-3.0 1.0-4.0 1.0-4.0 Core wire stranding outer dia(mm) 1.0-3.0 1.0-6.0 2.0-8.0 2.0-8.0 Pitch(mm) 6.3-52.3 11.6-100 20-160 23-147 Direction of lay Optional for right or left Take up bobbin(mm) Dia500 Dia630 Dia630 Dia800 Max rotating speed 3000rpm(6000TPM) 2000rpm(4000TPM) 1600rpm(3200TPM) 1600rpm(3200TPM) Main motor power 5.5kw 7.5kw 11kw 15kw Inverter power 5.5kw 7.5kw 11kw 15kw Tension control method Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin Magnetic powder clutch 1.2kgf 5kgf 10kgf 10kgf Protection 1.wire inside and outside is broken,automatically brake/stop
2.The preset length is arrivedBrake mode Electromagnetic brake Traversing method Rolling wire with ring drive units,winding pitch and breadth are adjustable Operation mode Touchscreen operation Dimension(mm) 2680L*1250W*1500H 3300L*1550W*1800H 3400L*1600W*1800H 4600L*2000W*2000H Quick Details:
Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
Characteristics:
1.1 High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire.1.2. Use shaft to calculate meters, less than 0.01% error for a certain wire&cable.
1.3. With FC-100 active back-twist pay-off machine to achieve bunching instead of twisting.
1.4. Especially for twisting small cross-section area.
1.5. Use synchronous belt drive,
1.6. Change guide wheel to change lay distance, easy to operate.
cable machinery manufacturers SpecifIcations:
Equipment Models FC-200B-6 FC-250B FC-300B FC-400B Twisting Usage Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires). Single Wire Dia(mm) 0.016~0.08 0.03~0.18 0.05~0.28 0.05~0.32 Stranding Section Area(mm²) 0.0014~0.035 0.0049~0.3 0.0137~0.45 0.0137~1.0 Pitch(mm) 0.8~4.0(14 classes) 0.8~10.8(24classes) 1.6~21.6(24classes) 3.1~33.3(24classes) Direction of Lay Free to right or left Take-up Bobbin(mm)
Outer dia*bore*outer width
200*31*135 300*30*185 250*30*185
300*30*185
300*30*185
400*56*300
Max Rotating Speed(rpm) 5000rpm(10000tpm) 4000rpm(8000tpm) 3500rpm(7000tpm) 3500rpm(7000tpm) Main Motor Power 2.2KW 3.7KW 3.7KW 3.7KW Inverter Power 2.2KW 3.7KW 3.7KW 3.7KW Tension Control Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin Magnetic Powder Clutch 0.05kgf 0.3kgf 0.6kgf 0.6kgf Protection automatically brake/stop 1)wire inside and outside is broken
2)the preset length is arrived
Brake Mode Electromagnetic brake Traversing Method Rolling wire with ring drive units, winding pitch and breadth are adjustable Operation Mode Touch Screen Operation Dimension L*W*H 2000*960*1100 2300*1100*1330 2300*1100*1330 2850*1150*1350
Model FC-1000B large wire high speed bunching machine and double twist bunching machine1.1 Japanese Technology, product in China
1.2 Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.
Characteristics:
2.1 Latest developed machine.
2.2 This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),
2.3 low power, small floor place ,low noise and other merits.
Specification:
Equipment models
FC-1000B
Twisting usage
Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.
Single wire dia(mm)
φ0.30-φ1.7
Stranding section area(mm²)
6.0-35.0
Core wire single wire dia
φ2.0-φ5.0
Core wire stranding outer dia
φ4.0-φ10
Pitch(mm)
35-200(12zones)
Direction of lay
Optional for right or left
Take up bobbin Outer dia*bore*outer width
φ1000*φ80*750
Max rotating speed
1000(2000twist)
Main motor power
18.5KW
Inverter power
18.5KW
Tension control method
Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch
20kgf
Protection
Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode
Electromagnetic brake
Traversing method
Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode
Touch screen operation
Dimension(mm)
4000L*2200W*2100H
Model FC-1600B large wire high speed bunching machine and double twist bunching machine
The technology of this machine is brought from Japan and put in production in JiangSu
Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.
Equipment models
FC-1600B
Twisting usage
It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.
Single wire dia(mm)
φ0.50-φ2.52
Stranding section area(mm²)
16.0-95
Core wire single wire dia
φ3.0-φ10.0
Core wire stranding outer dia
φ8.0-φ20.0
Pitch(mm)
80-350(12zones)
Direction of lay
Optional for right or left
Take up bobbin Outer dia*bore*outer width
φ1600*φ80*1180
Max rotating speed
600(1200twist)
Main motor power
30KW
Inverter power
30KW
Tension control method
Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch
40kgf
Protection
Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode
Electromagnetic brake
Traversing method
Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode
Touch screen operation
Dimension(mm)
5000L*3000w*3000H

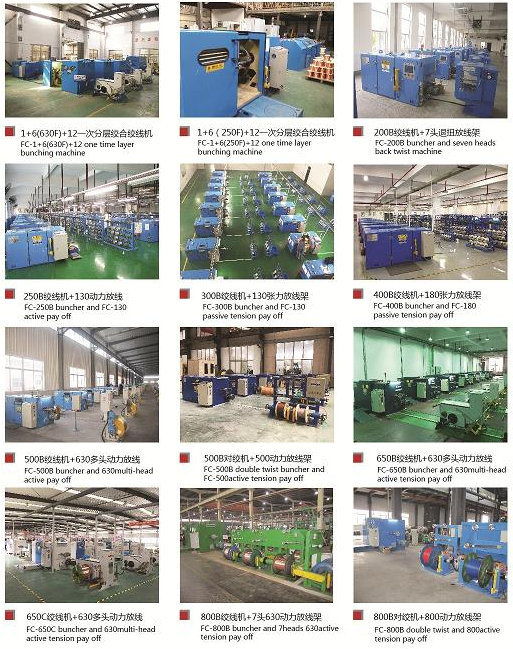

4. Machine Show

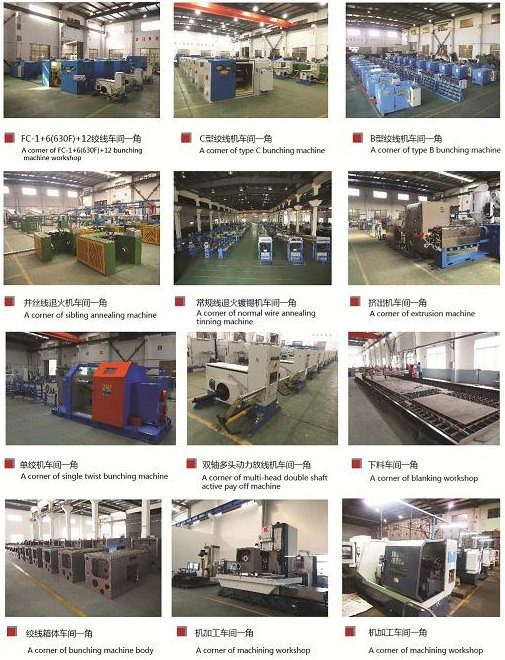

5. Cornor of Workshop
6. Customer Show
6. Fair Show
6. Certificates & Honor & Patents 7. For more details, please feel free to contact with me in any time:
And FUCHUAN always sincerely welcome for your visit and cooperation.Active Type Pay-off Wire Bunching Buncher stranding strander Machine 500 Bobbin With PLC control
