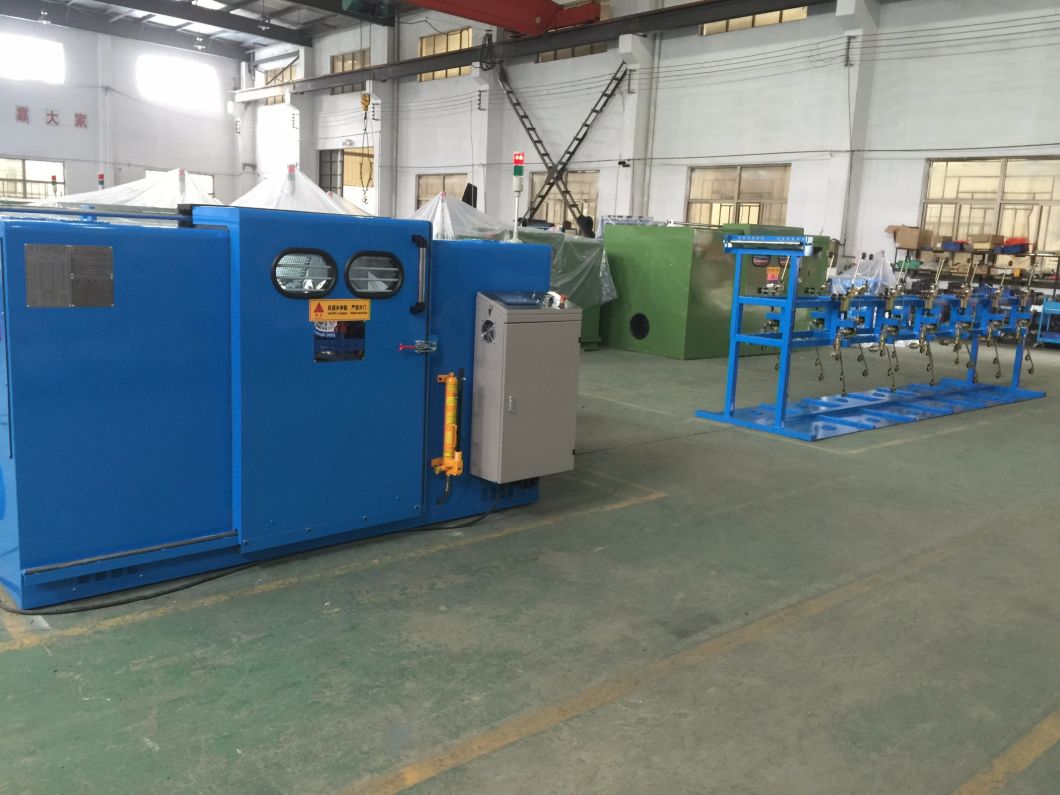

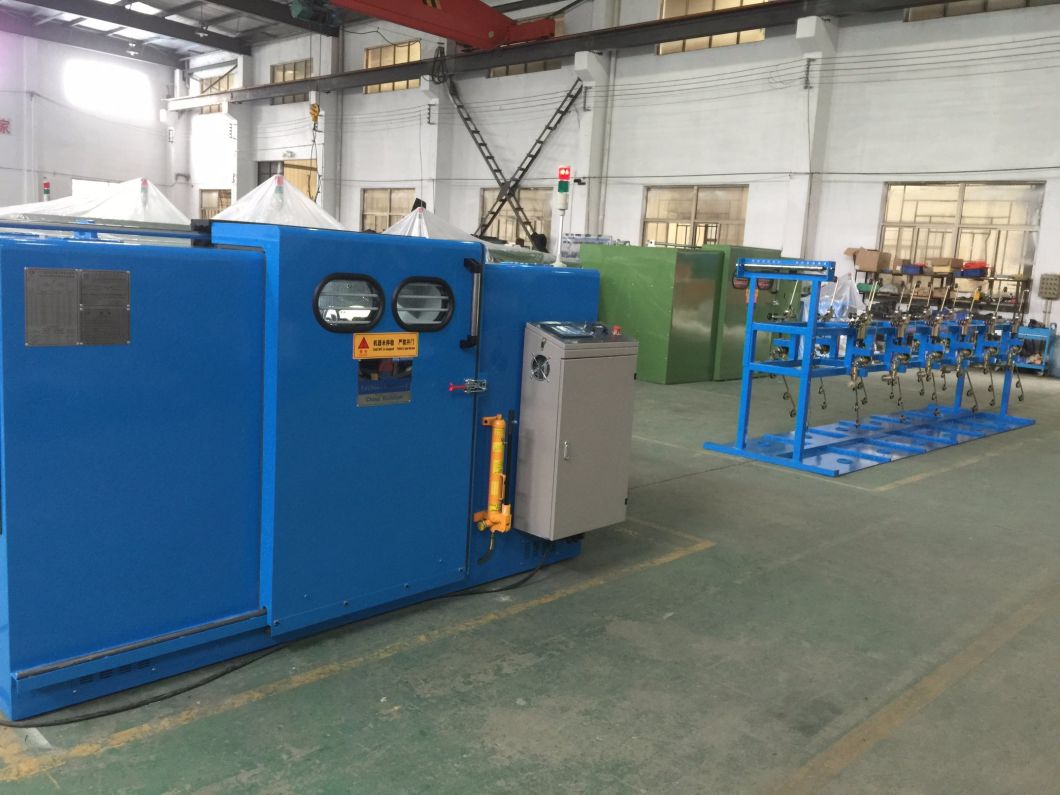

650p High Quality China Best High Speed Buncher Bunching Machine 3000rpm Core Wire Double Twister Machinery
-
12months
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
Series for model B wire high speed twisting machine and double twister
1 . Characters:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, the machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch, easy to operate.
2. Application:
It is applied to the twisting of above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wires and double twisting for core wires.The technology of this machine is brought from Japan and put in production in Jiangsu. Series for Model-B normal wire high speed bunching machine & double twisting machine Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire.The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate. Equipment Model FC-500B FC-650B FC-650C FC-800B Usage It is applied to the twisting of above 7pcs of bare copper wires,tinned wires,silver jacketed wires and enameled wires and double twisting for core wires. Single Wire Dia(mm) Φ0.08~0.45 Φ0.15~1.04 Φ0.12~0.52 Φ0.38~1.7 Stranding Section Area(mm²) 0.05~2.5 0.35~6.0 0.30~4.0 1.0~16 Core Wire Single Wire Dia(mm) Φ0.5~1.5 Φ0.5~3.0 Φ0.5~2.0 Φ1.0~4.0 Core Wire Stranding Outer Dia(mm) Φ1.0~3.0 Φ1.0~6.0 Φ1.0~4.0 Φ2.0~8.0 Pitch(mm) 6.3-52.3(24pcs pitch) 11.6-100(34pcs pitch) 11.6-100(34pcs pitch) 23-147(20pcs pitch) Direction of Lay optional for right or left Take-up Bobbin(mm) Φ500*Φ56*375/Φ500*Φ127*375 Φ630*Φ56*475/Φ630*Φ127*475 Φ630*Φ56*475/Φ630*Φ127*475 Φ800*φ80*600 Max Rotating Speed(rpm) 3000(6000twist) 2000(4000twist) 2400(4800twist) 1500(3000twist) Main Motor Power 5.5KW 7.5KW 11KW 15KW Inverter Power 5.5KW 7.5KW 11KW 15KW Tension Control Method Touch screen+PLC+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin. Magnetic Powder Clutch 1.2kgf 5kgf 2.5kgf 10kgf Protection Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived. Brake Mode Electromagnetic Brake Traversing Method Rolling ring drive units, winding pitch and breadth are adjustable. Operation Mode Touch Screen Operation Dimension(mm) 2680L*1250W*1500H 3300L*1550W*1800H 3300L*1550W*1800H 4600L*2000W*2000H
