Automatic Wire cable buncher double twist buncher cable bunching machine
Touch Screen Automatic Wire Twister buncher strander For Enamelled Wire / Bare Copper Wires bunching twisting stranding machine cable wire machineryChina Best wire bunching buncher machine wire stranding strander annealing tinning machine wire cable making machine extruder extrusion line sheathing machine
wire machine cable making machine stranding machine bunching machine buncher twisting machine annealing tinning machine extrusion machine extruding machine
Copper Aluminum Wire cable bunching machine stranding machine buncher
twisting machine wire buncher bunching machine
B type high speed twisting machine and double twister machine1. Characters:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, the machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch, easy to operate.
2. Usage:
It is applied to the twisting of above 7 pcs of bare copper wires, tinned wires, silver jacketed wires and enamelled wires and double twisting for core wires.
3. Parameters:Equipment model FC-500B FC-650B FC-650B-2 FC-800B Twisting usage Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enameled wires),double twisting for core wires. Single wire diaφ(mm) 0.08-0.45 0.15-1.04 0.37-1.7 0.37-1.7 Stranding section area 0.05-2.5 0.35-6.0 1.0-16 1.0-16 Core wire single wire diaφ(mm) 0.5-1.5 0.5-3.0 1.0-4.0 1.0-4.0 Core wire stranding outer dia(mm) 1.0-3.0 1.0-6.0 2.0-8.0 2.0-8.0 Pitch(mm) 6.3-52.3 11.6-100 20-160 23-147 Direction of lay Optional for right or left Take up bobbin(mm) Dia500 Dia630 Dia630 Dia800 Max rotating speed 3000rpm(6000TPM) 2000rpm(4000TPM) 1600rpm(3200TPM) 1600rpm(3200TPM) Main motor power 5.5kw 7.5kw 11kw 15kw Inverter power 5.5kw 7.5kw 11kw 15kw Tension control method Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin Magnetic powder clutch 1.2kgf 5kgf 10kgf 10kgf Protection 1.wire inside and outside is broken,automatically brake/stop
2.The preset length is arrivedBrake mode Electromagnetic brake Traversing method Rolling wire with ring drive units,winding pitch and breadth are adjustable Operation mode Touchscreen operation Dimension(mm) 2680L*1250W*1500H 3300L*1550W*1800H 3400L*1600W*1800H 4600L*2000W*2000H

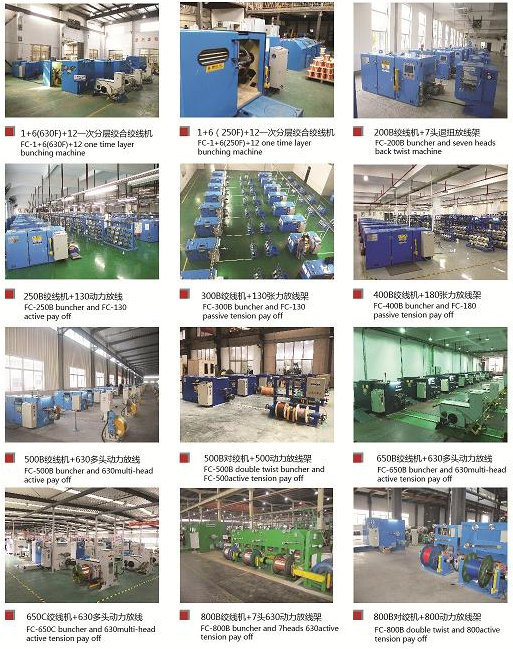

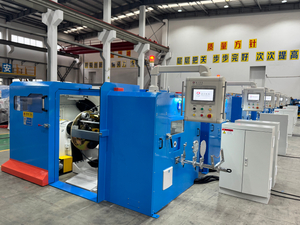

4. Machine Show

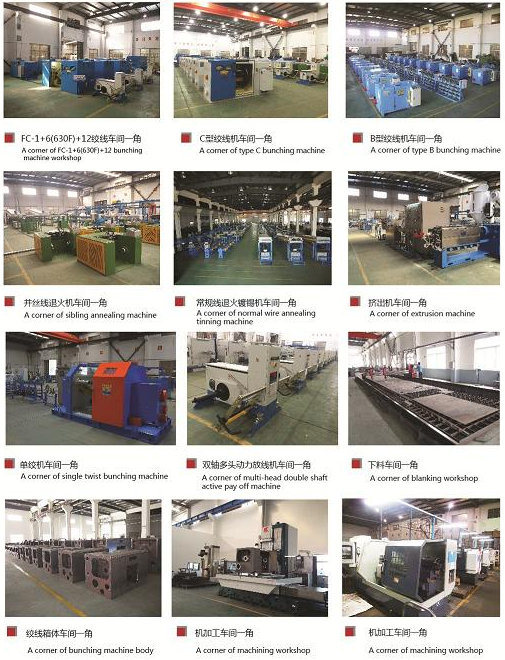

5. Cornor of Workshop
6. Customer Show
6. Fair Show
6. Certificates & Honor & Patents
7. For more details, please feel free to contact with me in any time:
And FUCHUAN always sincerely welcome for your visit and cooperation.
We are also seeking to be your good partner and supplier.
