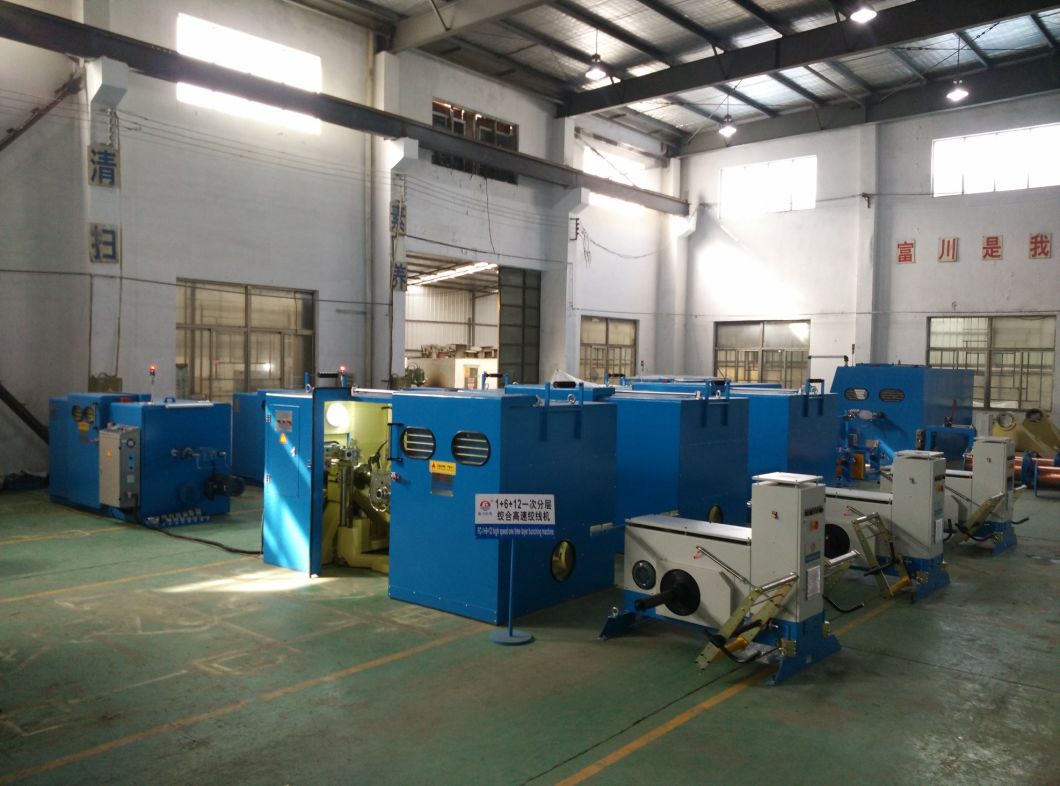

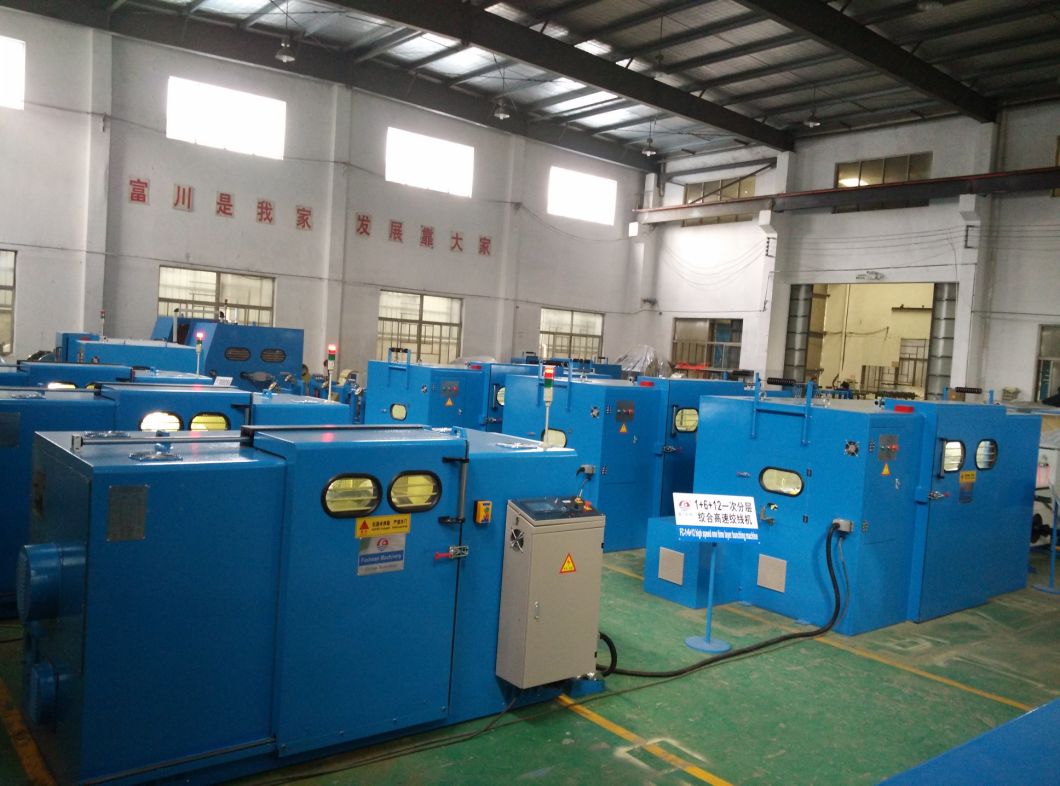

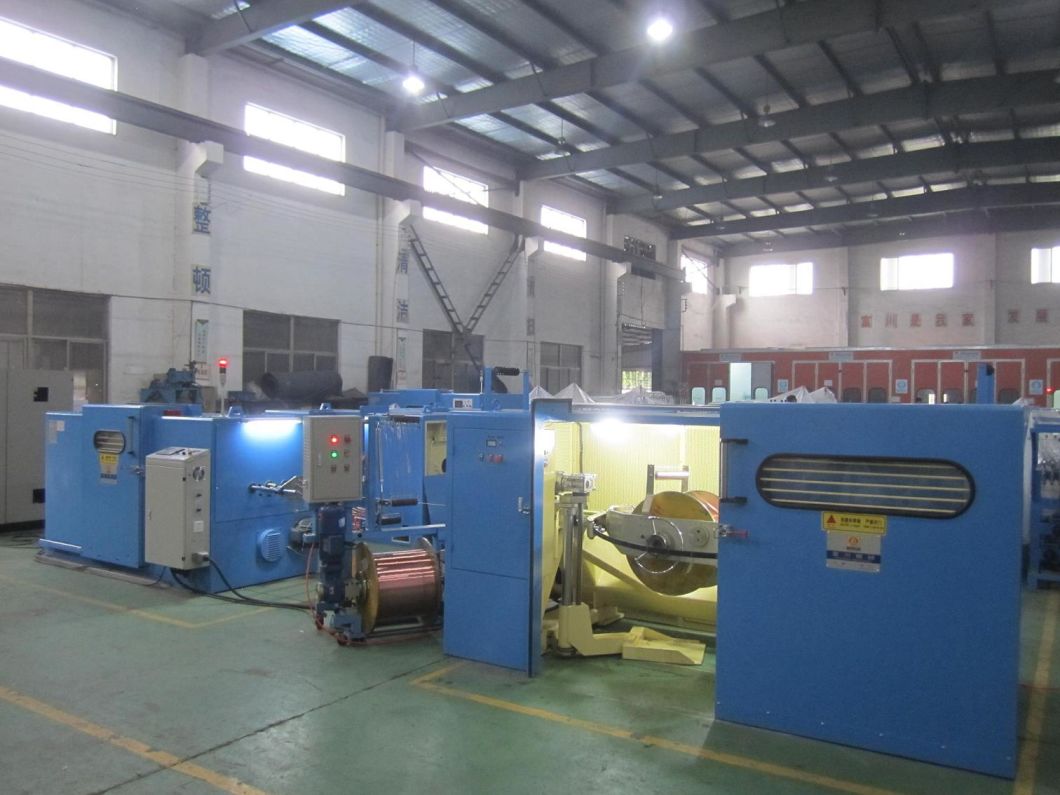

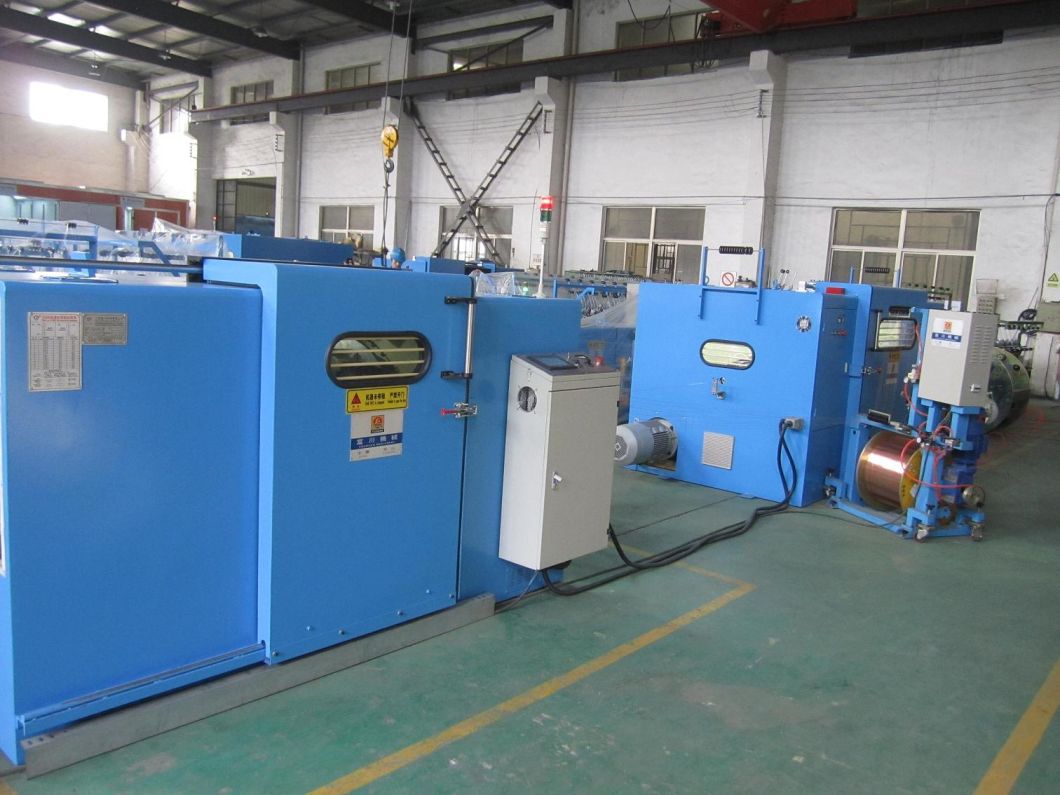

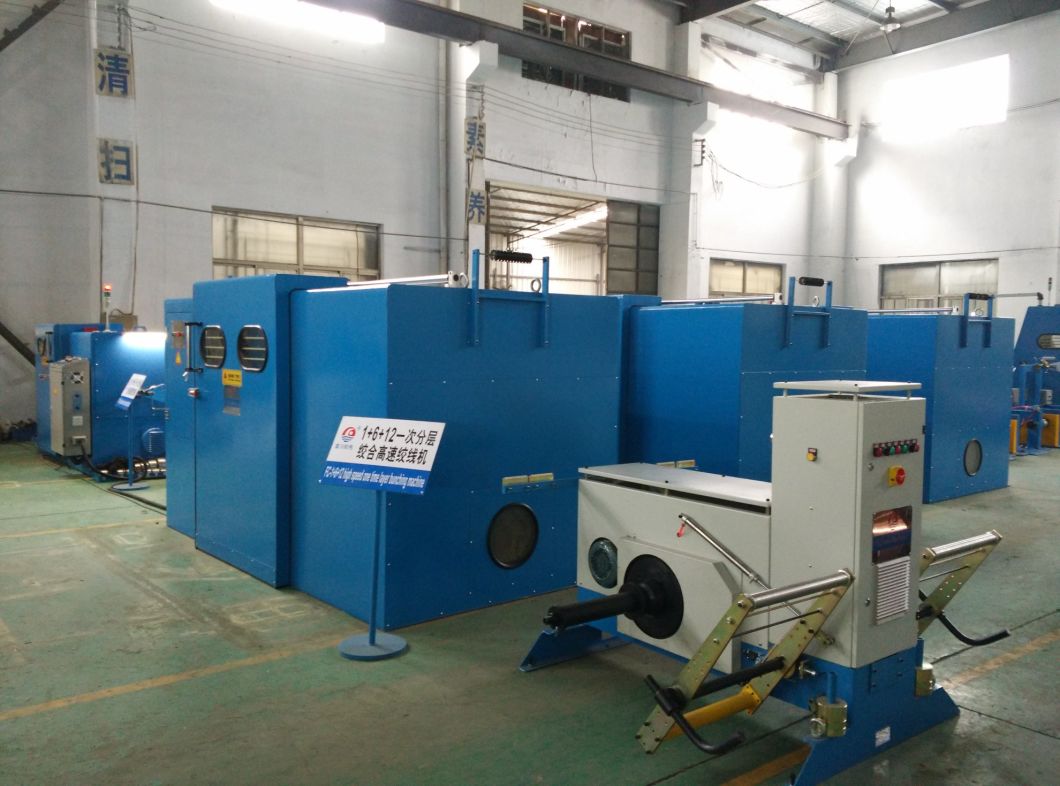

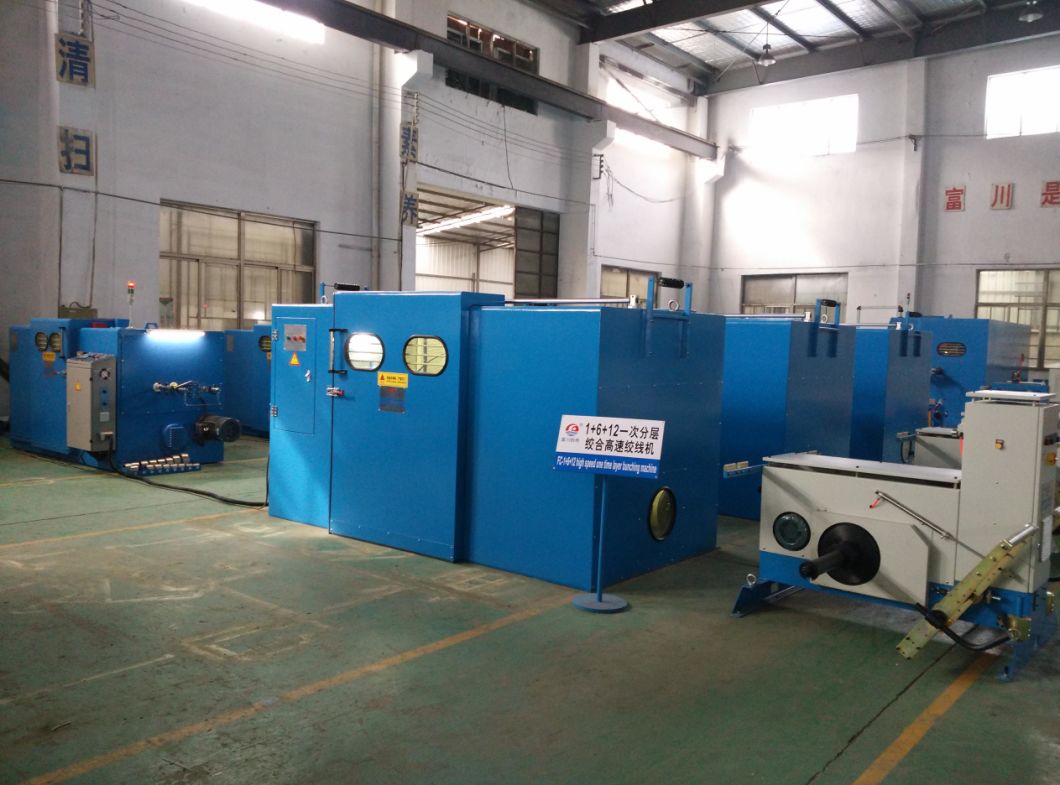

Bare Cable Copper Wire 0.03-2.52mm Buncher Bunching Twisting Enamelling Making Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
300,000-1,000,000 Shots
Merits:It is the latest developed machine.This machine replace the model 200tube bunching machine with the high productivity.It is mainly produce 19pcs of wire twist at one time,and its capacity is 4.5times of the 200 tube bunching machine,low power,small floor place,low noise and other merits.
equipment model 1+6(630F)+12 1+6(800F)+12 equipment composition 650B buncher+630F twisting machine+630multiple drawing bobbins active pay off machine 800B buncher+800F twisting machine+800multiple drawing bobbins active pay off machine. twisting usage It is applicable to bunching 19pcs BVR copper wire in one time. single wire diameter(mm) Φ0.16~Φ0.64 stranding section area(mm²) 0.38~6.0 pitch 11.6-100(34pcs pitch) 23-160(22 pcs pitch) direction of lay optional for right or left pay off bobbin Φ630*Φ127*475 Φ800*Φ127*600 pay off type active pay off/magnetic pay off take up bobbin Φ630*Φ127*475 Φ800*Φ127*600 1+6 max speed 2000(4000twist) 1500(3000twist) main machine max rotating speed 2000(4000twist) 1200(2400twist) total power 21KW 35KW take up tension control method touch screen+PLC+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin take up magnetic clutch 5kgf 10kgf protection machine will automatically brake when wire inside and outside is broken,machine will automatically stop when the preset length is arrived. brake mode electromagnetic brake traverse type rolling ring drive units,windling pitch and breadth are adjustable operation mode touch screen operation Merits:It is the latest developed machine.This machine replace the model 200tube bunching machine with the high productivity.It is mainly produce 19pcs of wire twist at one time,and its capacity is 4.5times of the 200 tube bunching machine,low power,small floor place,low noise and other merits.
