Bare Copper Wire 0.05-0.64mm Unilay Twisting Winding Stranding Double Twist Bunching Bunchers Making Machine
-
12months
-
Electric
-
New
-
ISO, ISO2001
-
12 Months
-
Automatic
1. Characters:
With high rotation speed, with the main shaft counts the meters, the same machine twist the types of the same line, and the tolerance is only 0.0001%. With constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up FC-100 active back-twist pay-off machine. And meet requirements of customer to twist wire of small crossection area. The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate.
2. Application:

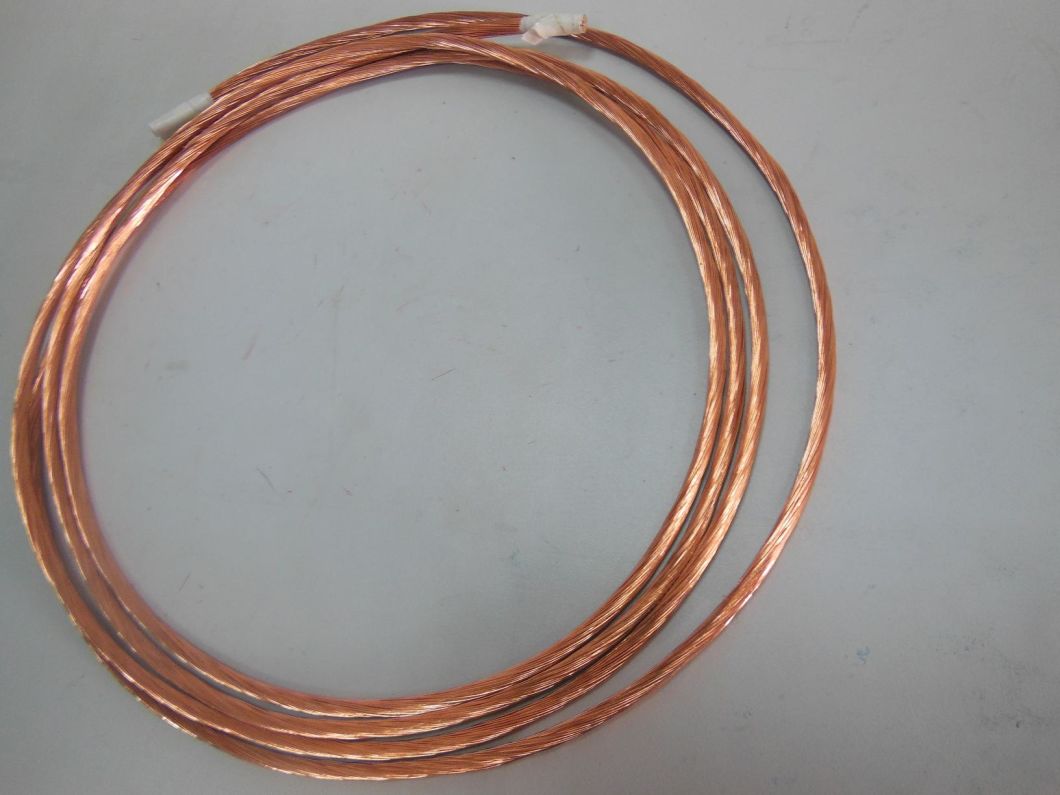

It is applied to the bunching of aerospace, medical equipment, cellphone and ultra conductor(above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wires).Equipment Model FC-200B FC-250B FC-300B FC-400B Usage It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above 7 pcs of bare copper wires,tinned wires, silver jacketed wires and enamelled wires),double twisting for core wires. Single Wire Dia(mm) Φ0.016~0.08 Φ0.03~0.18 Φ0.05~0.28 Φ0.05~0.32 Stranding Section Area(mm²) 0.0014~0.035 0.0049~0.3 0.0137~0.45 0.0137~1.0 Pitch(mm) 0.8-4.0(14pcs pitch) 0.8-10.8(24pcs pitch) 1.6-21.6(24pcs pitch) 3.1~33.3(24pcs pitch) Direction of Lay optional for right or left Take-up Bobbin(mm) Φ200*Φ31*135 Φ250*Φ30*185 Φ250*Φ30*185 Φ300*Φ30*185 Φ300*Φ30*185 Φ400*Φ56*300 Max Rotating Speed(rpm) 5000(10000twist) 4000(8000twist) 3500(7000twist) 3500(7000twist) Main Motor Power 2.2KW 3.7KW 3.7KW 3.7KW Inverter Power 2.2KW 3.7KW 3.7KW 3.7KW Tension Control Method touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin. Magnetic Powder Clutch 0.05kgf 0.3kgf 0.6kgf 0.6kgf Protection Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived. Brake Mode Electromagnetic Brake Traversing Method Rolling ring drive units, winding pitch and breadth are adjustable. Operation Mode Touch Screen Operation Dimension(mm) 2000L*960W*1100H 2300L*1100W*1330H 2300L*1100W*1330H 2850L×1150W×1350H
