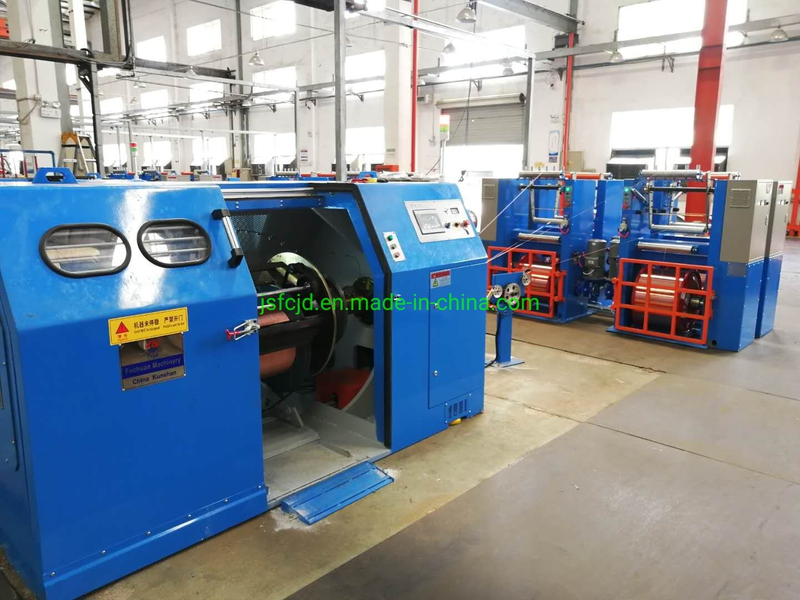

Bvr Rvv Cable Wire Twisting Double Twister Bunching Buncher Copper Wire Twist Winding Machine
-
Electric
-
New
-
CCC, ISO, CE
-
12 Months
-
Automatic
-
>1,000,000 Shots
FC-1+6+12 Syn- Layered Twisting Series( Multi-wires on 630 Large Bobbins Pay Off )
FC-1+6+12 Syn- Layered Twisting Series(Small Bobbin Single Wire Pay Off)
1+6+12 High Speed Unilay Buncher for Bvr High Temperature Wire Compacted Wire Bunching Buncher Cable Twisting Machine for 19 PCS 0.41 / 0.52 / 0.64mm Buncher
1+6+12 Buncher Twister 19 PCS Bare Copper Aluminium Wire Bunching Buncher Cable Stranding Machine Strander Machine for 19 PCS 0.41 / 0.52 / 0.64mm Wire Buncher
Touch Screen Automatic Wire Twister buncher strander For Enamelled Wire / Bare Copper Wires bunching twisting stranding machine cable wire machinery
1+6+12 High Speed Buncher Twister 19 PCS Bare Copper Aluminium Wire Bunching Buncher Cable Stranding Twisting Machine for 19 PCS 0.41 / 0.52 / 0.64mm BuncherChina Best wire bunching buncher machine wire stranding strander annealing tinning machine wire cable making machine extruder extrusion line sheathing machine
wire machine cable making machine stranding machine bunching machine buncher twisting machine annealing tinning machine extrusion machine extruding machine
Copper Aluminum Wire cable bunching machine stranding machine buncher
twisting machine wire buncher bunching machine
B type high speed twisting machine and double twister machine1. Characters:
New Developed, completely replace the 200 Tubular strander products, mainly for BVR and high temperature conductor lines (such as: 19 / 0.41,19 / 0.52,19 / 0.64). Syn- layered twisting ( same direction"S+S" or different direction "Z+S"), consist of two process: 1+6 twisted and (1 + 6) + 12 twisted, use Multi-wires 630 Bobbins pay off, low frequency changer, greatly reduce production costs, improve work efficiency,Capacity is 5 times than 200 Tubular strander, energy saving 50% per hour. Whatsmore, the host machine can stranding multi-strand conductor alone. Energy-saving, small size, low noise etc.
1+6+12 High Speed Unilay Buncher for Bvr High Temperature Wire Compacted Wire Bunching Buncher Cable Twisting Machine for 19 PCS 0.41 / 0.52 / 0.64mm Buncher
2. Usage:
It is applied to the twisting of above 7 pcs of bare copper wires, tinned wires, silver jacketed wires and enamelled wires and double twisting for core wires.
For more details or catalogs for the 1+6+12 wire buncher, please email us or phone us. Thank you.
3. Parameters:Equipment model FC-500B FC-650B FC-650B-2 FC-800B Twisting usage Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enameled wires),double twisting for core wires. Single wire diaφ(mm) 0.08-0.45 0.15-1.04 0.37-1.7 0.37-1.7 Stranding section area 0.05-2.5 0.35-6.0 1.0-16 1.0-16 Core wire single wire diaφ(mm) 0.5-1.5 0.5-3.0 1.0-4.0 1.0-4.0 Core wire stranding outer dia(mm) 1.0-3.0 1.0-6.0 2.0-8.0 2.0-8.0 Pitch(mm) 6.3-52.3 11.6-100 20-160 23-147 Direction of lay Optional for right or left Take up bobbin(mm) Dia500 Dia630 Dia630 Dia800 Max rotating speed 3000rpm(6000TPM) 2000rpm(4000TPM) 1600rpm(3200TPM) 1600rpm(3200TPM) Main motor power 5.5kw 7.5kw 11kw 15kw Inverter power 5.5kw 7.5kw 11kw 15kw Tension control method Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin Magnetic powder clutch 1.2kgf 5kgf 10kgf 10kgf Protection 1.wire inside and outside is broken,automatically brake/stop
2.The preset length is arrivedBrake mode Electromagnetic brake Traversing method Rolling wire with ring drive units,winding pitch and breadth are adjustable Operation mode Touchscreen operation Dimension(mm) 2680L*1250W*1500H 3300L*1550W*1800H 3400L*1600W*1800H 4600L*2000W*2000H 1+6+12 High Speed Unilay Buncher for Bvr High Temperature Wire Compacted Wire Bunching Buncher Cable Twisting Machine for 19 PCS 0.41 / 0.52 / 0.64mm Buncher

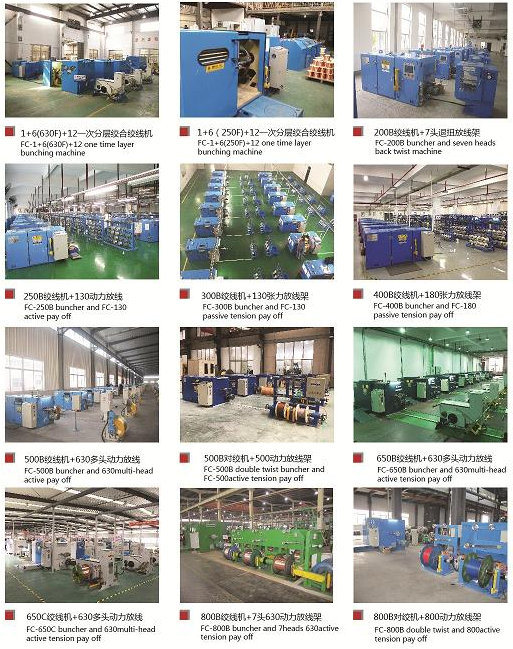

4. Machine Show

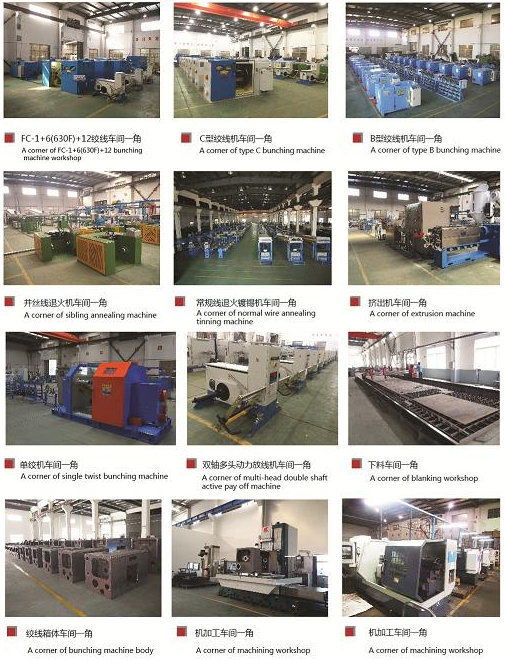

5. Cornor of Workshop
6. Customer Show
6. Fair Show
6. Certificates & Honor & Patents
7. For more details, please feel free to contact with me in any time:
And FUCHUAN always sincerely welcome for your visit and cooperation.
We are also seeking to be your good partner and supplier.
