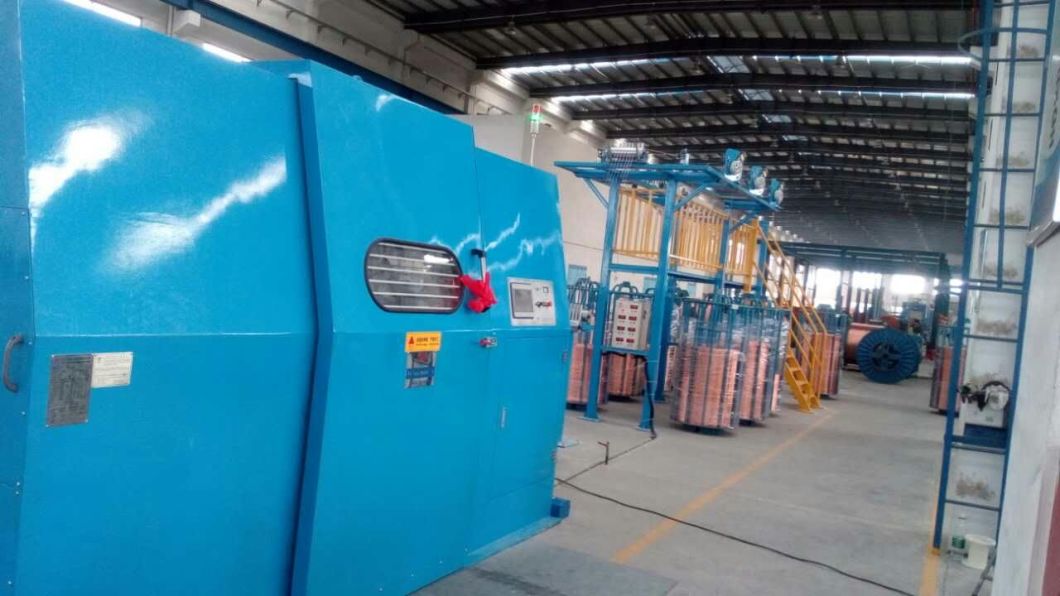

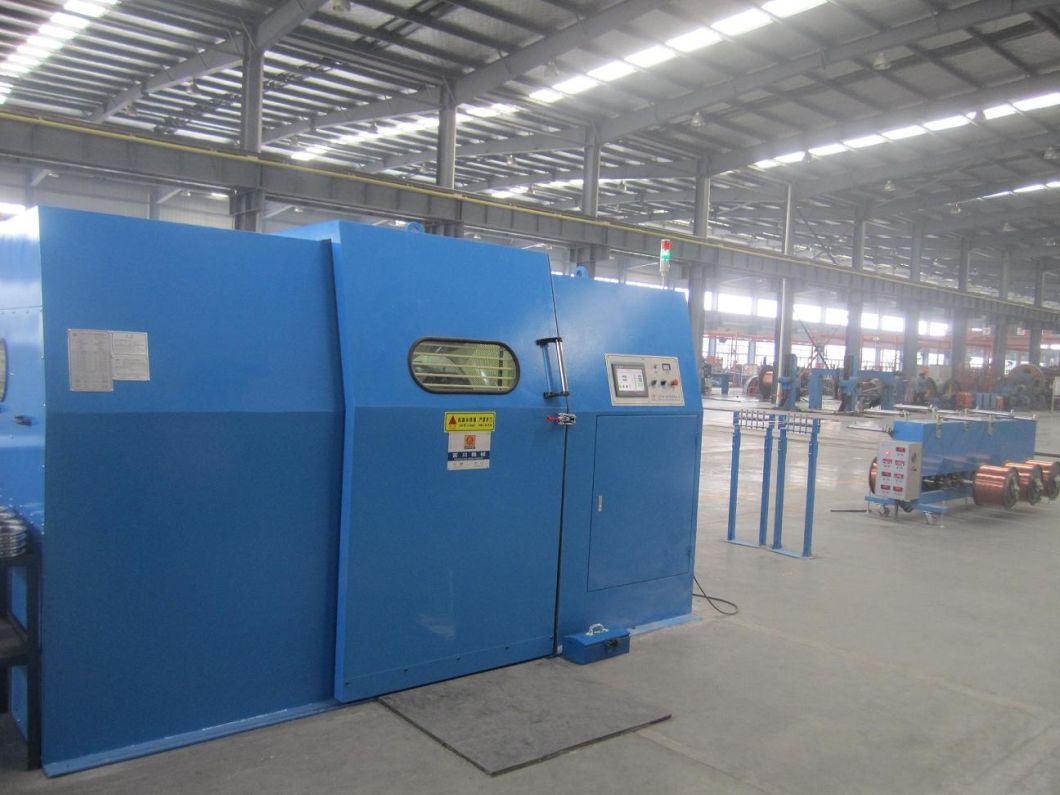

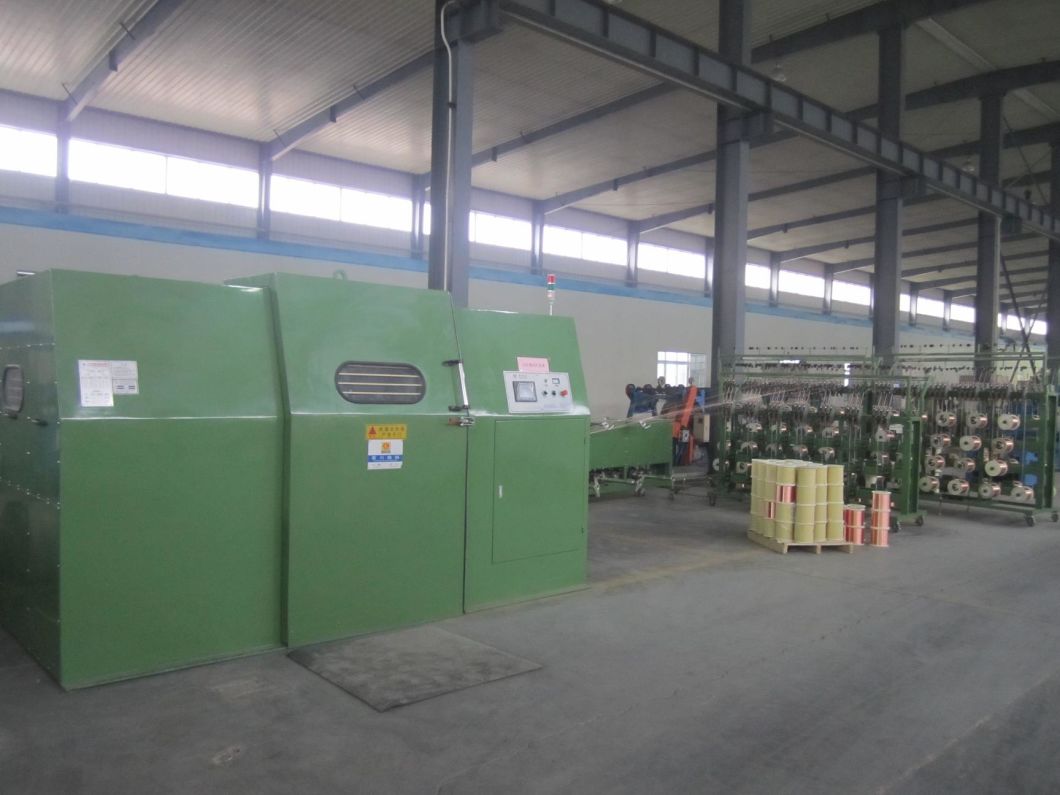

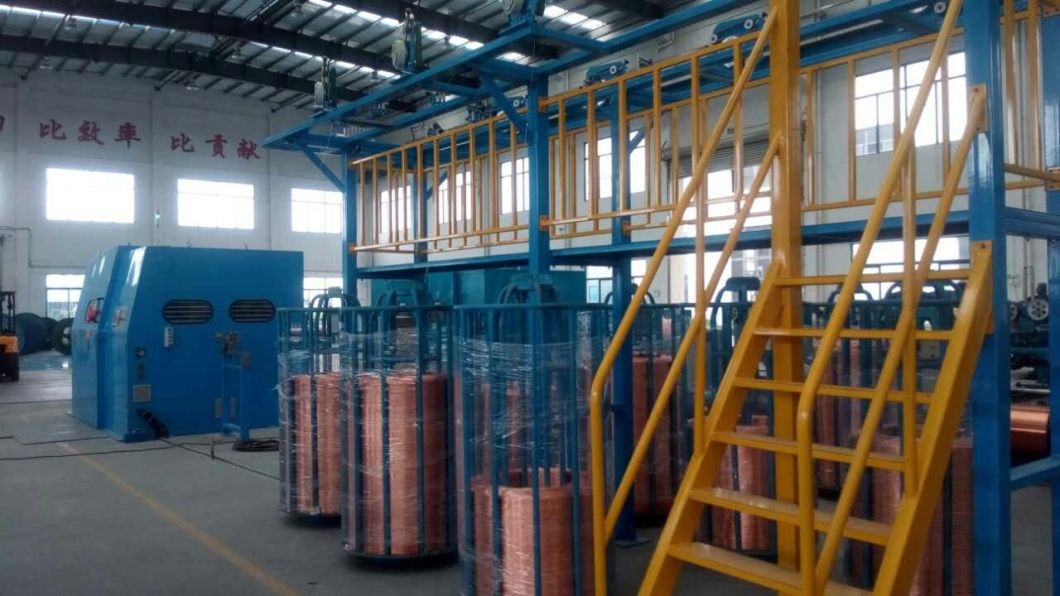

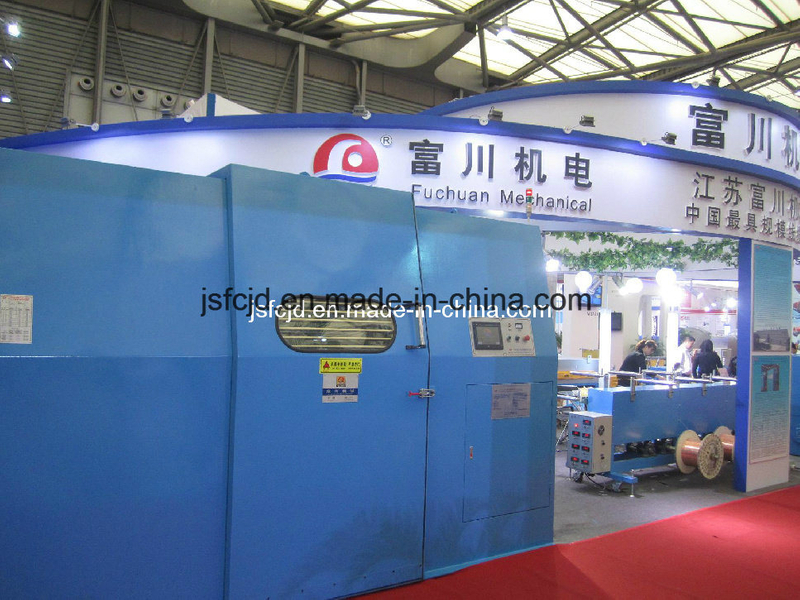

Cable Copper Wire 0.85-2.14mm Twister Stranding Double Twisting Buncher Making Single Unilay Bunching Machine

Main performance parameters of FC-650B automatic high speed bunching machine (replace of the capstan wheel to change the lay length).

1. Usage:It is applied to the stranding of bare copper wire, tinned wire, copper covered aluminum wire, lacquer wire and alloy wire and so on. 1+6 may twist instead of bunching.

2.Diameter of single copper wire: φ0.16~φ1.04mm
3.Outer diameter of wire: φ0.84~φ3.2mm;
4.Cross section area: φ0.40~φ6mm²

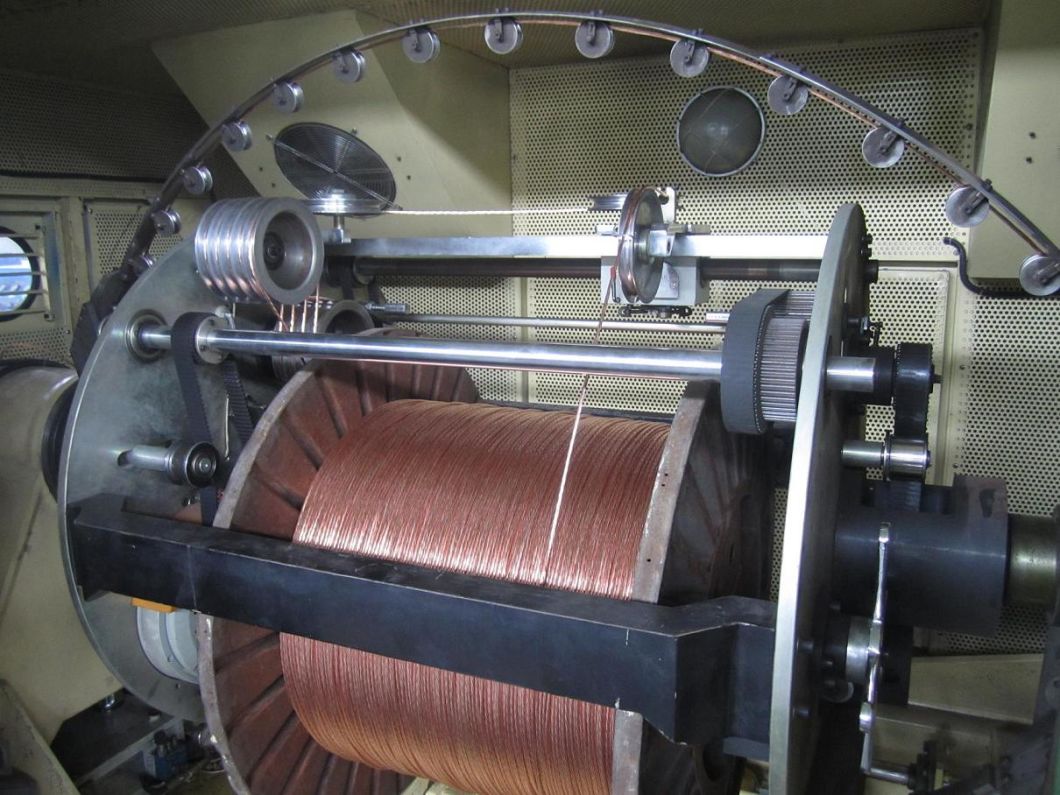

5.Size of take up spool: φ630mm×430mm×φ125mm(according to client's drawings to make).
6. Maximum rotating speed:2000rpm(4000twist),in normal working speed1800rpm(3600twist).
7.Type of traverse: φ30mm rolling ring traverse, winding pitch and breadth are adjustable.
8. Standard lay length: 34 section 11.6~100mm (enclose list of standard lay length).
9. Main motor: 7.5KW AC motor +frequency converter
10. Weight of copper load: about 400kg
11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension.
14. Whole machine drive bearing:main shaft is from Sweden SKF bearing,other is adopted imported Japan NSK bearing.
15. Synchronization strap: with imported from American.
16. Spool from top to bottom: it is adopted manual hydraulic pump lifting.
17. Way of spindle lubrication: butter lubrication.
18. Index of noise: lower than 82dB
19. Dimension: 3300L×1450W×1650H(mm)
20. Weight: 4500Kg
21. Coating: Ral5015sky blue (may according to customer's requirements).
22. Package: simple waterproof packing
23. Direction: this machine is on your left, when you are in the face of front door, and pay-off on your right (may according to customer's requirements to make).
24. Sealing of machinery door: seal of plastic.
25. Spindle housings sealing: mechanical block oil ring








Series for Model B large wire high speed bunching machine

1. Characters:
With high rotation speed, the main shaft counts the meters, the same machine twist with the same type to line, and the tolerance is only 0.0001%, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate. 1 + 6 soft copper conductor winding complex can be substituted for the tube ground machine, linear velocity is speed tube with two times, the ground machine core wires into power cable can instead of single twist into a cable machine, linear velocity is single twist with speed into a cable machine twice.

2. Application:
It is applied to the twisting of above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wire and double twisting for core wires.

3. Technical parameters:
Single Wire Dia: φ 0.30~φ 1.7
Stranding Section Area: 6.0~35.0
Core Wire Single Wire Dia: φ 2.0~φ 5.0
Core Wire Stranding Outer Dia: φ 4.0~φ 10.0
Pitch: 35-200
Direction of Lay: Optional for right or left
Take-up Bobbin size: Φ 1000*φ 80*750
Max Rotating Speed: 1000(2000twist)
Main Motor Power: 18.5KW
Inverter Power: 18.5KW
Tension Control Method: Touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin.
Magnetic Powder Clutch: 20kgf
Protection: Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake Mode: Electromagnetic Brake
Traversing Method: Rolling ring drive units, winding pitch and breadth are adjustable.
Operation Mode: Touch Screen Operation
Dimension(mm): 4000L*2200W*2100H

For more details, please contact me.
