Cable Copper Wire Plastic Wire Making Twist Winding Extruder Extrusion Bunching Buncher Drawing Annealing Tinning Coiling Price Single Double Twister Machine
-
12 Months
-
380V
-
Automatic
-
ISO
-
500 or 630 Bobbin
-
630-800bobbin
Torsion-free double twist machine series

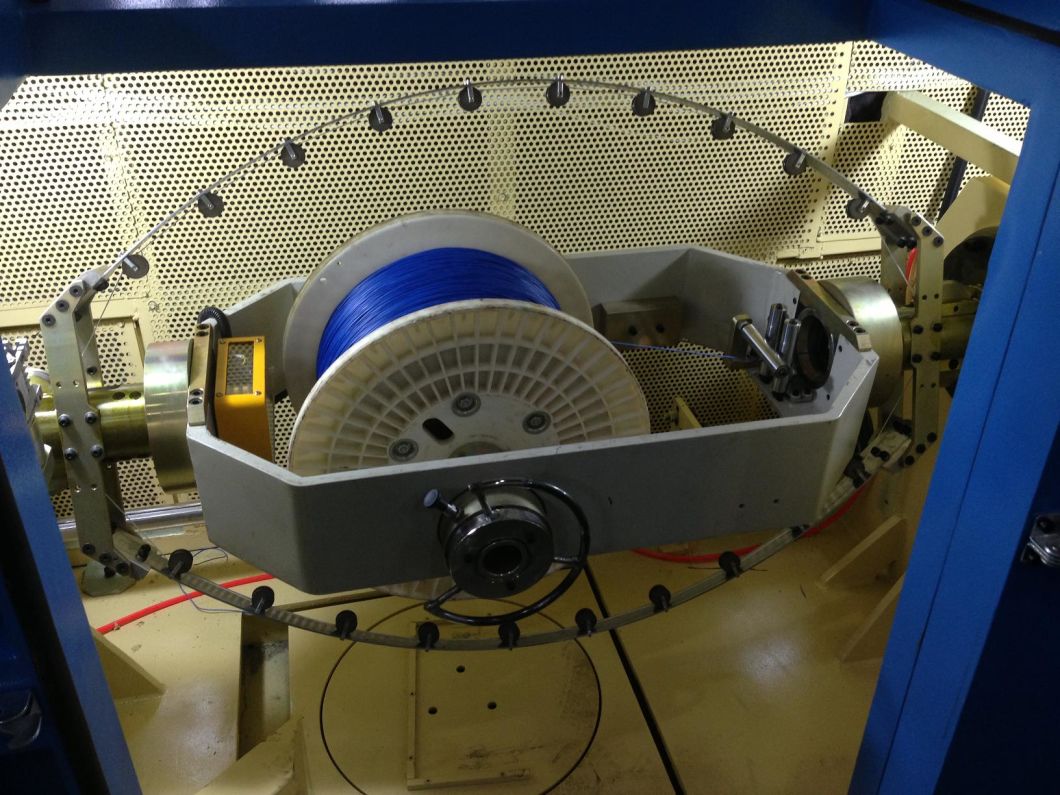

(It is applied for high frequency data cable no torsion twist, fit for 2-7pcs of core wire cabling or 2-4pcs core wire cabling and with filling material, and achieve the bundling function(when wrapping tape is break the machine will stop automatically). Machine is magnetic stable tension pay off, this cabling type, make the insulated core wire interlace uniformly, avoid the non-uniform twist force, thus make the finished wire with the uniform, precision pitch. Highly improved the quality and stability of the cable wires.
Equipment Models FC-500E(3+1) FC-500E(6+1) FC-630E(3+1) FC-630E(6+1) Core wire single wire diameter(mm) φ1.0~φ3.2 φ1.0~φ3.2 φ2.0~φ5.0 φ2.0~φ5.0 Core wire stranding outer diameter(mm) φ2.0~φ7.5 φ2.0~φ9.6 φ4.0~φ11.5 φ4.0~φ15.0 Pitch(mm) 10-100(computer pitch) 20-160(computer pitch) Direction of Lay optional for right or left Max Rotating Speed(rpm) 1500 1000 1000 800 Tension control method magnetic tension control, can be adjust outside machine pay off bobbin size φ500 bobbin Φ630 bobbin filling material cotton rope ,yarn, fiber paper wrapping machine centre wrapping, when wrapping tape is break the machine will stop automatically. paper taping size outside diameter φ300*internal hole φ51*width10~40mm hauling wheel diameter φ410 φ510 take up bobbin φ630-800 bobbin φ1000-1250 bobbin Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. Traversing Method Rolling ring drive units, winding pitch and breadth are adjustable. pay off lifting type electric hydraulic/lead screw lifting take up lifting type electric hydraulic/lead screw lifting Torsion-free double twist machine series
(It is applied for high frequency data cable no torsion twist, fit for 2-7pcs of core wire cabling or 2-4pcs core wire cabling and with filling material, and achieve the bundling function(when wrapping tape is break the machine will stop automatically). Machine is magnetic stable tension pay off, this cabling type, make the insulated core wire interlace uniformly, avoid the non-uniform twist force, thus make the finished wire with the uniform, precision pitch. Highly improved the quality and stability of the cable wires. Equipment Models FC-500E(3+1) FC-500E(6+1) FC-630E(3+1) FC-630E(6+1) Core wire single wire diameter(mm) φ1.0~φ3.2 φ1.0~φ3.2 φ2.0~φ5.0 φ2.0~φ5.0 Core wire stranding outer diameter(mm) φ2.0~φ7.5 φ2.0~φ9.6 φ4.0~φ11.5 φ4.0~φ15.0 Pitch(mm) 10-100(computer pitch) 20-160(computer pitch) Direction of Lay optional for right or left Max Rotating Speed(rpm) 1500 1000 1000 800 Tension control method magnetic tension control, can be adjust outside machine pay off bobbin size φ500 bobbin Φ630 bobbin filling material cotton rope ,yarn, fiber paper wrapping machine centre wrapping, when wrapping tape is break the machine will stop automatically. paper taping size outside diameter φ300*internal hole φ51*width10~40mm hauling wheel diameter φ410 φ510 take up bobbin φ630-800 bobbin φ1000-1250 bobbin Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. Traversing Method Rolling ring drive units, winding pitch and breadth are adjustable. pay off lifting type electric hydraulic/lead screw lifting take up lifting type electric hydraulic/lead screw lifting
