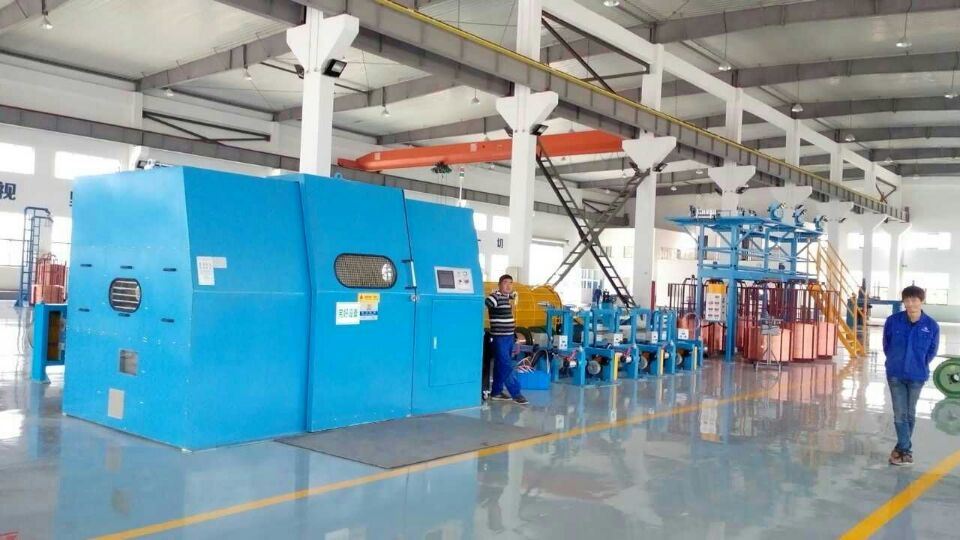

Cable Wire Making Winding Twisting Stranding Bunching Extrusion Extruder Making Drawing Copper Wire Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
>1,000,000 Shots

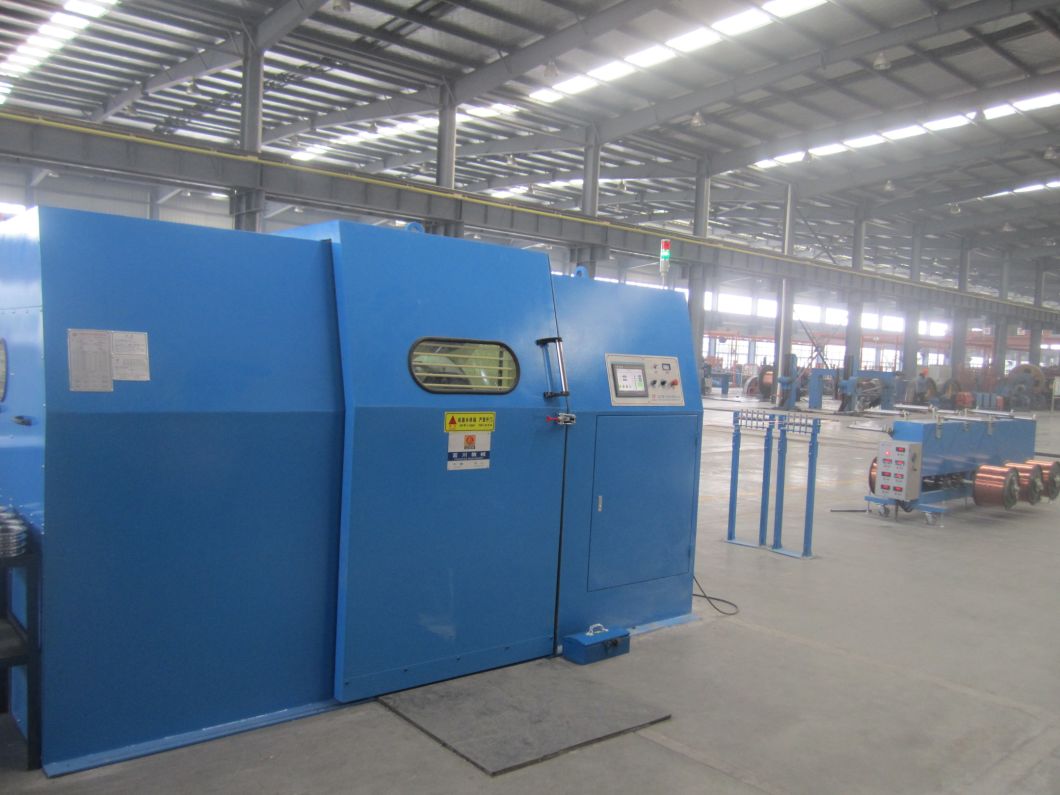

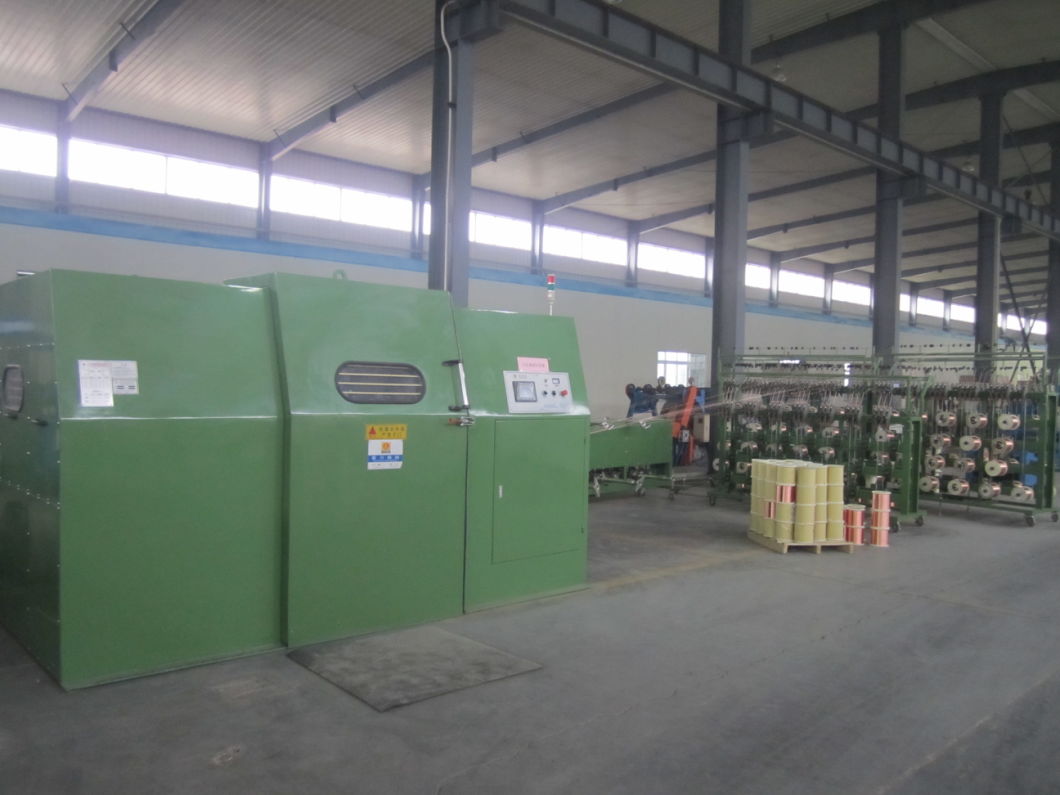

Main performance parameters of FC-1000B automatic high speed bunching machine (replace of the capstan wheel to change the lay length).- Usage: It is applied to the stranding of bare twisted wire, tinned, copper covered aluminum, lacquer wire and alloy wire. 1+6 may twist instead of bunching.
3.Core wire: φ2.0~φ5.0mm;
4.Cross section area: φ2.0~φ25mm2

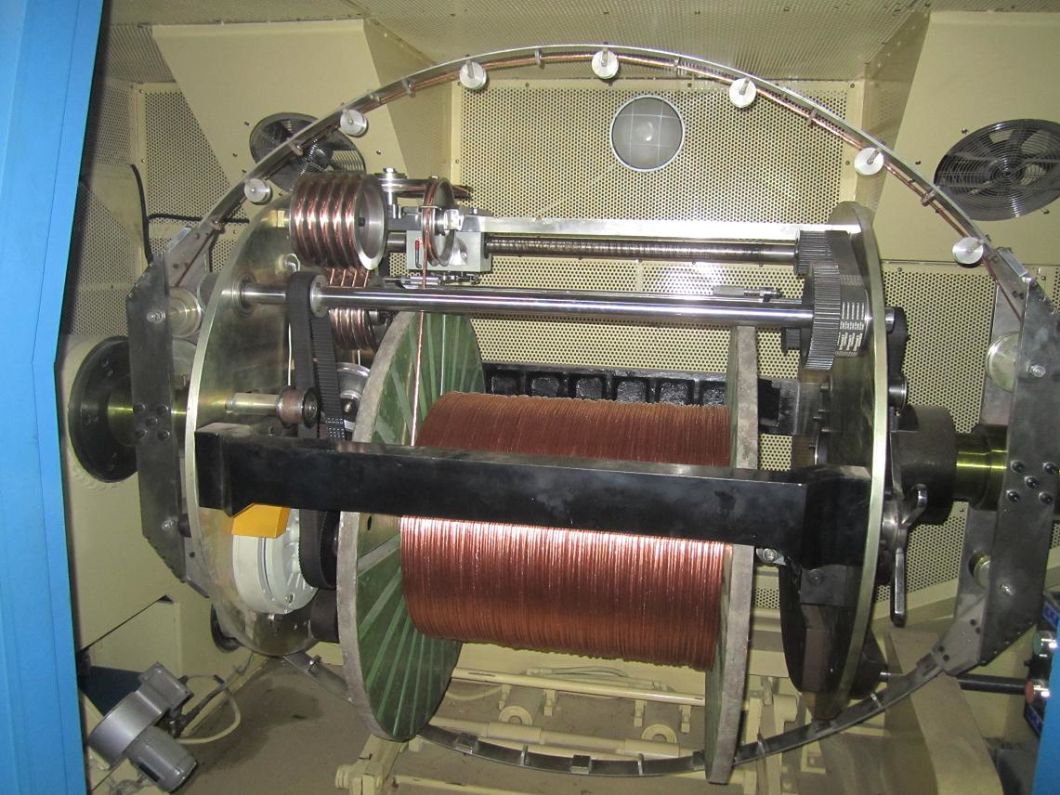

5.Size of take up spool: φ1000mm×750mm×φ80mm(according to client's drawings to make).
6. Maximum rotating speed: 1000RPM
7.Type of traverse: φ50mm rolling ring traverse, winding pitch and breadth are adjustable.
8. Standard lay length: 35~154mm (enclose list of standard lay length).
9. Main motor: 18.5KW AC motor +frequency converter
10. Weight of copper load: about 1600kg
11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension.
14. Drive bearing: it is adopted imported Japan bearing.
15. Synchronization strap: it is adopted imported American product.
16. Spool from top to bottom: it is adopted manual pump hydraulic landing.
17. Way of spindle lubrication: butter lubrication.
18. Index of noise: about 80dB
19.Dimension: (length×breadth×height): 4000×2100×2200mm
20. Weight: 4500Kg
21. Coating:Ral5015 sky blue (may according to customer's requirements).
