Copper Conductor Wire0.03-2.52mm, Alu Wire Making Bunching Buncher Stranding Extrusion Extruder Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
300,000-1,000,000 Shots

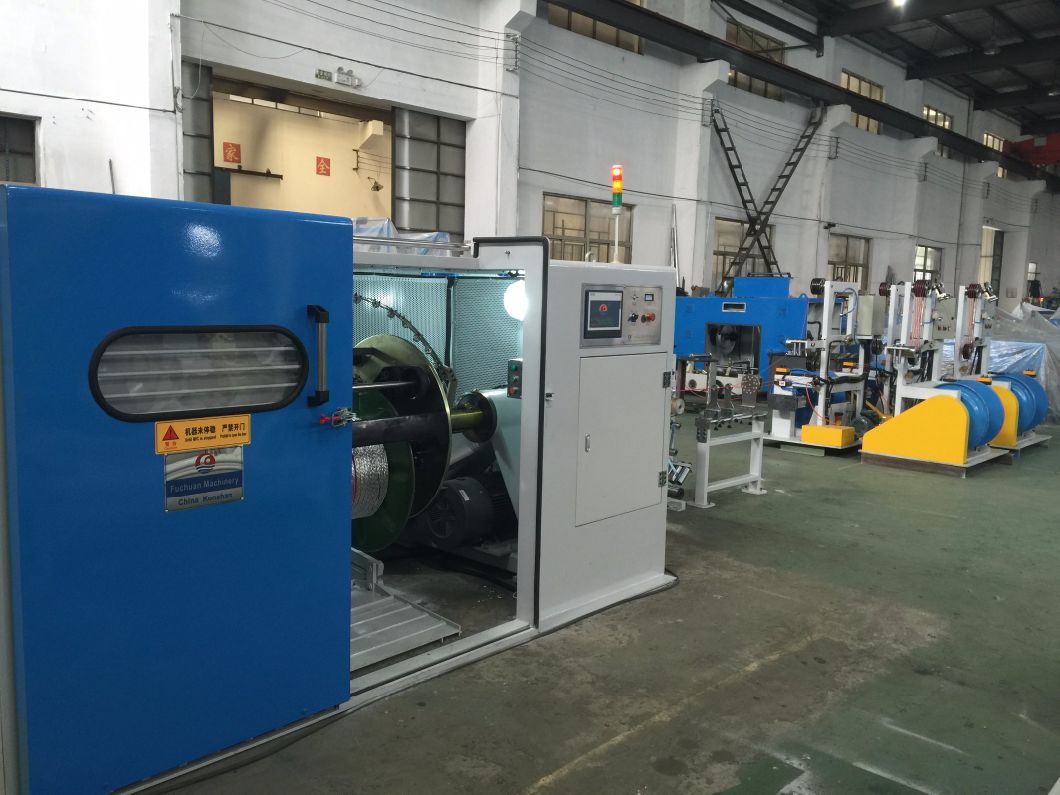

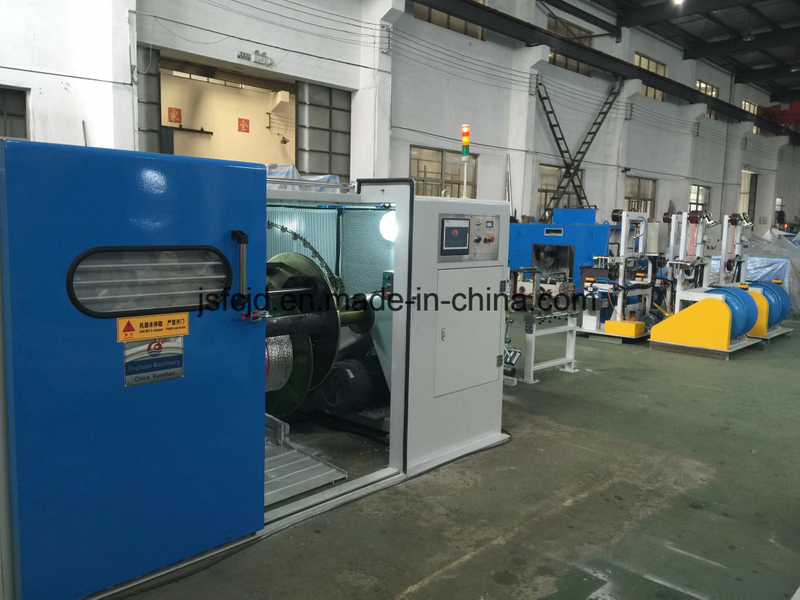

A. Main performance parameters of FC-800B automatic high speed bunching machine (replace of the capstan wheel to change the lay length).- Usage: It is applied to the stranding of bare twisted wire, tinned, copper covered aluminum, lacquer wire and alloy wire. 1+6 may twist instead of bunching.
Outer diameter of twisted copper wire: φ1.0~φ5.5mm ;
4.Cross s ection area: φ 1.0 ~φ16mm 2
5.Size of take up spool: φ800mm×600mm×φ80mm(according to client's drawings to make).
6. Maximum rotating speed: 1 5 00RPM( 30 00twist/min)
normal working 1200rpm(2400twist/min)
7.Type of traverse: φ40mm rolling ring traverse, winding pitch and breadth are adjustable.
8. Standard lay length: 48 ~1 2 0mm (enclose list of standard lay length).
9. Main motor: 15KW AC motor +frequency converter
10. Weight of copper load: about 800kg
11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension.
14. Drive bearing: it is adopted imported Japan bearing.
15. Synchronization strap: it is adopted imported American product.
16. Spool from top to bottom: it is adopted manual pump hydraulic landing.
17. Way of spindle lubrication: butter lubrication. (oil adding automatically by PLC)
18. Index of noise: about 8 2 dB
19.Dimension: (length×breadth×height): 3 2 00×2000×1 73 0 mm
20. Weight: 5500Kg
21. Coating: sky blue (may according to customer's requirements).
22. Package: simple waterproof packing
23. Direction: this machine is on your left, when you are in the face of front door, and pay-off on your right (may according to customer's requirements to make).
24. Sealing of machinery door: seal of plastic.
25. Spindle housings sealing: mechanical block oil ring
