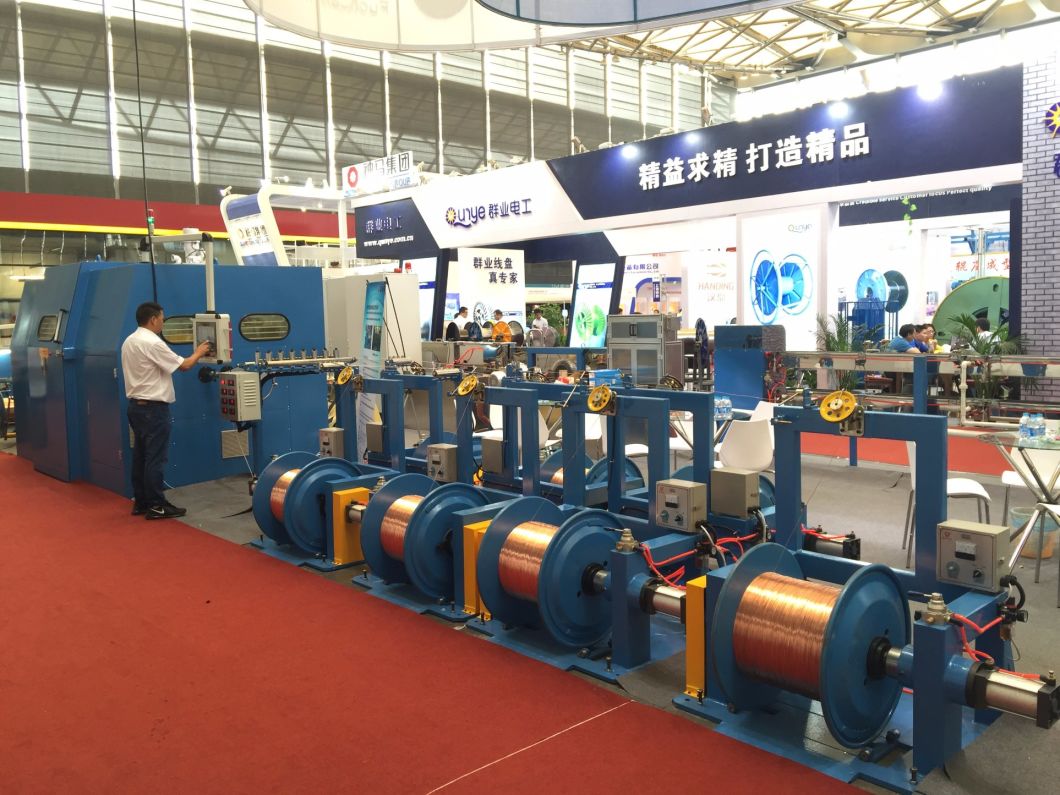

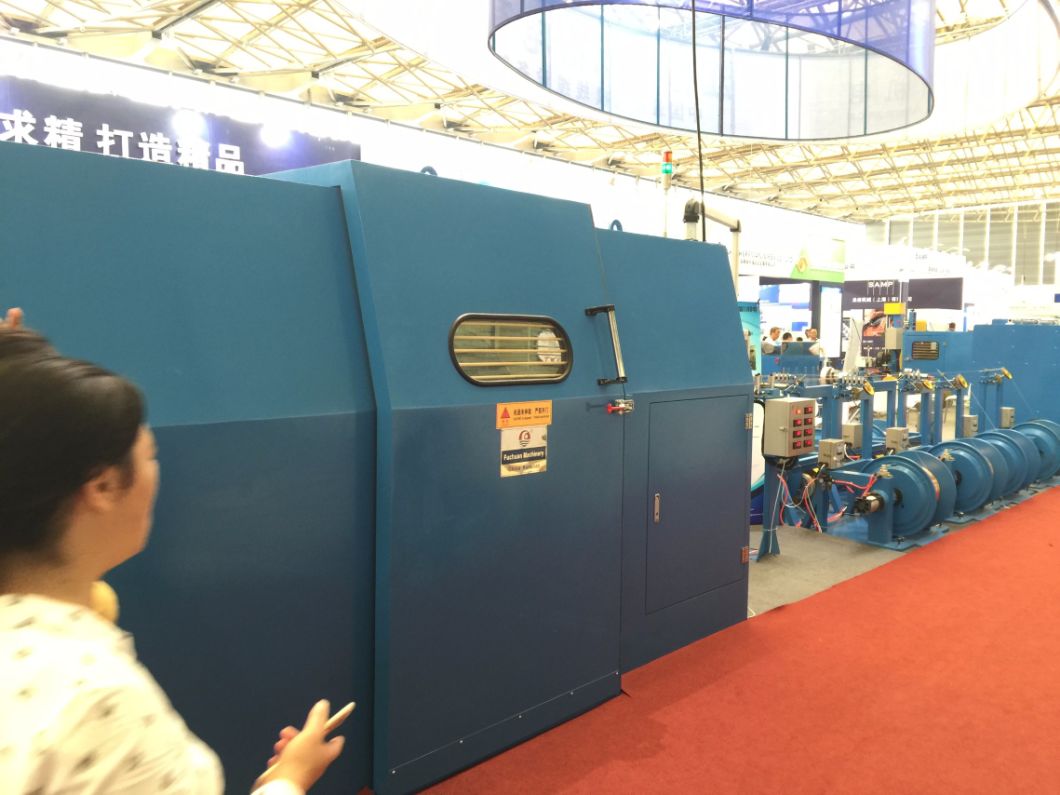

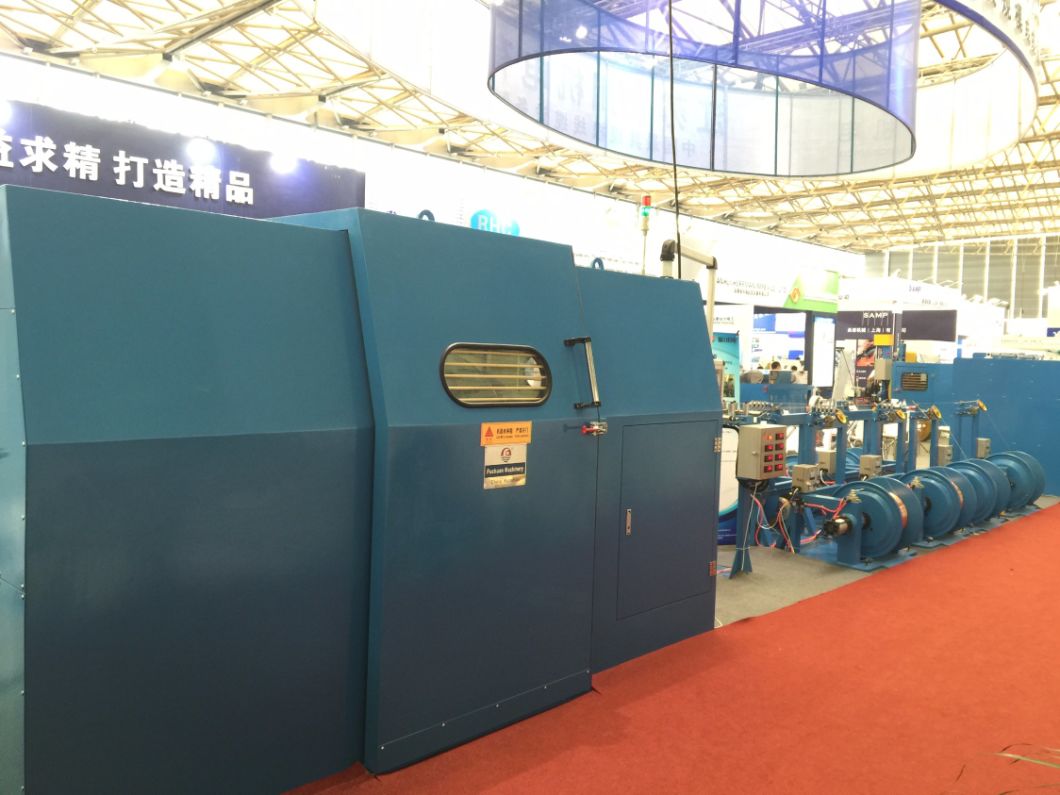

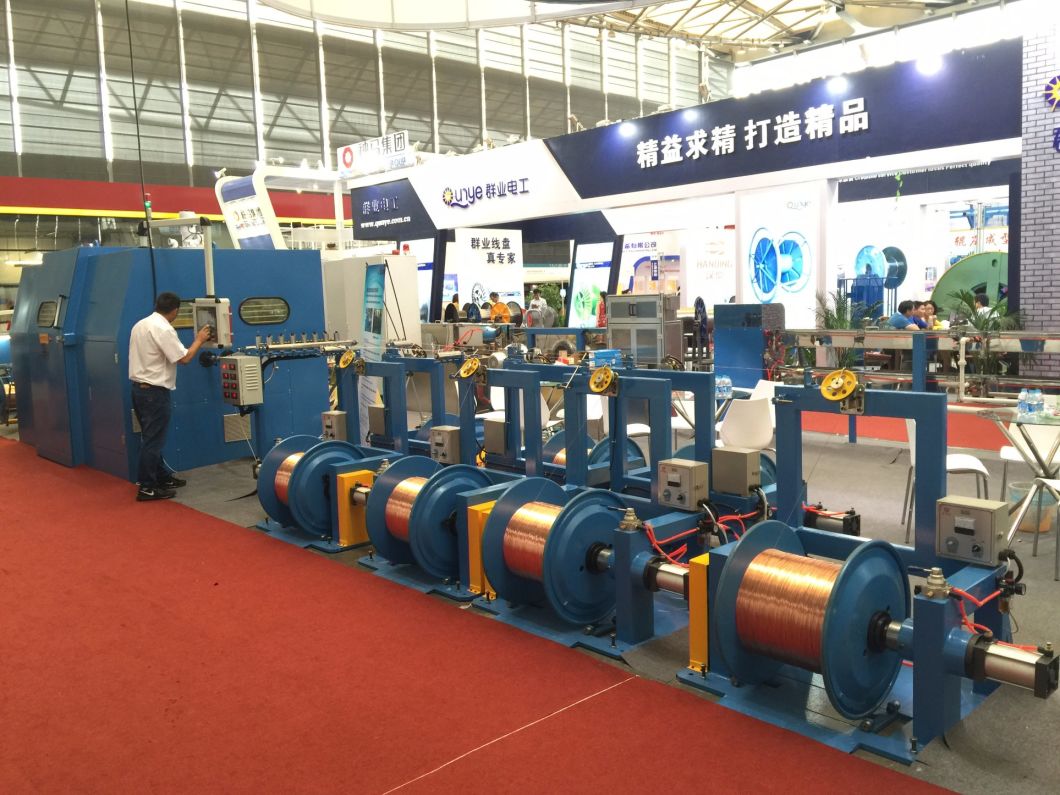

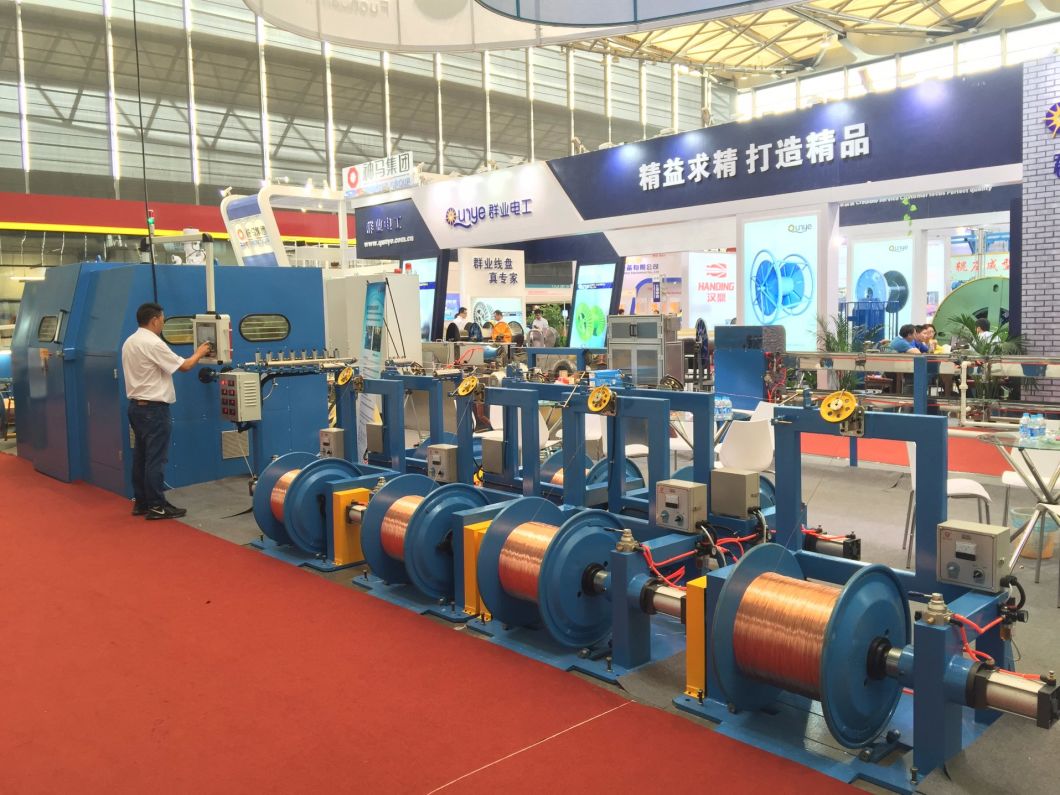

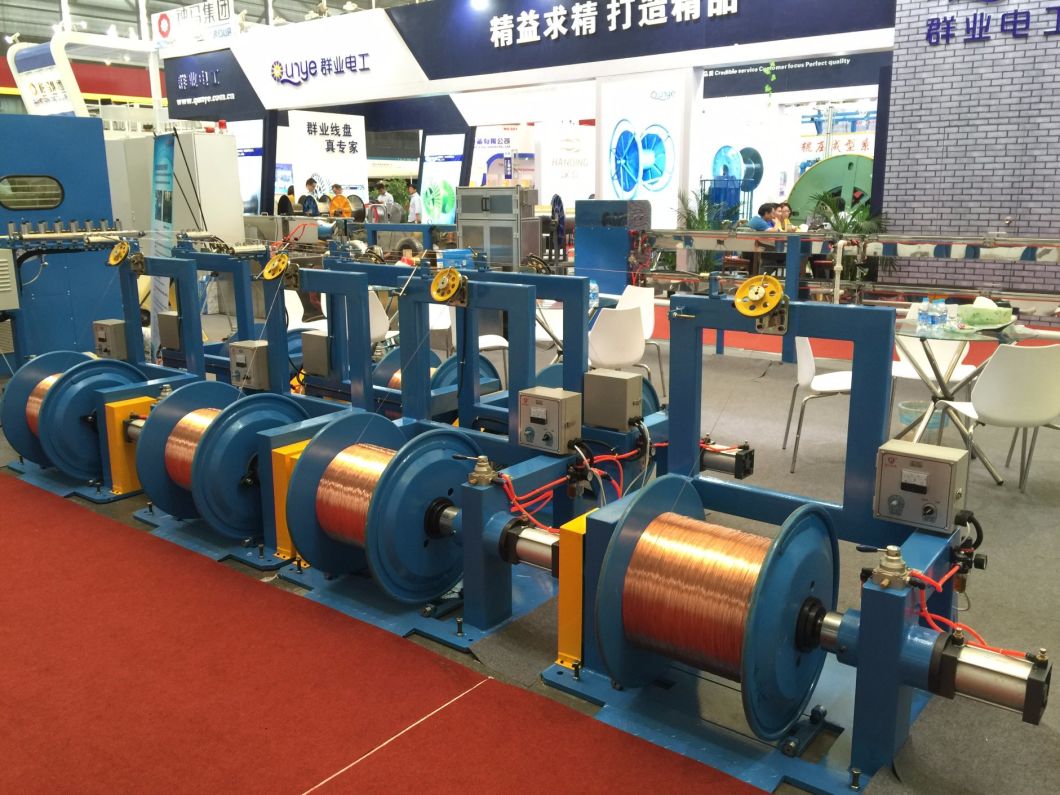

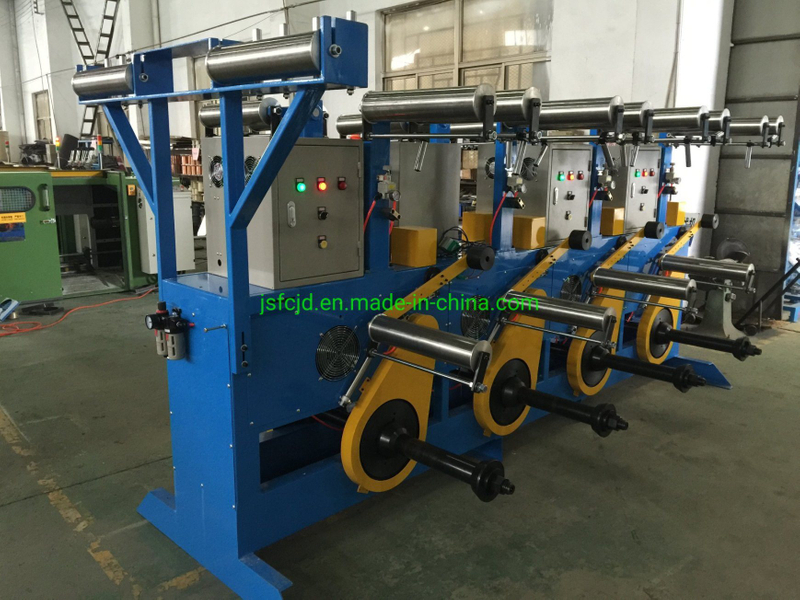

Copper Core Wire Double Twist Winding Bunching Twisting Stranding Extrusion Machine

Series for Model B large wire high speed bunching machine

1. Characters:
With high rotation speed, the main shaft counts the meters, the same machine twist with the same type to line, and the tolerance is only 0.0001%, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate. 1 + 6 soft copper conductor winding complex can be substituted for the tube ground machine, linear velocity is speed tube with two times, the ground machine core wires into power cable can instead of single twist into a cable machine, linear velocity is single twist with speed into a cable machine twice.

2. Application:
It is applied to the twisting of above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wire and double twisting for core wires.

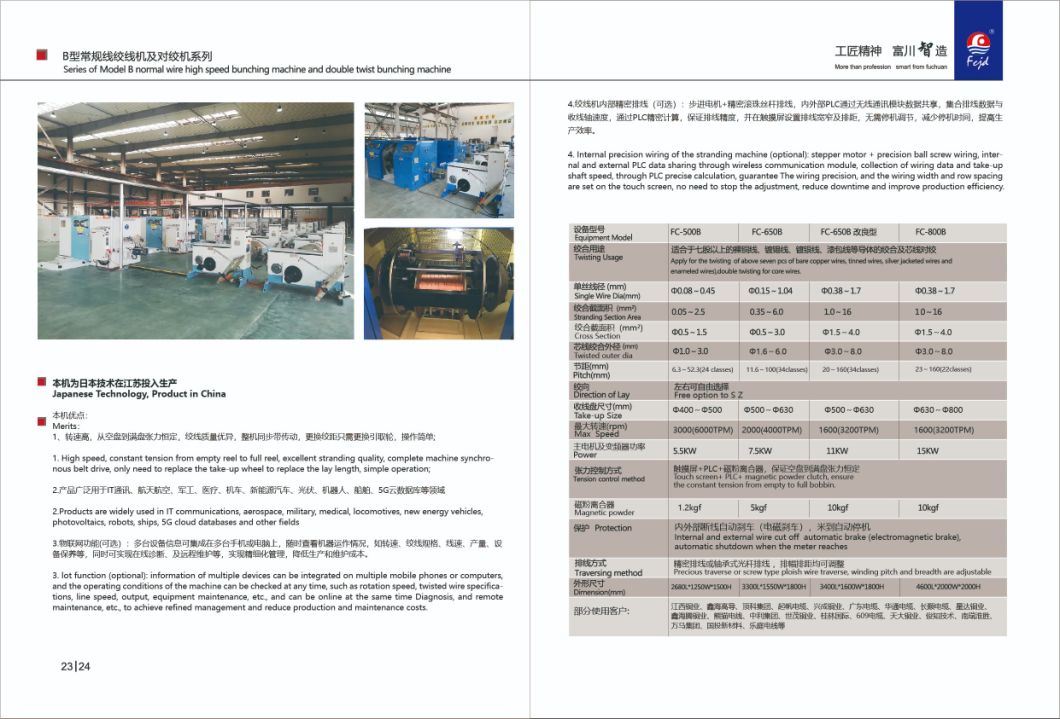

3. Technical parameters:

For more details, please contact me.
