Copper Wire and Cable Making Winding Extrusion Twisting Double Twist Bunching Twisting Extrusion Drawing Coiling Recycling Cable Stranding Machinery Machine
-
0.16 to 0.64
-
0.38 to 6.0
-
Touch Screen+PLC+Magnetic Powder Clutch
-
Customized
-
10000L 2500W 1650H mm
-
FUCHUAN

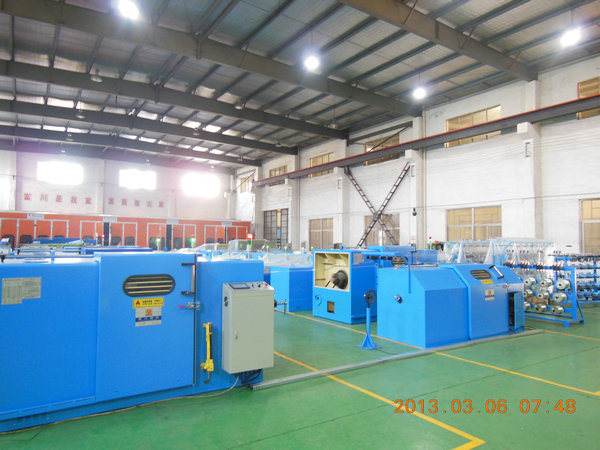

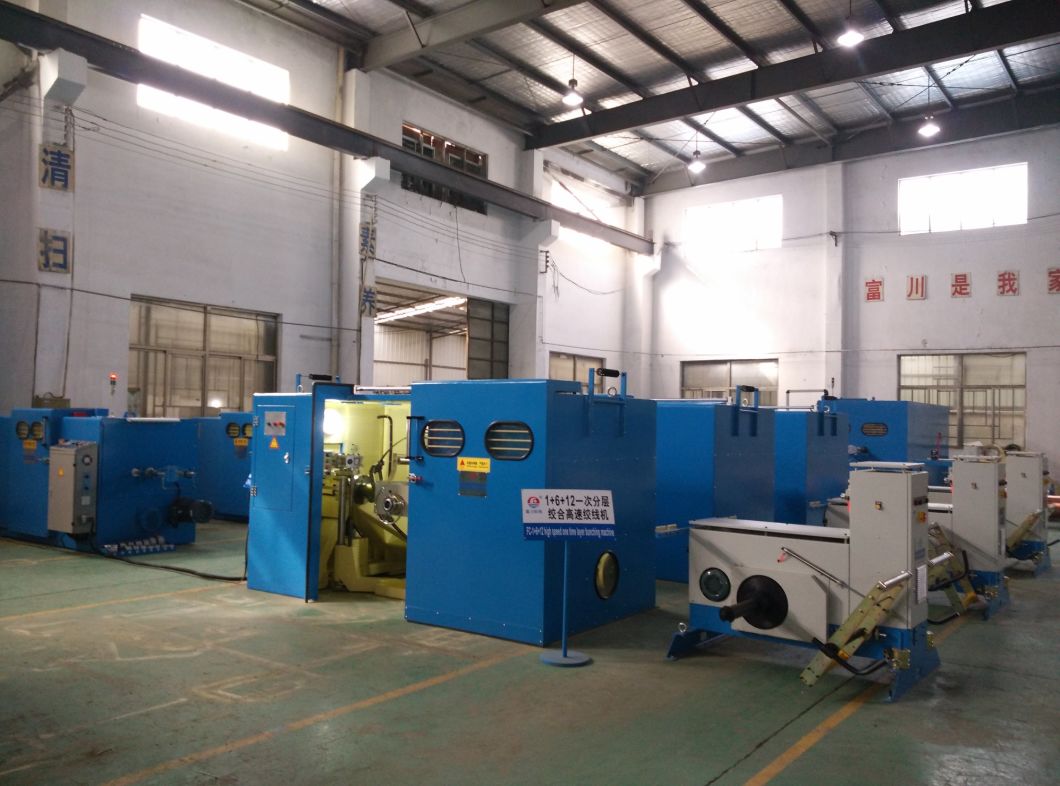

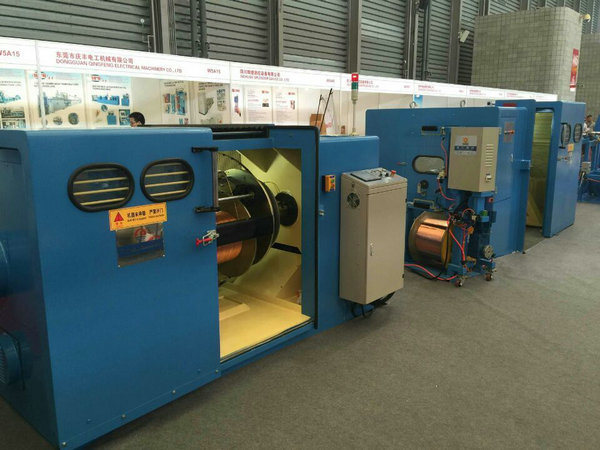

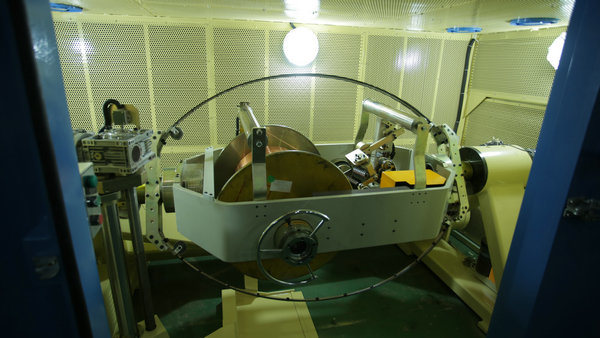

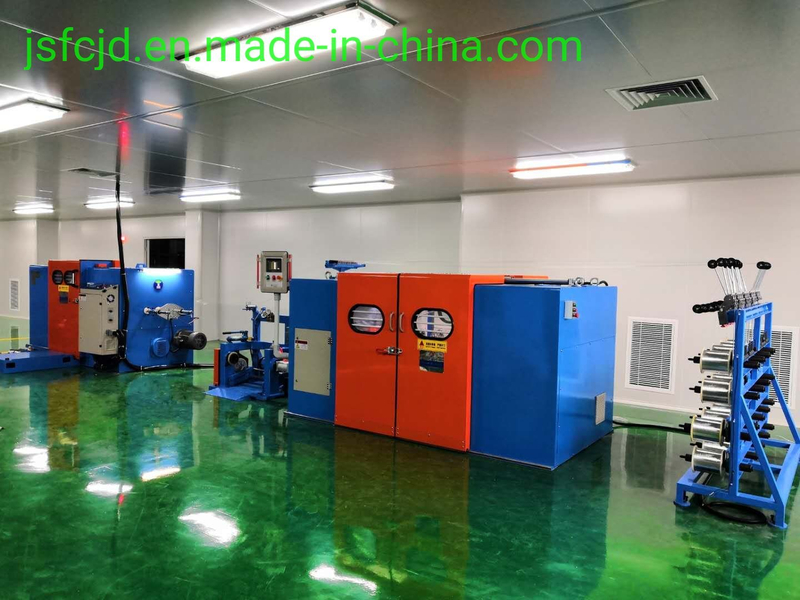

FUCHUAN 19*0.41, 19*0.52, 19*0.64 1+6+12 Copper Wire Bunching Machine
Quick Details:

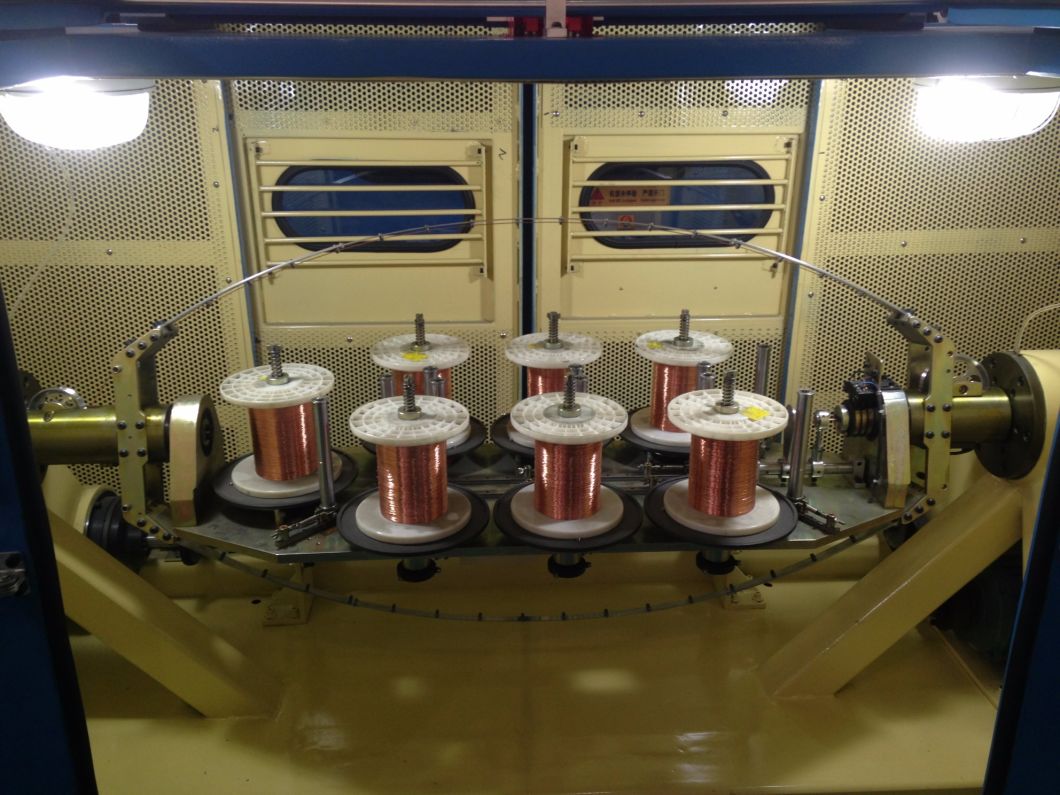

Series for 1+6+12 bunching machine 19pcs copper wires φ0.16mm - φ0.64mm in one time
a. It is Fuchuan latest developed machine
b. This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than tube machine for the 1+6+12 conductors normal bunching)
c. low power, small floor place, low noise and other merits.Characteristics:
A. New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),
B. Energy-saving, small size, low noise, etc.
Series for 1+6+12 bunching machine Characteristics:: New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),energy-saving, small size, low noise, etc.
Equipment models 1+6+12(200 and 250bobbin) 1+6+12(630bobbin) Twisting usage Apply for bunching 19pcs copper wires synchronous Single wire dia(mm) 0.16~0.64 Stranding section area (mm²) 0.38~6.0 Pitch(mm) 11.6-100(34classes) Direction of lay Free to right or left Pay-off bobbin size 8inch,9inch OD630 ID125 H475 Pay-off type Mechanical friction Magnetic powder tension Take-up bobbin size OD630 ID127 H475 or OD630 ID56 H475
(Customized)OD630 ID127 H475 or OD630 ID56 H475
(Customized)Max rotating speed 2000rpm(4000twist) 2000rpm(4000twist) Pay-off machine power 5.5KW 7.5KW Pay-off Inverter Power 7.5KW 7.5KW Take-up motor power 7.5KW 7.5KW Take-up Inverter Power 7.5KW 7.5KW Tension control Touch screen+PLC+magnetic powder clutch, ensure the constant tension from empty to full bobbin Magnetic powder clutch 5kgf 5kgf Protection automatically brake/stop 1)wire inside and outside is broken
2)the preset length is arrivedBrake mode Electromagnetic brake Traversing method Rolling wire with ring drive units, winding pitch and breadth are adjustable Operation Touch screen Dimension(mm) 10000L 2500W 1650H 10000L 2500W 1650H
FUCHUAN 19*0.41, 19*0.52, 19*0.64 1+6+12 Copper Wire Bunching Machine
Quick Details:
Series for 1+6+12 bunching machine 19pcs copper wires φ0.16mm - φ0.64mm in one time
a. It is Fuchuan latest developed machine
b. This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than tube machine for the 1+6+12 conductors normal bunching)
c. low power, small floor place, low noise and other merits.Characteristics:
A. New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),
B. Energy-saving, small size, low noise, etc.
Series for 1+6+12 bunching machine Characteristics:: New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),energy-saving, small size, low noise, etc.
Equipment models 1+6+12(200 and 250bobbin) 1+6+12(630bobbin) Twisting usage Apply for bunching 19pcs copper wires synchronous Single wire dia(mm) 0.16~0.64 Stranding section area (mm²) 0.38~6.0 Pitch(mm) 11.6-100(34classes) Direction of lay Free to right or left Pay-off bobbin size 8inch,9inch OD630 ID125 H475 Pay-off type Mechanical friction Magnetic powder tension Take-up bobbin size OD630 ID127 H475 or OD630 ID56 H475
(Customized)OD630 ID127 H475 or OD630 ID56 H475
(Customized)Max rotating speed 2000rpm(4000twist) 2000rpm(4000twist) Pay-off machine power 5.5KW 7.5KW Pay-off Inverter Power 7.5KW 7.5KW Take-up motor power 7.5KW 7.5KW Take-up Inverter Power 7.5KW 7.5KW Tension control Touch screen+PLC+magnetic powder clutch, ensure the constant tension from empty to full bobbin Magnetic powder clutch 5kgf 5kgf Protection automatically brake/stop 1)wire inside and outside is broken
2)the preset length is arrivedBrake mode Electromagnetic brake Traversing method Rolling wire with ring drive units, winding pitch and breadth are adjustable Operation Touch screen Dimension(mm) 10000L 2500W 1650H 10000L 2500W 1650H
